Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

22 part groups · 12 illustrations

Illustrations

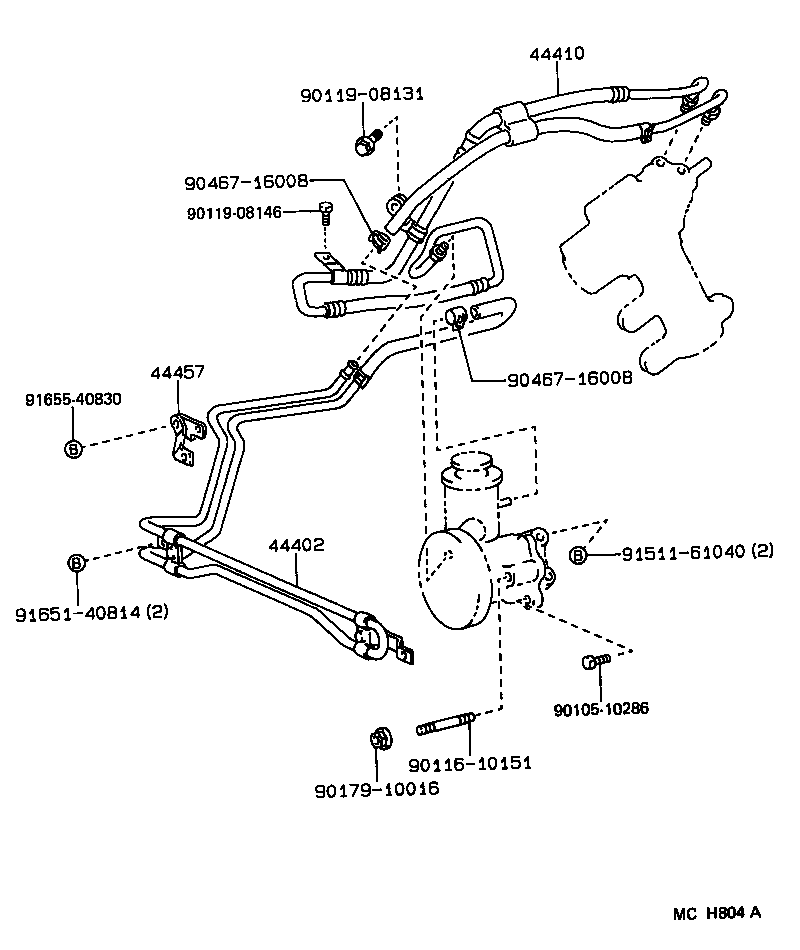

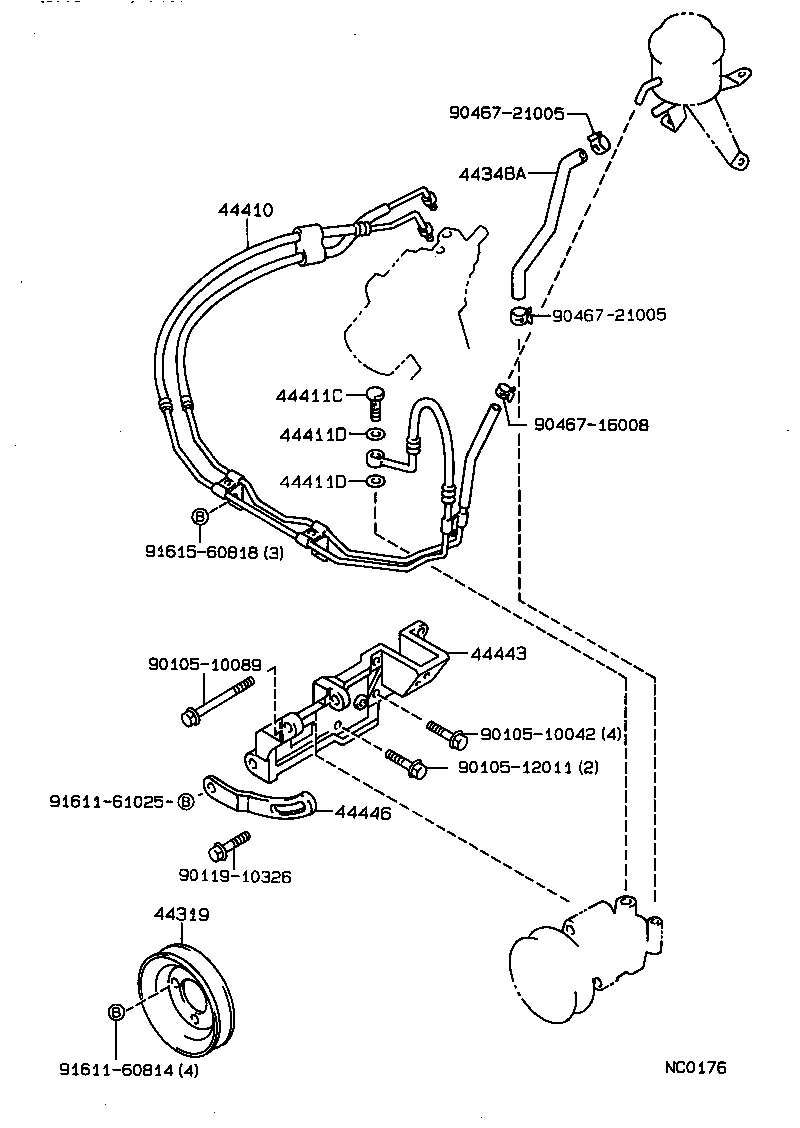

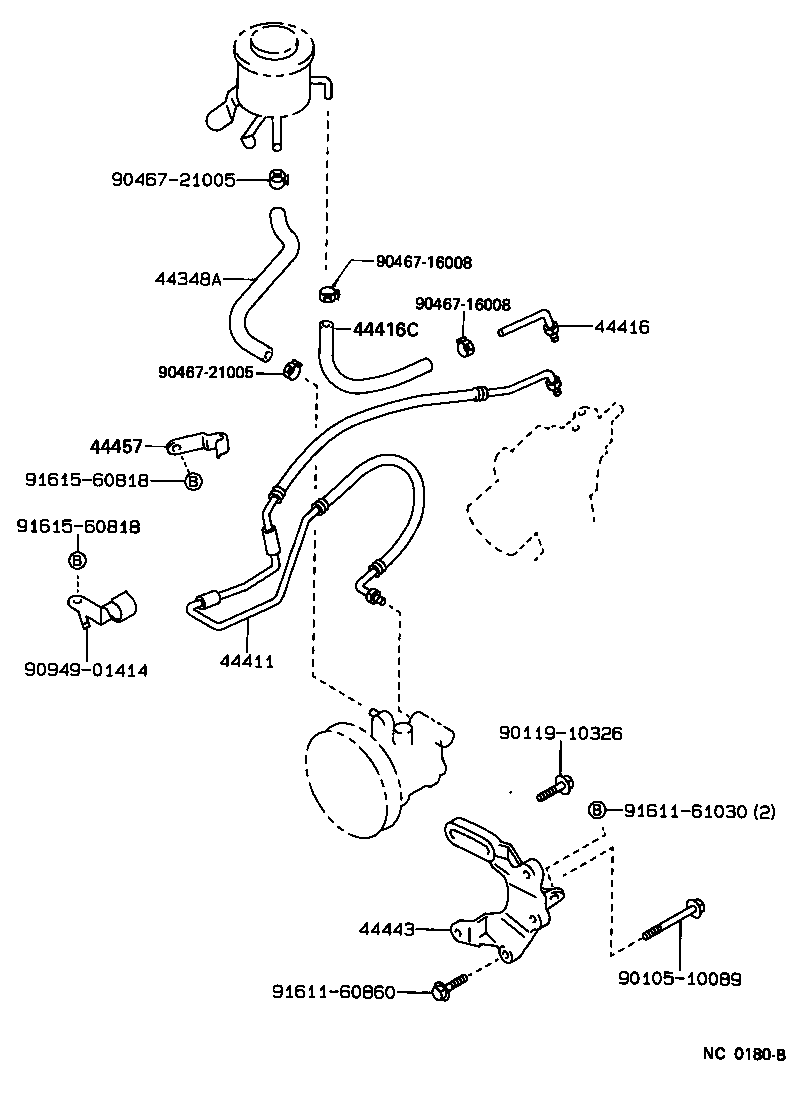

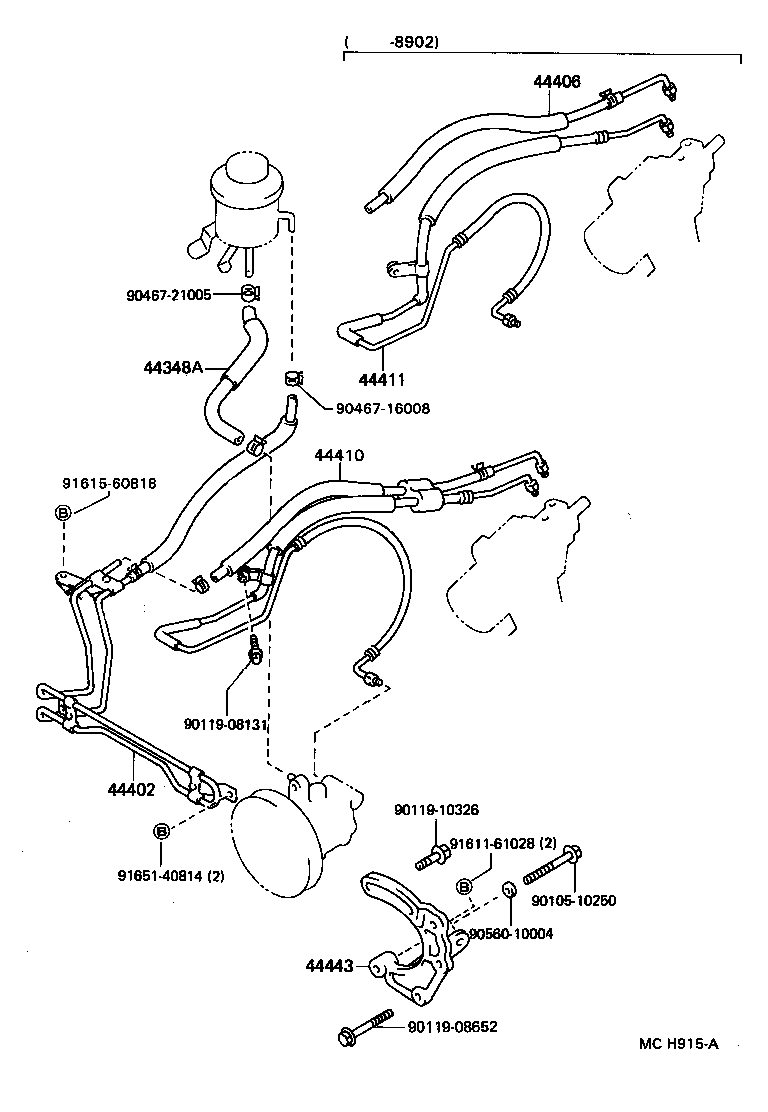

Figure MCL393 MCL393 1987-09 → — Figure NC0179 NC0179 1987-09 → — Figure NC0180B NC0180B 1987-09 → — Figure MCH915A MCH915A 1988-09 → — Figure NC0181C NC0181C 1987-09 → — Figure MCL026A MCL026A 1990-08 → — Figure NC0178 NC0178 1987-09 → 1989-08 Figure NC0182A NC0182A 1987-09 → 1989-08 Figure NC5063B NC5063B 1987-09 → — Figure NC5063B NC5063B 1989-08 → — Figure NC0176 NC0176 1987-09 → — Figure MCH804A MCH804A 1989-08 → —

Part groups

PNCDescription
44318 Spacer, Vane Pump Drive Pulley
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44411D Gasket(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44413 Tube, Pressure Feed, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44416C Hose(FOR RETURN TUBE TO RESERVIOR)
44441 Bracket, Pump, Front
44443 Bracket, Pump
44444 Stay, Pump, Rear
44446 Strut, Adjusting
44458 Bracket, Tube Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
