Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04

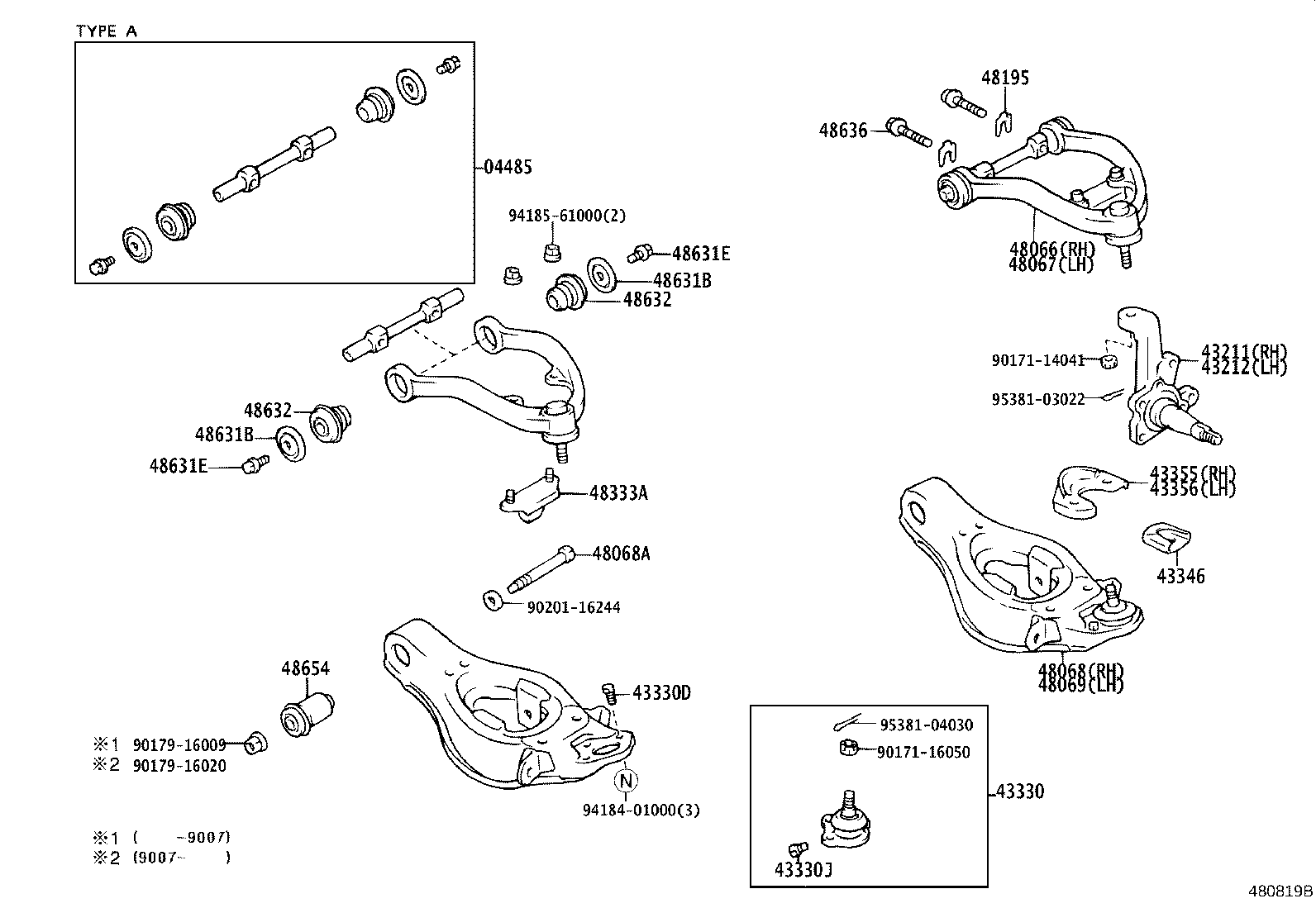

Front Axle Arm & Steering Knuckle
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04485 | Shaft Kit, Upper Suspension Arm |
| 43211 | Knuckle, Steering, RH |
| 43212 | Knuckle, Steering, LH |
| 43310A | Plug (FOR BALL JOINT) |
| 43330 | Joint Assy, Lower Ball, Front |
| 43330D | Bolt (FOR FRONT LOWER BALL JOINT) |
| 43330J | Plug (FOR LOWER BALL JOINT) |
| 43346 | Protector, Lower Ball Joint Dust Cover |
| 43350 | Joint Assy, Front Upper Ball, RH |
| 43355 | Deflector, Lower Arm Ice, RH |
| 43356 | Deflector, Lower Arm Ice, LH |
| 43360 | Joint Assy, Front Upper Ball, LH |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48068A | Bolt(FOR FRONT SUSPENSION LOWER ARM) |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48195 | Shim, Camber Adjust |
| 48333A | Support, Bumper, Front Upper Suspension Arm |
| 48610 | Arm Assy, Front Suspension Upper, RH |
| 48630 | Arm Assy, Front Suspension, Upper LH |
| 48631B | Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM) |
| 48631E | Bolt(FOR UPPER SUSPENSION ARM) |
| 48632 | Bush, Upper Arm |
| 48633 | Seal, Upper Arm Pivot Dust |
| 48636 | Bolt, Upper Arm Set |
| 48637 | Insulator, Upper Arm Bush |
| 48654 | Bush, Lower Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
