Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04

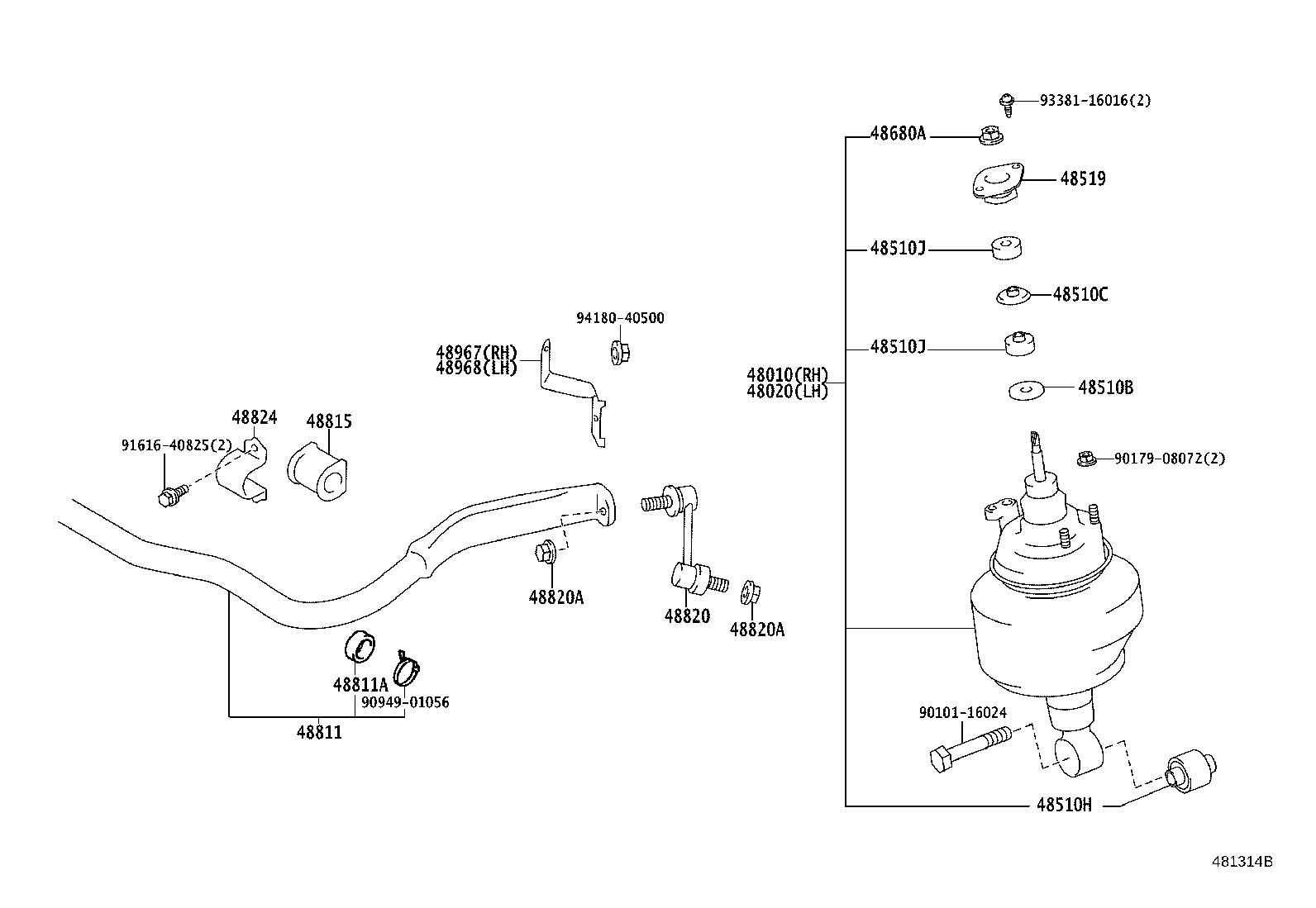

Front Spring & Shock Absorber
33 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 48010 | Cylinder Assy, Pneumatic, Front RH W/Shock Absorber |
| 48020 | Cylinder Assy, Pneumatic, Front LH W/Shock Absorber |
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48157 | Insulator, Front Coil Spring, Upper |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48510H | Bush(FOR FRONT SHOCK ABSORBER) |
| 48510J | Cushion, Front Shock Absorber, NO.1 |
| 48510P | Cushion, Front Shock Absorber, NO.2 |
| 48519 | Bracket, Actuator Support, Front |
| 48520 | Absorber Assy, Shock, Front LH |
| 48559 | Cover, Shock Absorber, Dust |
| 48660 | Bar Assy, Strut, RH |
| 48667 | Retainer, Strut Bar |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674A | Retainer, Cushion(FOR STRUT BAR CUSHION) |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48811 | Bar, Stabilizer, Front |
| 48811A | Bush(FOR FRONT STABILIZER BAR) |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48819A | Bolt, Front Stabilizer |
| 48820 | Link Assy, Front Stabilizer |
| 48820A | Nut(FOR FRONT STABILIZER LINK) |
| 48824 | Bracket, Stabilizer, Front |
| 48967 | End, Sensor Connecting Rod, NO.1 |
| 48968 | End, Sensor Connecting Rod, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
