Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Height Control (AUTO-LEVELER)

40 part groups · 5 illustrations

Illustrations

480731 1987-09 → —

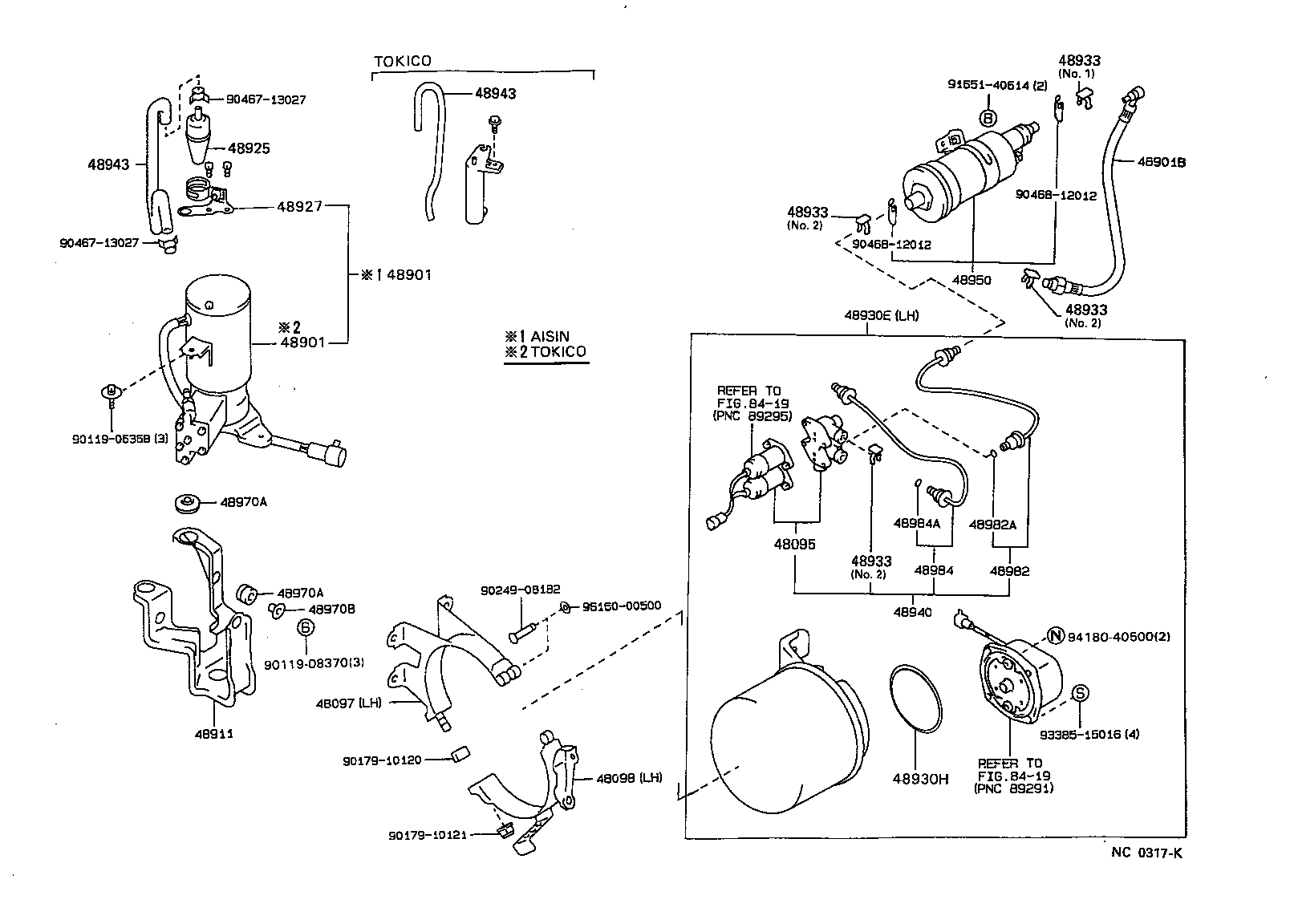

NC0317K 1987-09 → 1990-07

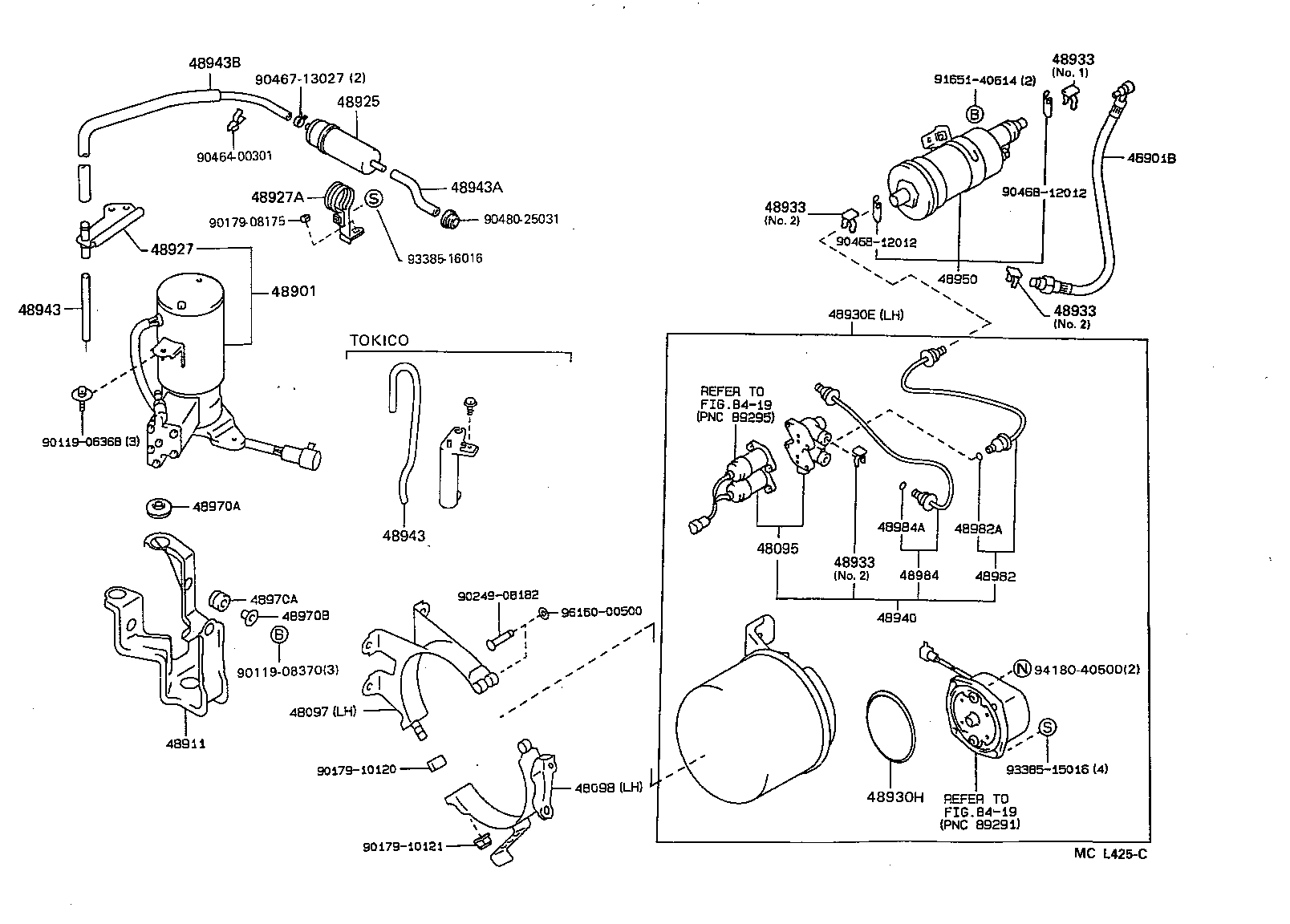

MCL425C 1990-07 → —

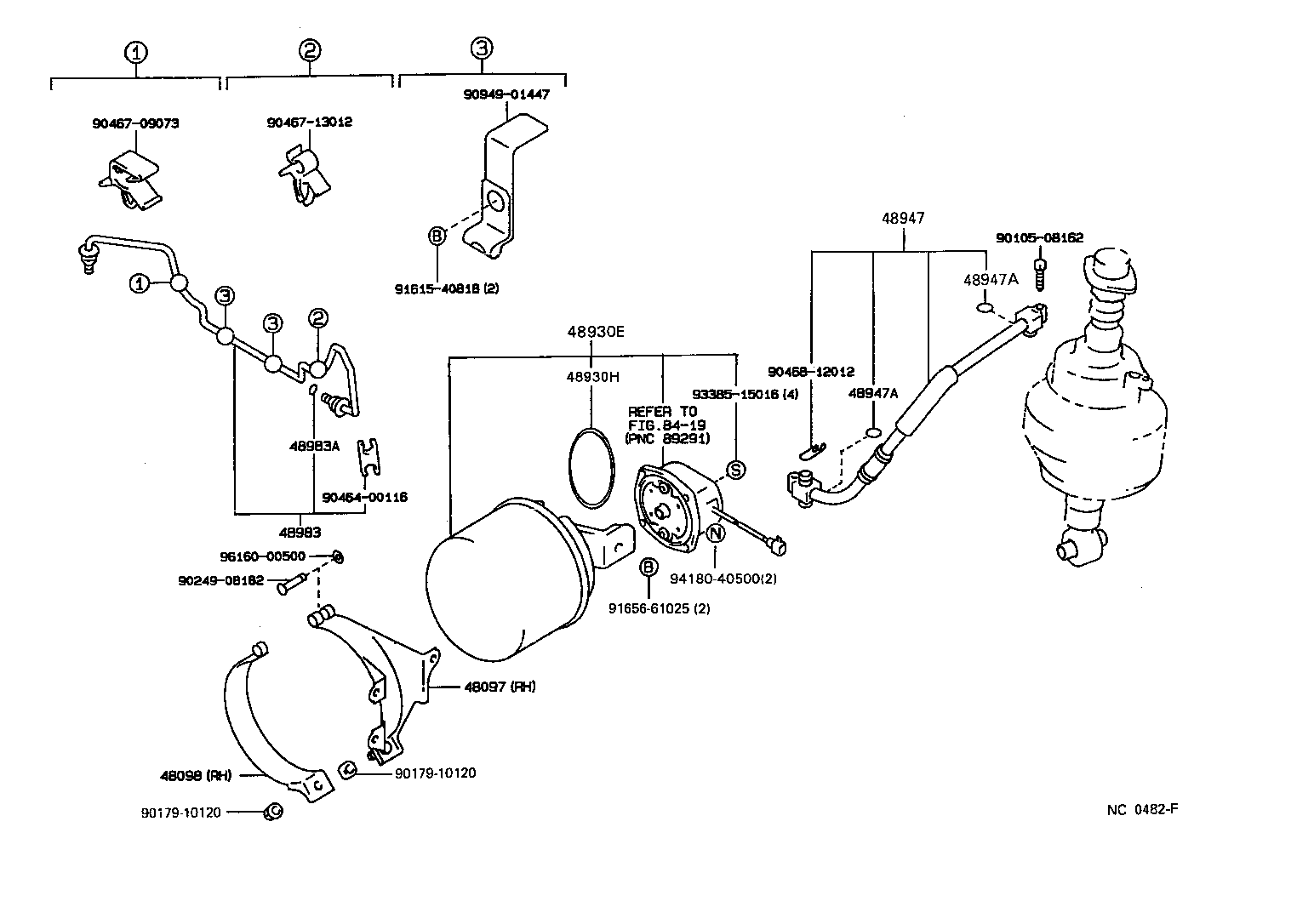

NC0482F 1987-09 → —

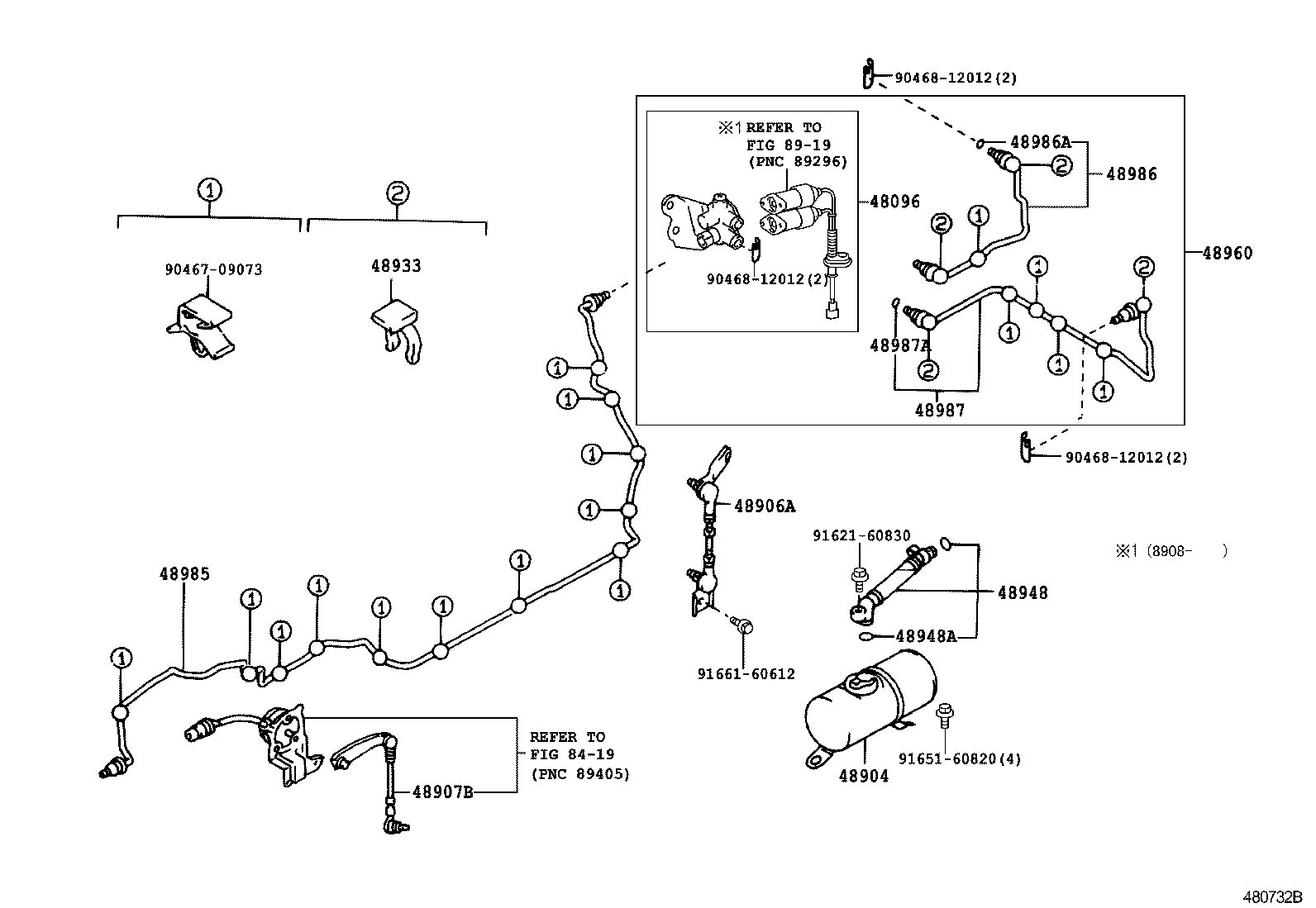

480732C 1987-09 → —

Part groups

PNC	Description
48095	Valve Sub-assy, Height Control, NO.1
48096	Valve Sub-assy, Height Control, NO.2
48097	Bracket Sub-assy, Pneumatic Tank, NO.1
48098	Bracket Sub-assy, Pneumatic Tank, NO.2
48901	Compressor Sub-assy, Height Control
48901B	Hose, Flexible(FOR HEIGHT CONTROL COMPRESSOR)
48904	Tank Sub-assy, Pneumatic, Rear
48906A	Link Sub-assy, Height Control Sensor, Rear
48907B	Link Sub-assy, Height Control Sensor, Front
48911	Bracket, Height Control Compressor
48925	Filter, Height Control
48927	Bracket, Height Control Air Cleaner, NO.1
48927A	Bracket, Height Control Air Cleaner, NO.2
48930E	Tank Assy, Pneumatic
48930H	Gasket(FOR PNEUMATIC TANK)
48933	Holder, Air Connector Clip
48940	Valve Assy, Height Control, NO.1
48943	Hose, Height Control, NO.1
48943A	Hose, Height Control, NO.3
48943B	Hose, Height Control, NO.2
48947	Tube, Chamber TO Tank, Front
48947A	Ring, O(FOR CHAMBER TO TANK FRONT TUBE)
48948	Tube, Chamber TO Tank, Rear
48948A	Ring, O(FOR CHAMBER TO TANK REAR TUBE)
48950	Dryer Assy, Height Control
48960	Valve Assy, Height Control, NO.2
48970A	Bush(FOR HEIGHT CONTROL COMPRESSOR)
48970B	Spacer(FOR HEIGHT CONTROL COMPRESSOR BRACKET)
48981A	Way, 3(FOR HEIGHT CONTROL TUBE)
48982	Tube, Height Control, NO.2
48982A	Ring, O(FOR HEIGHT CONTROL TUBE NO.2)
48983	Tube, Height Control, NO.3
48983A	Ring, O(FOR HEIGHT CONTROL TUBE NO.3)
48984	Tube, Height Control, NO.4
48984A	Ring, O(FOR HEIGHT CONTROL TUBE NO.4)
48985	Tube, Height Control, NO.5
48986	Tube, Height Control, NO.6
48986A	Ring, O(FOR HEIGHT CONTROL NO.6 TUBE)
48987	Tube, Height Control, NO.7
48987A	Ring, O(FOR HEIGHT CONTROL NO.7 TUBE)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
