Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Mounting

18 part groups · 5 illustrations

Illustrations

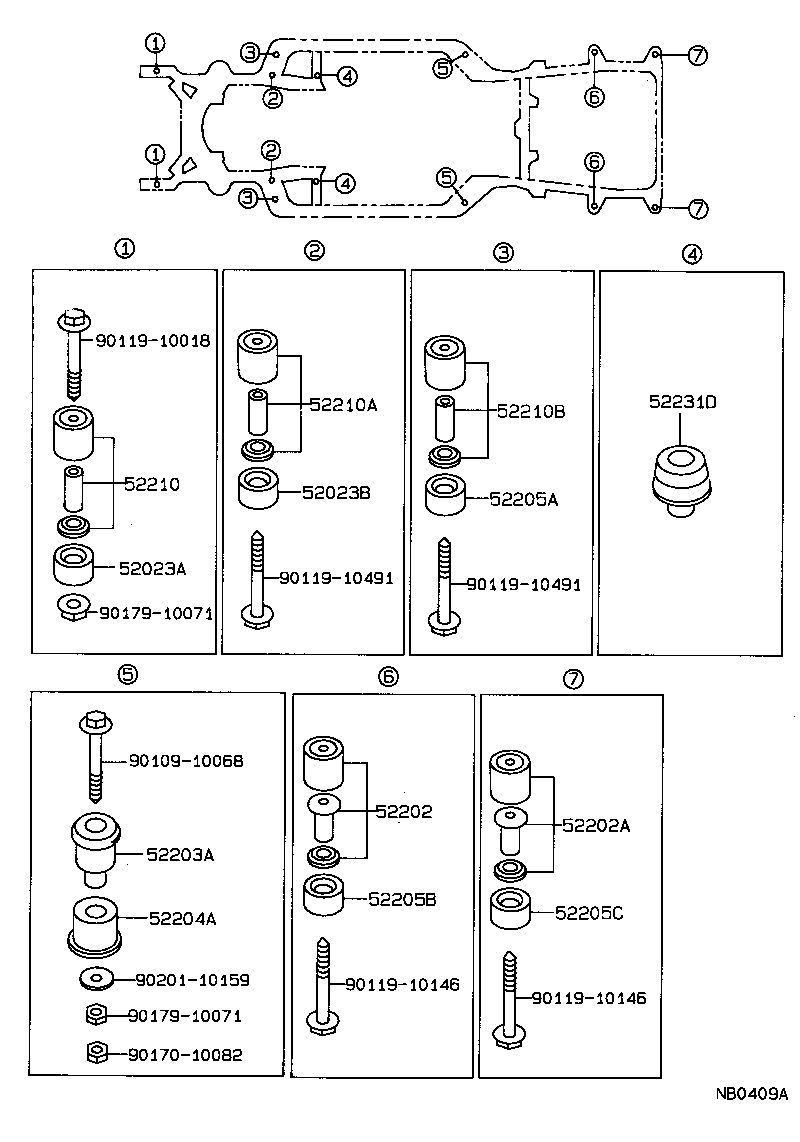

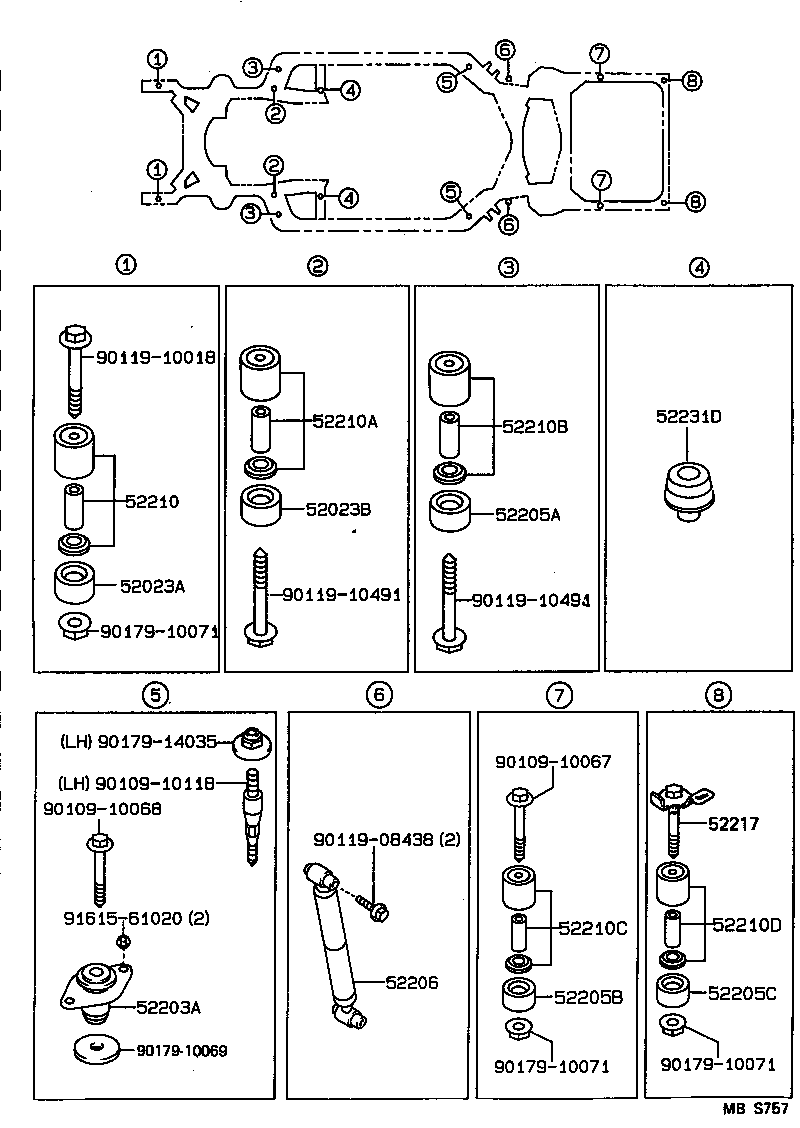

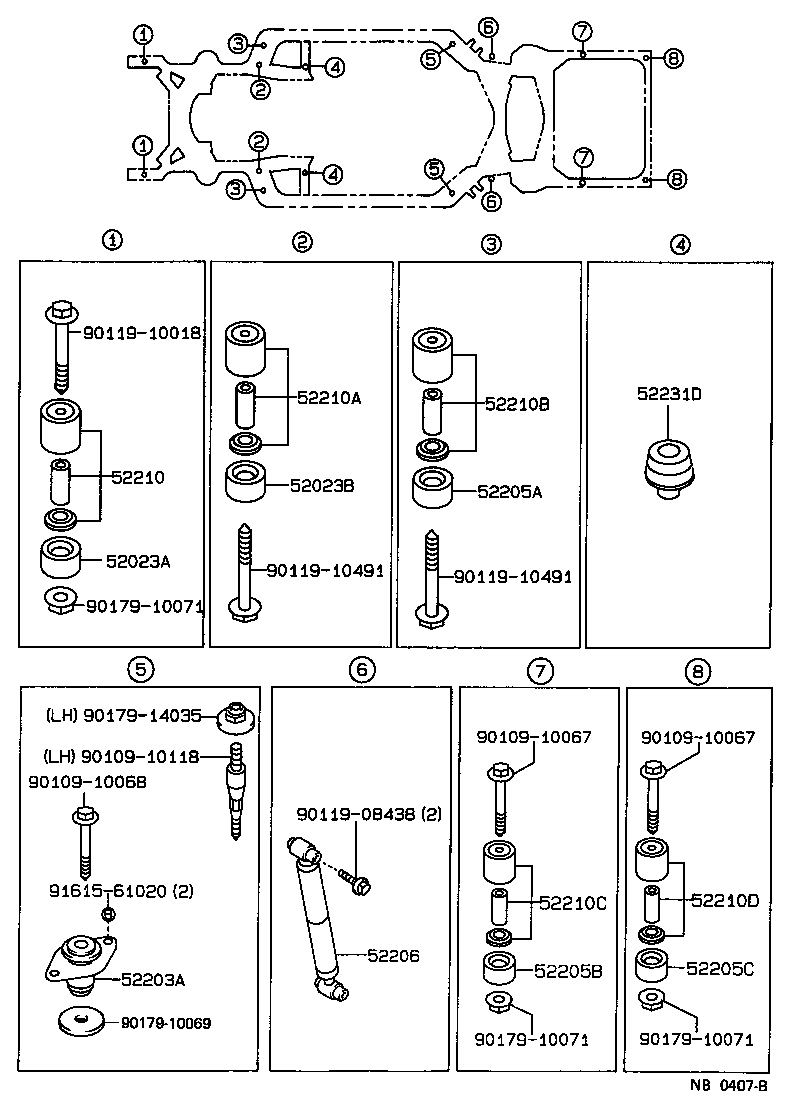

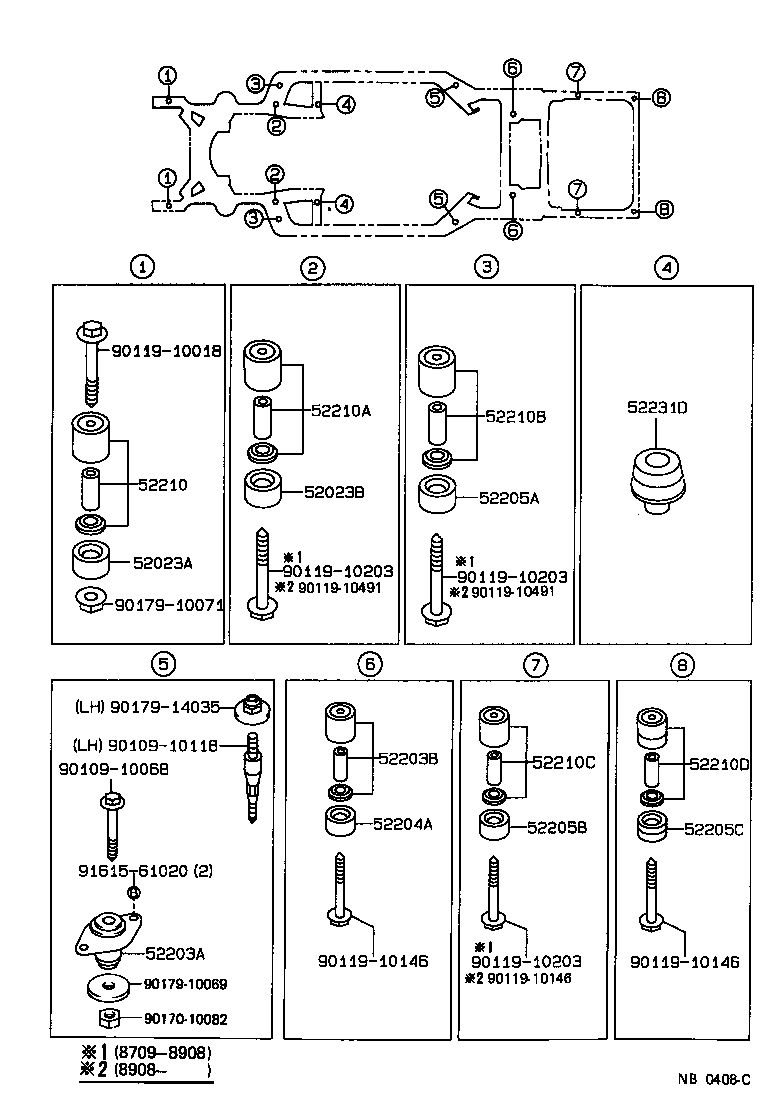

Figure MBS756A MBS756A 1987-09 → — Figure NB0407B NB0407B 1987-09 → 1989-08 Figure MBS757 MBS757 1989-08 → — Figure NB0408C NB0408C 1987-09 → — Figure NB0409A NB0409A 1987-09 → —

Part groups

PNCDescription
52023A Cushion Sub-assy, Body Mounting, Rear Lower
52023B Cushion Sub-assy, Body Mounting, Rear Lower
52202 Cushion Sub-assy, Body Mounting, Upper
52202A Cushion Sub-assy, Body Mounting, Upper
52203A Cushion Sub-assy, Body Mounting, Rear Upper
52203B Cushion Sub-assy, Body Mounting, Rear Upper
52204A Cushion Sub-assy, Body Mounting, Rear Lower
52205A Cushion Sub-assy, Body Mounting, Lower
52205B Cushion Sub-assy, Body Mounting, Lower
52205C Cushion Sub-assy, Body Mounting, Lower
52206 Absorber Sub-assy, Body Mounting
52210 Cushion Assy, Body Mounting, Upper
52210A Cushion Assy, Body Mounting, Upper
52210B Cushion Assy, Body Mounting, Upper
52210C Cushion Assy, Body Mounting, Upper
52210D Cushion Assy, Body Mounting, Upper
52217 Bolt, Body Mounting
52231D Cushion, Body Mounting, Rear Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
