Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Panel & Glass

45 part groups · 8 illustrations

Illustrations

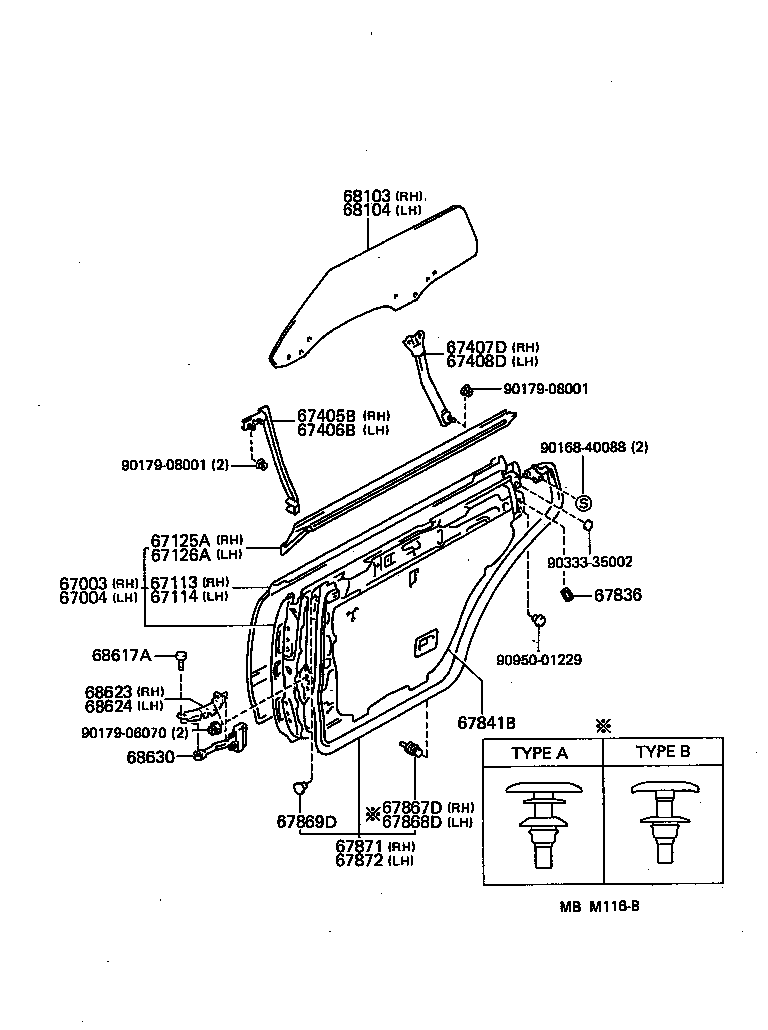

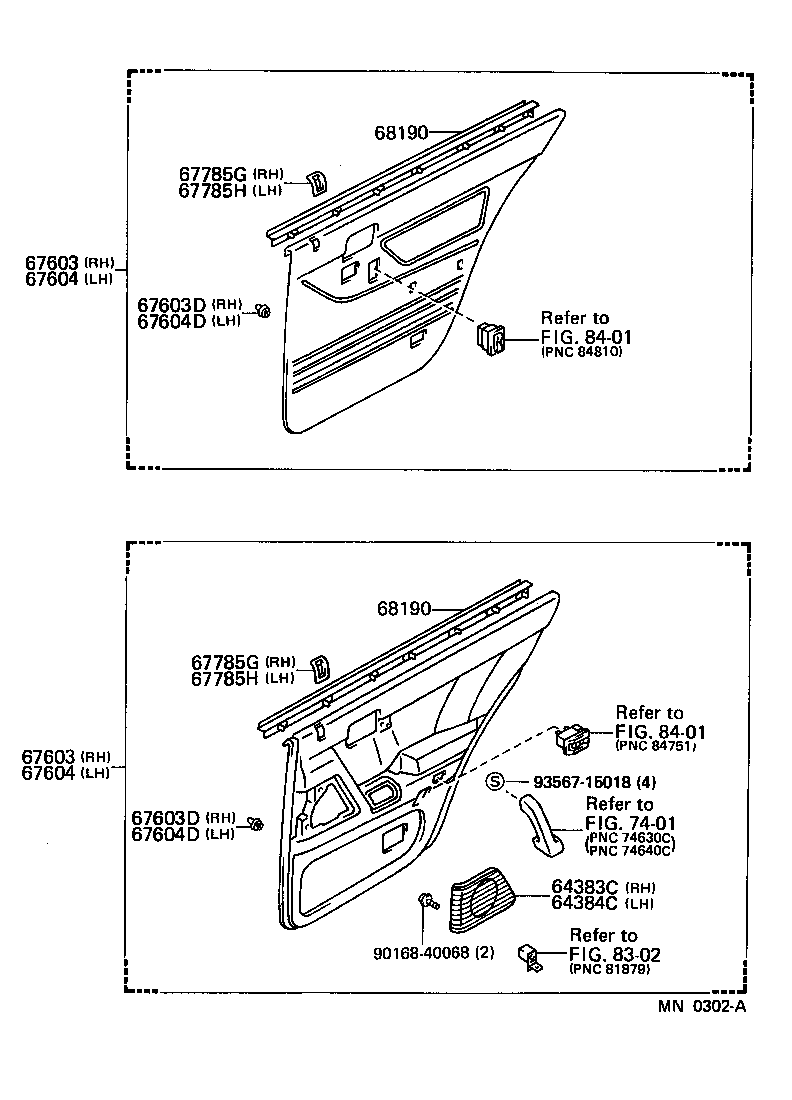

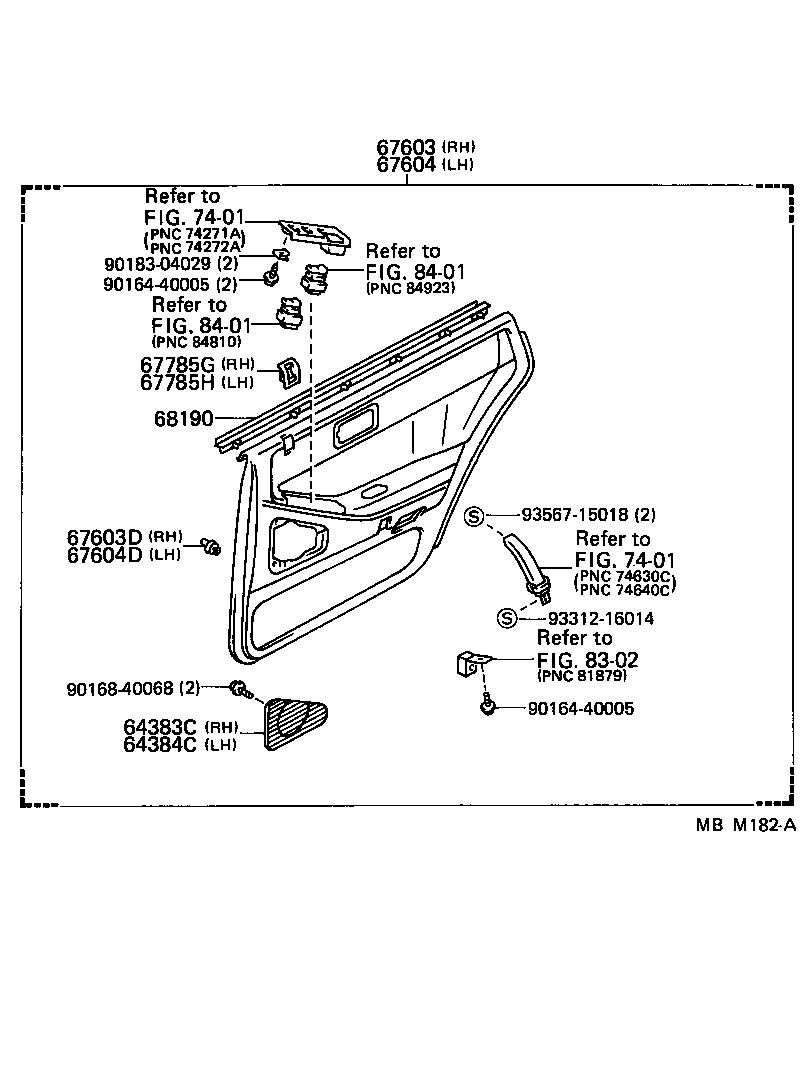

Figure MBS840B MBS840B 1987-09 → — Figure MN0302A MN0302A 1987-09 → — Figure MBM116B MBM116B 1987-09 → — Figure MBM182A MBM182A 1987-09 → — Figure MN1776 MN1776 1987-09 → 1989-08 Figure MN1777A MN1777A 1987-09 → 1989-08 Figure MN1778 MN1778 1989-08 → — Figure MN1779 MN1779 1989-08 → —

Part groups

PNCDescription
64383C Grille, Rear Door Speaker, RH
64384C Grille, Rear Door Speaker, LH
65938A Rail, Curtain, NO.3
65939A Rail, Curtain, NO.4
65960 Curtain Assy, Side, Rear RH
65970 Curtain Assy, Side, Rear LH
65989 Cap, Curtain Rail
67003 Panel Sub-assy, Rear Door, RH
67004 Panel Sub-assy, Rear Door, LH
67113 Panel, Rear Door, Outer RH
67114 Panel, Rear Door, Outer LH
67125A Reinforcement, Rear Door Outside Panel, RH
67126A Reinforcement, Rear Door Outside Panel, LH
67405B Guide Sub-assy, Rear Door Window, Front RH
67406B Guide Sub-assy, Rear Door Window, Front LH
67407D Guide Sub-assy, Rear Door Window, Rear RH
67407E Bar Sub-assy, Rear Door Window Division, RH
67408D Guide Sub-assy, Rear Door Window, Rear LH
67408E Bar Sub-assy, Rear Door Window Division, LH
67603 Board Sub-assy, Rear Door Trim, RH
67603D Retainer, Rear Door Trim, RH
67604 Board Sub-assy, Rear Door Trim, LH
67604D Retainer, Rear Door Trim, LH
67785G Holder, Rear Door Lock Control Knob, RH
67785H Holder, Rear Door Lock Control Knob, LH
67812 Pad, Rear Door Silencer
67836 Cover, Rear Door Lock Child Protection, RH
67841B Cover, Rear Door Service Hole
67867D Retainer, Rear Door Weatherstrip, RH
67868D Retainer, Rear Door Weatherstrip, LH
67869D Clip, Door Weatherstrip
67871 Weatherstrip, Rear Door, RH
67872 Weatherstrip, Rear Door, LH
68103 Glass Sub-assy, Rear Door, RH
68104 Glass Sub-assy, Rear Door, LH
68123 Glass, Rear Door Window, RH
68124 Glass, Rear Door Window, LH
68142 Run, Rear Door Glass
68188 Weatherstrip, Rear Door Quarter Window, RH
68189 Weatherstrip, Rear Door Quarter Window, LH
68190 Weatherstrip Assy, Rear Door Glass, Inner
68617A Pin, Rear Door Check
68623 Cover, Door Check, RH
68624 Cover, Door Check, LH
68630 Check Assy, Rear Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
