Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 3 illustrations

Illustrations

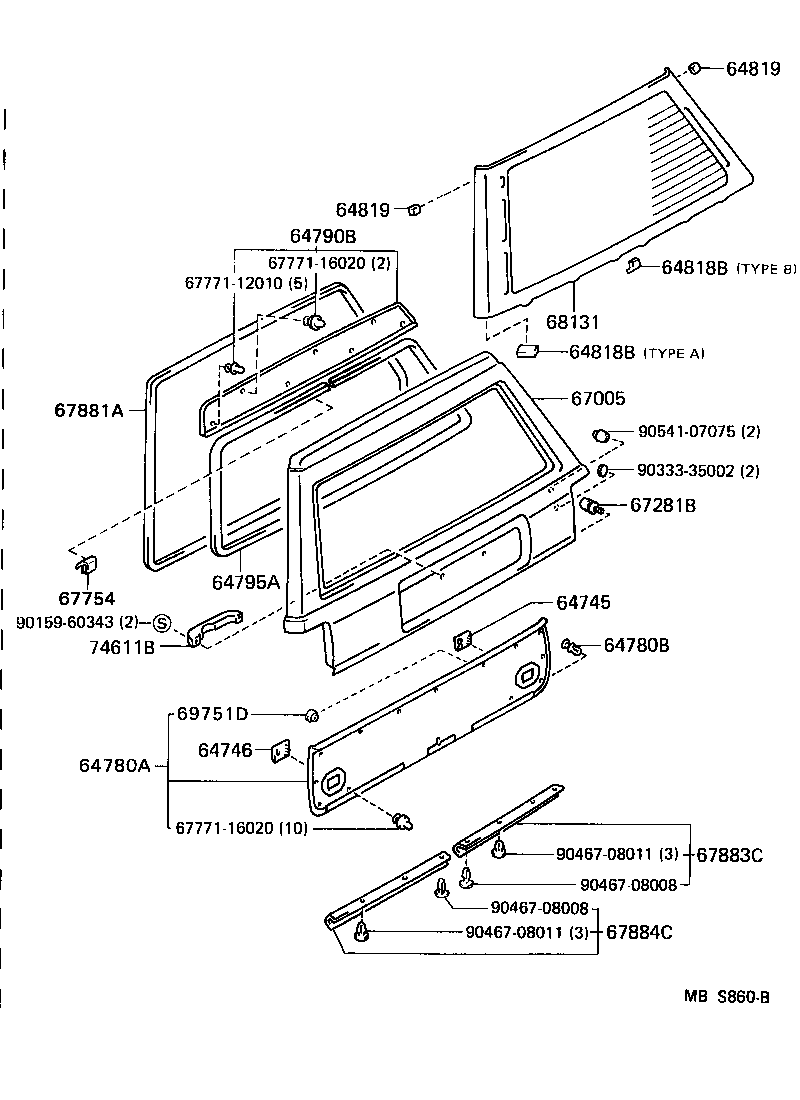

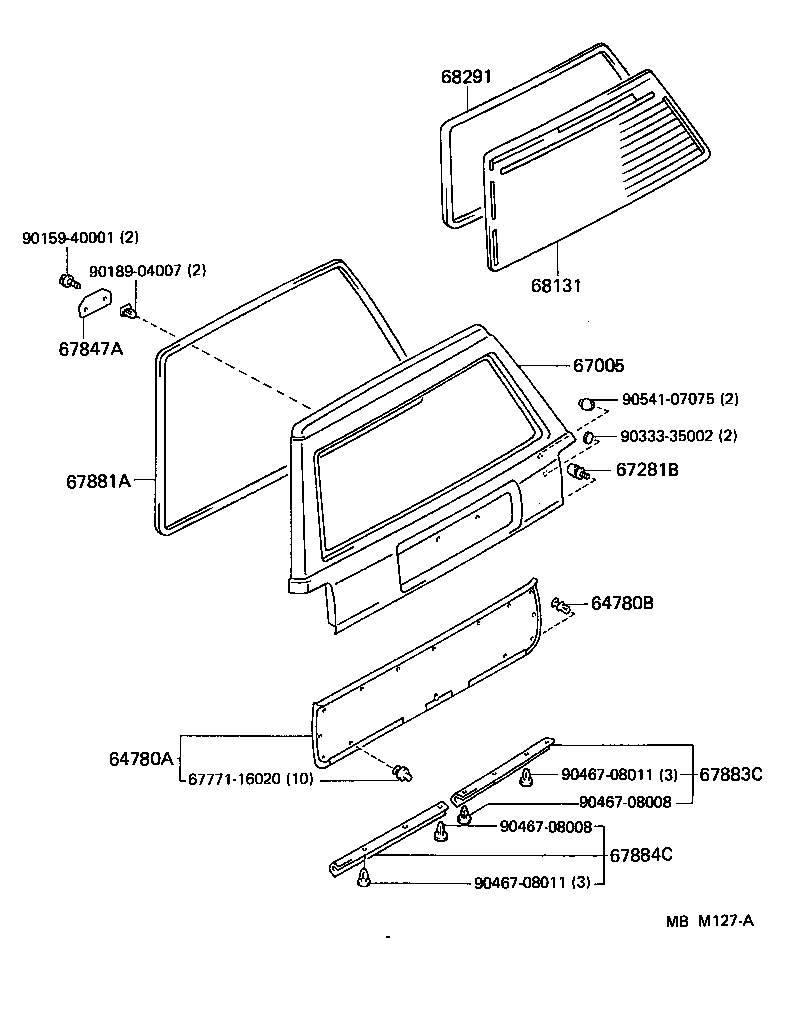

Figure MBM128C MBM128C 1987-09 → 1989-08 Figure MBS860B MBS860B 1989-08 → — Figure MBM127A MBM127A 1987-09 → —

Part groups

PNCDescription
62357C Cover, Back Window Inside Trim
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64780A Panel Assy, Back Door Trim
64780B Clip(FOR BACK DOOR TRIM PANEL)
64790B Panel Assy, Back Door Trim, Upper
64795A Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67754 Moulding, Back Door Trim
67847A Cover, Back Door Service Hole
67881A Weatherstrip, Back Door
67883C Weatherstrip, Back Door, Lower RH
67884C Weatherstrip, Back Door, Lower LH
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
69751D Holder, Door Lock Control Knob(FOR BACK DOOR)
74611B Grip, Assist
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
