Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04
Caution Plate (EXTERIOR & INTERIOR)

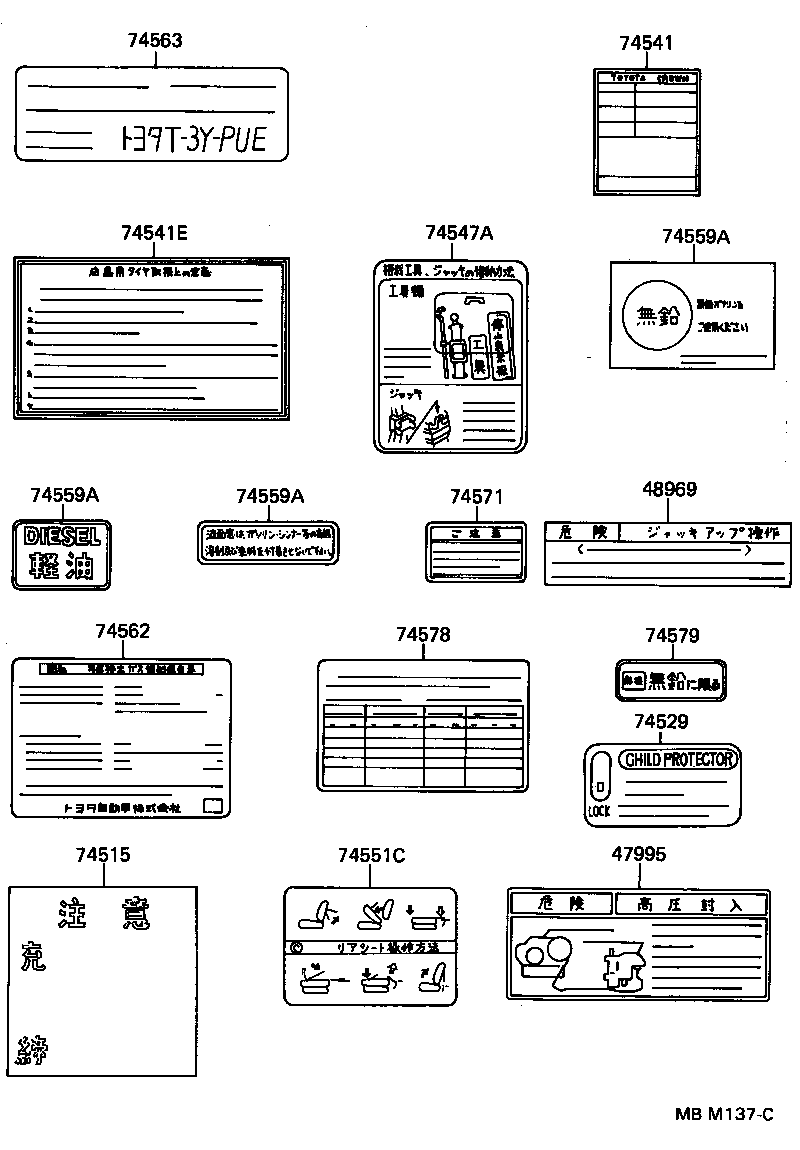

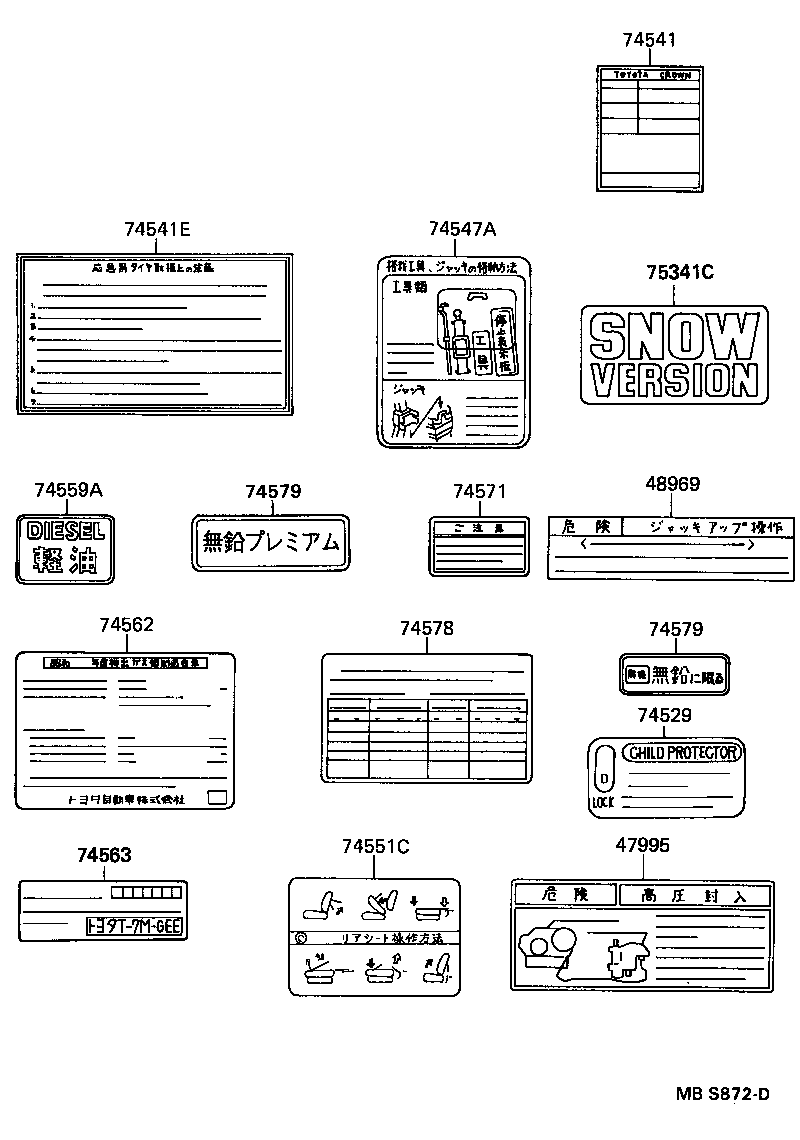

33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11278B | Label, Engine Emission Compliance Information |
| 11286B | Plate, Engine Specification |
| 11289B | Label, Spark Plug Notice |
| 11291B | Plate, Engine Name |
| 11293D | Label, Engine Caution |
| 11293E | Label, Engine Caution, NO.2 |
| 11294A | Label, Turbocharger Information |
| 11295B | Label, Engine Service Notice, NO.1 |
| 11296C | Label, Engine Service Information |
| 11296D | Label, Engine Service Information |
| 11297C | Label, Engine Service Information, NO.2 |
| 11297D | Label, Engine Starting Information |
| 15369A | Label, Engine Oil Information |
| 17700R | Label, Air Cleaner Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 47995 | Label, Brake Tube Caution |
| 48969 | Label, Jack UP Caution |
| 74515 | Plate, Overfill Check Valve |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541 | Plate, Tire Pressure Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74546A | Plate, Engine Cover Operational Caution |
| 74547 | Plate, Engine Cover Caution |
| 74547A | Plate, Jack Carrier Caution |
| 74551C | Plate, Rear Seat Protector Caution |
| 74559A | Plate, Fuel Caution |
| 74562 | Plate, Emission Control System Information |
| 74563 | Plate, Emission Control Device Identification |
| 74571 | Plate, Brake Fluid Caution |
| 74578 | Plate, Catalyzer Replacement Record |
| 74579 | Plate, Unleaded Fuel Caution |
| 74581 | Plate, Power Steering Caution |
| 75341C | Plate, Hood Name |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
