Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04

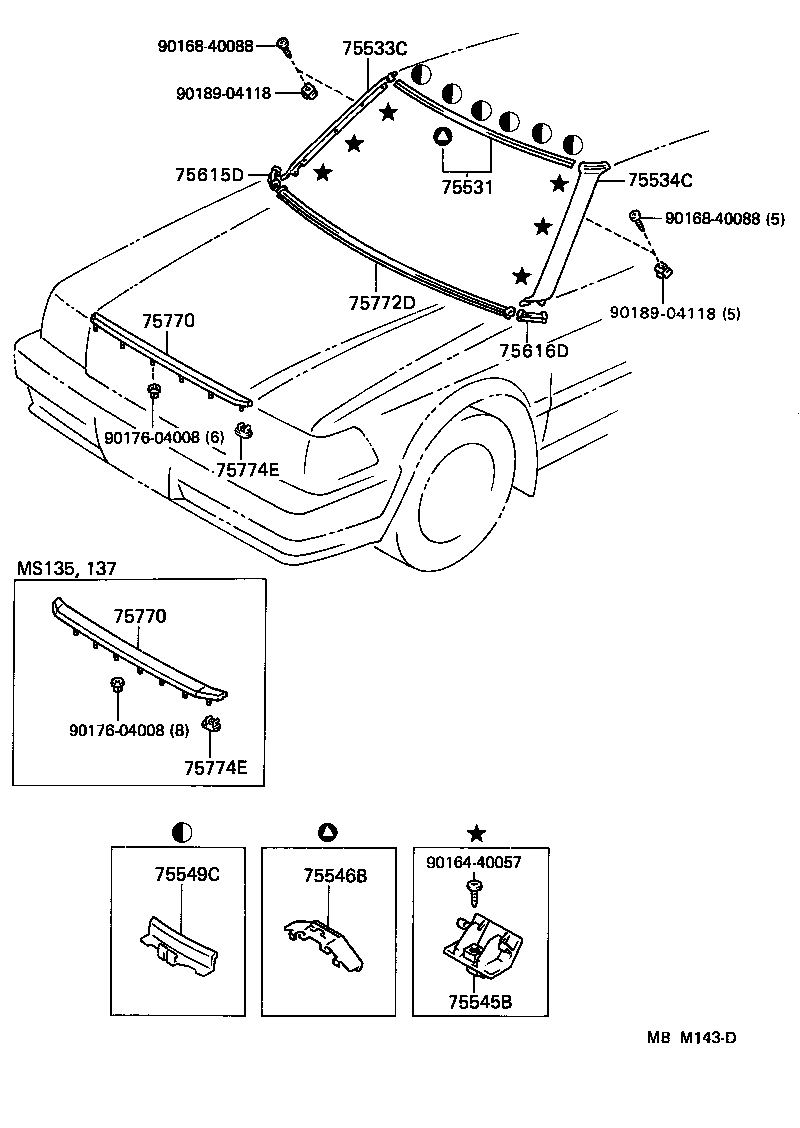

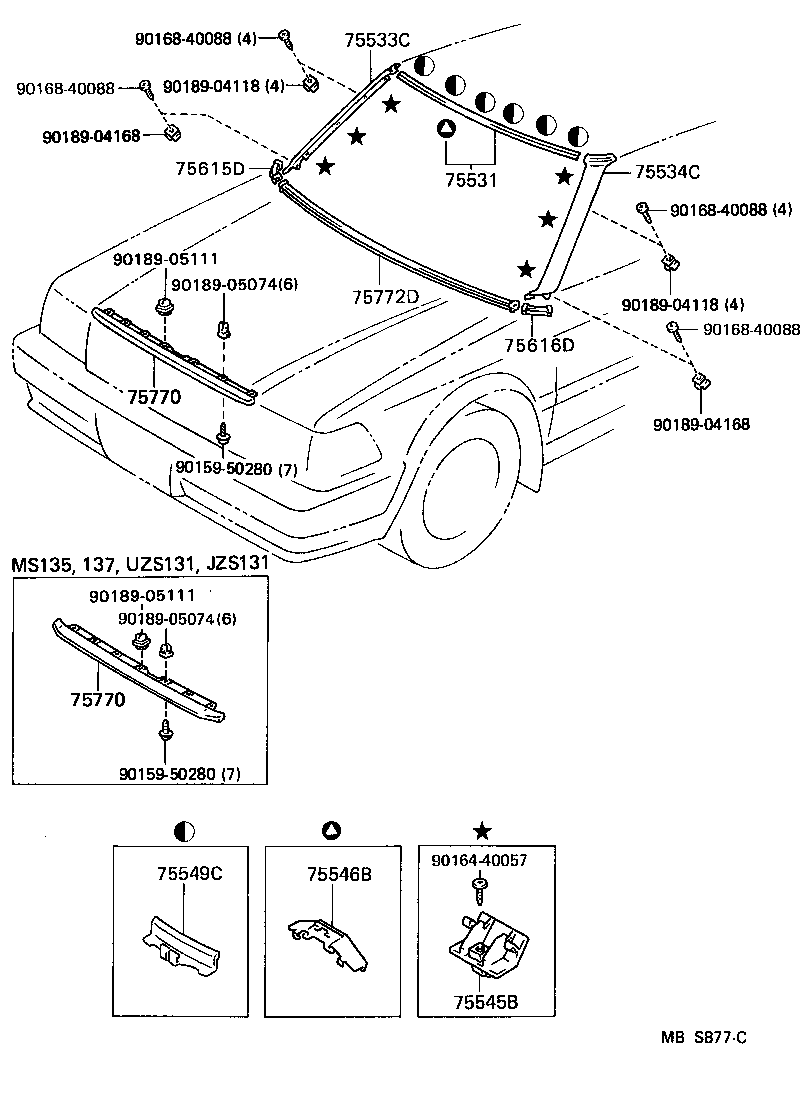

Front Moulding
22 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

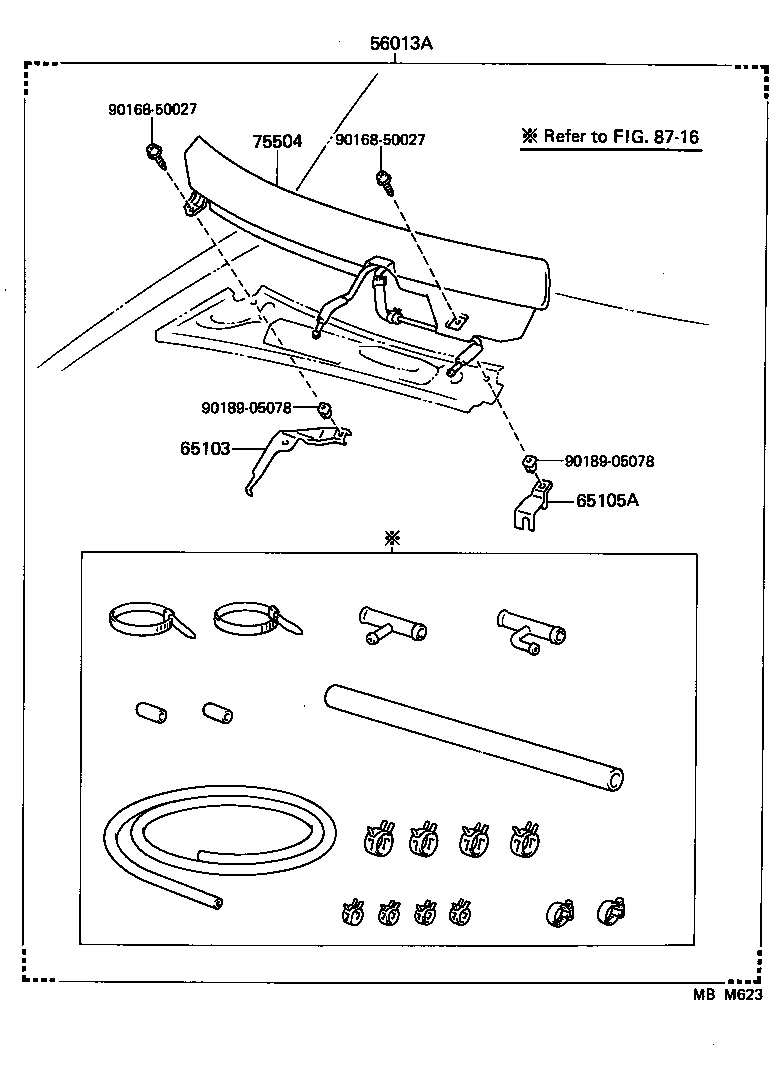

| 56013A | Moulding Sub-assy, Front Window, Inner Center |
| 65103 | Bracket Sub-assy, Mounting, NO.1 |
| 65105A | Bracket Sub-assy, Mounting, NO.2 |
| 75397C | Clip, Outside Moulding, NO.3 |
| 75498C | Seal, Outside Moulding, NO.2 |
| 75504 | Moulding Sub-assy, Windshild, Outside Lower |
| 75531 | Moulding, Windshield, Outer Upper |
| 75533C | Garnish, Front Pillar, Outer RH |
| 75534C | Garnish, Front Pillar, Outer LH |
| 75545B | Clip, Windshield Outside Moulding, NO.1 |
| 75546B | Clip, Windshield Outside Moulding, NO.2 |
| 75549C | Fastener, Windshield Outside Moulding, NO.2 |
| 75615D | Moulding, Front Fender, Rear RH |
| 75616D | Moulding, Front Fender, Rear LH |
| 75770 | Moulding Assy, Hood, Front |
| 75772D | Moulding, Hood, Rear |
| 75774E | Spacer, Hood Moulding |
| 75786B | Retainer, Hood Front Moulding |
| 75961 | Clip, Windshield Outside Moulding, NO.4 |
| 75962 | Clip, Windshield Outside Moulding, NO.5 |
| 75963A | Clip, Front Pillar Outer Garnish, NO.3 |
| 75964A | Clip, Front Pillar Outer Garnish, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
