Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

103 part groups · 8 illustrations

Illustrations

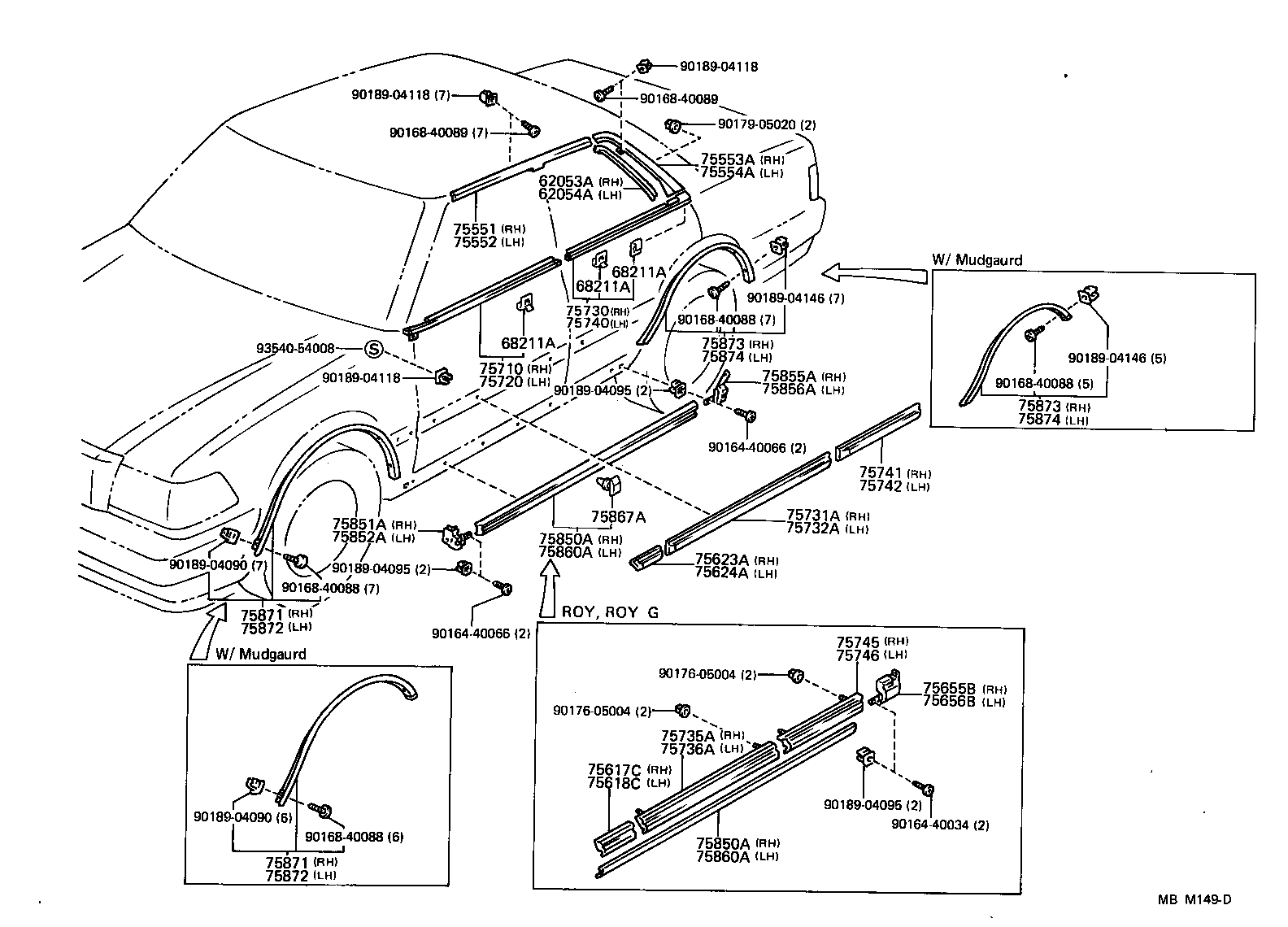

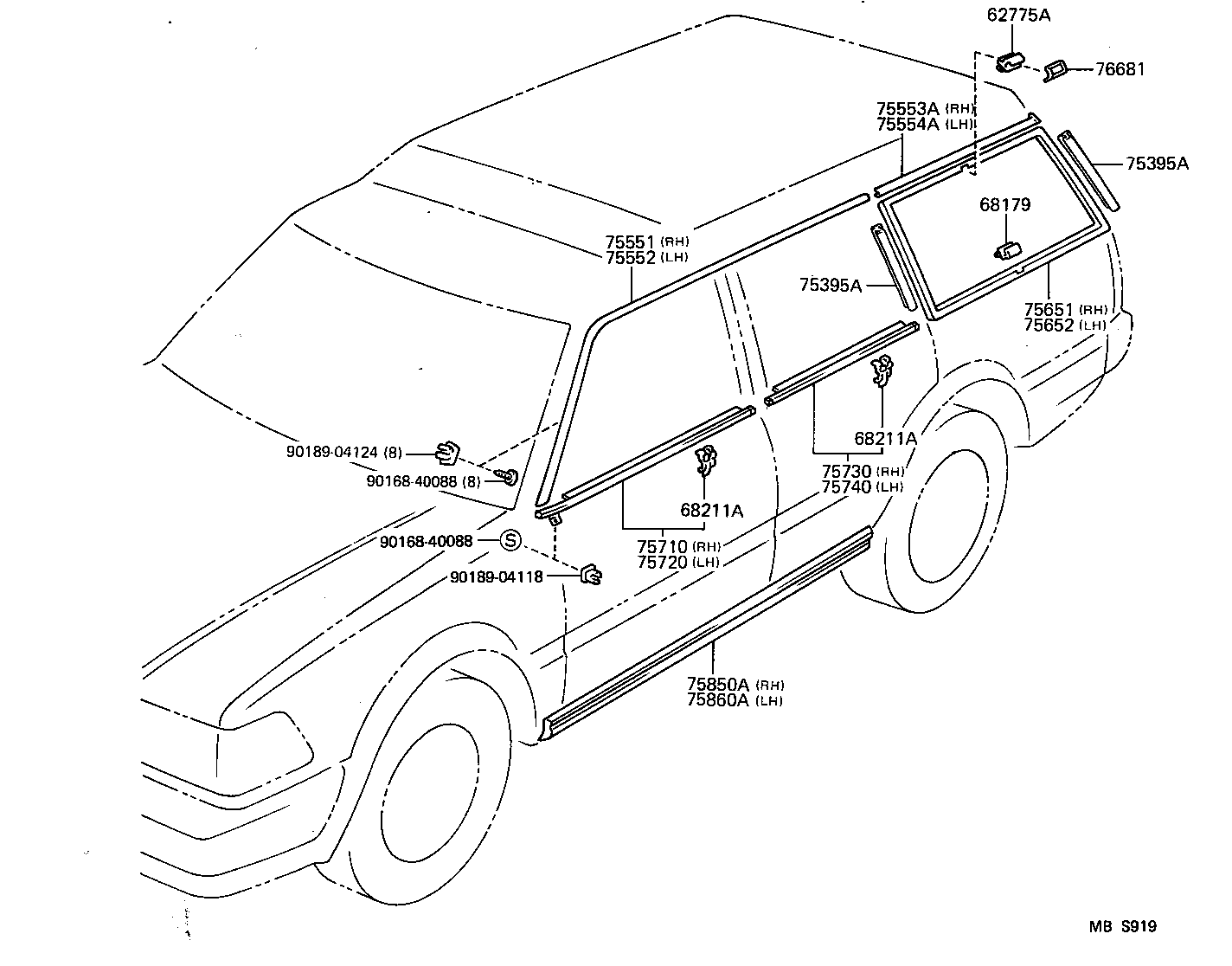

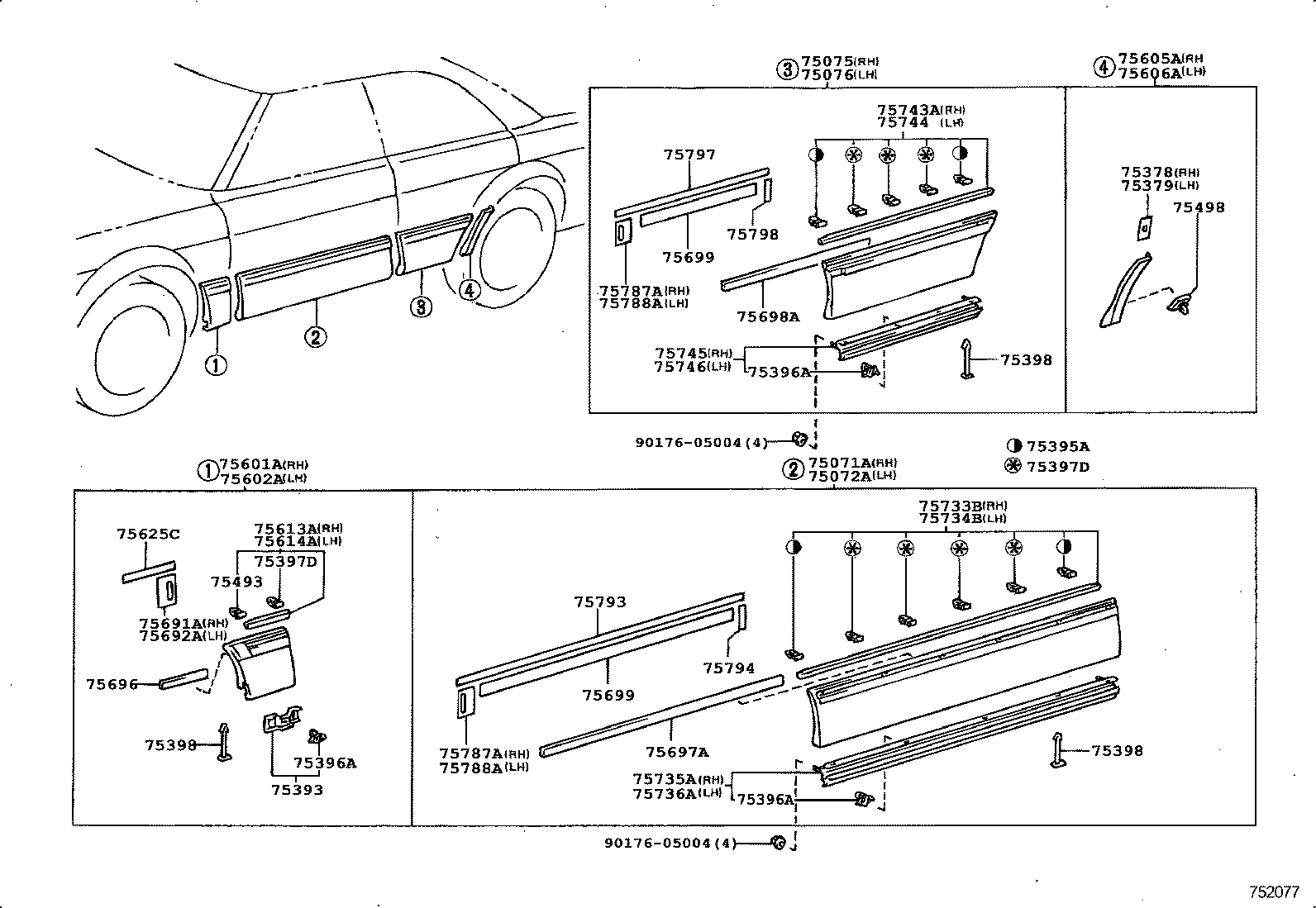

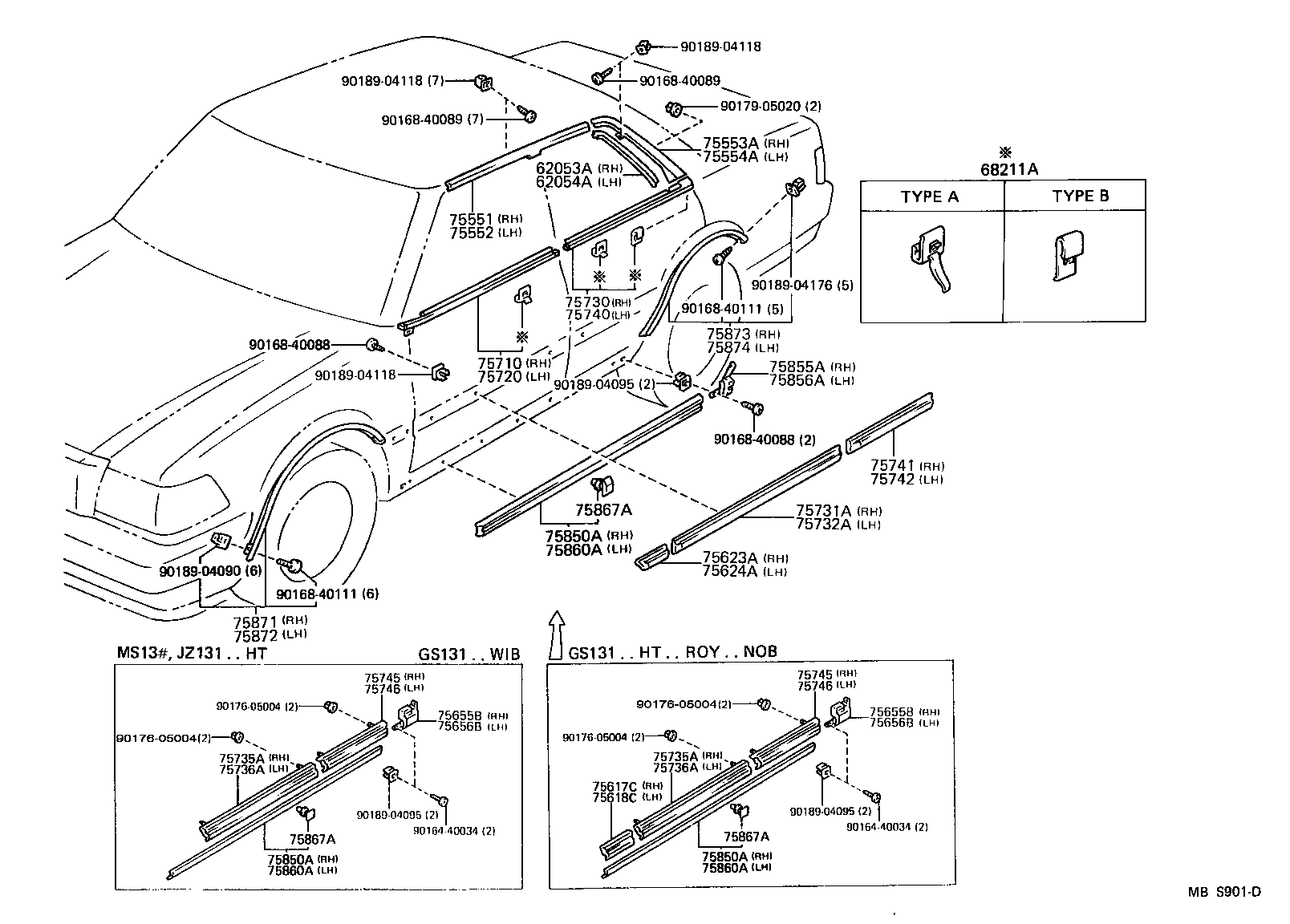

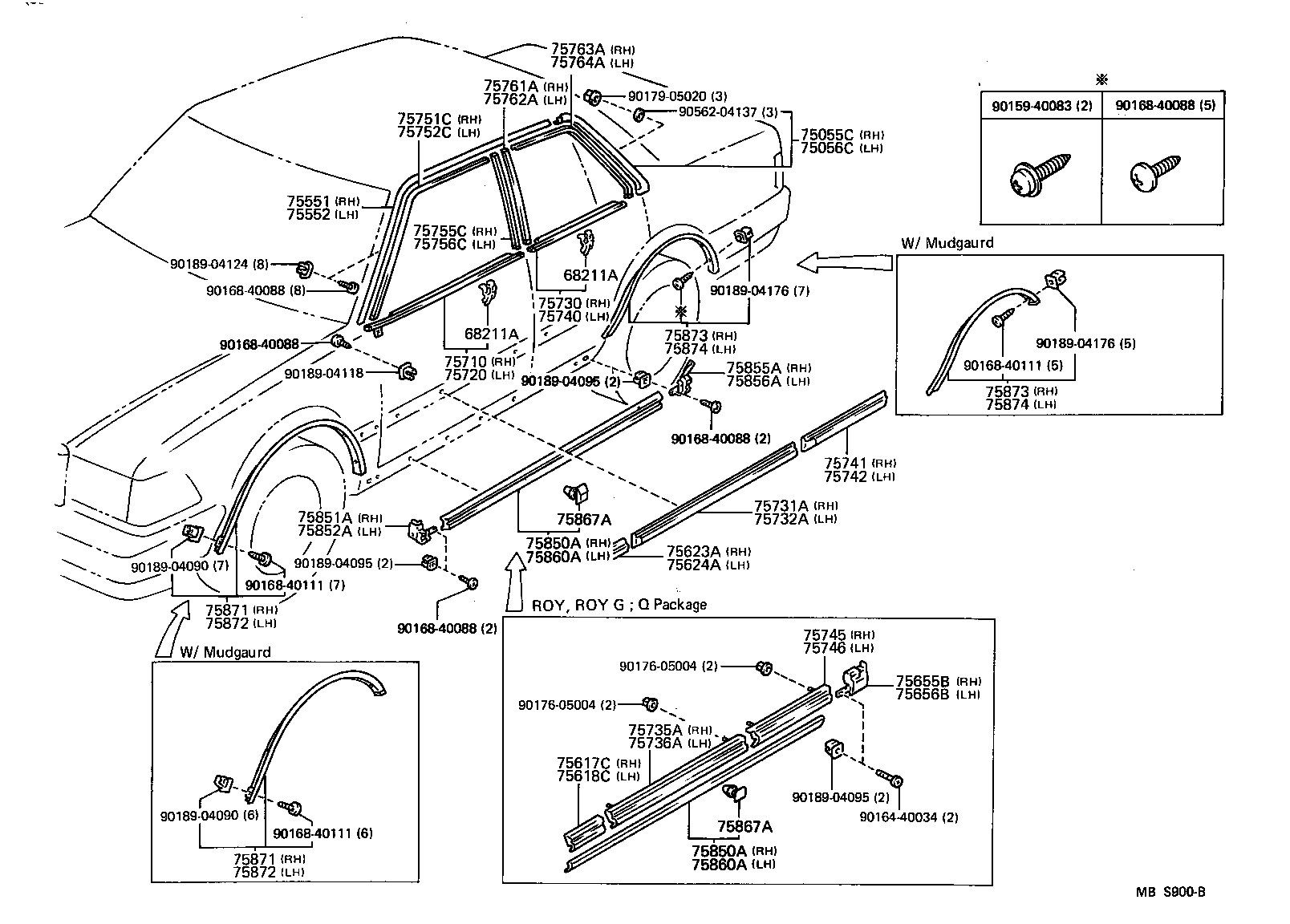

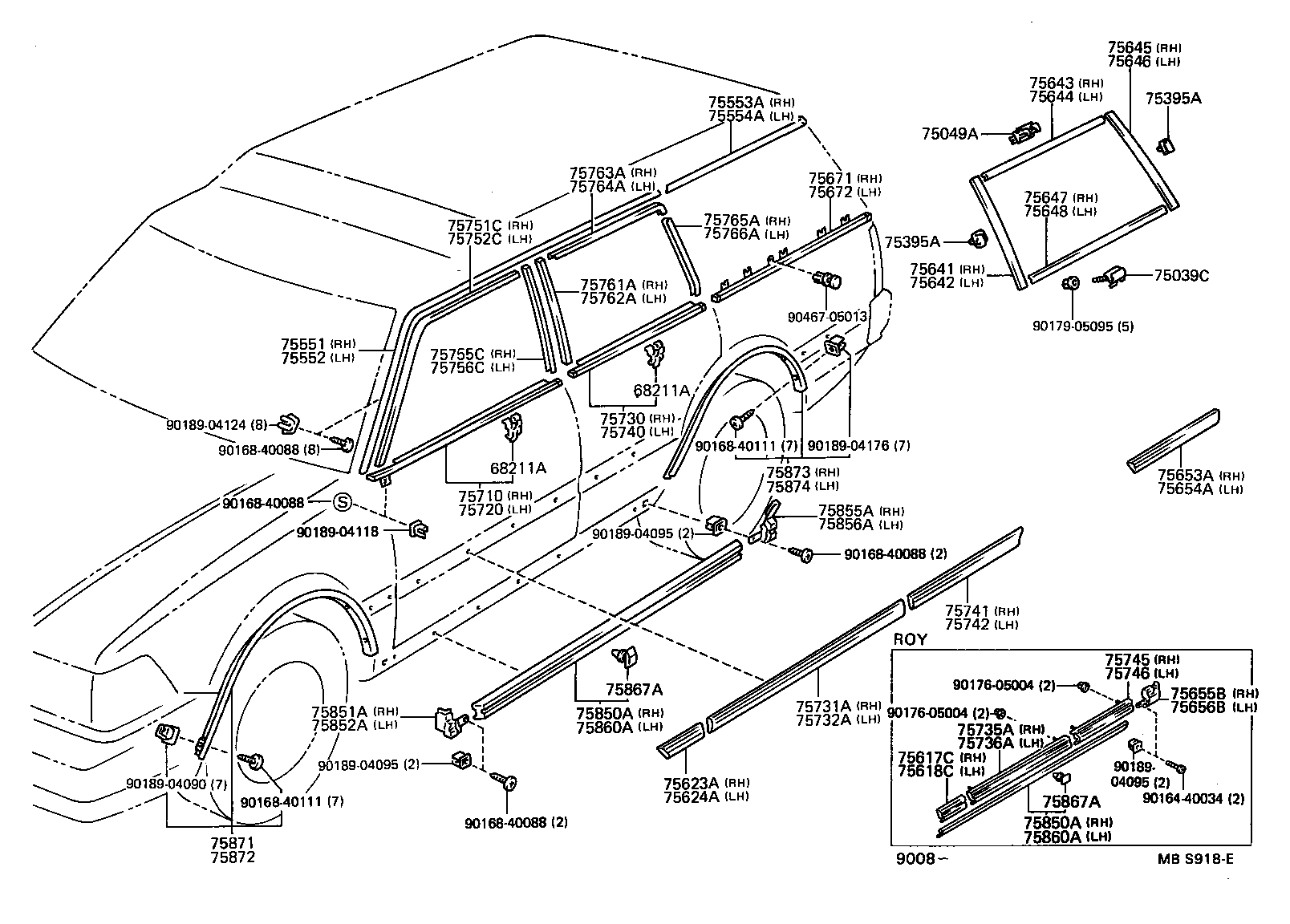

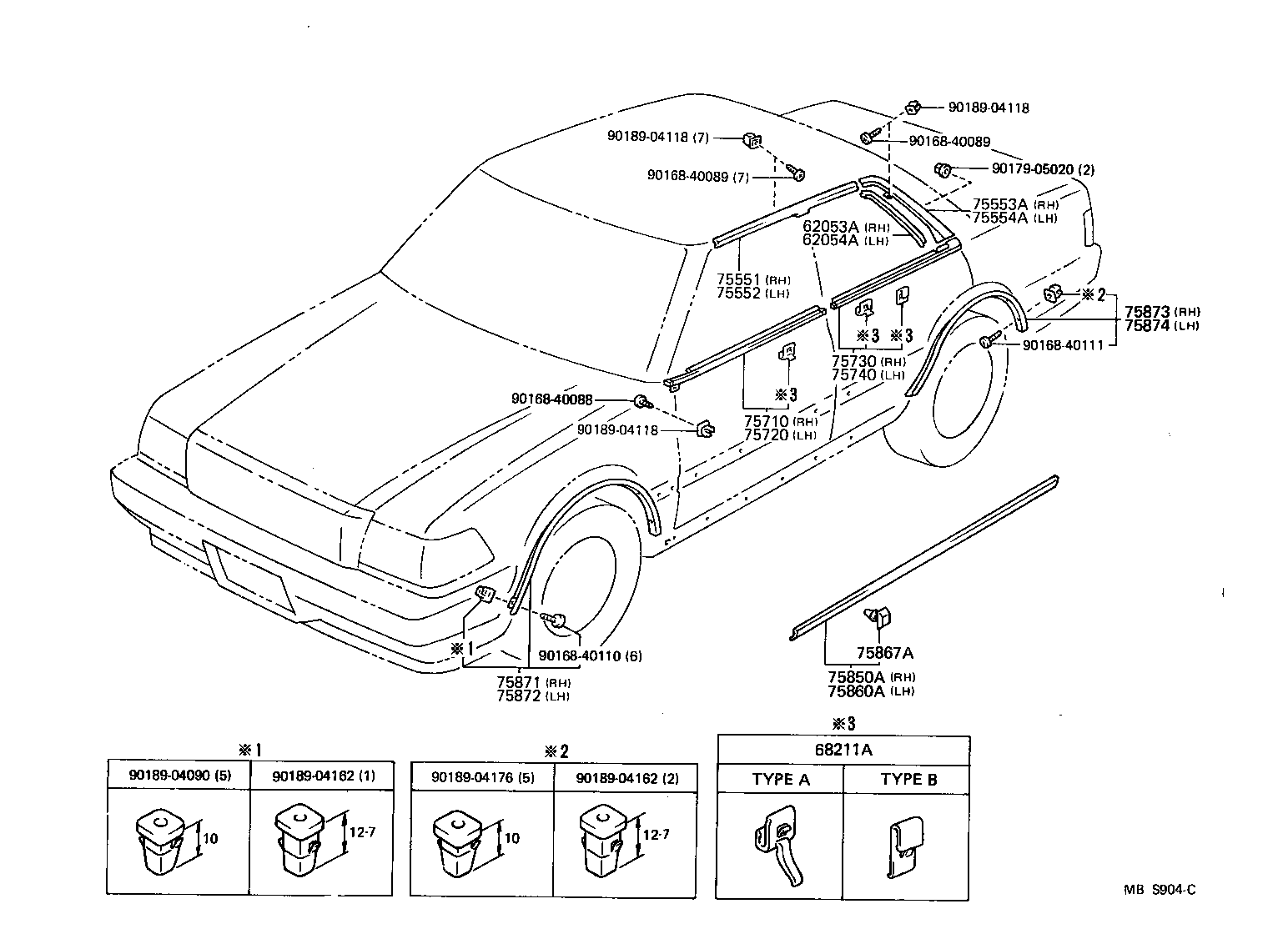

Figure MBM147C MBM147C 1987-09 → 1989-08 Figure MBS900B MBS900B 1989-08 → — Figure MBM149D MBM149D 1987-09 → 1989-08 Figure MBS901D MBS901D 1989-08 → — Figure MBS904C MBS904C 1989-08 → — Figure 752077 752077 1989-08 → — Figure MBS918E MBS918E 1987-09 → — Figure MBS919 MBS919 1987-09 → —

Part groups

PNCDescription
62053A Retainer Sub-assy, Roof Side Weatherstrip, Rear RH
62054A Retainer Sub-assy, Roof Side Weatherstrip, Rear LH
62775A Clip, Quarter Window
68179 Clip, Quarter Window NO.2 Glass Moulding
68211A Clip, Door Belt Moulding
75039C Clip Sub-assy, Outside Moulding, NO.1
75049A Clip Sub-assy, Outside Moulding, NO.2
75055C Moulding Sub-assy, Roof Drip Side Finish, Rear RH
75056C Moulding Sub-assy, Roof Drip Side Finish, Rear LH
75071A Moulding Sub-assy, Front Door, Outside RH
75072A Moulding Sub-assy, Front Door, Outside LH
75075 Moulding Sub-assy, Rear Door, Outside RH
75076 Moulding Sub-assy, Rear Door, Outside LH
75378 Pad, Quarter Garnish Moulding, RH
75379 Mark, Side Panel
75393 Retainer, Outside Moulding, NO.2
75395A Clip, Outside Moulding, NO.1
75396A Clip, Outside Moulding, NO.2
75397D Clip, Outside Moulding, NO.3
75398 Clip, Outside Moulding, NO.5
75493 Retainer, Outside Moulding, NO.4
75498 Clip, Quarter Garnish, NO.1
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75553A Moulding, Roof Drip Side Finish, Rear RH
75554A Moulding, Roof Drip Side Finish, Rear LH
75601A Moulding Sub-assy, Front Fender, RH
75602A Moulding Sub-assy, Front Fender, LH
75605A Moulding Sub-assy, Quarter Outside, RH
75606A Moulding Sub-assy, Quarter Outside, LH
75613A Moulding, Front Fender, Front RH
75614A Moulding, Front Fender, Front LH
75617C Moulding, Front Fender, Lower Rear RH
75618C Moulding, Front Fender, Lower Rear LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75625C Pad, Front Fender Outside Moulding, Upper
75641 Moulding, Quarter Window, Outside Front RH
75642 Moulding, Quarter Window, Outside Front LH
75643 Moulding, Quarter Window, Outside Upper RH
75644 Moulding, Quarter Window, Outside Upper LH
75645 Moulding, Quarter Window, Outside Rear RH
75646 Moulding, Quarter Window, Outside Rear LH
75647 Moulding, Quarter Window, Outside Lower RH
75648 Moulding, Quarter Window, Outside Lower LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75653A Moulding, Quarter, Outside Rear RH
75654A Moulding, Quarter, Outside Rear LH
75655B Moulding, Quarter Panel, Lower Front RH
75656B Moulding, Quarter Panel, Lower Front LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75691A Pad, Front Fender Outside Moulding, RH
75692A Pad, Front Fender Outside Moulding, LH
75696 Pad, Body Outside Moulding, NO.1
75697A Pad, Body Outside Moulding, NO.2
75698A Pad, Body Outside Moulding, NO.3
75699 Pad, Body Outside Moulding, NO.4
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75733B Moulding, Front Door, Outside Upper Rear RH
75734B Moulding, Front Door, Outside Upper Rear LH
75735A Moulding, Front Door Outside, Lower RH
75736A Moulding, Front Door Outside, Lower LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75743A Moulding, Rear Door, Outside Upper Rear RH
75744 Moulding, Rear Door, Outside Upper Rear LH
75745 Moulding, Rear Door Outside, Lower RH
75746 Moulding, Rear Door Outside, Lower LH
75751C Moulding, Front Door Window Frame, Front RH
75752C Moulding, Front Door Window Frame, Front LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75763A Moulding, Rear Door Window Frame, Upper RH
75764A Moulding, Rear Door Window Frame, Upper LH
75765A Moulding, Rear Door Window Frame, Rear RH
75766A Moulding, Rear Door Window Frame, Rear LH
75787A Pad, Front Door Outside Moulding, RH
75788A Pad, Front Door Outside Moulding, LH
75793 Pad, Front Door Outside Moulding, Upper
75794 Pad, Front Door Outside Moulding, Rear
75797 Pad, Rear Door Outside Moulding, Upper
75798 Pad, Rear Door Outside Moulding, Rear
75850A Moulding Assy, Body Rocker Panel, RH
75851A Moulding, Rocker Panel, Front RH
75852A Moulding, Rocker Panel, Front LH
75855A Moulding, Rocker Panel, Rear RH
75856A Moulding, Rocker Panel, Rear LH
75860A Moulding Assy, Body Rocker Panel, LH
75867A Clip, Rocker Panel Moulding
75871 Moulding, Front Fender Wheel Opening, RH
75872 Moulding, Front Fender Wheel Opening, LH
75873 Moulding, Quarter Panel Wheel Opening, RH
75874 Moulding, Quarter Panel Wheel Opening, LH
76681 Cover, Outside Moulding End, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
