Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

22 part groups · 6 illustrations

Illustrations

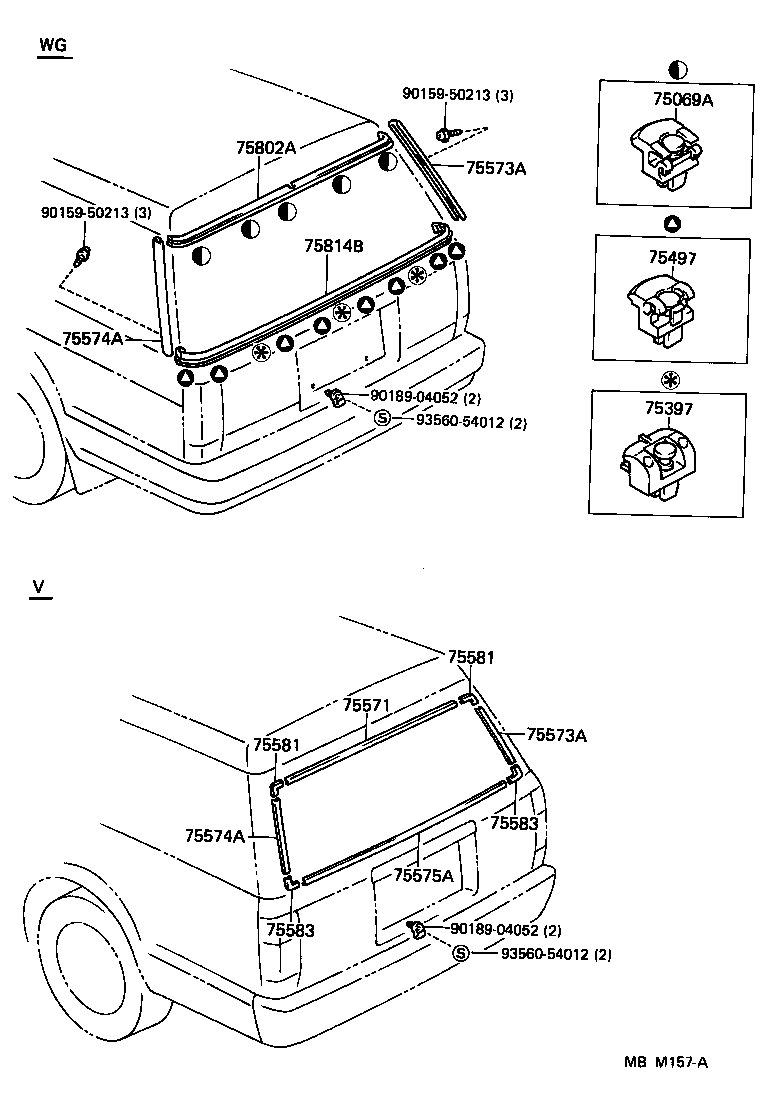

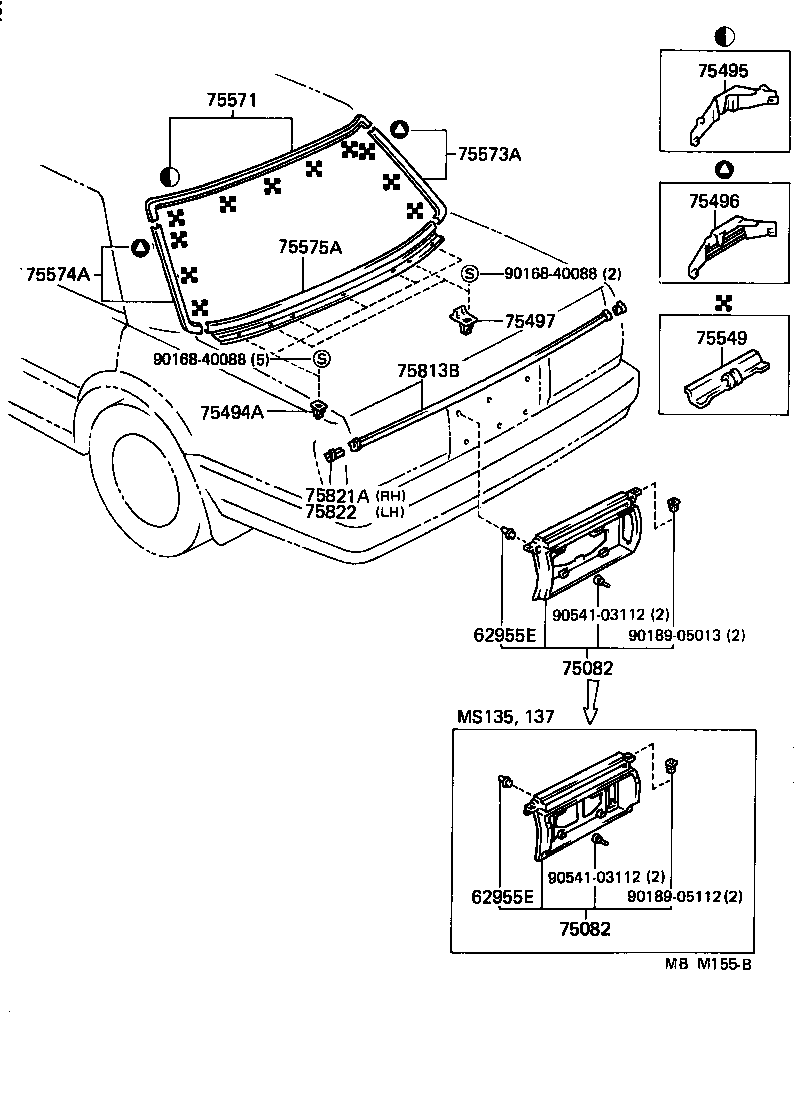

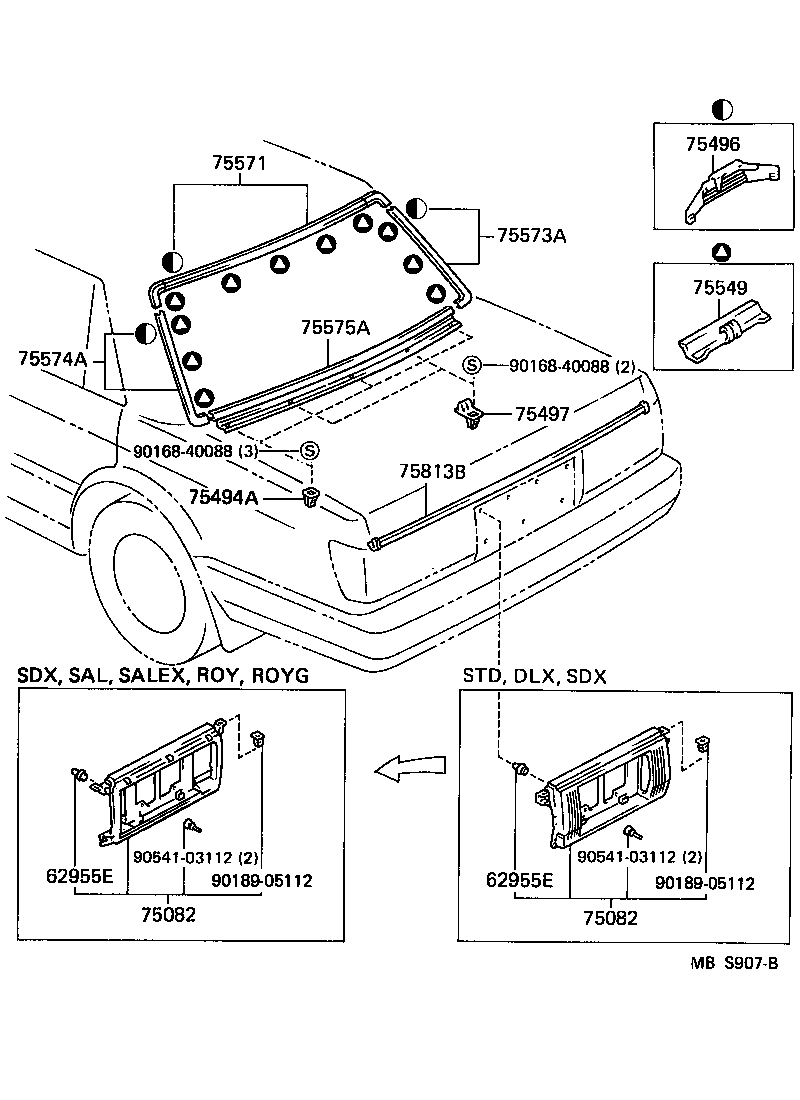

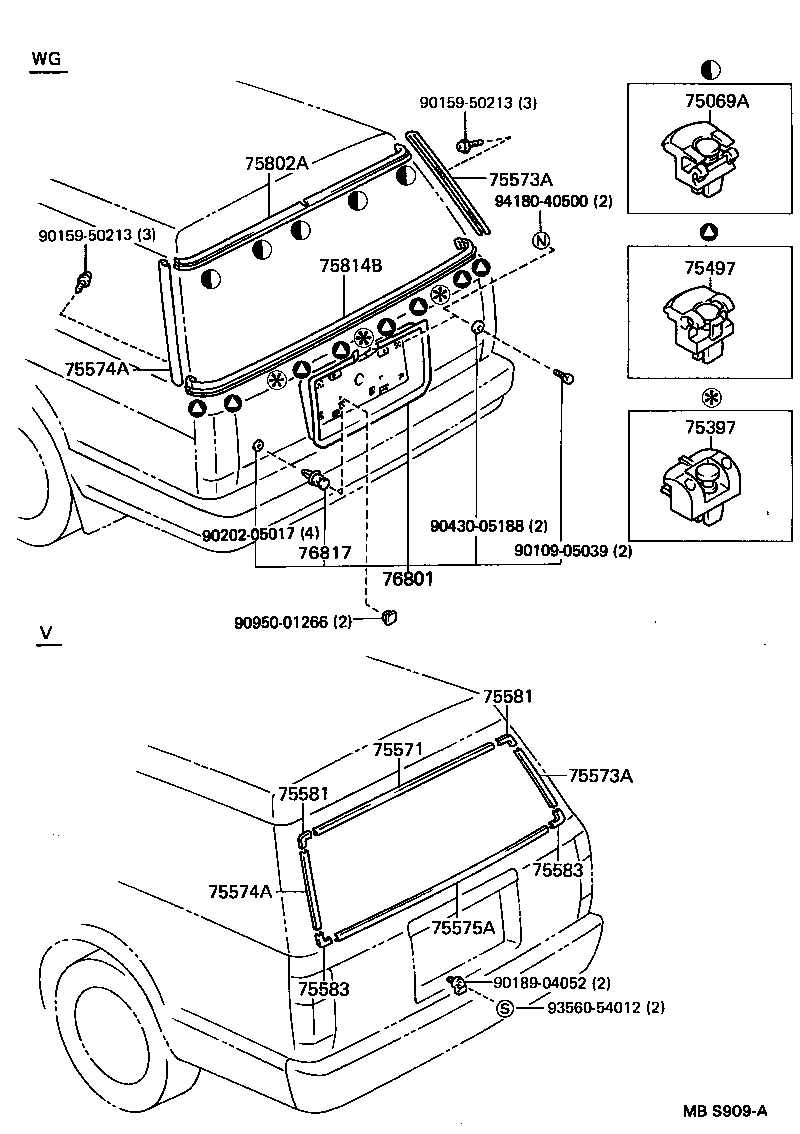

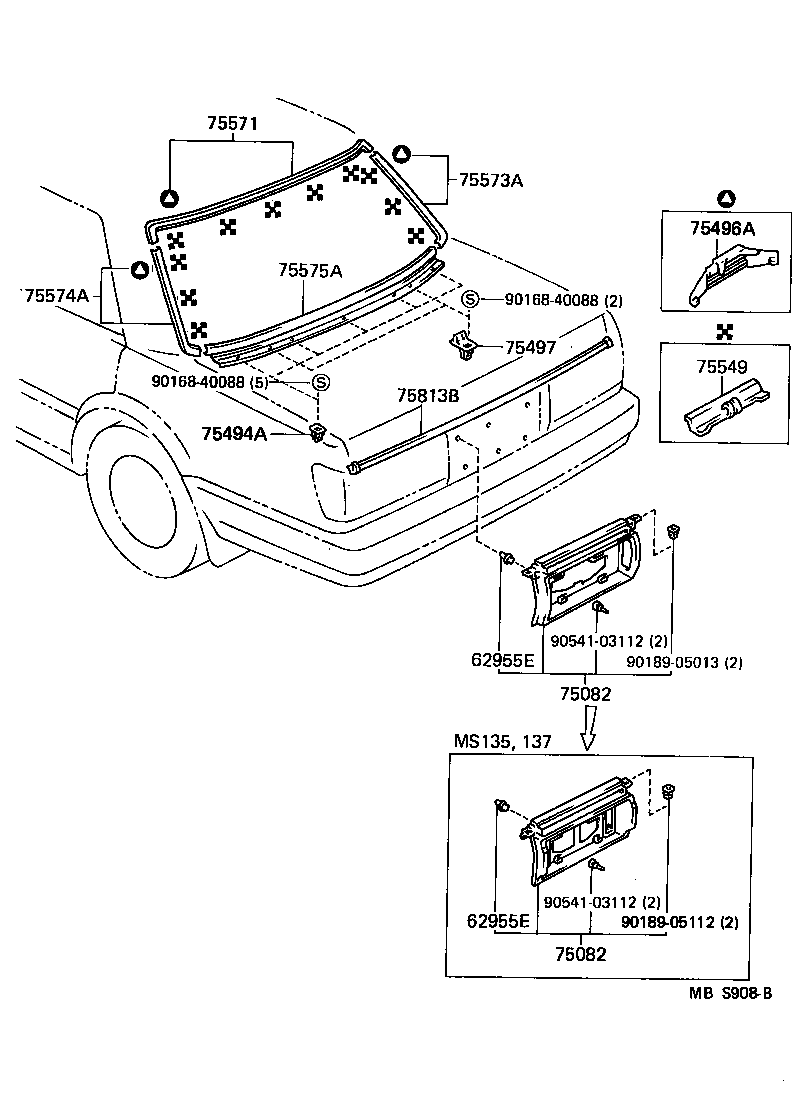

Figure MBM153B MBM153B 1987-09 → 1989-08 Figure MBS907B MBS907B 1989-08 → — Figure MBM155B MBM155B 1987-09 → 1989-08 Figure MBS908B MBS908B 1989-08 → — Figure MBM157A MBM157A 1987-09 → 1989-08 Figure MBS909A MBS909A 1989-08 → —

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75069A Clip Sub-assy, Outside Moulding, NO.4
75082 Panel Sub-assy, Lower Back Finish, Center
75397 Clip, Back Door Moulding, NO.3
75494 Clip, Outside Moulding, NO.3
75494A Clip, Outside Moulding, NO.3
75495 Clip, Outside Moulding, NO.4
75496 Clip, Back Window Outside Moulding, NO.1
75496A Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75549 Fastener, Back Window Outside Moulding, NO.2
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75581 Cover, Back Window Moulding Joint, Upper
75583 Cover, Back Window Moulding Joint, Lower
75802A Moulding Sub-assy, Back Door, Outside Upper
75813B Moulding, Luggage Compartment Door
75814B Moulding, Back Door, Outside Lower
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
