Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

13 part groups · 2 illustrations

Illustrations

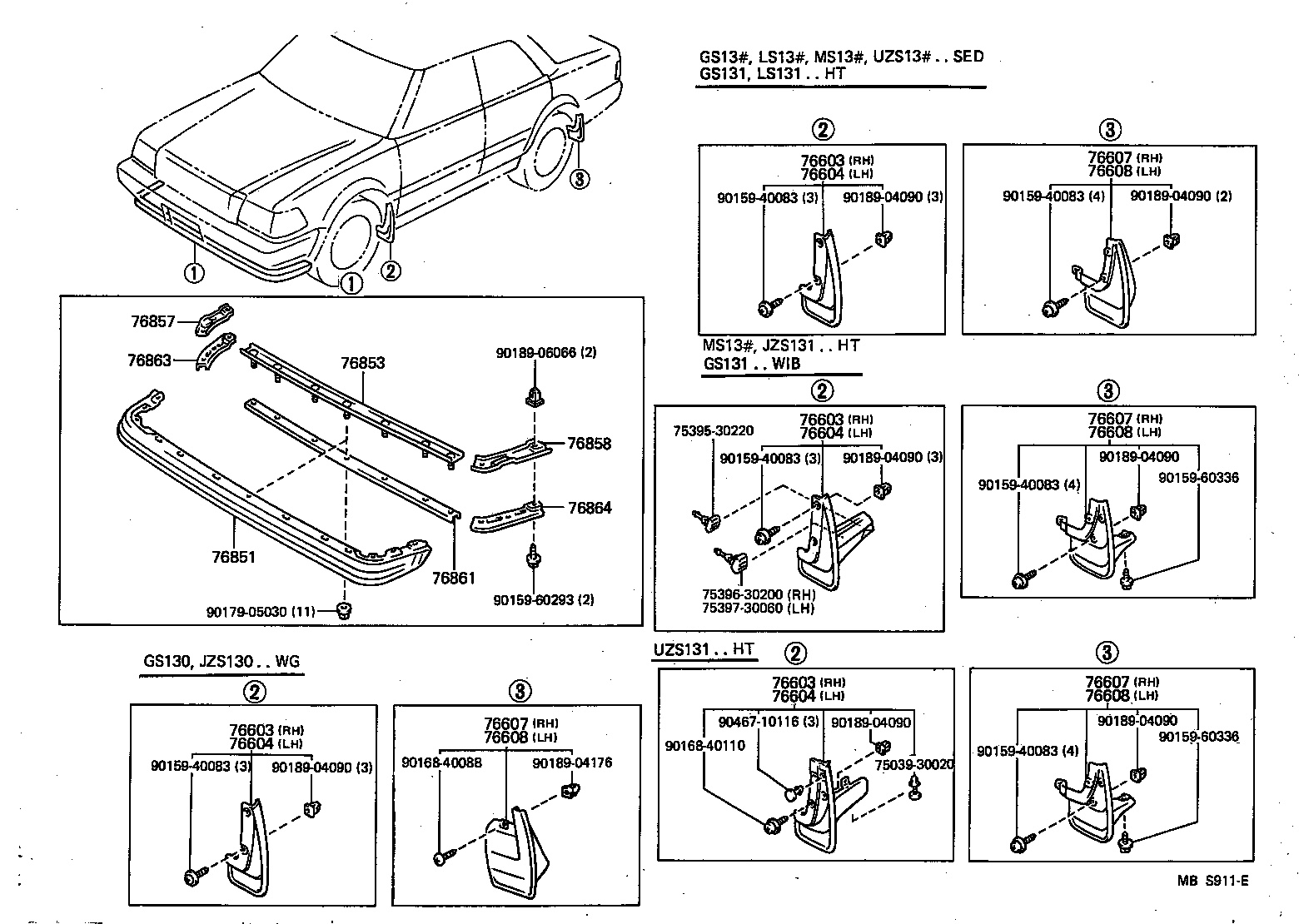

Figure MBM145A MBM145A 1987-09 → 1989-08 Figure MBS911E MBS911E 1989-08 → —

Part groups

PNCDescription
76082A Retainer Set, Front Spoiler
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76851 Cover, Front Spoiler
76853 Retainer, Front Spoiler, Upper RH
76855 Retainer, Front Spoiler, Lower NO.1 Center
76857 Retainer, Front Spoiler Side, RH
76858 Retainer, Front Spoiler Side, LH
76861 Retainer, Front Spoiler, Lower NO.1
76863 Retainer, Front Spoiler, Lower NO.2 RH
76864 Retainer, Front Spoiler, Lower NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
