Toyota Crown
1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan
Discontinued model
Data version 1992-04
Fuel Tank & Tube

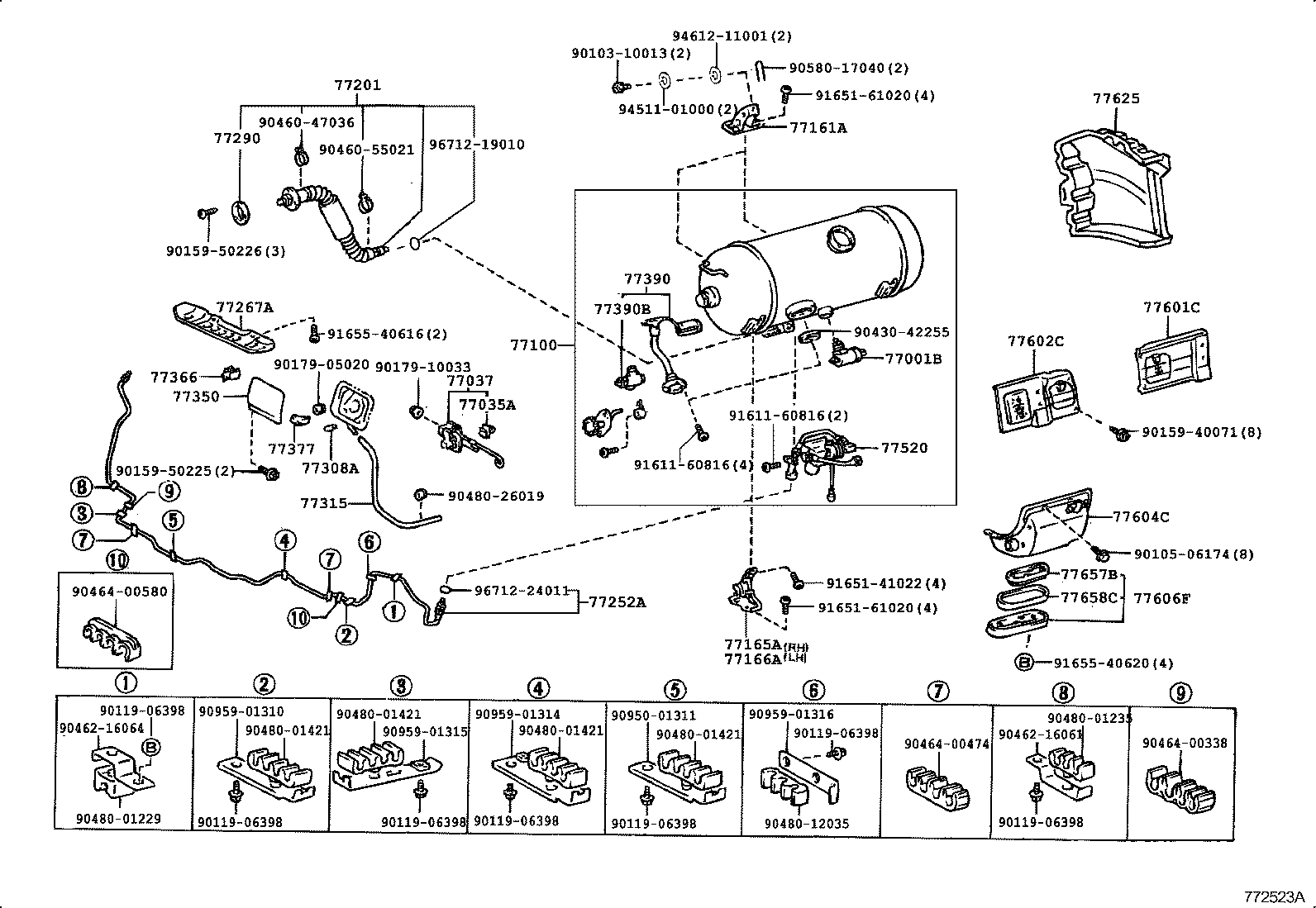

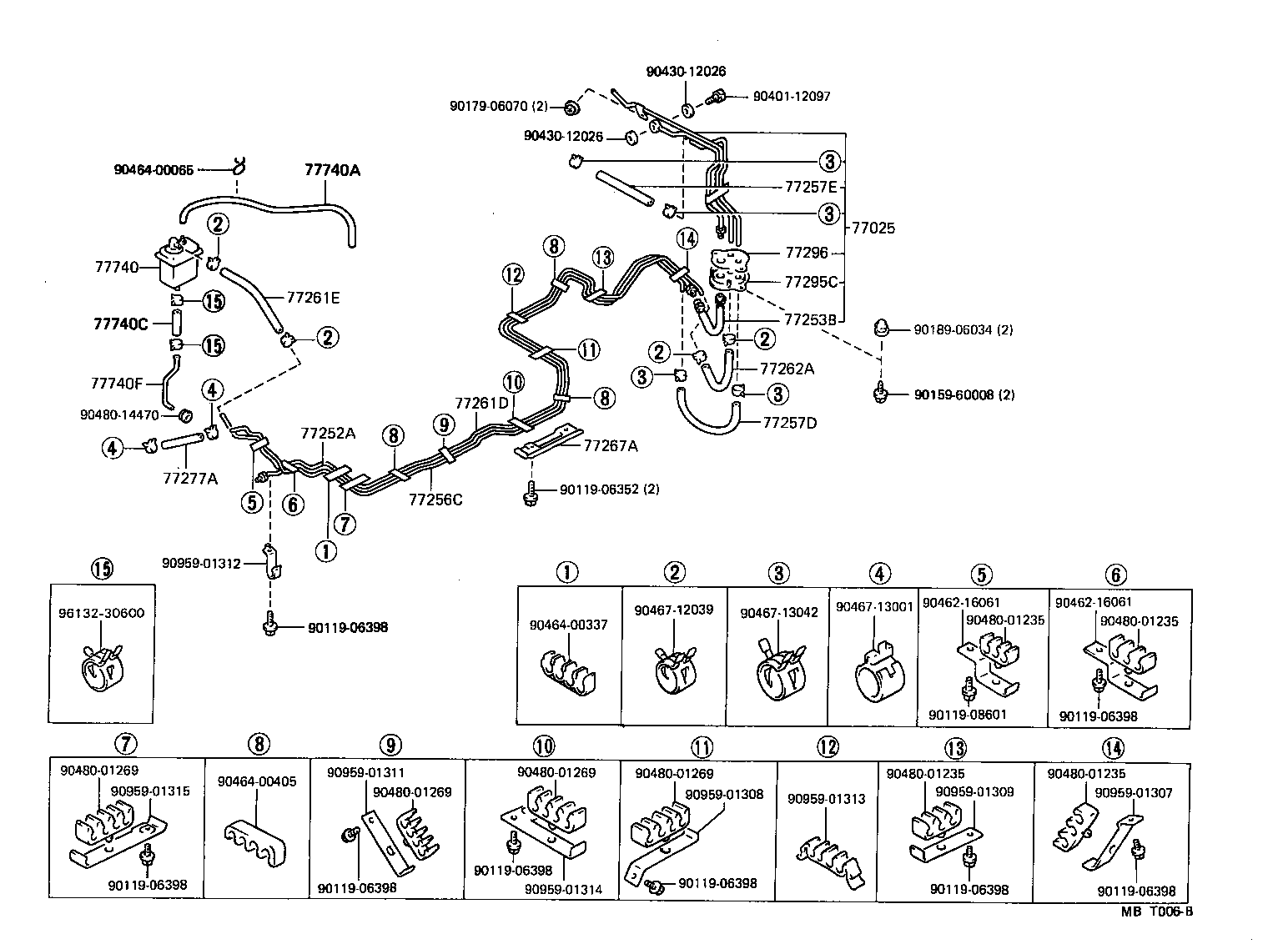

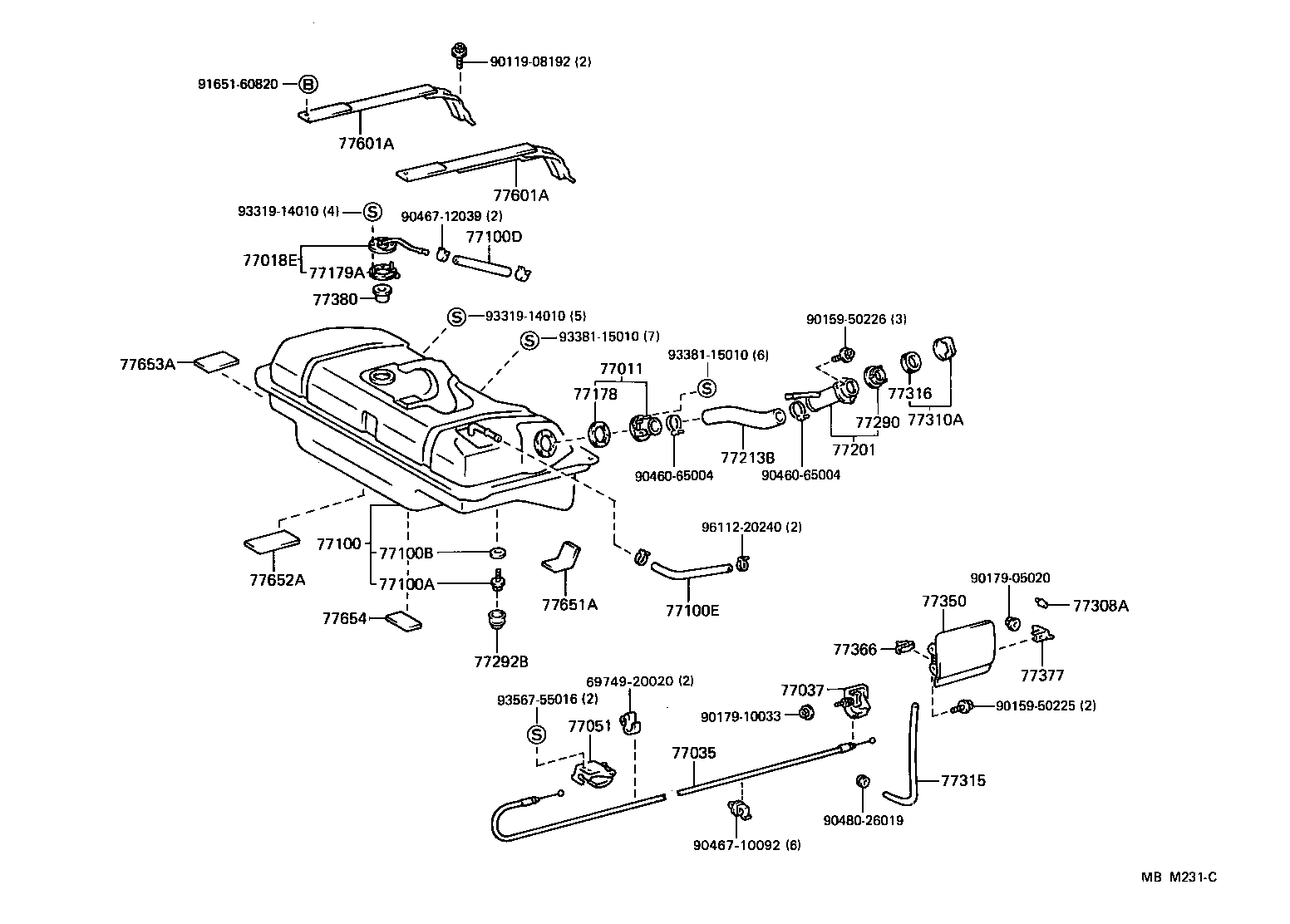

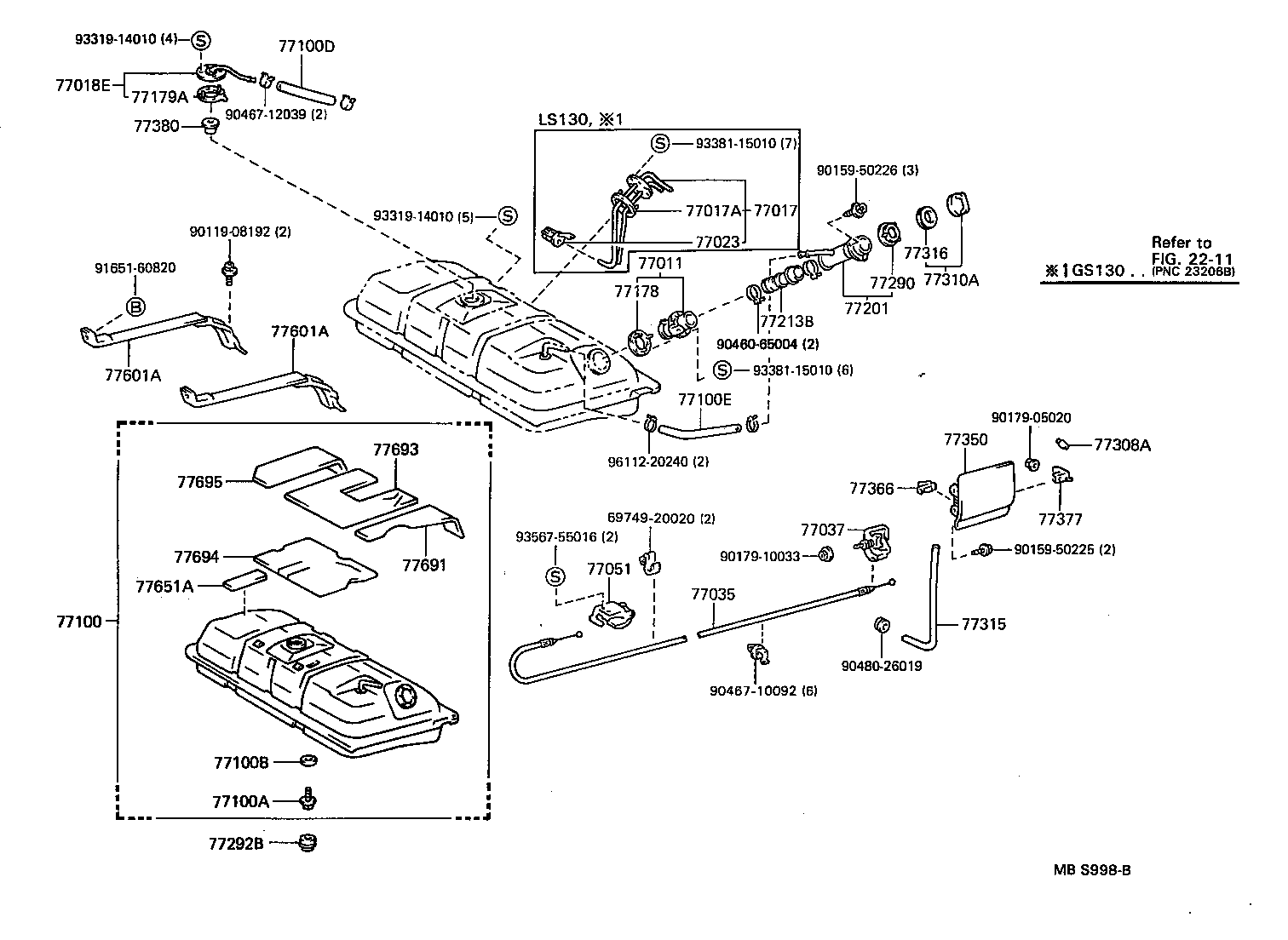

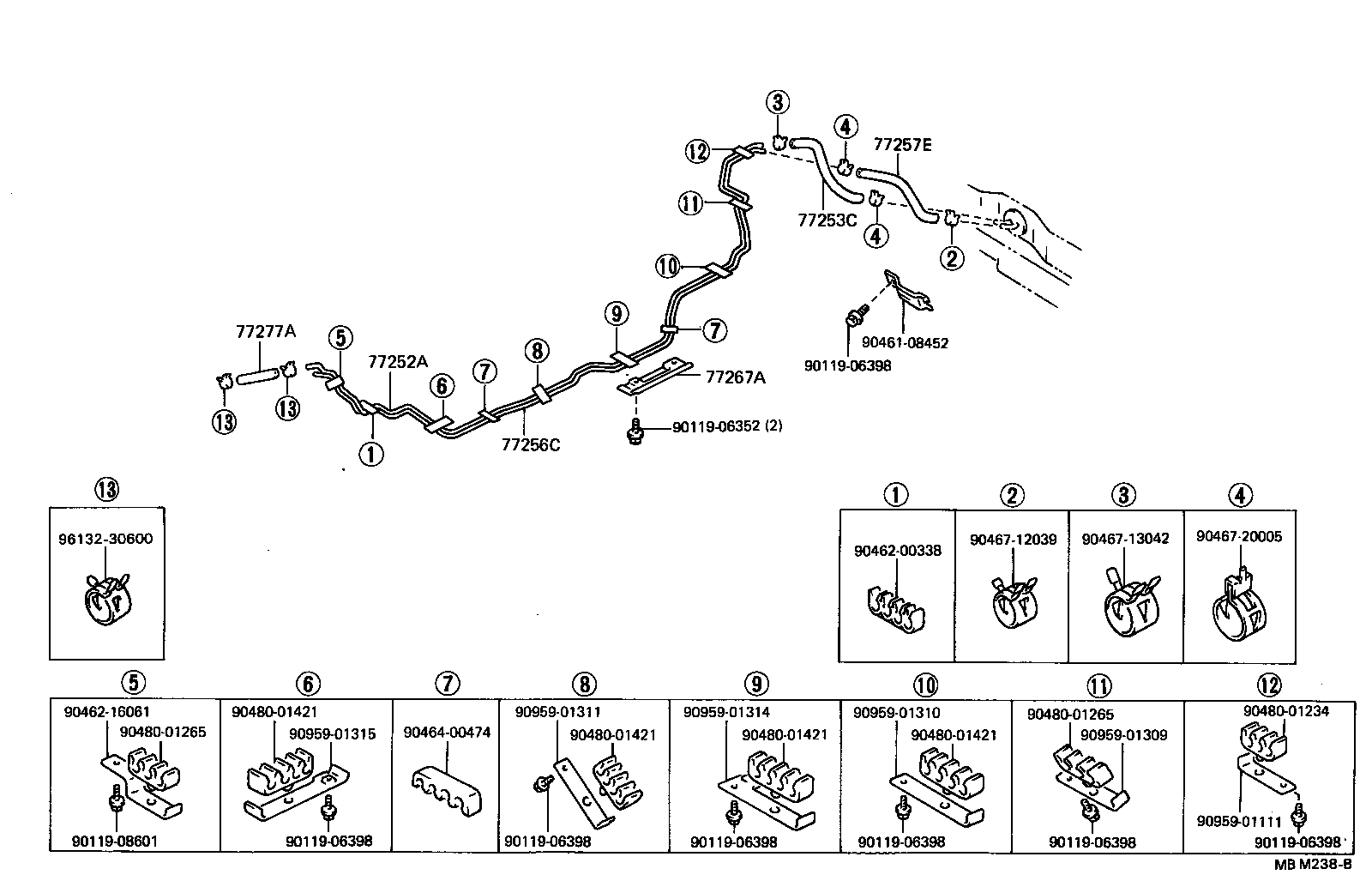

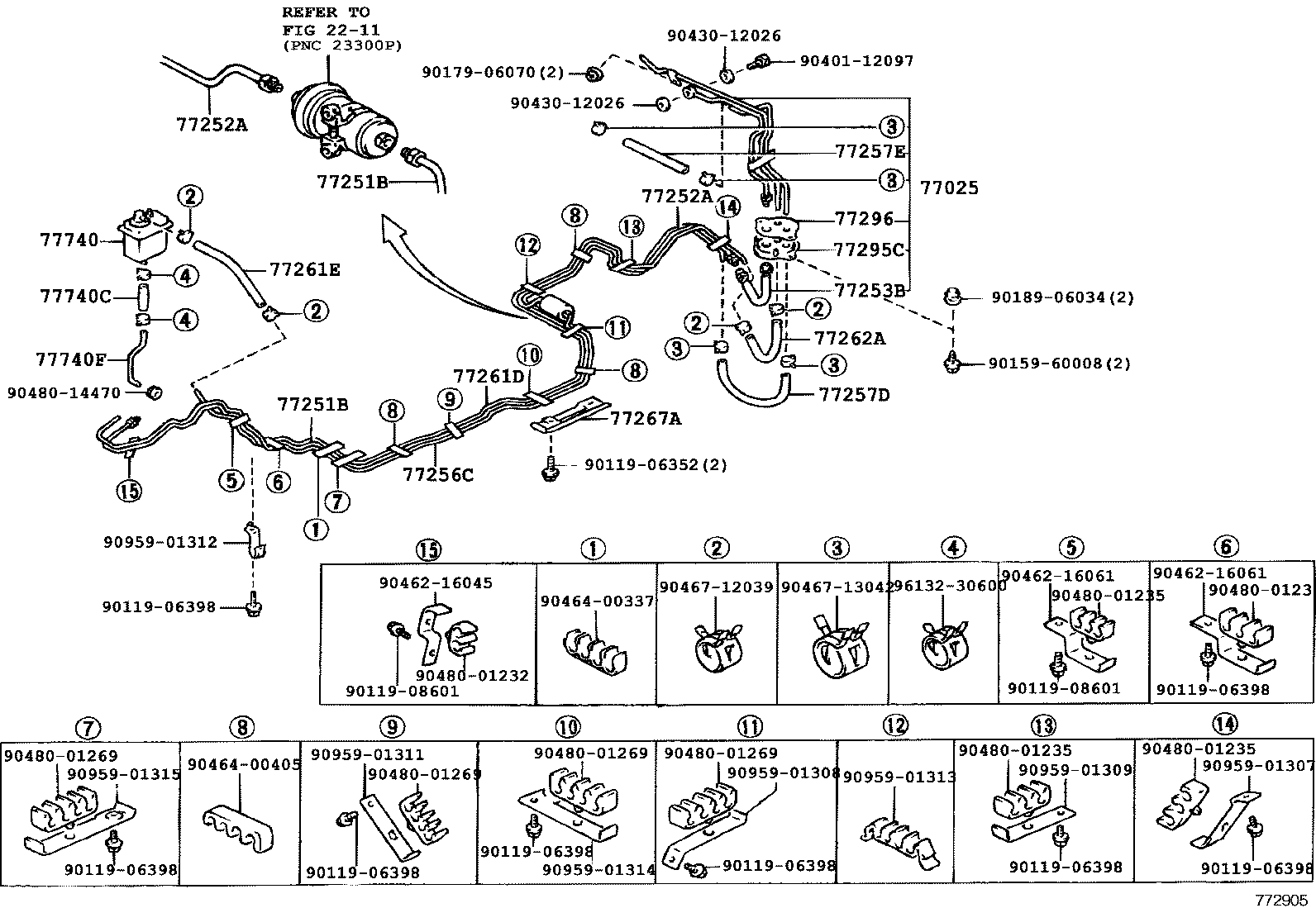

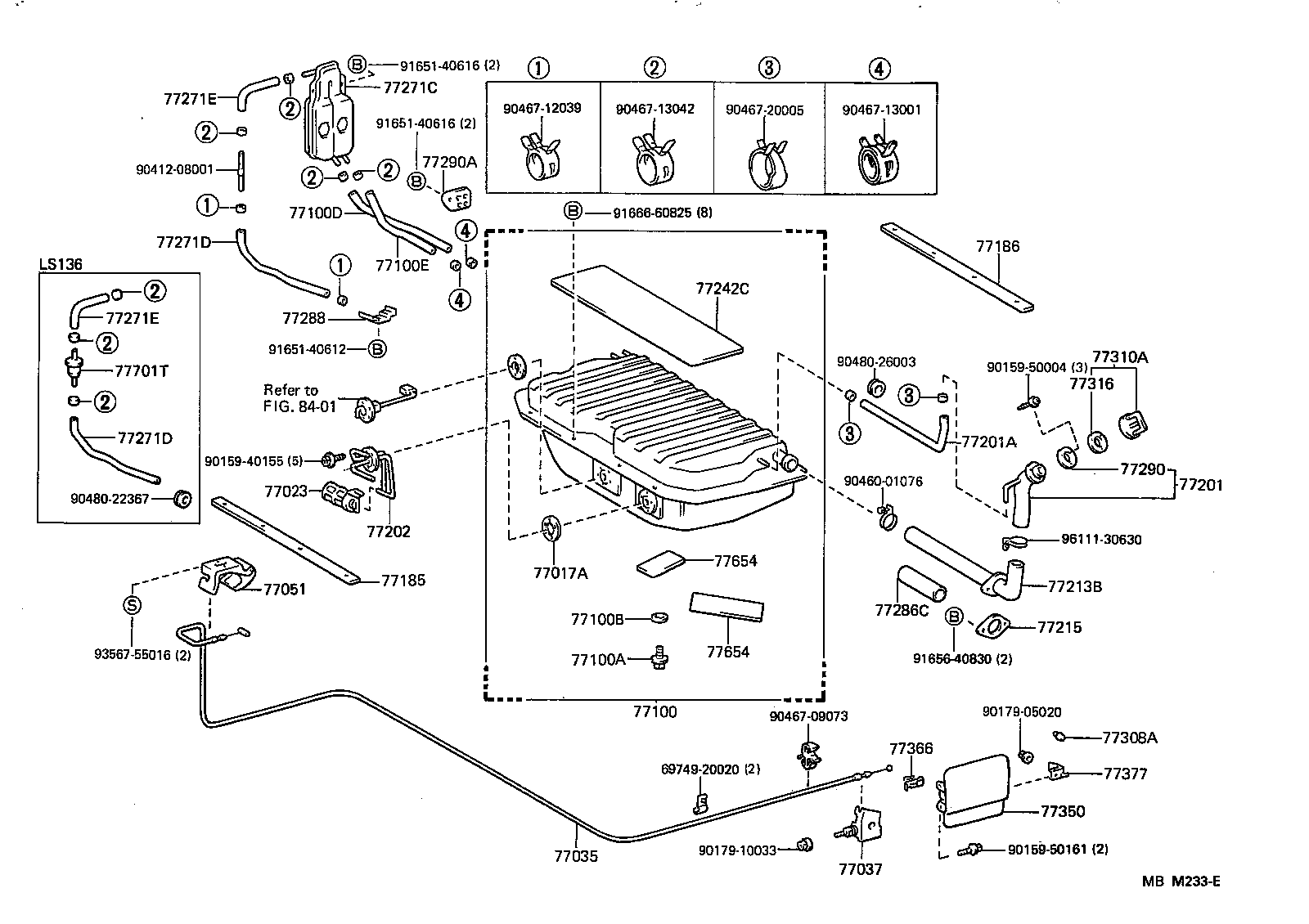

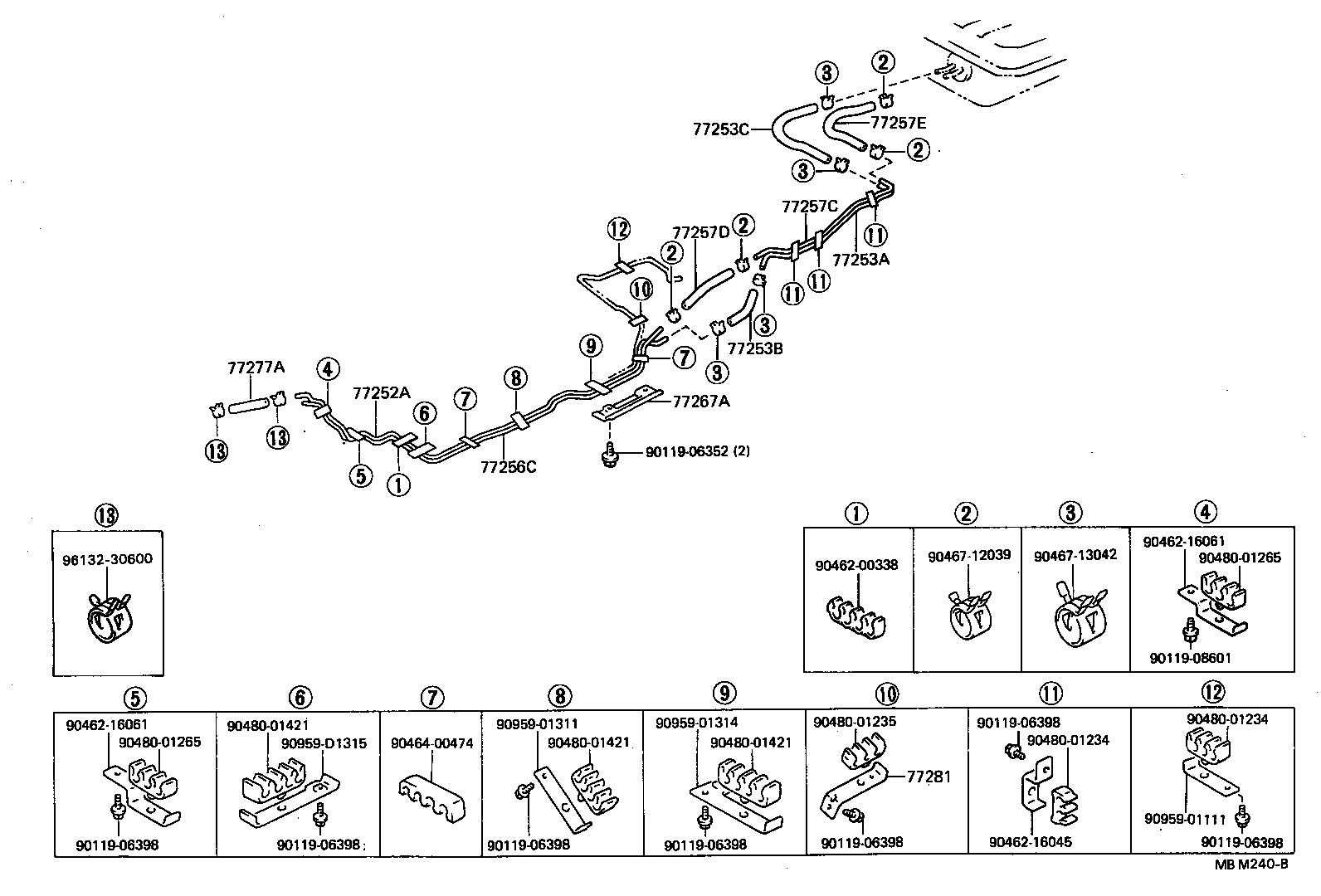

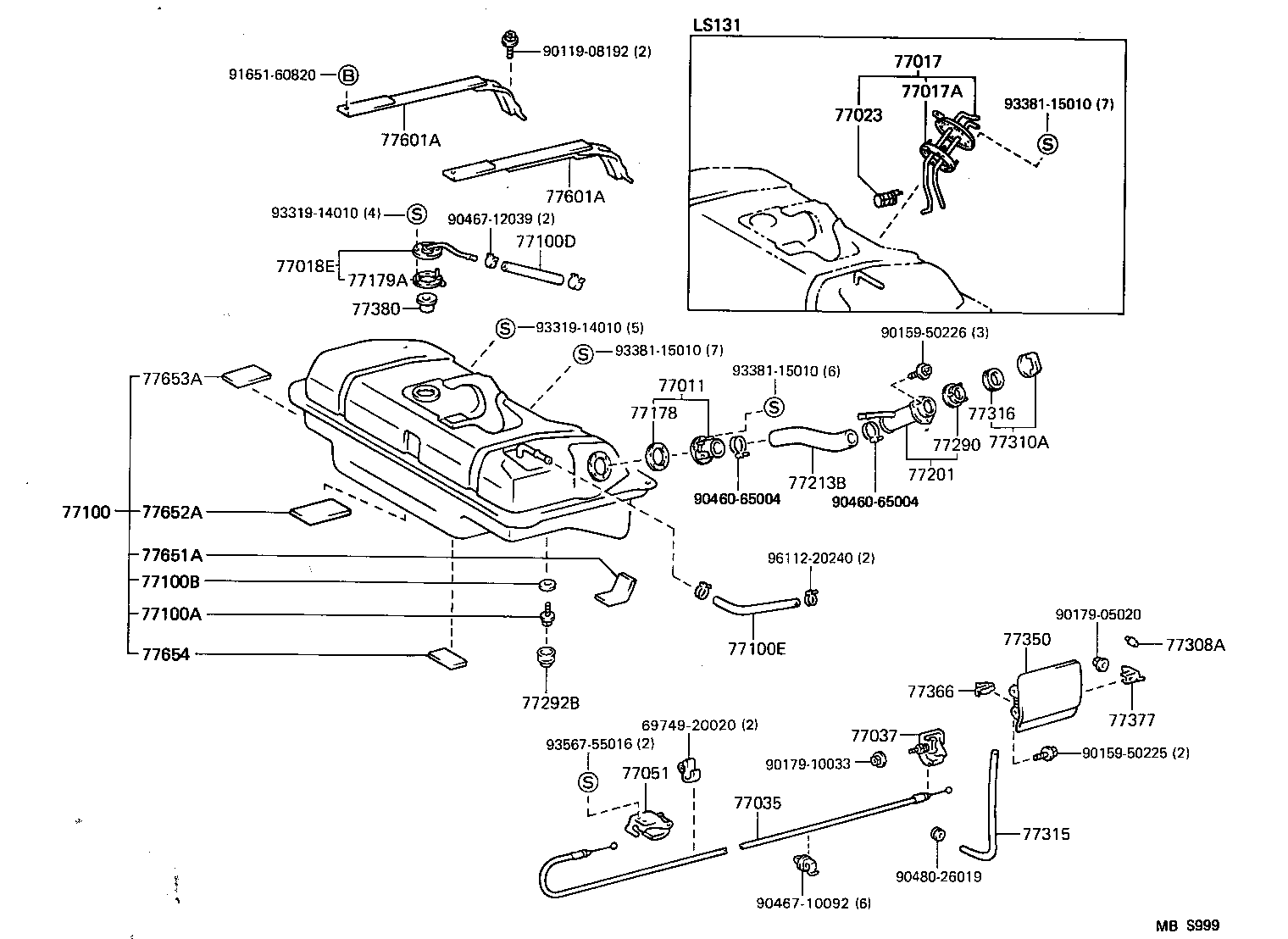

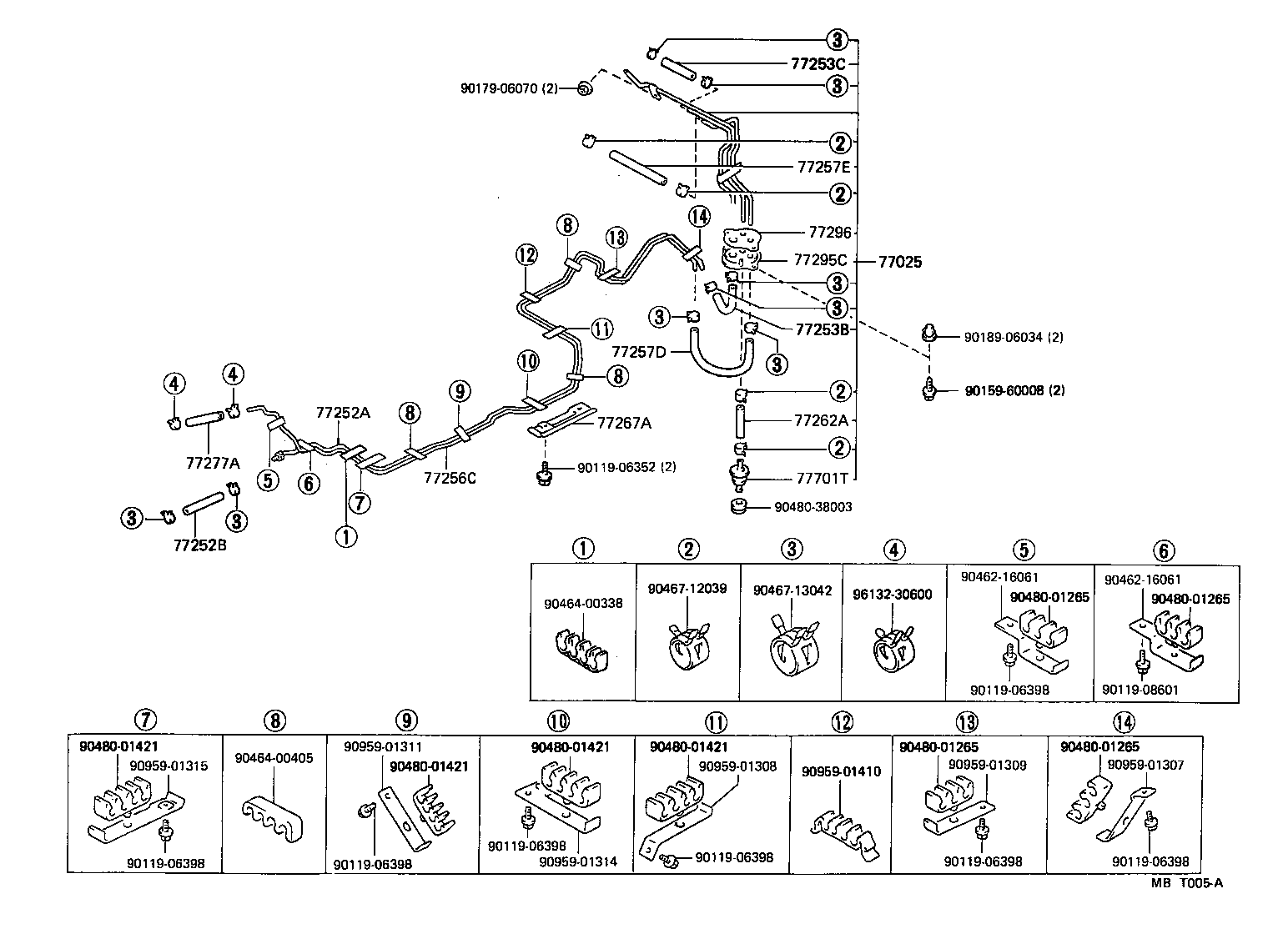

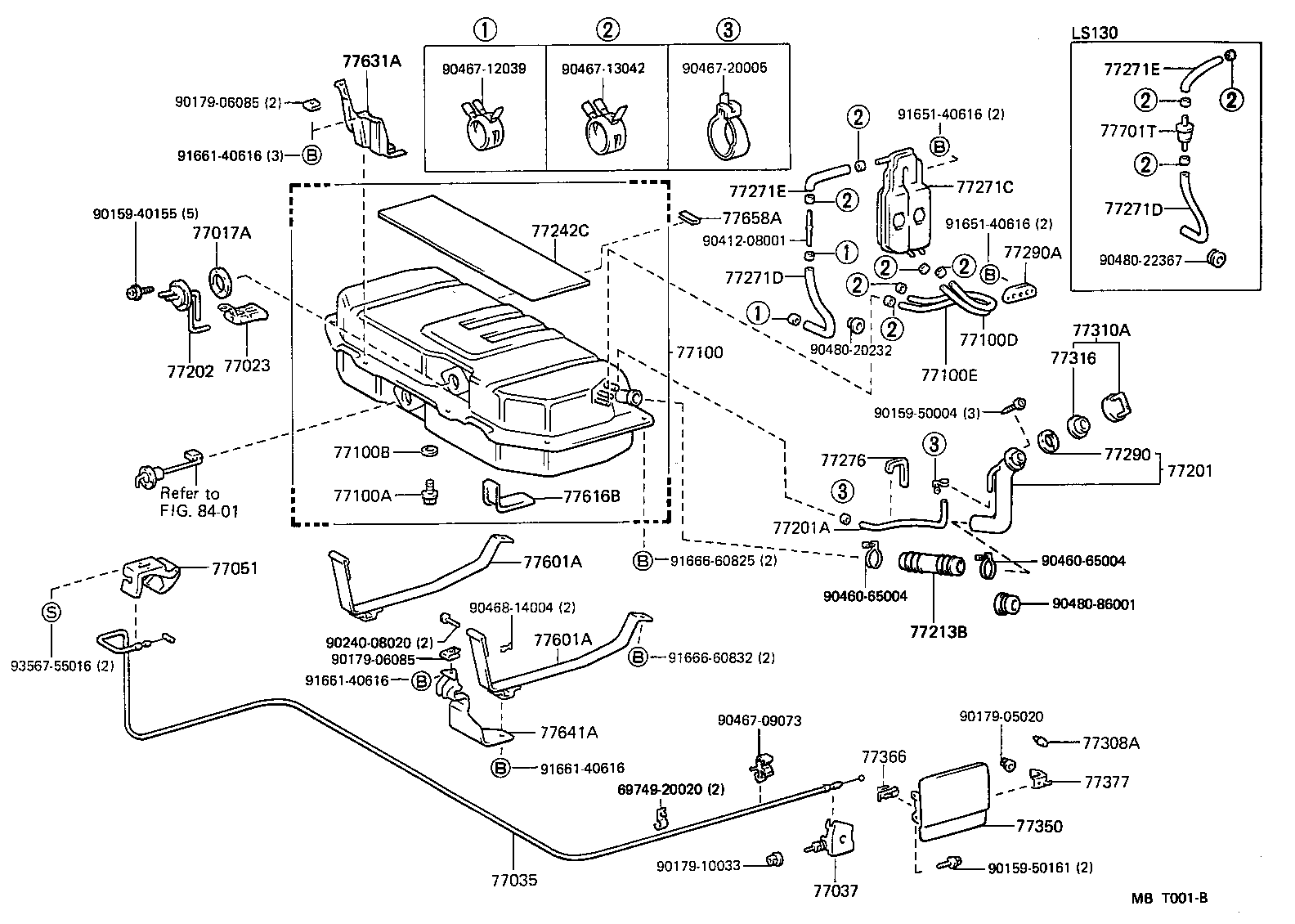

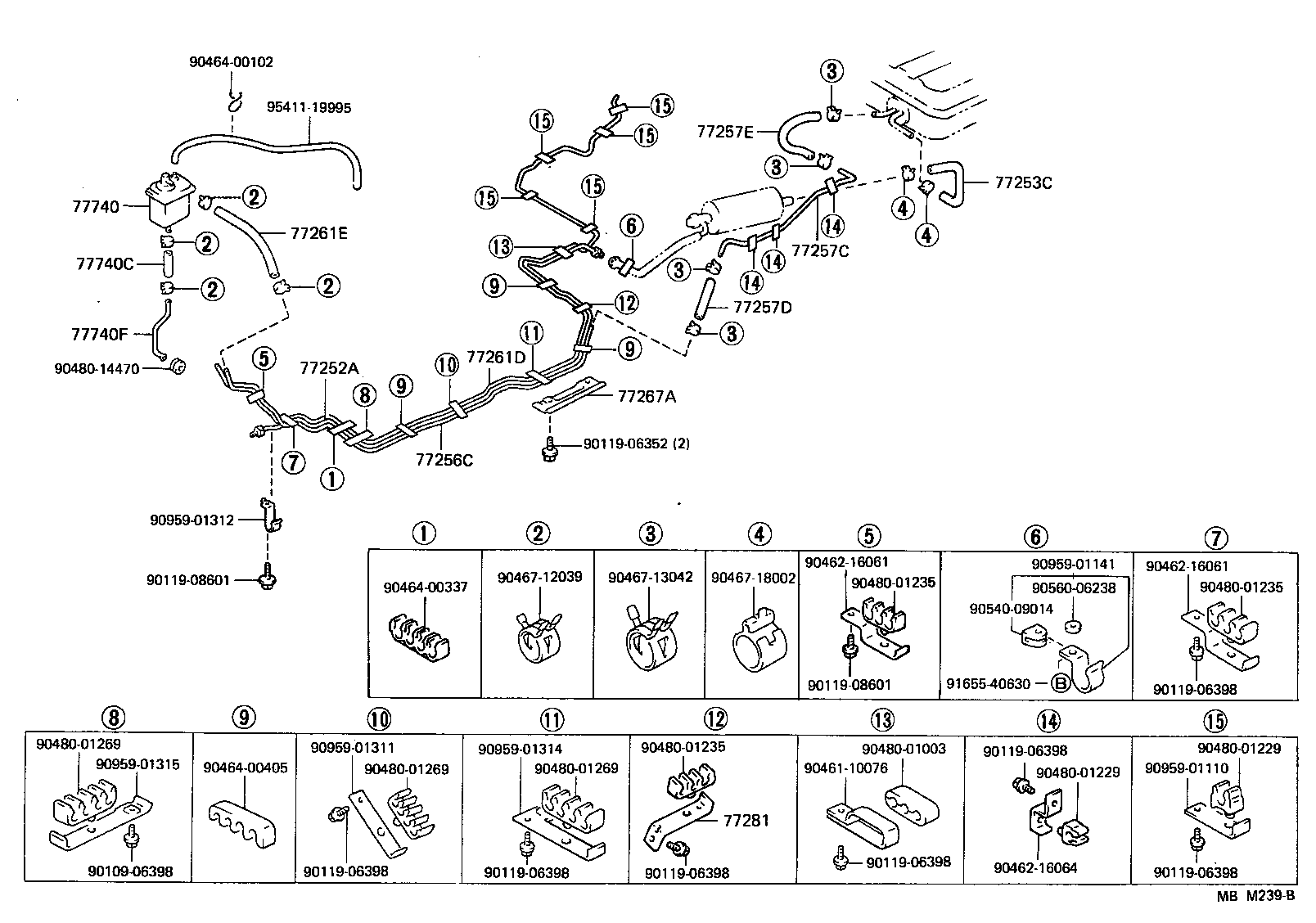

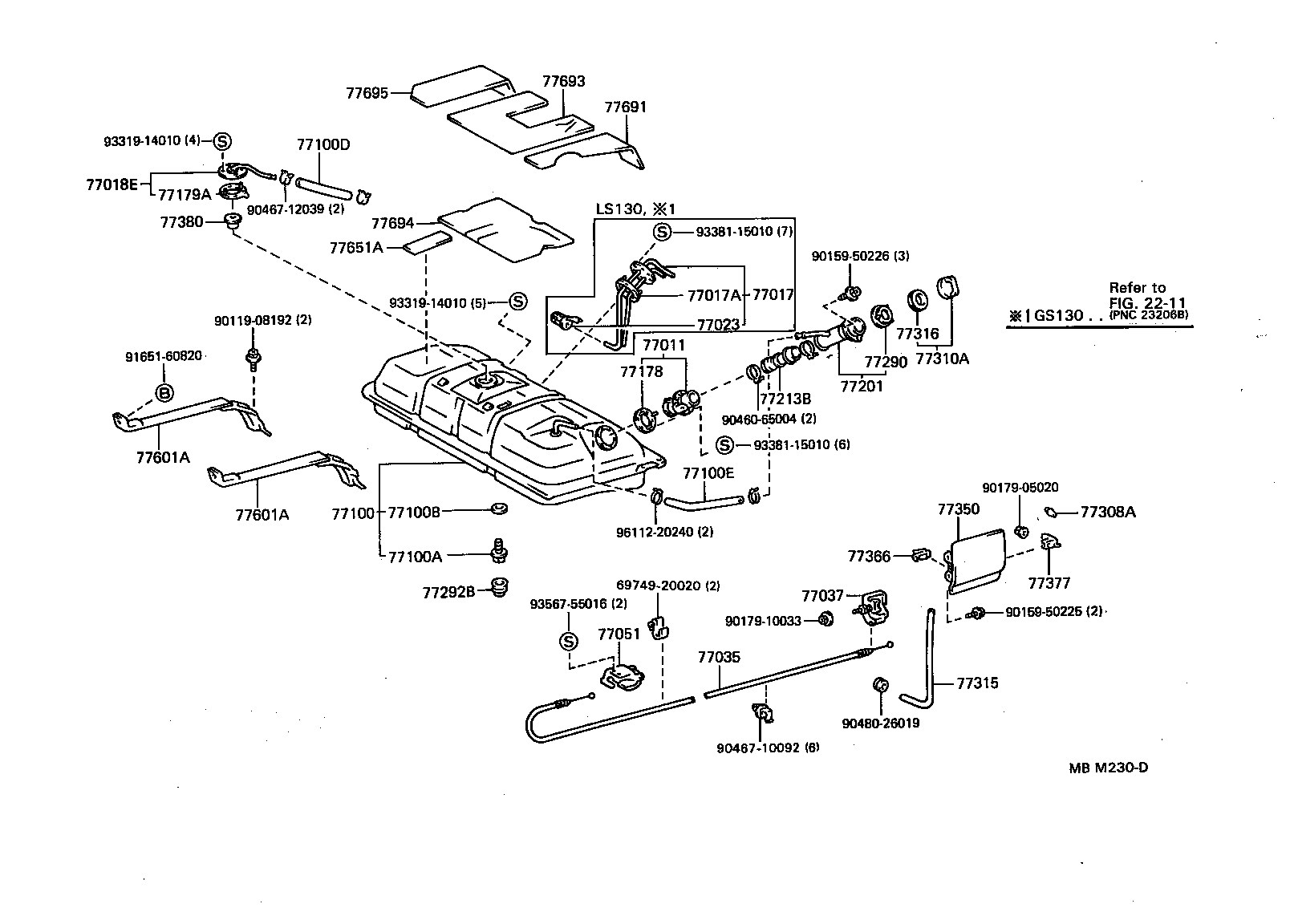

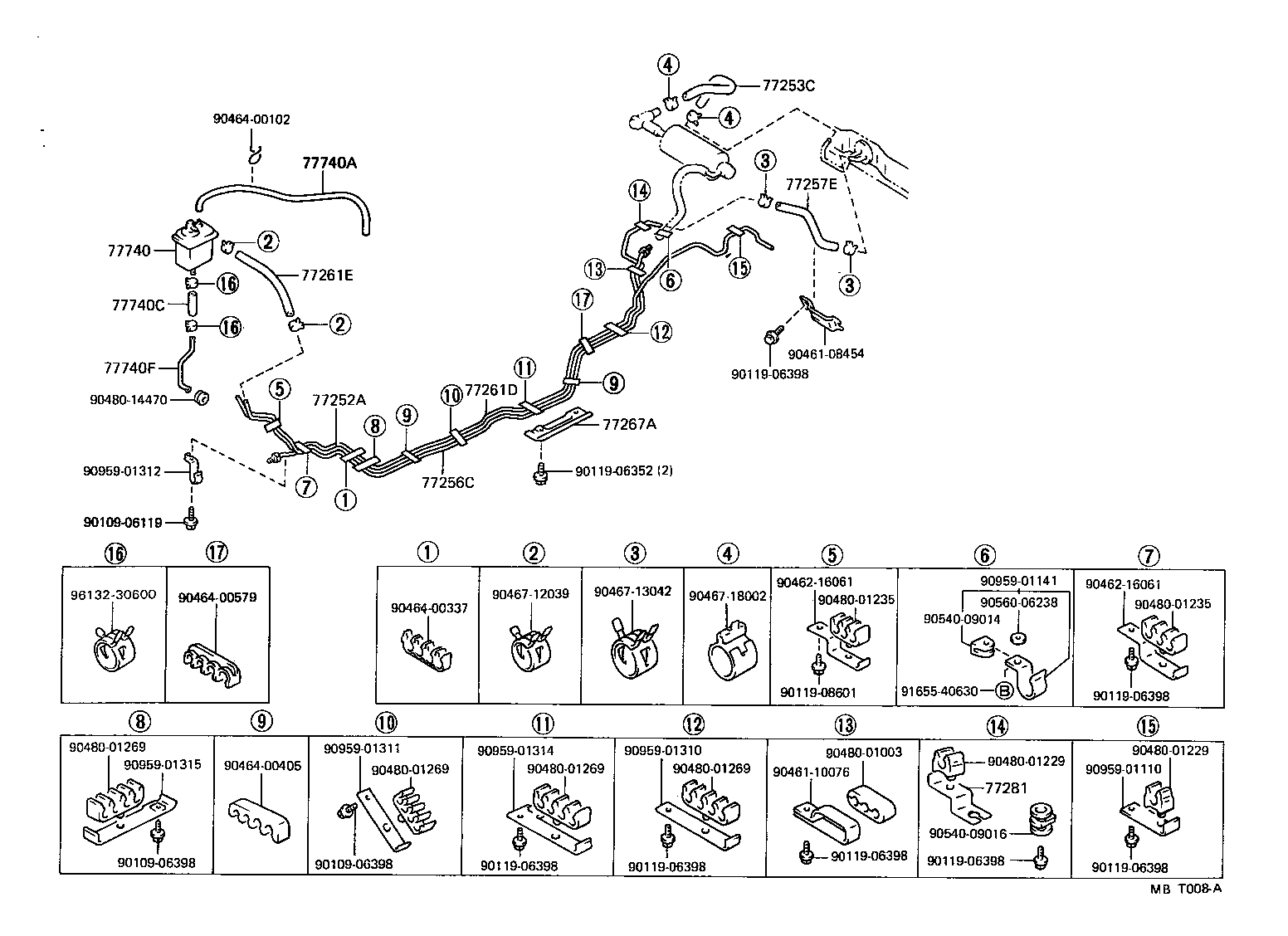

103 part groups · 23 illustrations

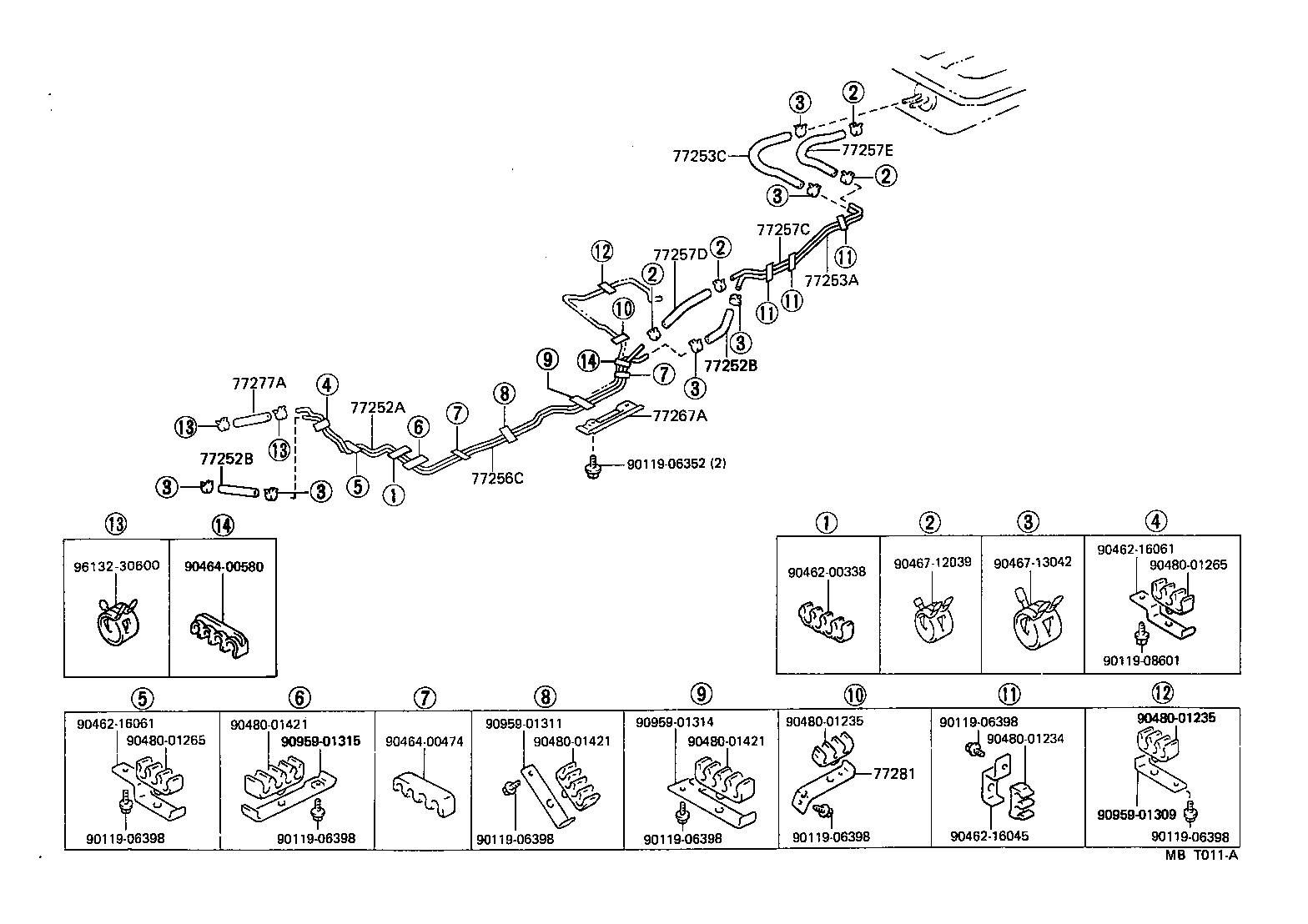

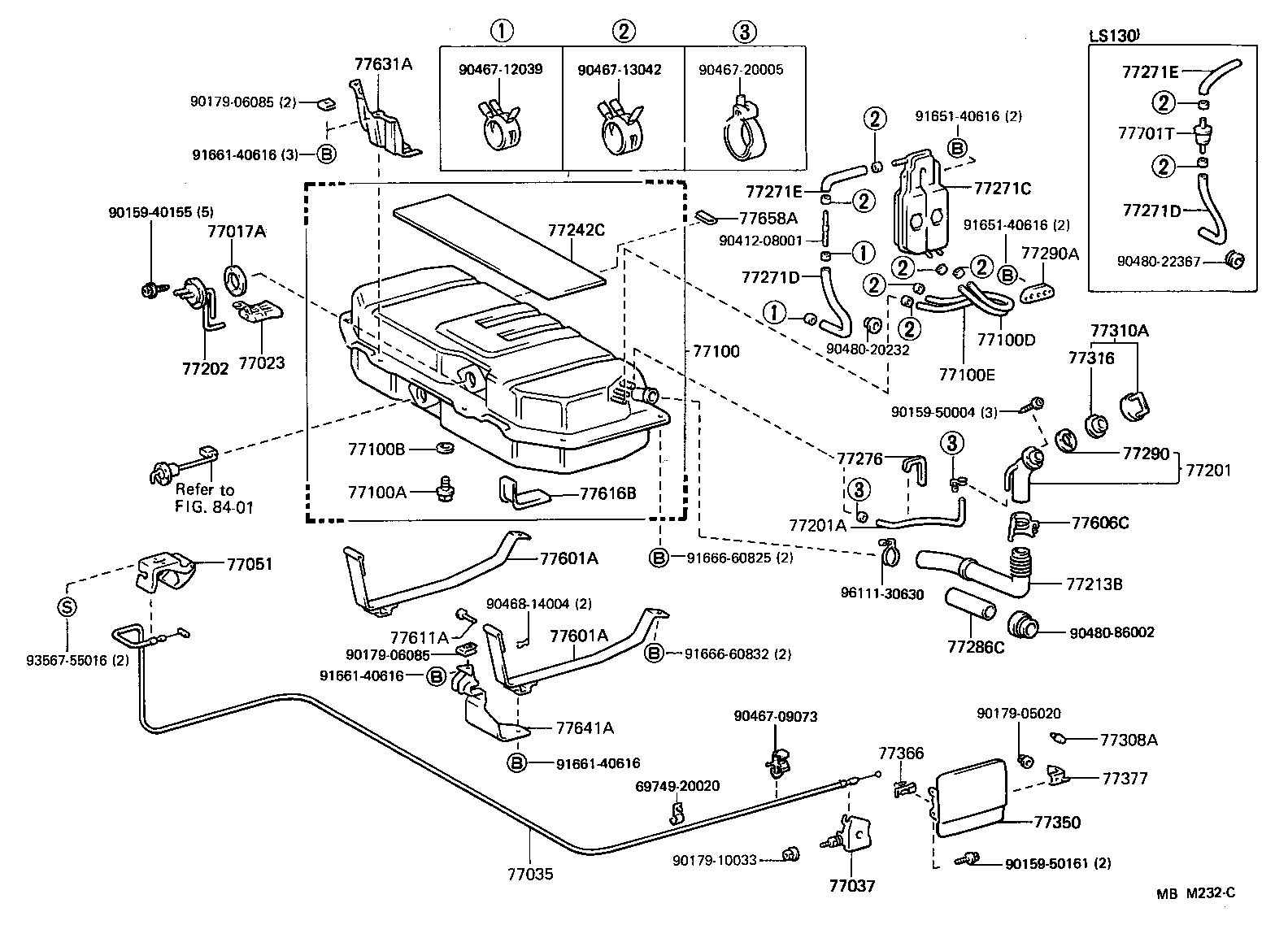

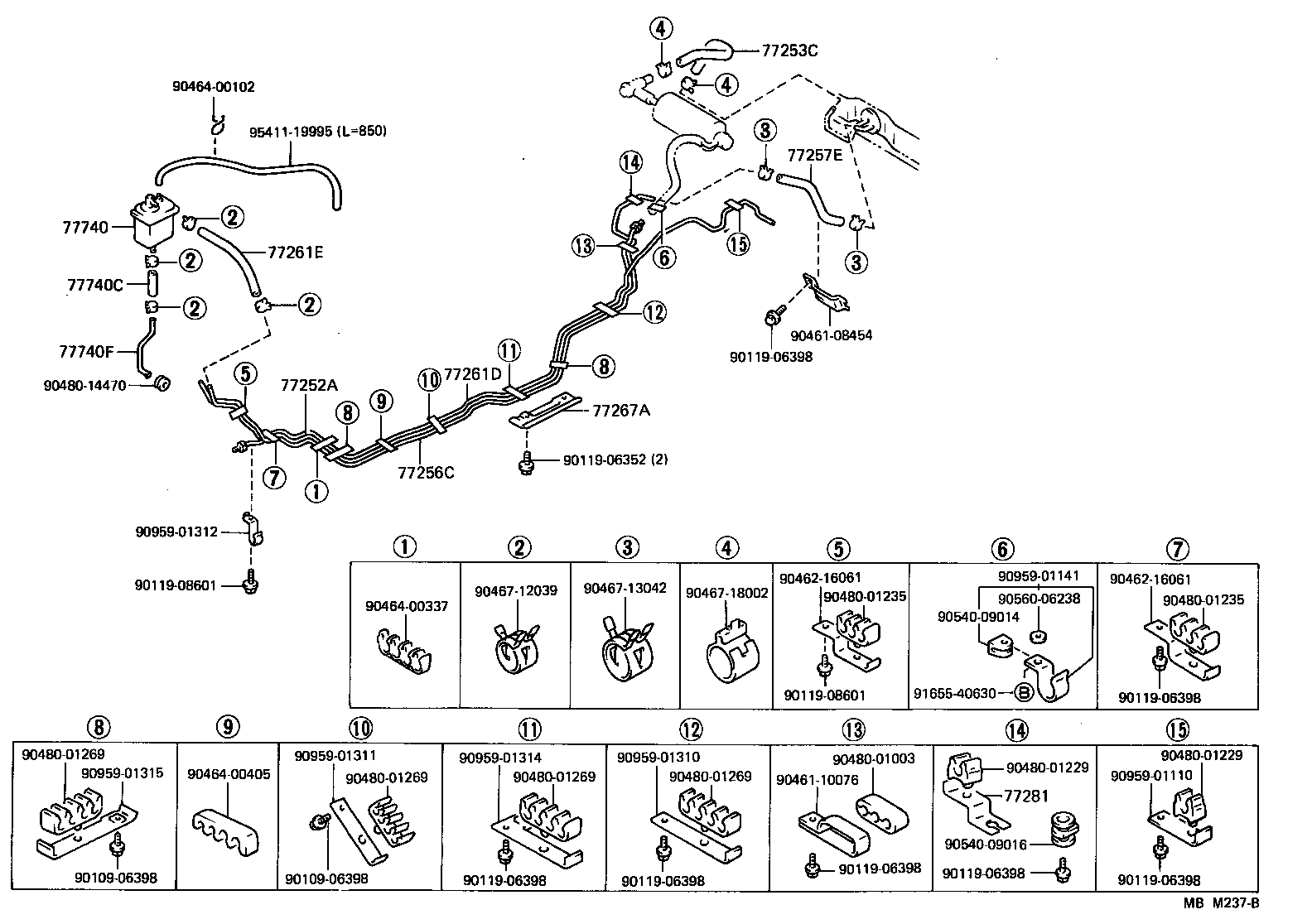

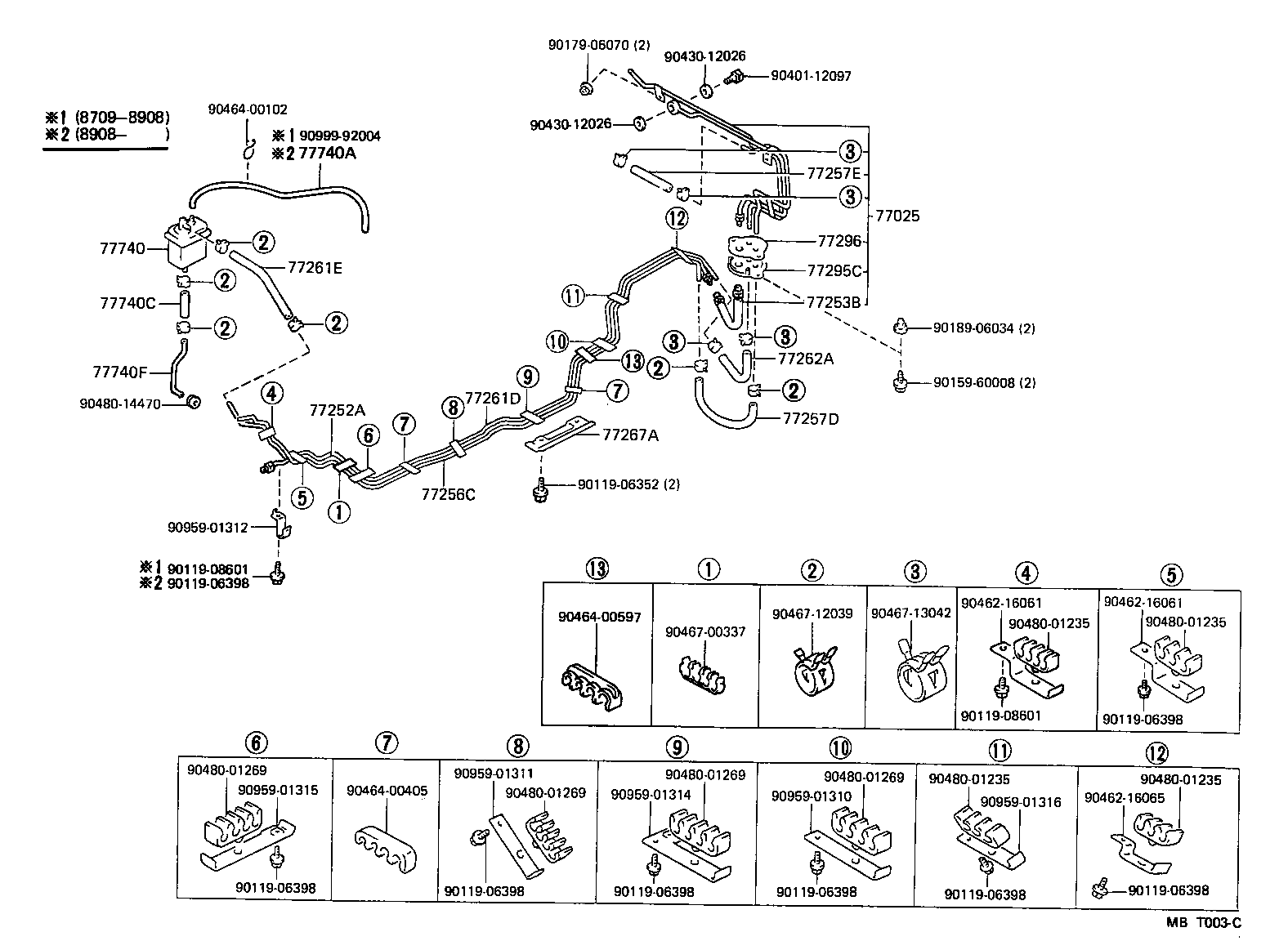

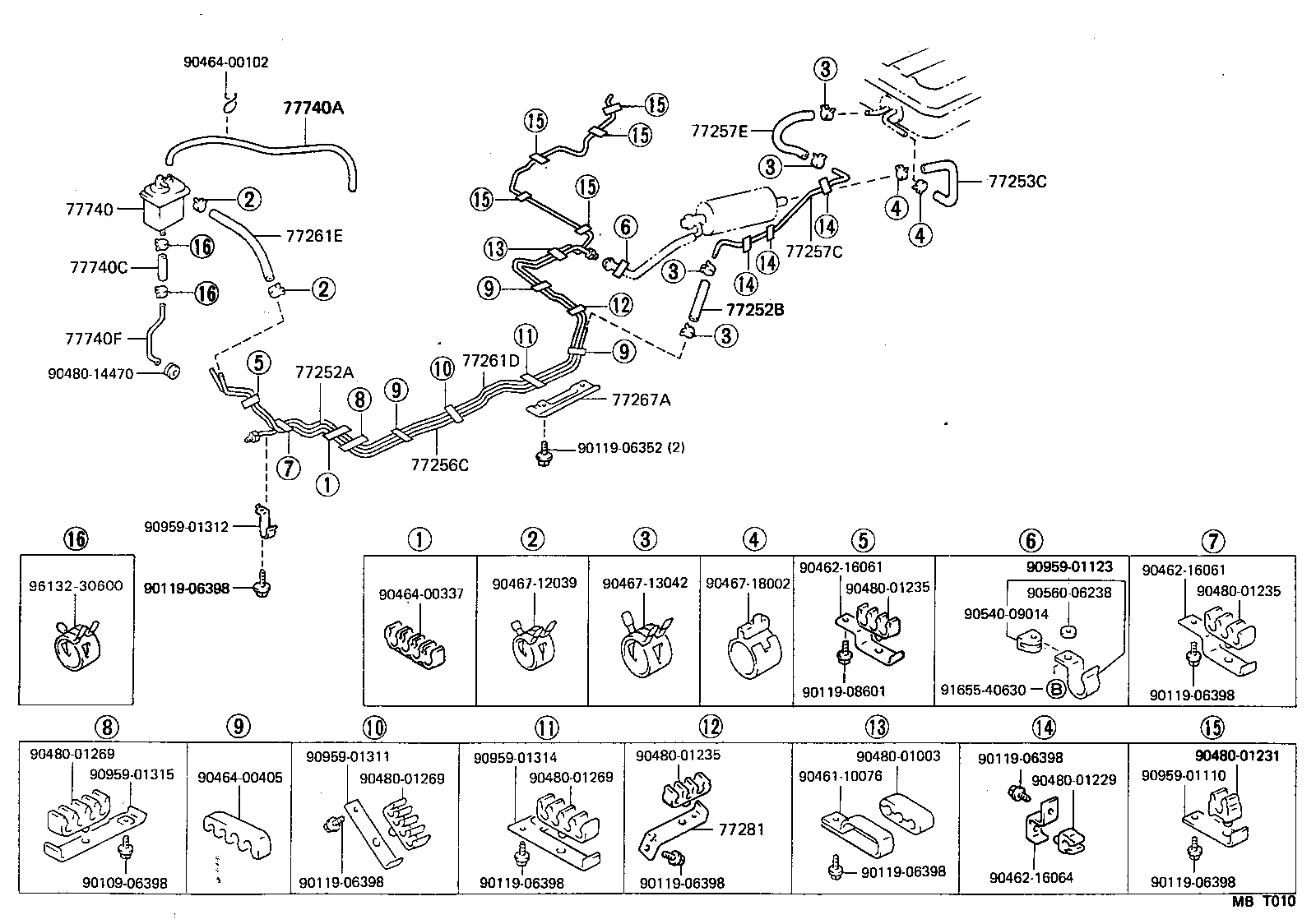

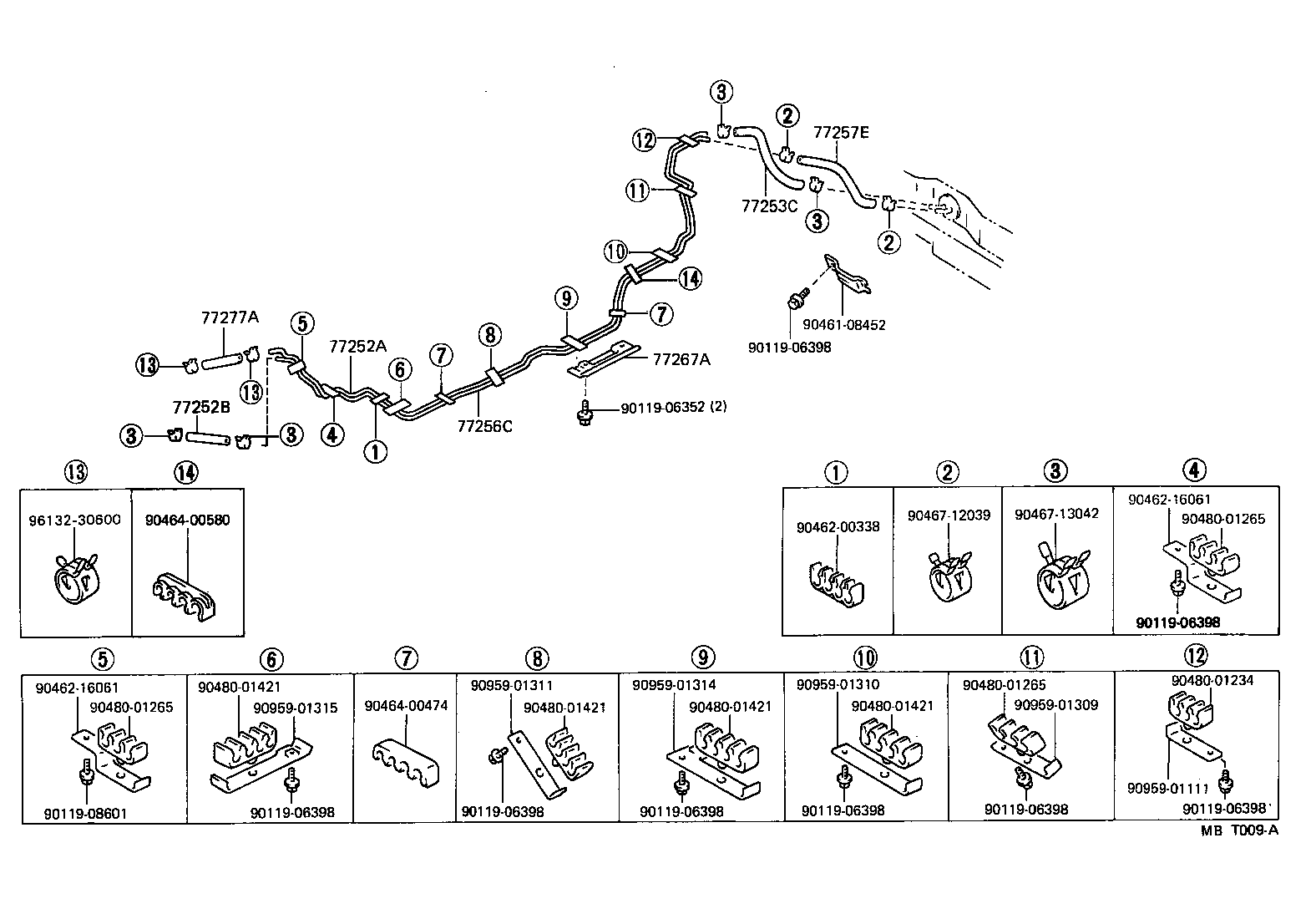

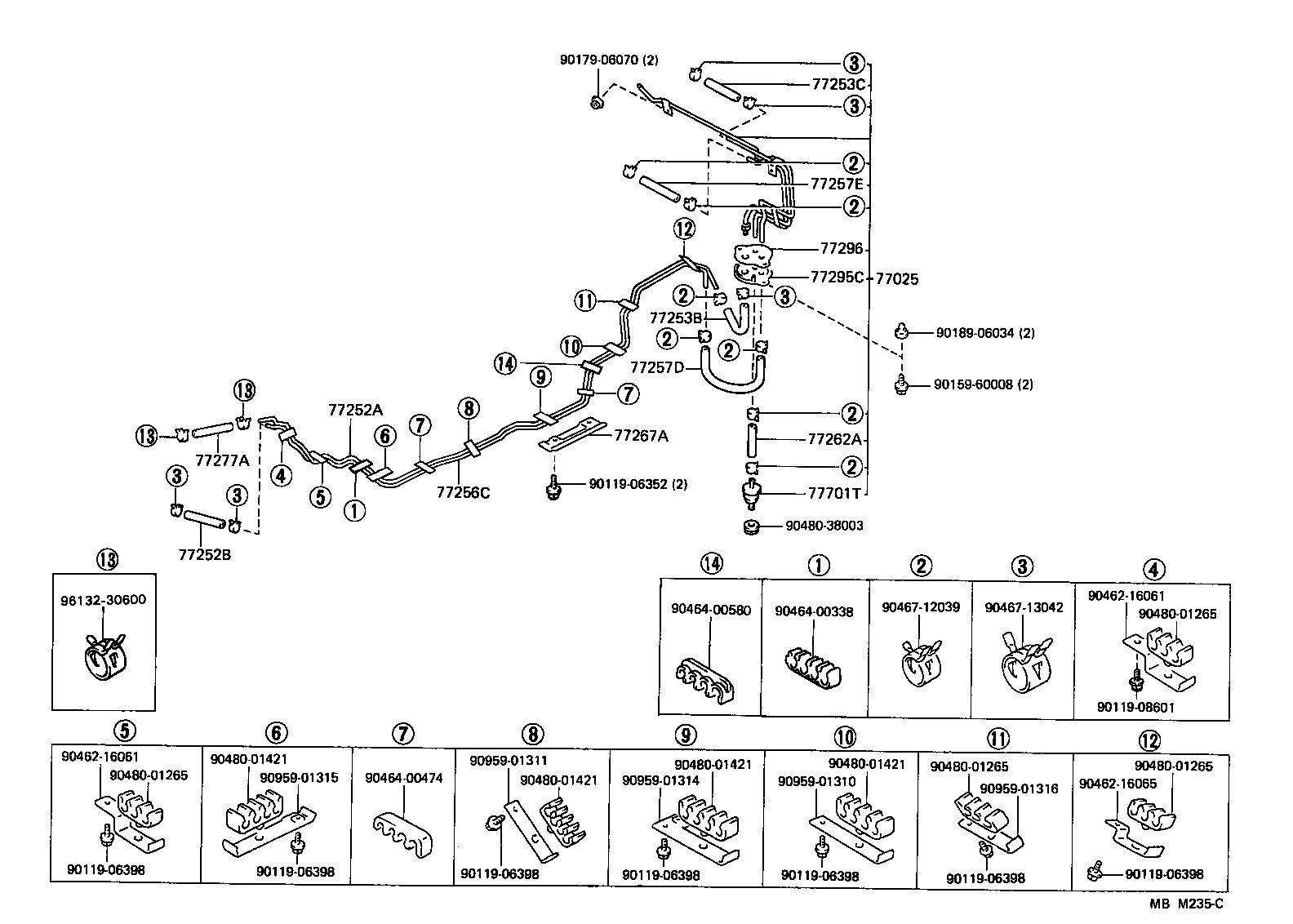

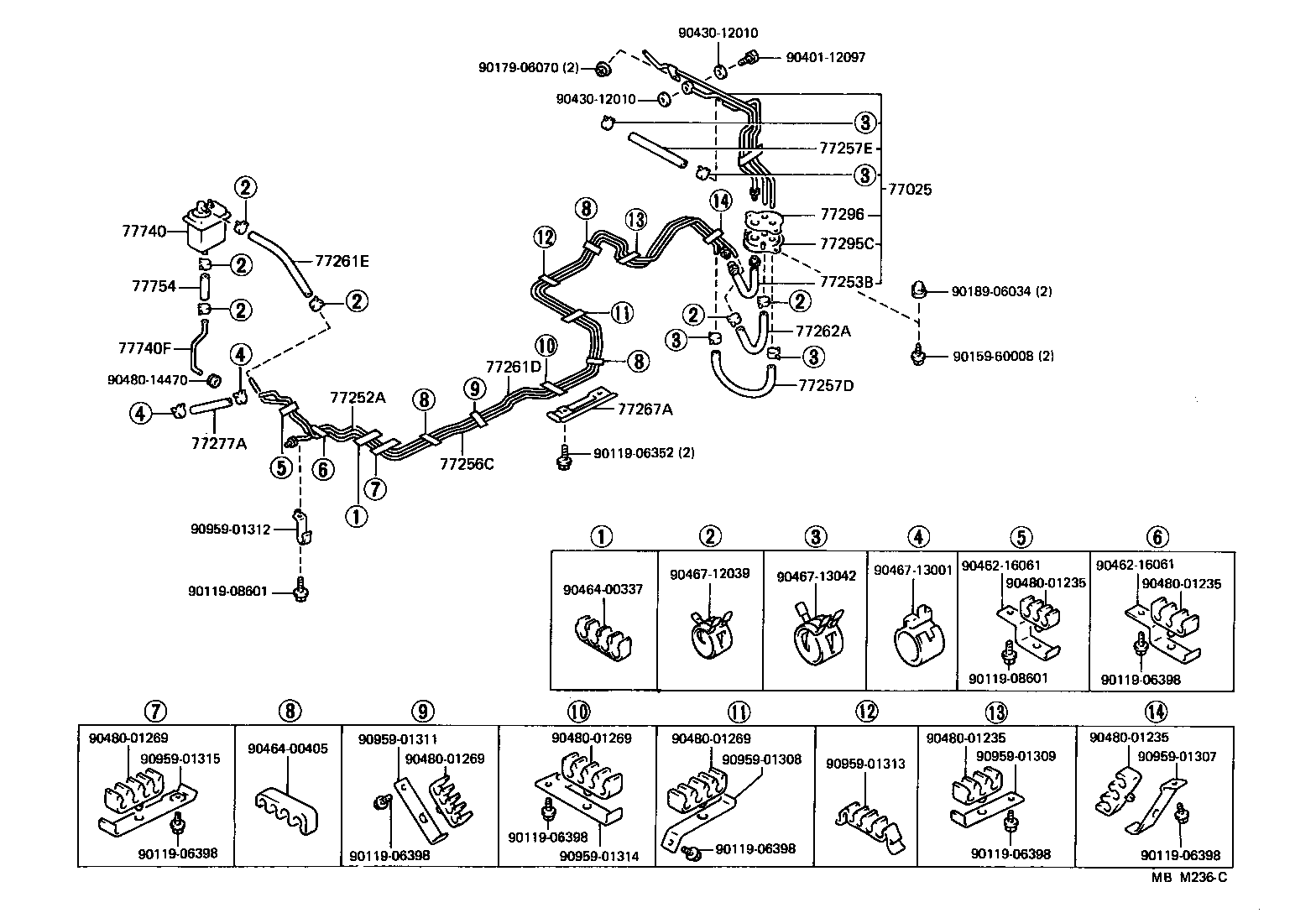

Illustrations
Part groups
| PNC | Description |
|---|---|
| 71671C | Pad, Rear Seatback Silencer, A |
| 77001B | Valve (FOR LPG TANK) |
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77037 | Lock Sub-assy, Fuel Filler Opening Lid |
| 77051 | Lever Sub-assy, Fuel Lid Open |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77100E | Hose, Fuel, NO.2(FOR FUEL TANK) |
| 77128 | Glass, Fuel Tank Window |
| 77161A | Bracket, Fuel Tank Mounting, Front |
| 77165A | Bracket, Fuel Tank Mounting, Rear NO.2 RH |
| 77166A | Bracket, Fuel Tank Mounting, Rear NO.2 LH |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77185 | Shim, Fuel Tank Set, Front |
| 77186 | Shim, Fuel Tank Set, Rear |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77202 | Tube Sub-assy, Breather |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77215 | Plate, Fuel Tank Filler Pipe Flange |
| 77242C | Packing, Fuel Tank Set, Upper |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77252B | Hose, Fuel, NO.1 (FOR FUEL MAIN NO.2 TUBE) |
| 77253A | Tube, Fuel Main, NO.3 |
| 77253B | Hose, Fuel, NO.1(FOR FUEL MAIN NO.3 TUBE) |
| 77253C | Hose, Fuel, NO.2(FOR FUEL MAIN NO.3 TUBE) |
| 77256C | Tube, Fuel Return, NO.2 |
| 77257C | Tube, Fuel Return, NO.3 |
| 77257D | Hose, Fuel, NO.1(FOR FUEL RETURN NO.3 TUBE) |
| 77257E | Hose, Fuel, NO.2(FOR FUEL RETURN NO.3 TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262A | Hose, Fuel, NO.1(FOR FUEL TANK TO CANISTER CENTER TUBE) |
| 77267A | Protector, Fuel Tube, NO.2 |
| 77271C | Separator, Fuel Vapor Liquid |
| 77271D | Hose, Fuel, NO.1(FOR FUEL VAPOR LIQUID) |
| 77271E | Hose, Fuel, NO.2(FOR FUEL VAPOR LIQUID) |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77281 | Bracket, Fuel Main Tube, NO.1 |
| 77286C | Protector, Fuel Tank Inlet Hose |
| 77288 | Clamp, Breather Hose |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77290A | Grommet Assy, Fuel Hose |
| 77292B | Shield, Fuel Tank Drain Plug |
| 77295C | Grommet, Fuel Tube |
| 77296 | Plate, Fuel Tube Grommet Support |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77310A | Cap Assy, Fuel Tank |
| 77315 | Hose, Fuel Filler Opening |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77390 | Valve Assy, Fuel Tank Inlet |
| 77390B | Valve, Fuel Tank Outlet |
| 77520 | Valve Assy, Solenoid Lpg Emergency |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77601C | Cover Sub-assy, Fuel Tank, Upper |
| 77602C | Cover Sub-assy, Fuel Tank, Lower |
| 77604C | Cover Sub-assy, Fuel Tank Valve |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77606F | Case Sub-assy, Fuel Tank Cover Vent |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77614C | Seal, Fuel Tank Cover |
| 77616B | Packing, Fuel Tank Set |
| 77618 | Gasket, Case Window |
| 77623A | Frame, Tank Cover Window Glass |
| 77625 | Box, Fuel Tank Case |
| 77628 | Glass, Case Cover Window |
| 77631A | Protector, Fuel Tank, Lower Center |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77654 | Cushion, Fuel Tank, NO.2 |
| 77657B | Seal, Fuel Tank Cover Vent Case, Upper |
| 77658A | Protector, Fuel Tank Edge, NO.1 |
| 77658C | Seal, Fuel Tank Cover Vent Case, Lower |
| 77661A | Cover, Fuel Tank Filler Hose |
| 77669 | Protector, Fuel Tank Rear Mounting Bracket Edge |
| 77691 | Sheet, Fuel Tank Silencer, Upper NO.1 |
| 77693 | Sheet, Fuel Tank Silencer, Upper NO.2 |
| 77694 | Sheet, Fuel Tank Silencer, Lower NO.2 |
| 77695 | Sheet, Fuel Tank Silencer, Upper NO.3 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
