Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

17 part groups · 7 illustrations

Illustrations

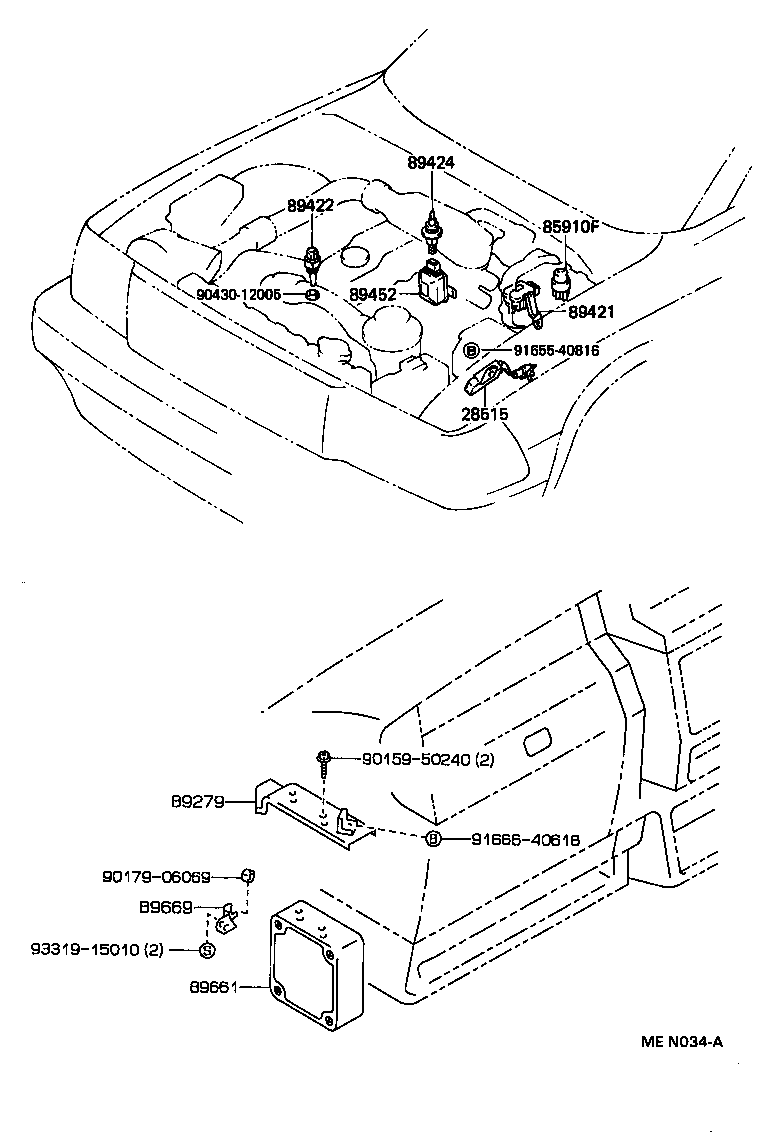

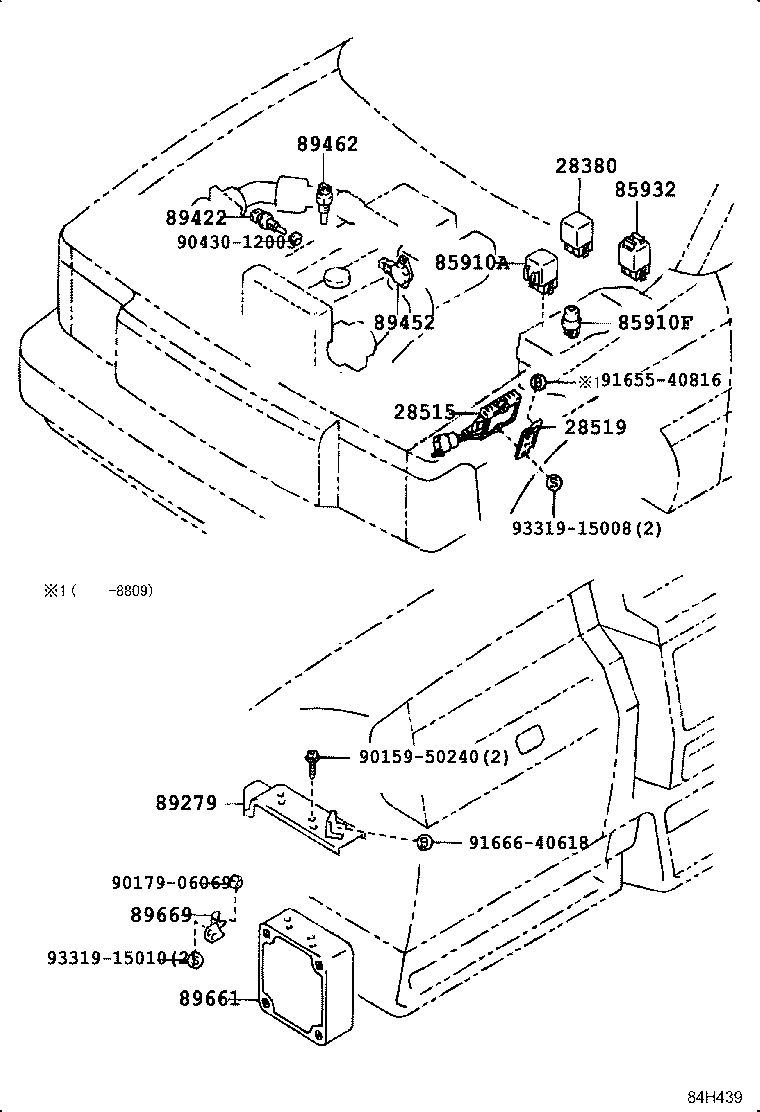

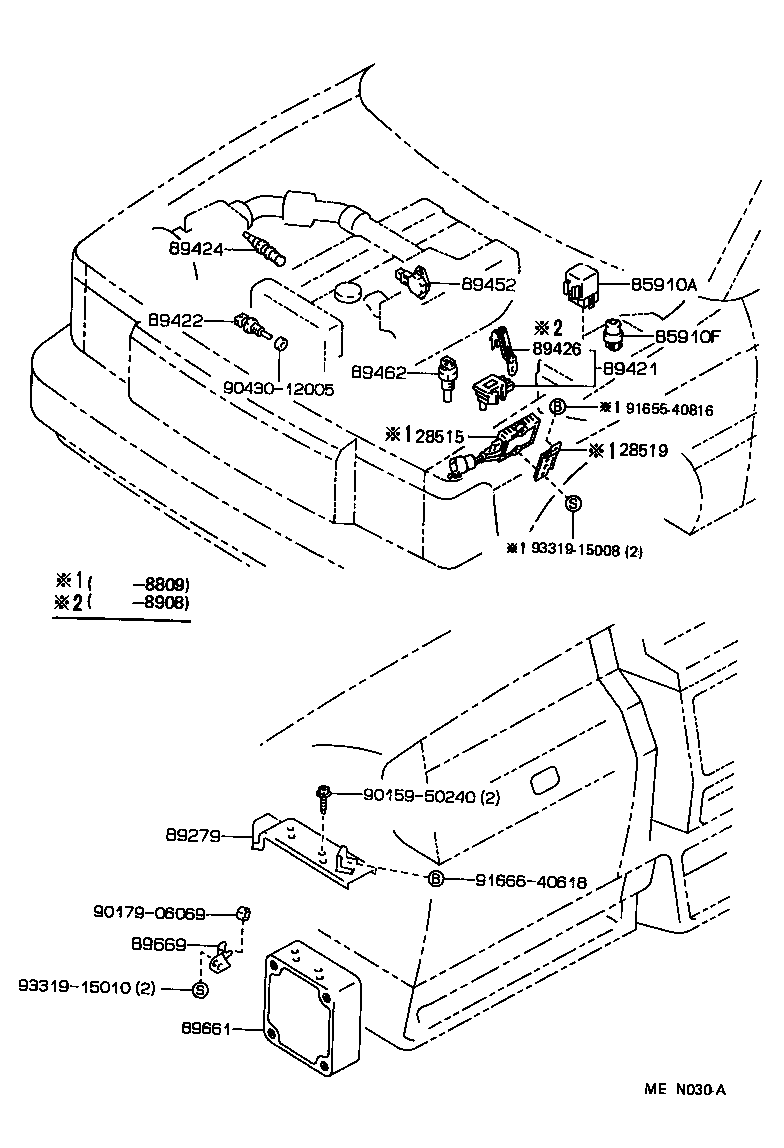

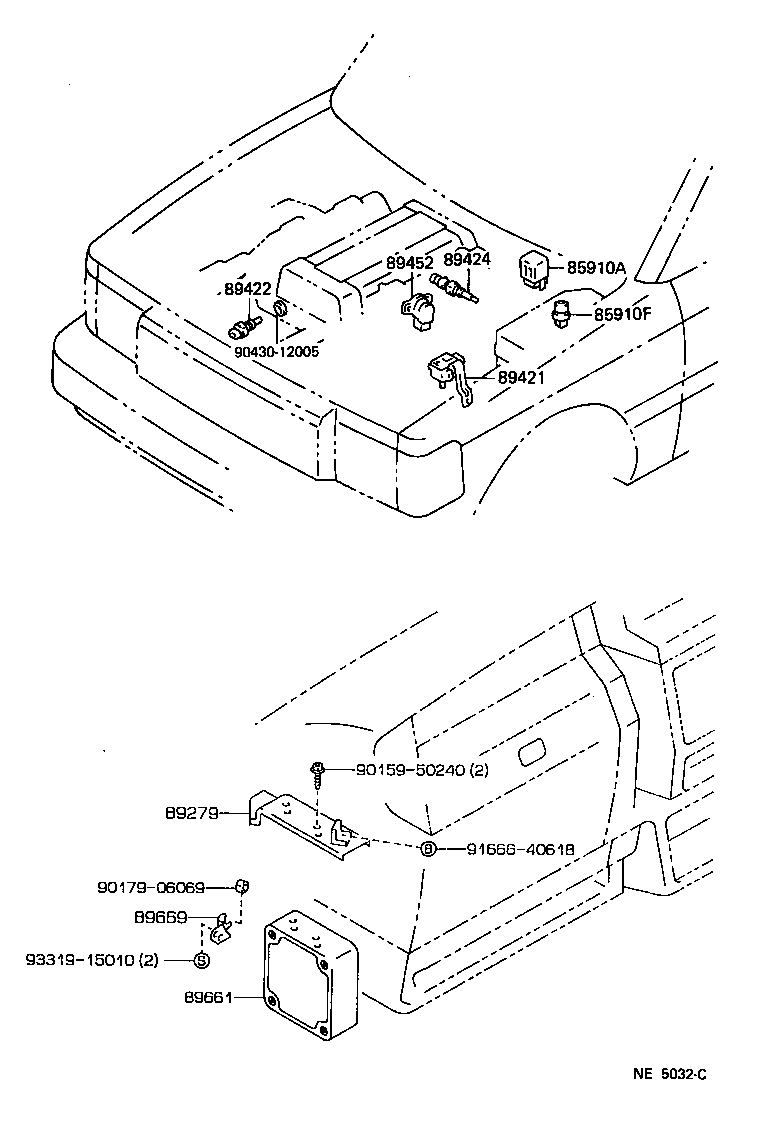

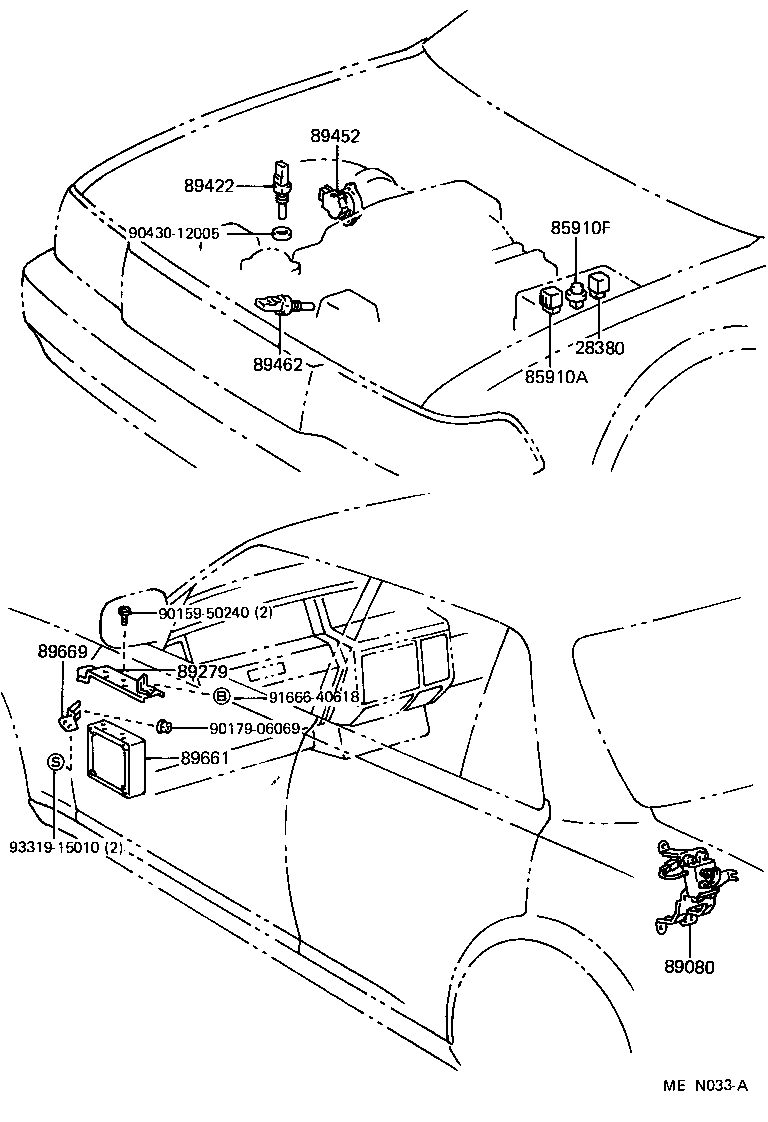

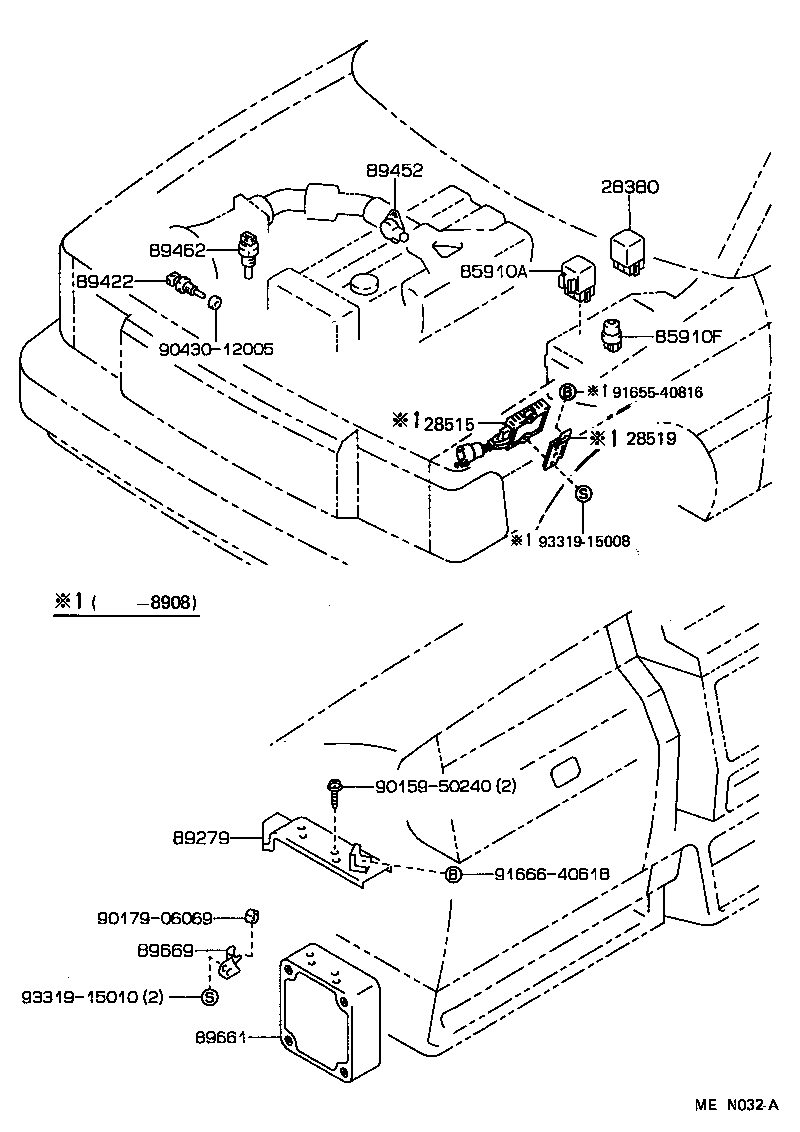

Figure NE5031E NE5031E 1987-09 → 1989-08 Figure MEN030A MEN030A 1987-09 → — Figure 84H439 84H439 1987-09 → — Figure MEN032A MEN032A 1987-09 → — Figure MEN033A MEN033A 1989-08 → — Figure MEN034A MEN034A 1989-08 → — Figure NE5032C NE5032C 1990-08 → —

Part groups

PNCDescription
28380 Relay Assy, Fuel Pump
28515 Resistor, Solenoid
28519 Bracket, Solenoid Resistor
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
85932 Relay, Supercharger
89080 Motor Assy, Exhaust Valve Control
89279 Cover, Engine Control Computer
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89426 Bracket, Vacuum Sensor
89452 Sensor, Throttle Position (FOR E.F.I.)
89462 Switch, Start Injector Time
89561 Computer, Fuel Injection
89661 Computer, Engine Control
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
