Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

13 part groups · 6 illustrations

Illustrations

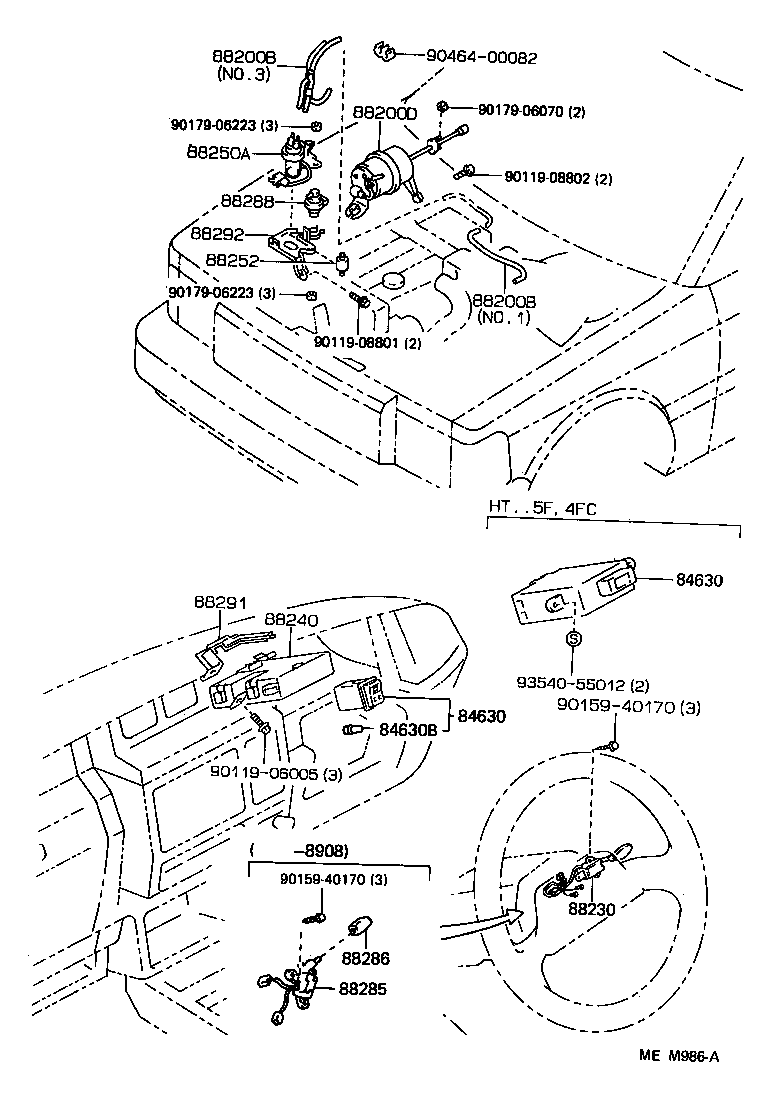

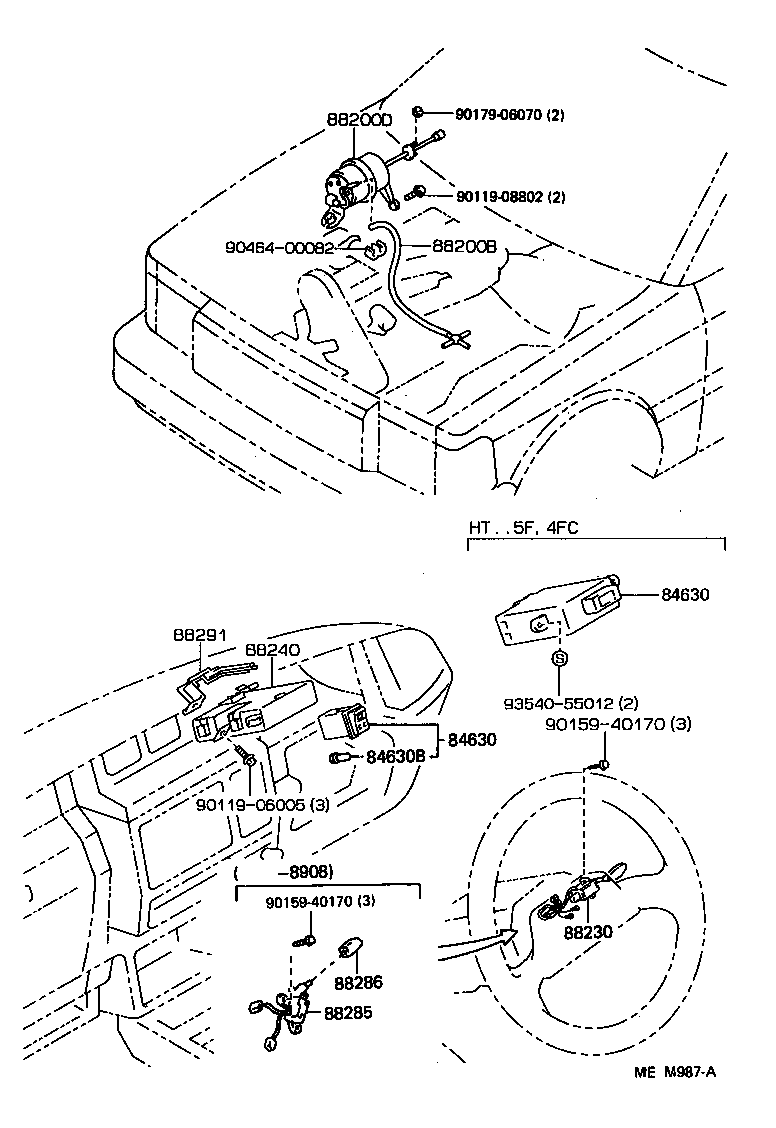

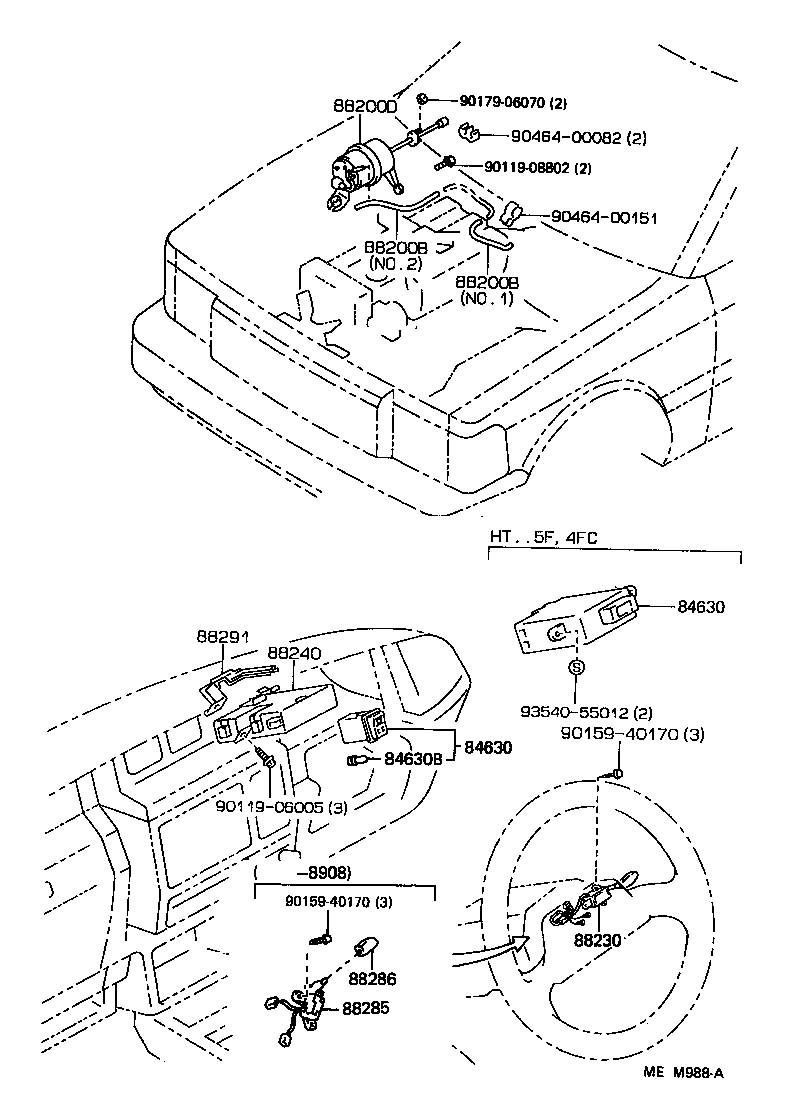

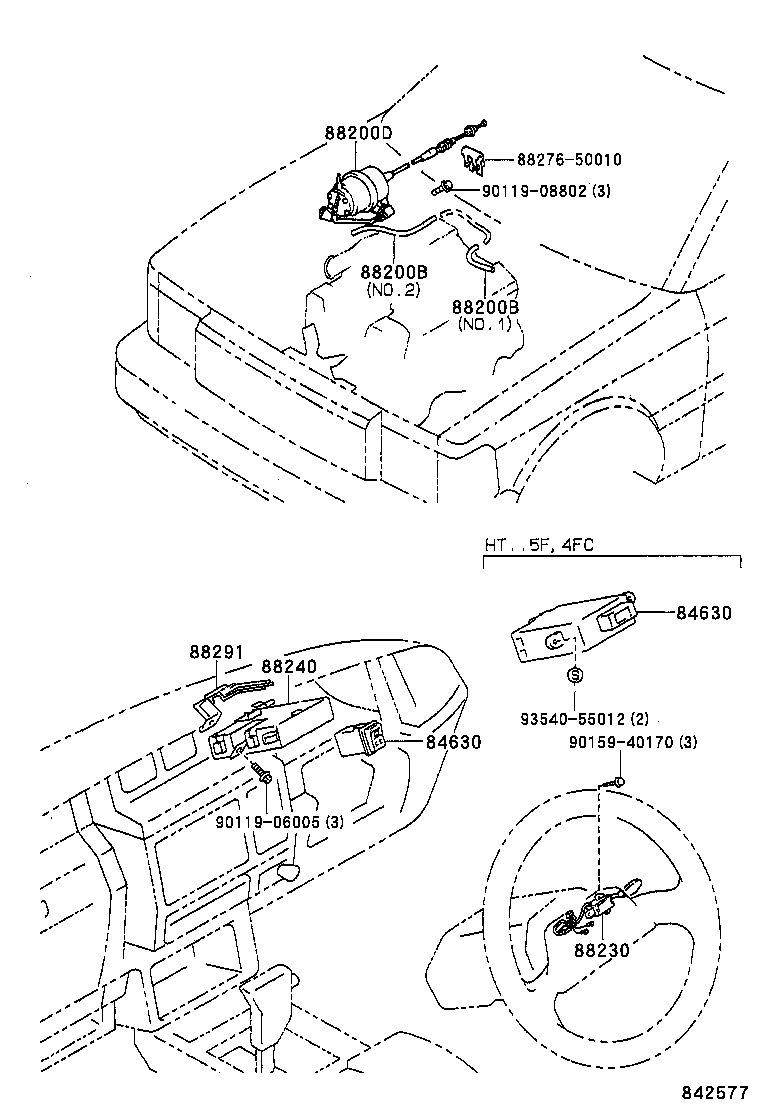

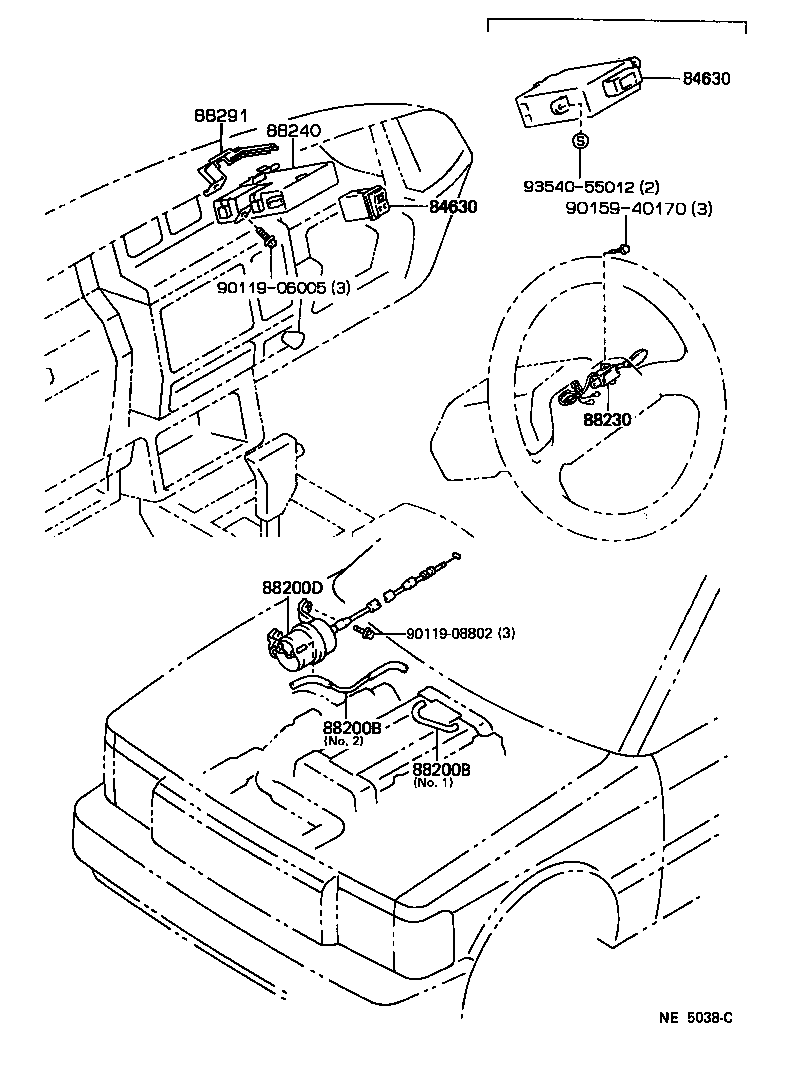

Figure MEM985A MEM985A 1987-09 → — Figure MEM986A MEM986A 1987-09 → — Figure MEM987A MEM987A 1987-09 → — Figure MEM988A MEM988A 1987-09 → — Figure 842577 842577 1989-08 → — Figure NE5038C NE5038C 1990-08 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
84630B Bulb(FOR CRUISE CONTROL SWITCH)
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88240 Computer Assy, Cruise Control
88250A Pump Assy, Cruise Control
88252 Cushion, Vacuum Pump
88285 Switch, Cruise Control
88286 Knob, Speed Control Switch
88288 Switch, Vacuum Speed Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
88292 Bracket, Cruise Control(AUTO DRIVE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
