Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

16 part groups · 5 illustrations

Illustrations

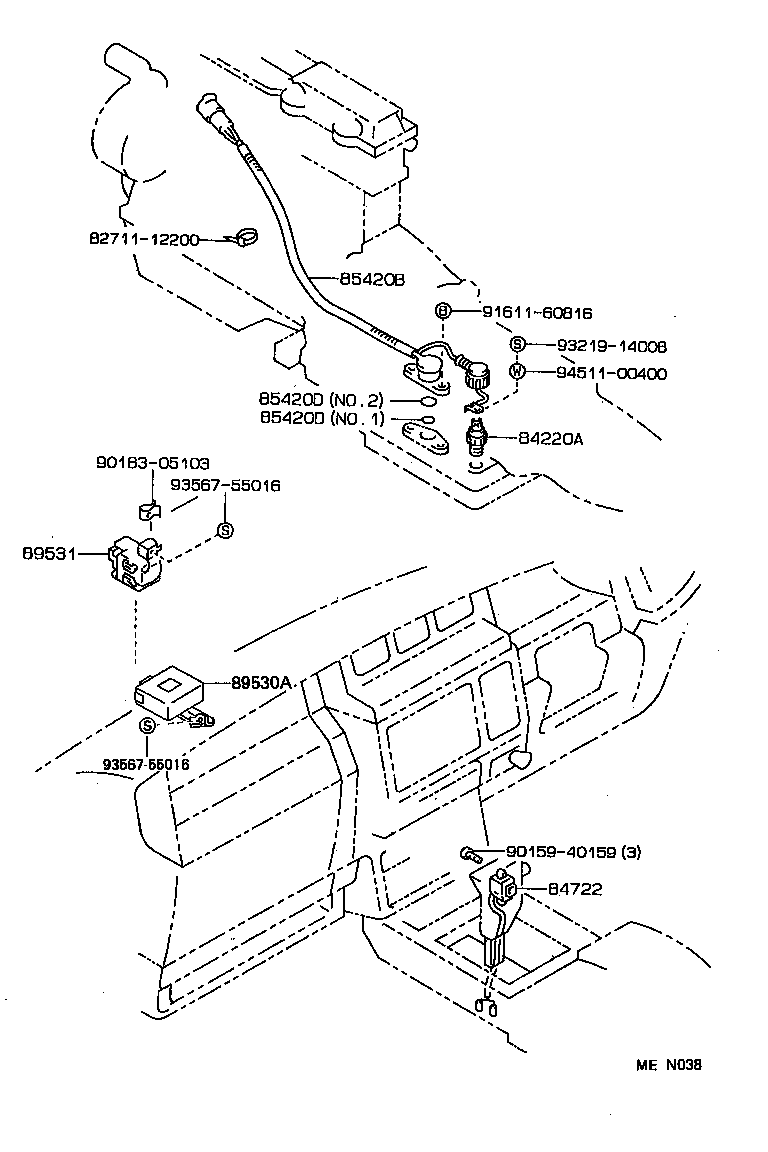

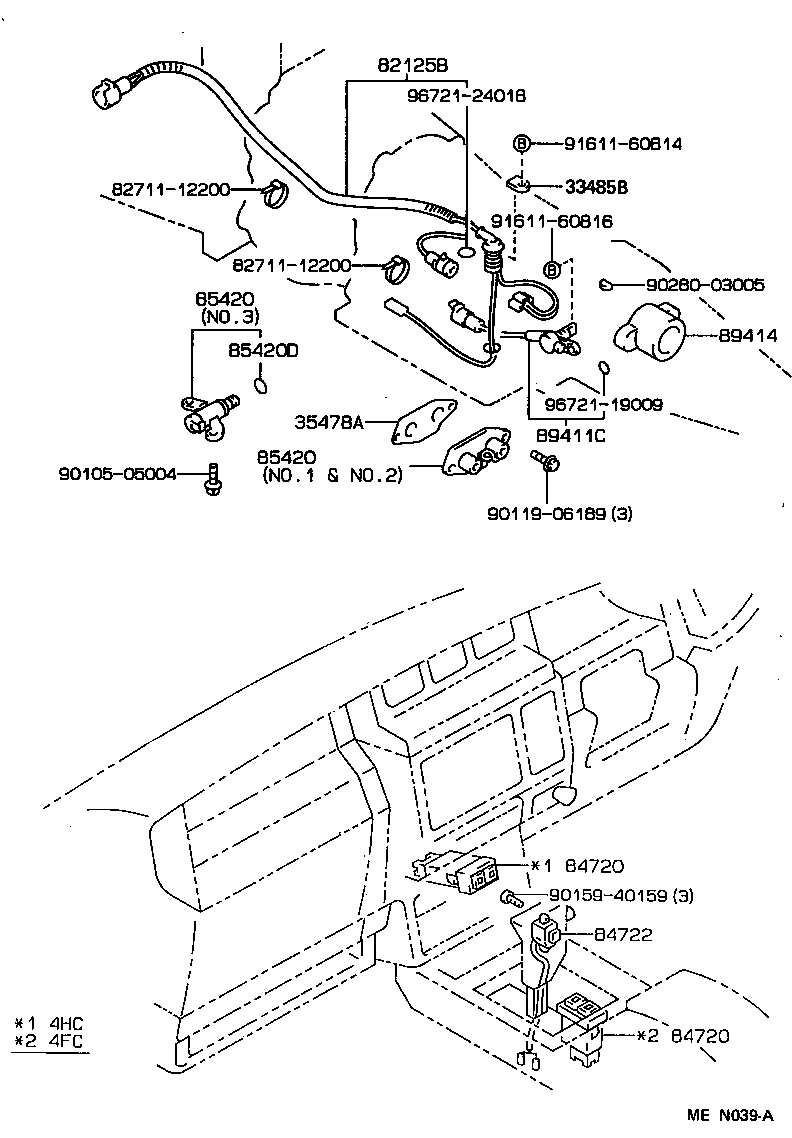

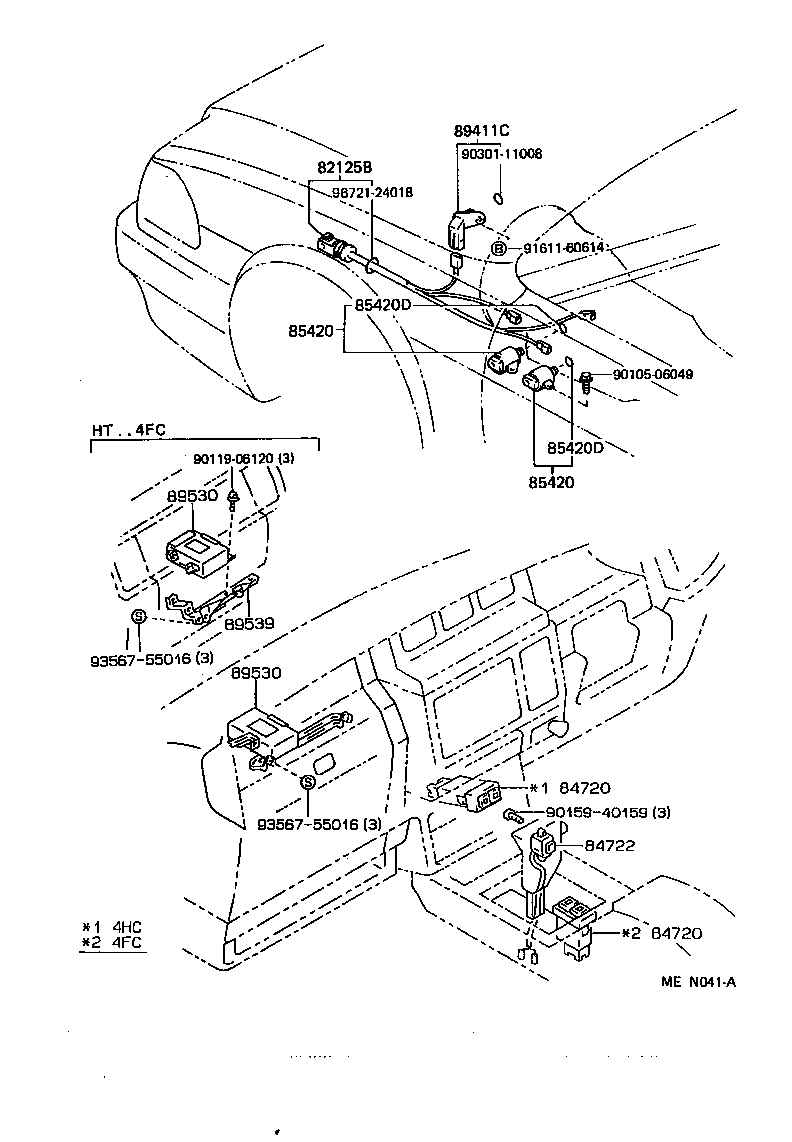

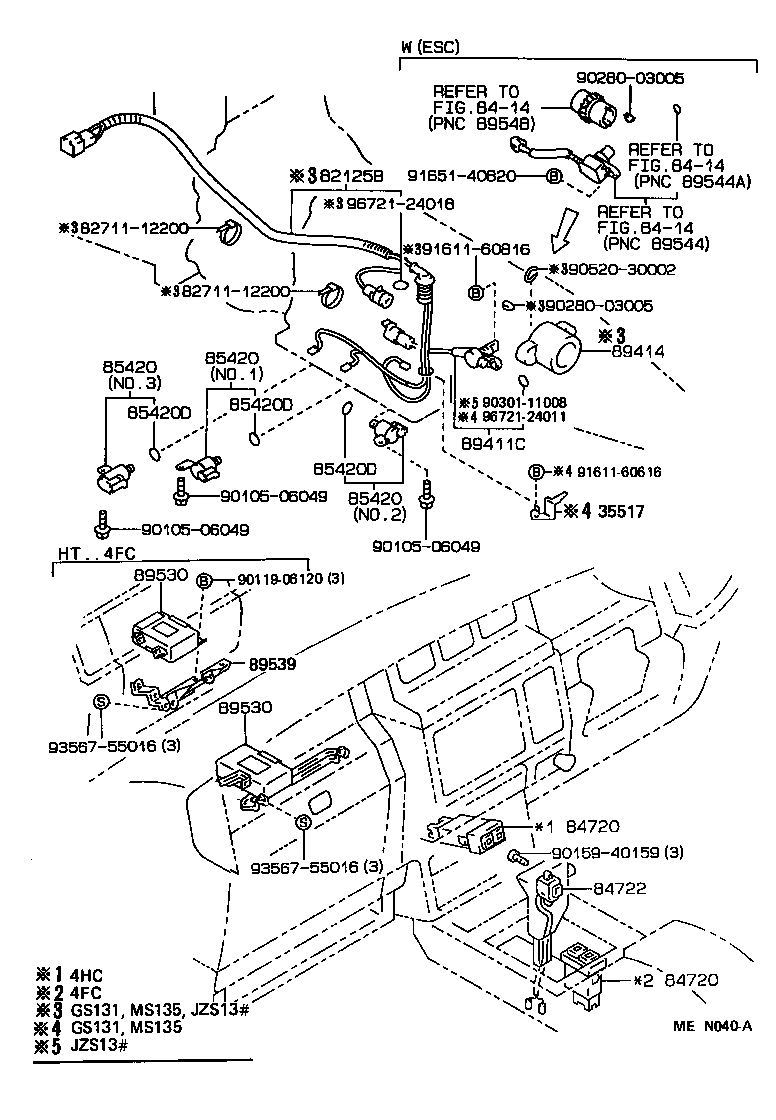

Figure MEN037 MEN037 1987-09 → — Figure MEN038 MEN038 1987-09 → — Figure MEN039A MEN039A 1987-09 → — Figure MEN040A MEN040A 1987-09 → — Figure MEN041A MEN041A 1987-09 → —

Part groups

PNCDescription
33485B Plate, Transmission Wire
35478A Gasket, Shift Control Solenoid
35517 Plate, Transmission Wire Lock
82125B Wire, Transmission
84220A Switch Assy, Transmission Position Indicator
84720 Switch Assy, Pattern Select
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420B Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
89414 Rotor, Sensor
89530 Computer Assy, Transmission Control
89530A Computer Assy, Transmission Control
89531 Relay, Transmission Control
89539 Bracket, Transmission Control Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
