Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

10 part groups · 5 illustrations

Illustrations

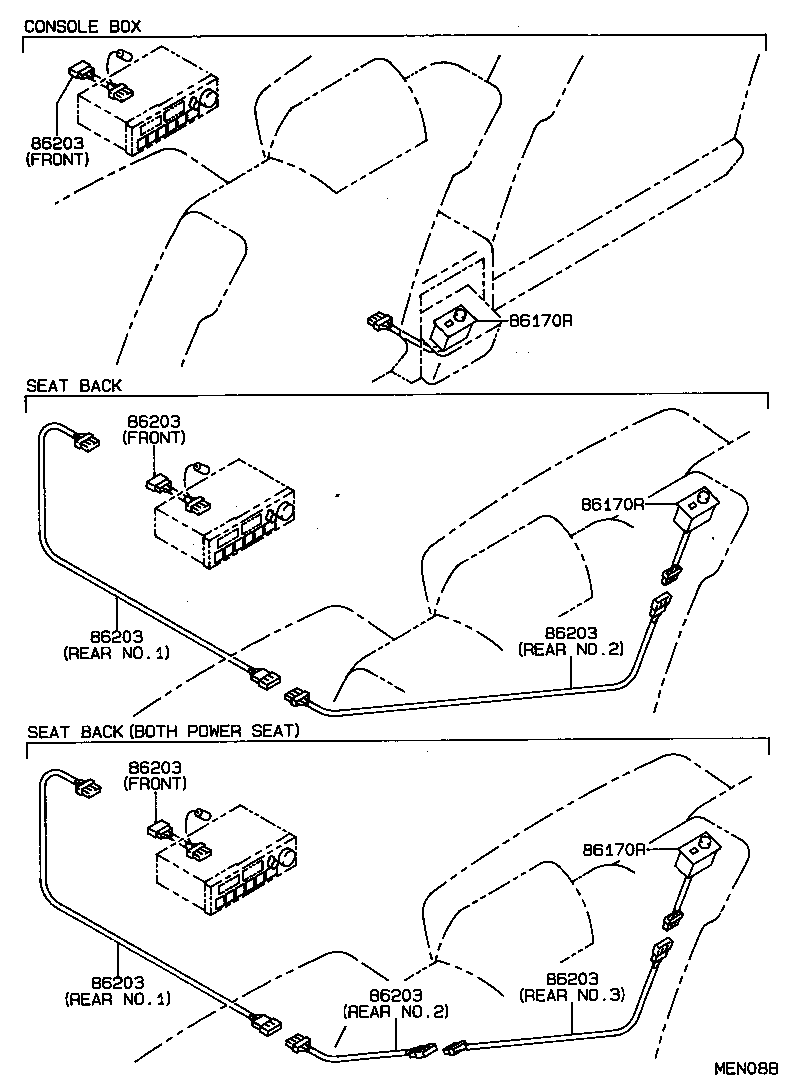

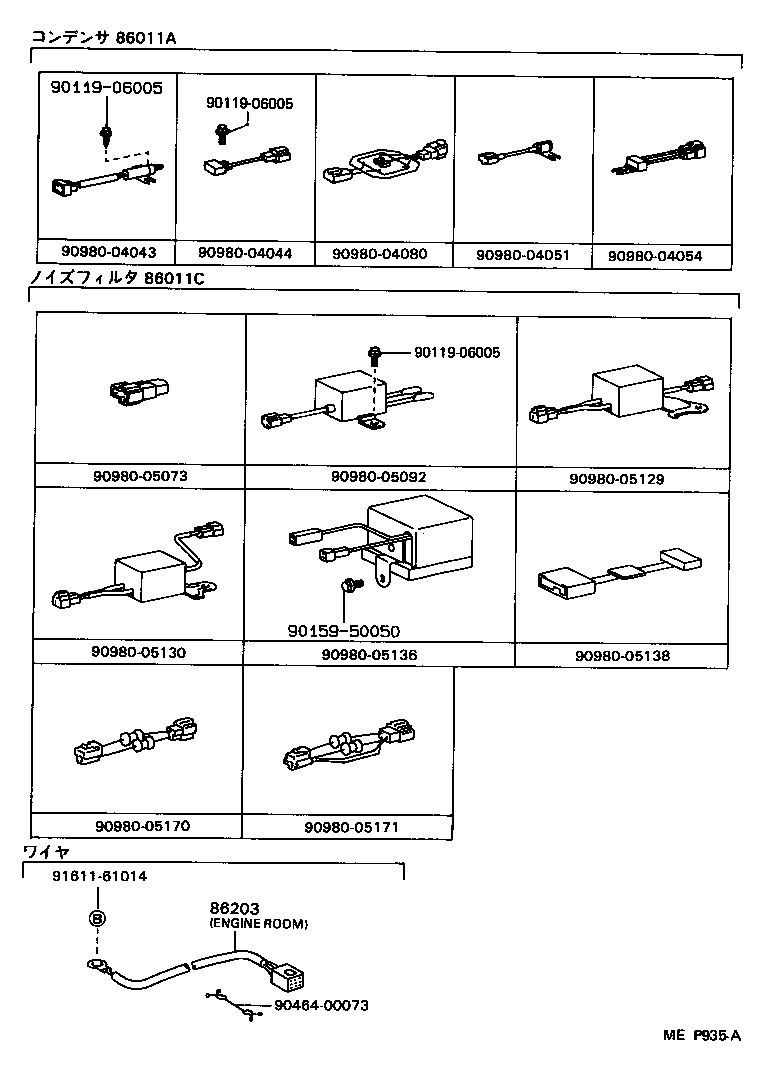

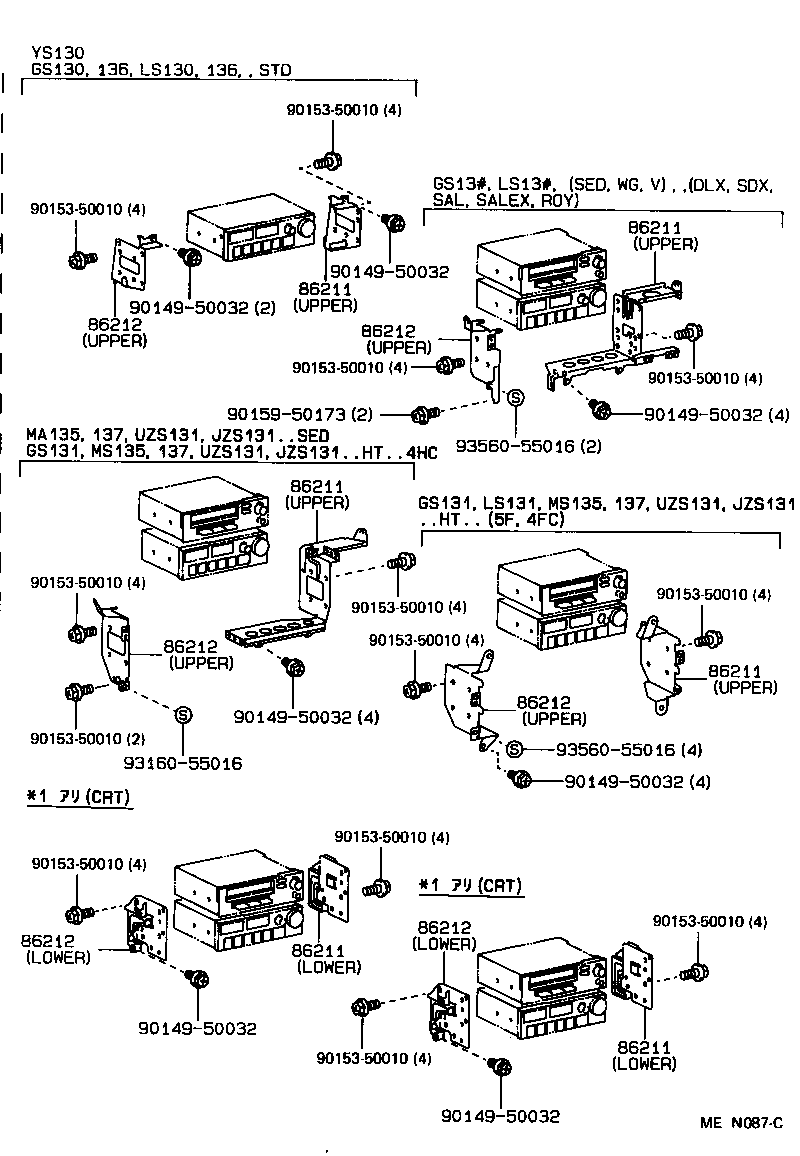

Figure MEN085A MEN085A 1987-09 → — Figure MEN086A MEN086A 1987-09 → — Figure MEP935A MEP935A 1987-09 → — Figure MEN087C MEN087C 1987-09 → — Figure MEN088 MEN088 1987-09 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011C Filter, Noise
86040 Headphone Assy, Stereo
86120 Receiver Assy, Radio
86170R Switch & Volume Assy, RR
86203 Wire, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86280 Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
