Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 6 illustrations

Illustrations

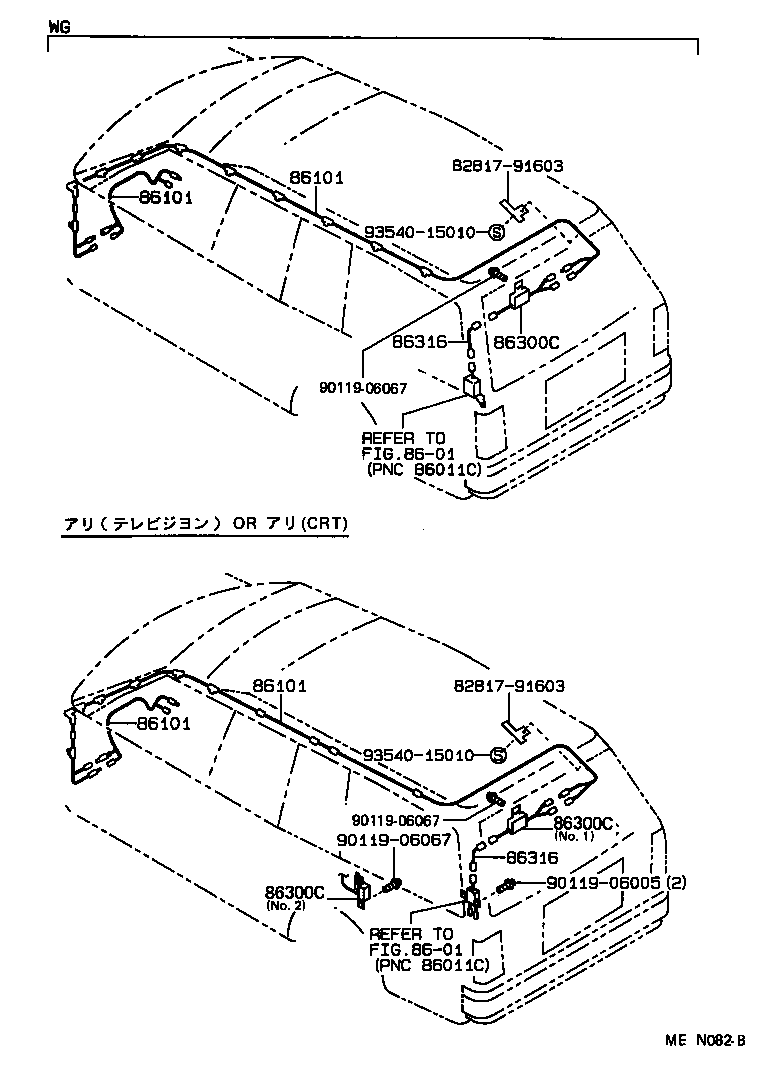

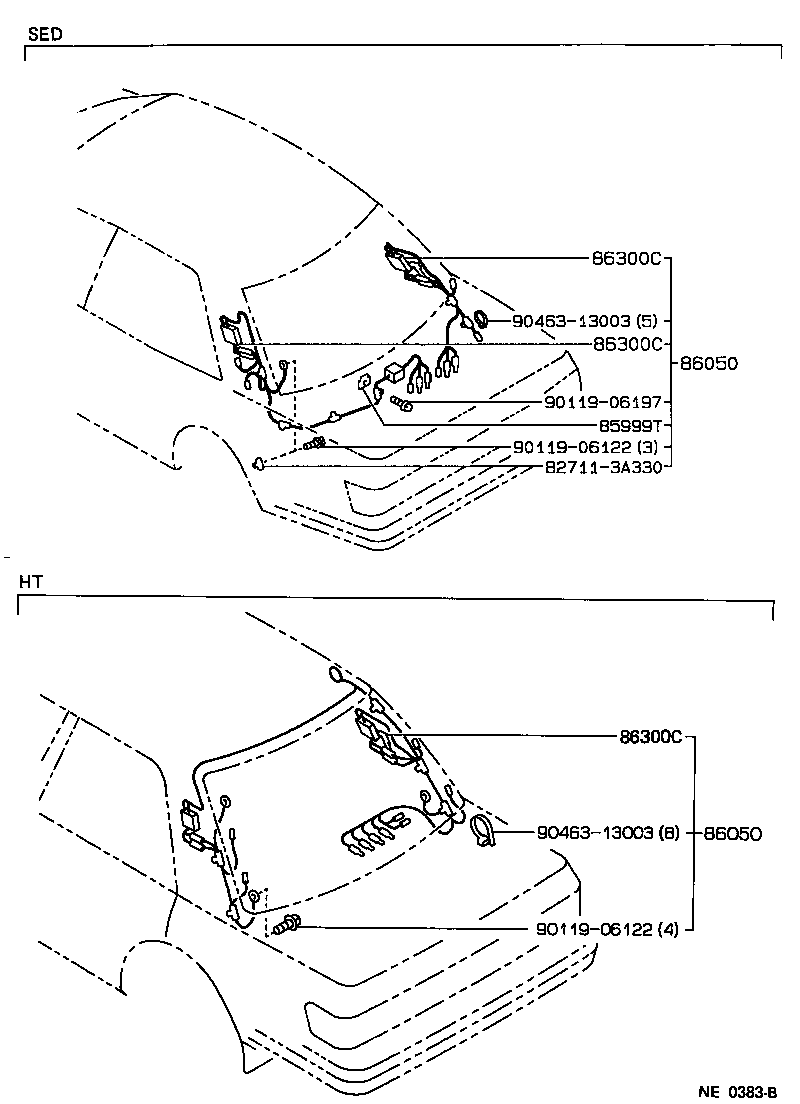

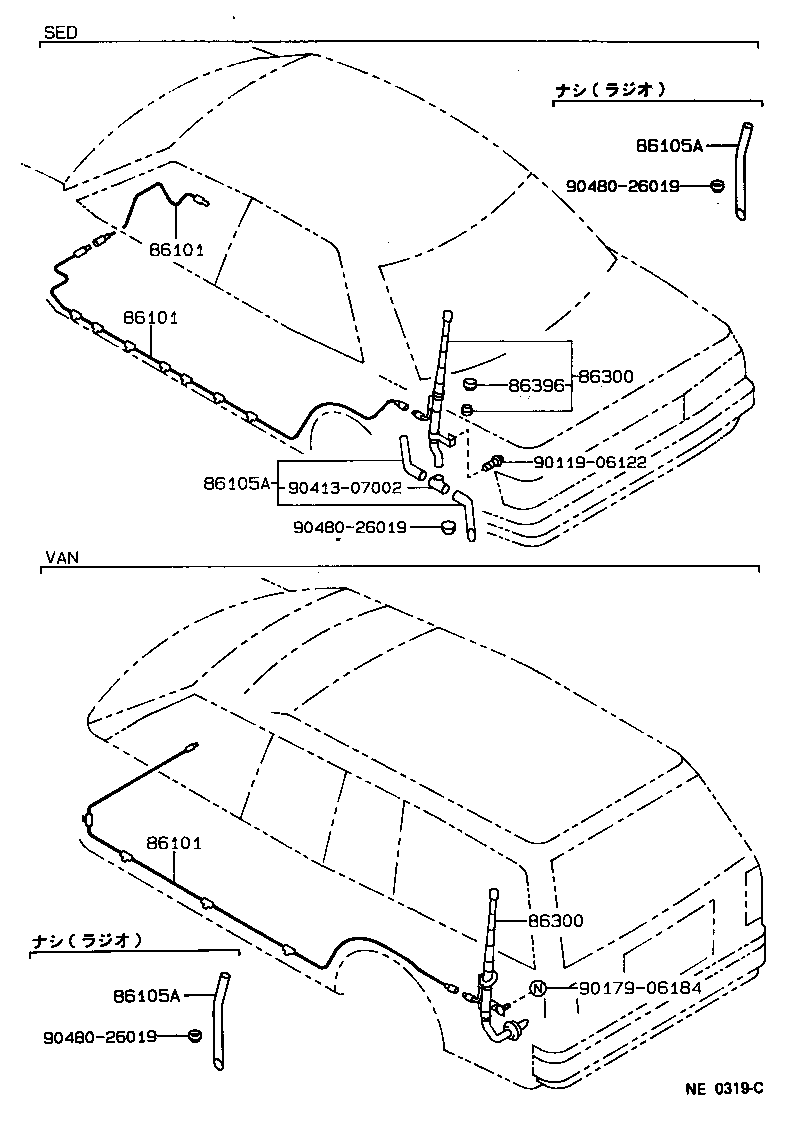

Figure NE0317C NE0317C 1987-09 → — Figure NE0383B NE0383B 1987-09 → — Figure MEN082B MEN082B 1987-09 → — Figure MEN083 MEN083 1987-09 → — Figure MEN084A MEN084A 1987-09 → — Figure NE0319C NE0319C 1987-09 → —

Part groups

PNCDescription
85999T Bracket, Amprifier Antenna
86050 Antenna Assy, Television
86101 Cord Sub-assy, Antenna
86105A Hose Sub-assy, Antenna
86300 Antenna Assy, W/Holder
86300C Antenna Assy, Amplifier, NO.2
86316 Cable, Antenna
86396 Nut, Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
