Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

13 part groups · 3 illustrations

Illustrations

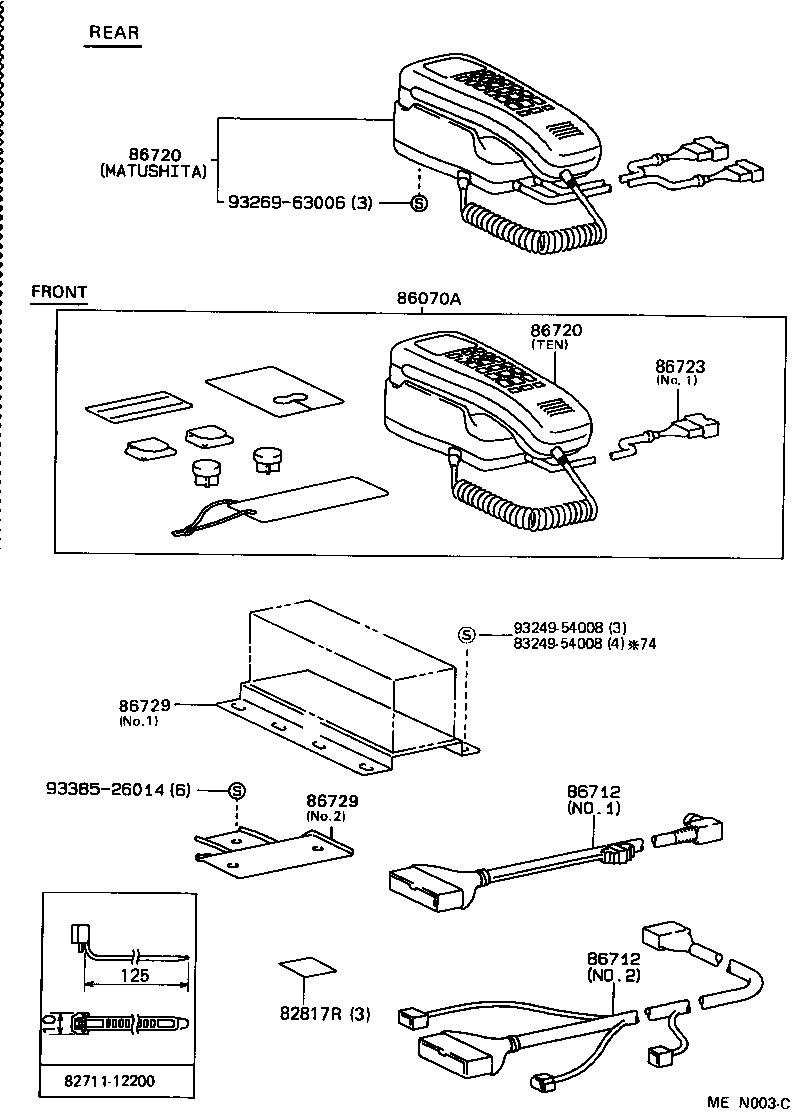

Figure MEN002B MEN002B 1987-09 → — Figure MEP936A MEP936A 1989-03 → — Figure MEN003C MEN003C 1989-08 → —

Part groups

PNCDescription
82817R Protector, Wiring Harness, NO.16
84989 Switch, Standby Telephone
86011L Filter, Noise
86070A Mobilephone & Accessory Assy (HANDSET)
86211G Bracket, Telephone Computer, RH
86212A Bracket, Telephone Computer, LH
86710 Computer Assy, Telephone
86712 Wire, Telephone
86720 Mobilephone Assy
86723 Wire, Mobilephone
86729 Bracket, Mobilephone
86730 Microphone Assy, Telephone
86742 Cover, Transceiver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
