Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

10 part groups · 9 illustrations

Illustrations

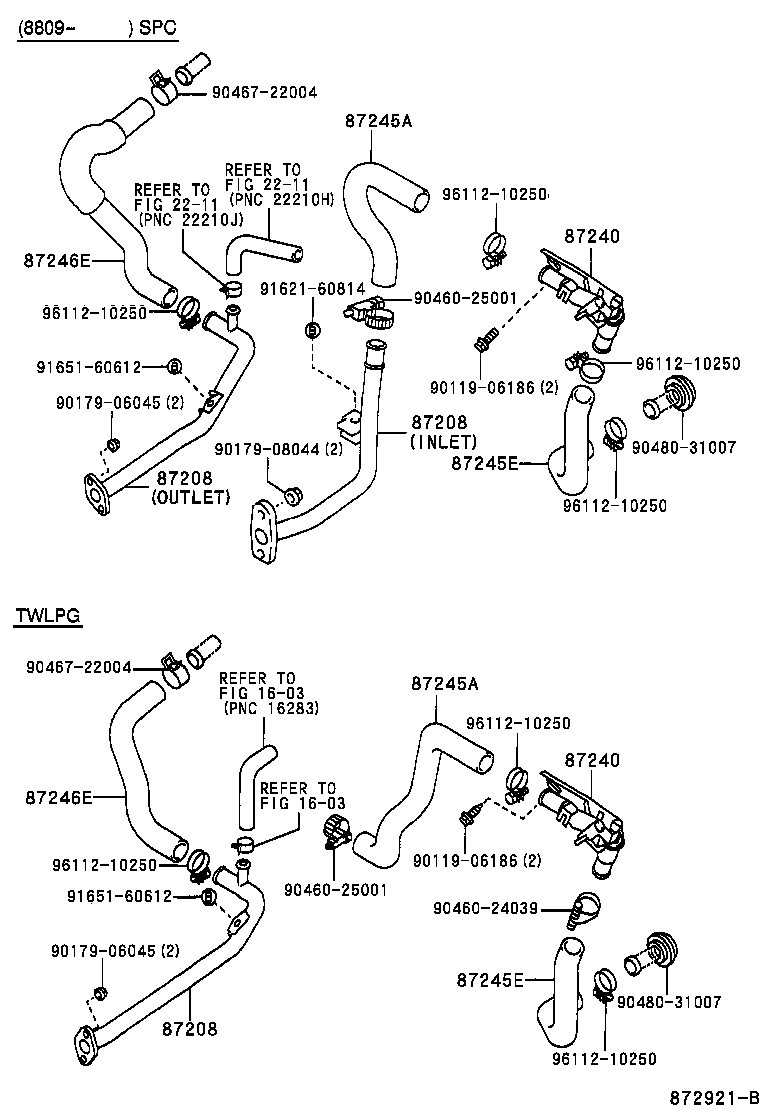

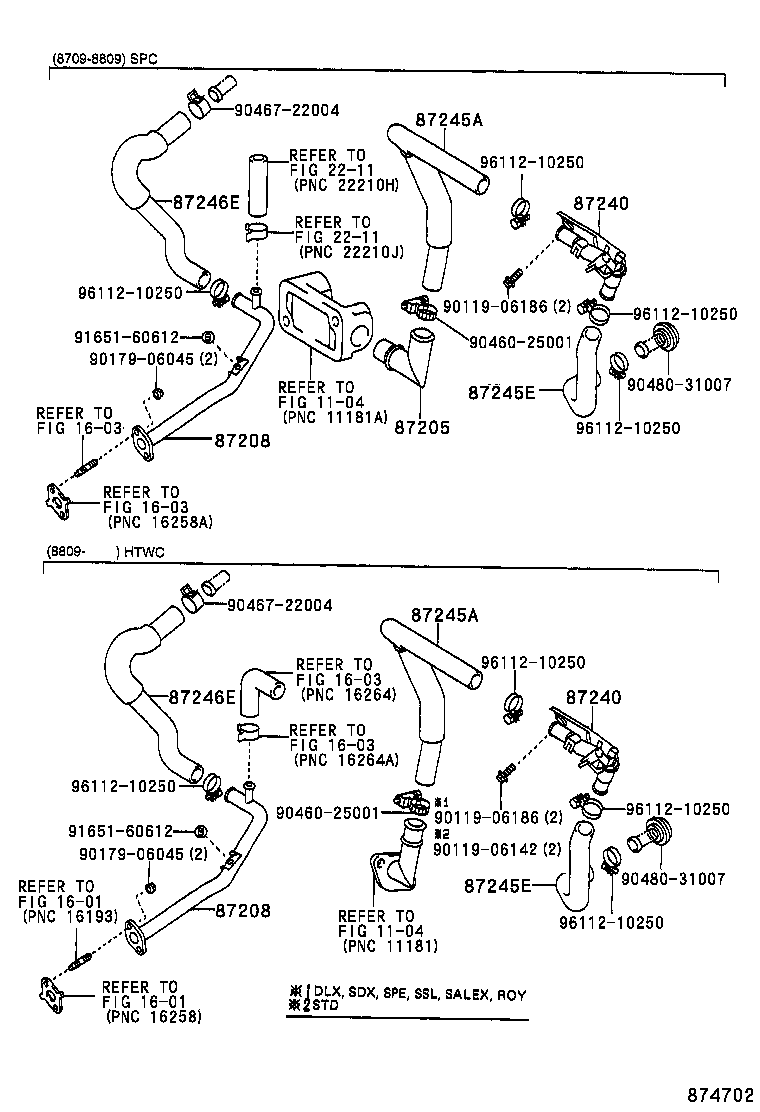

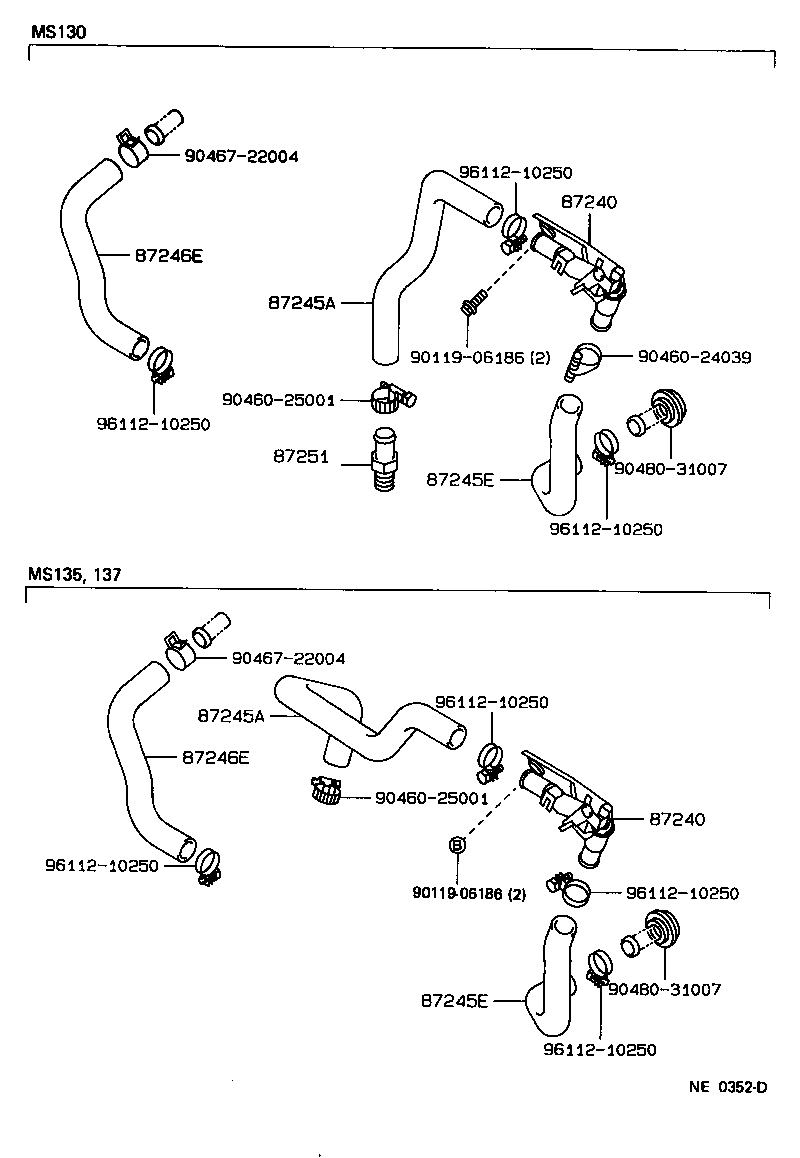

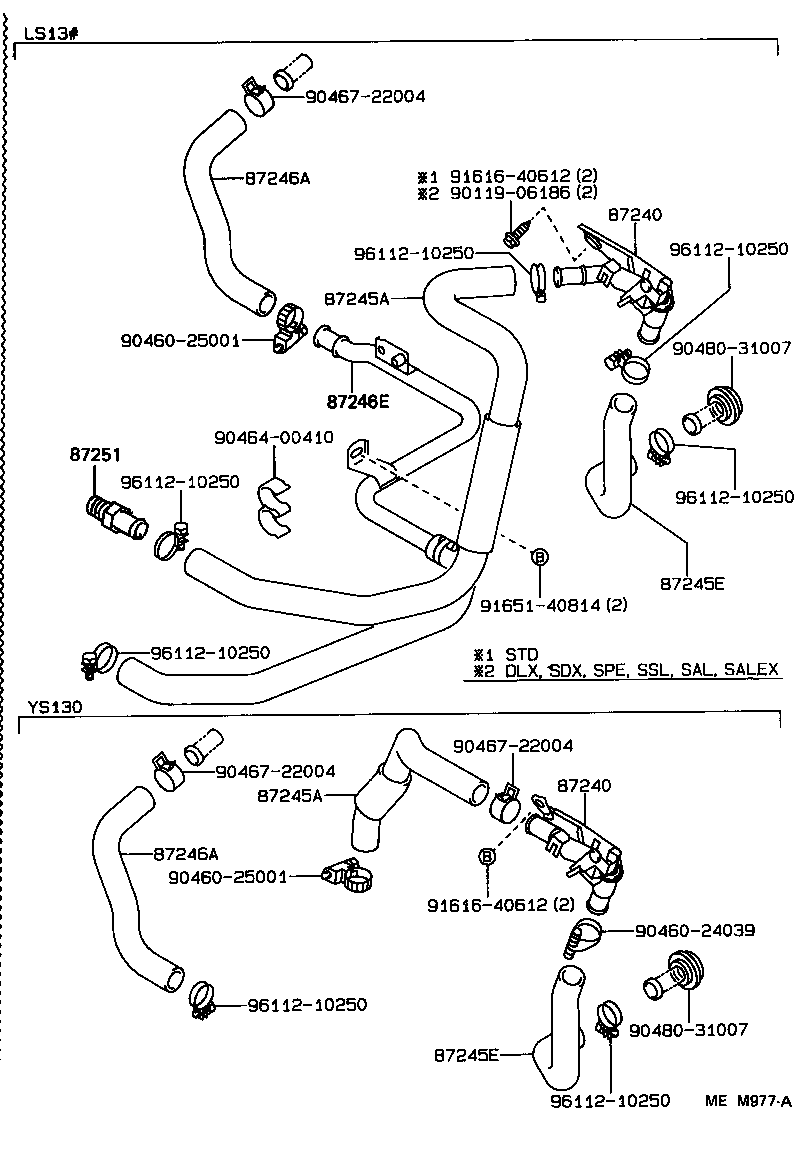

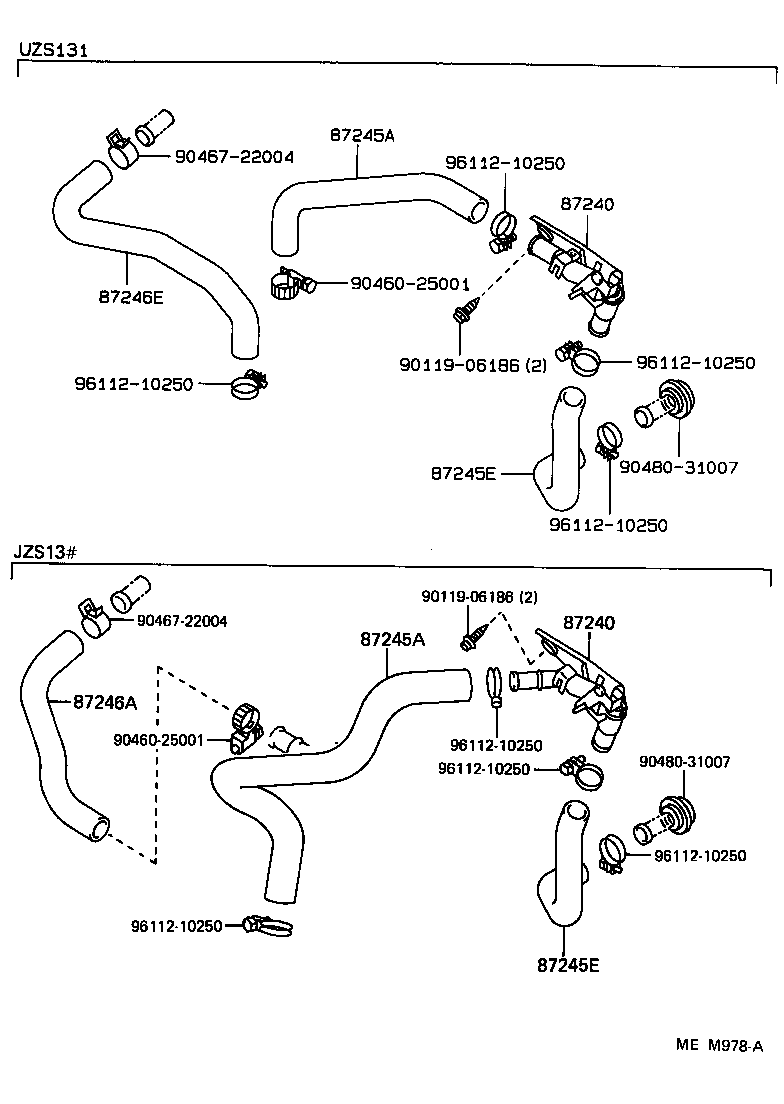

Figure 874661A 874661A 1987-09 → — Figure 874702 874702 1987-09 → 1988-09 Figure 874702 874702 1988-09 → — Figure 872921B 872921B 1988-09 → — Figure 872921B 872921B 1989-08 → — Figure MEM977A MEM977A 1987-09 → — Figure NE0352D NE0352D 1987-09 → — Figure MEM978A MEM978A 1989-08 → — Figure NE0583A NE0583A 1987-10 → —

Part groups

PNCDescription
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87208 Pipe Sub-assy, Heater Water
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87245X Hose, Heater Water
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248 Pipe Sub-assy, Water
87251 Joint OR Union, Water Hose Through
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
