Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

7 part groups · 4 illustrations

Illustrations

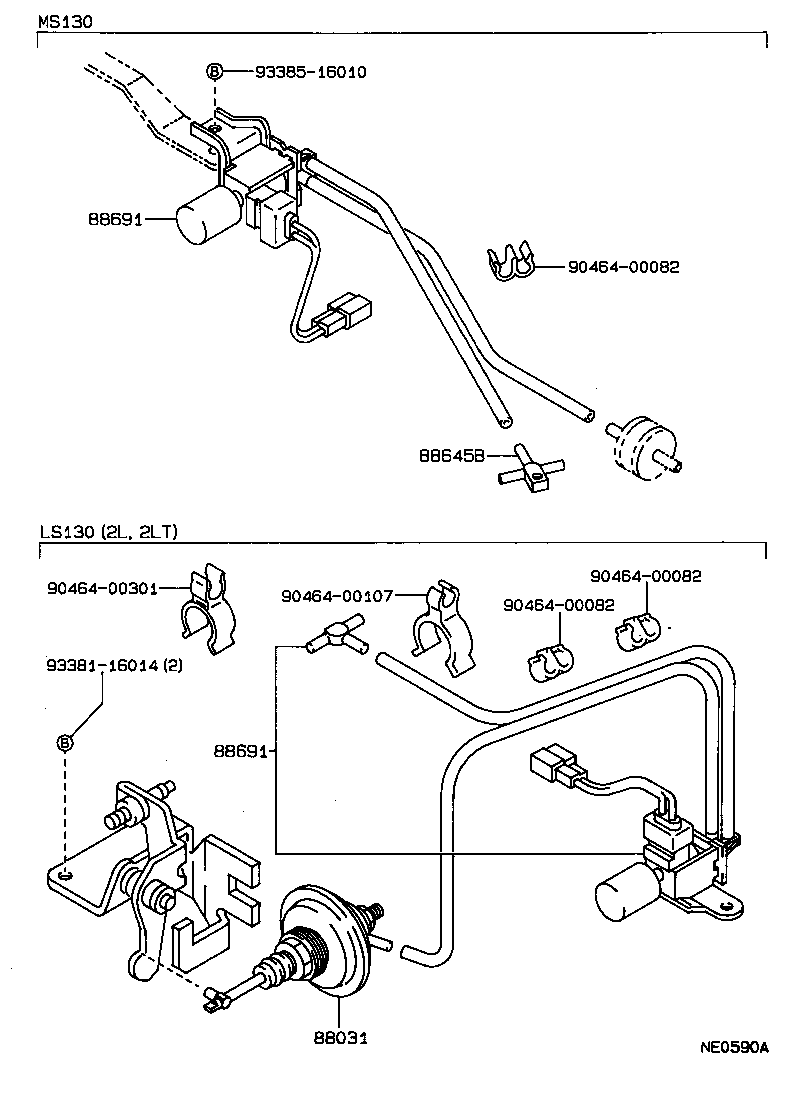

Figure NE0589A NE0589A 1987-09 → — Figure NE0590A NE0590A 1987-09 → — Figure MEM981A MEM981A 1988-09 → — Figure MEM982B MEM982B 1989-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691U Way(FOR VACUUM HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
