Toyota Crown

1987-09 → 1991-10 · chassis GS13#,LS13#,MS13#,YS130,UZS131,JZS13# · catalogue 331160 · Japan

Discontinued model Data version 1992-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

29 part groups · 21 illustrations

Illustrations

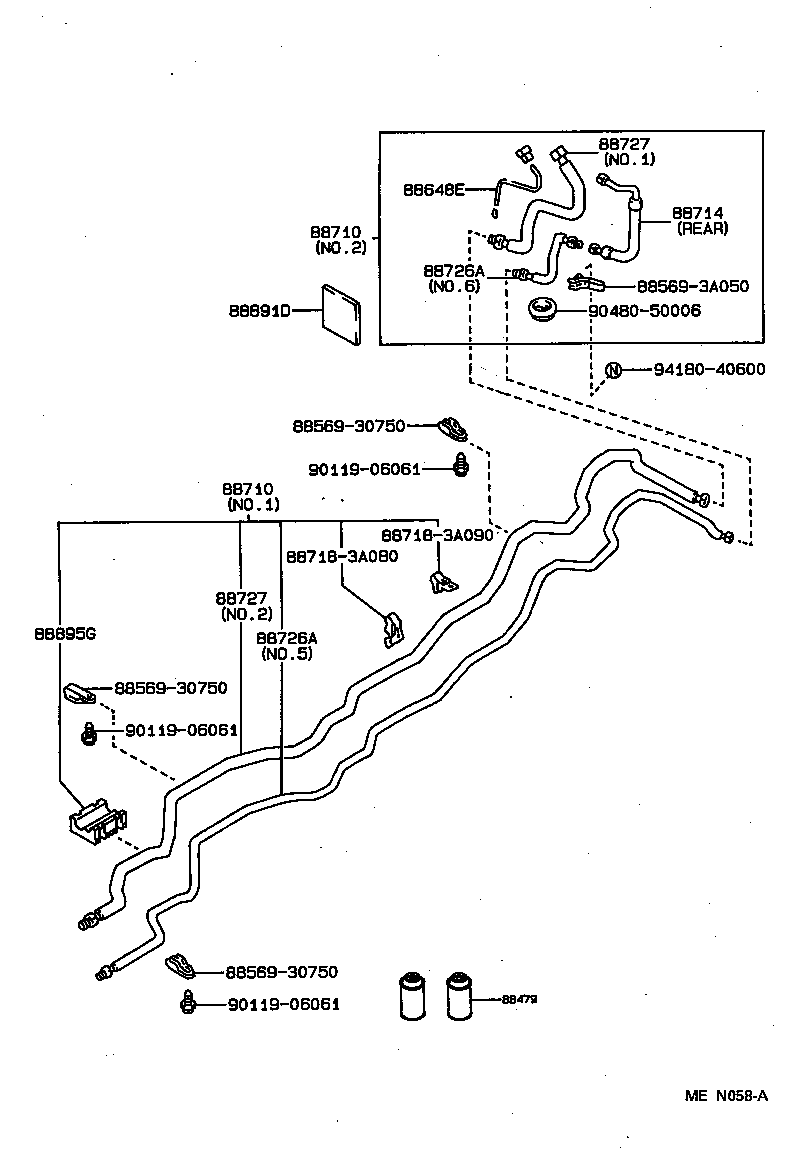

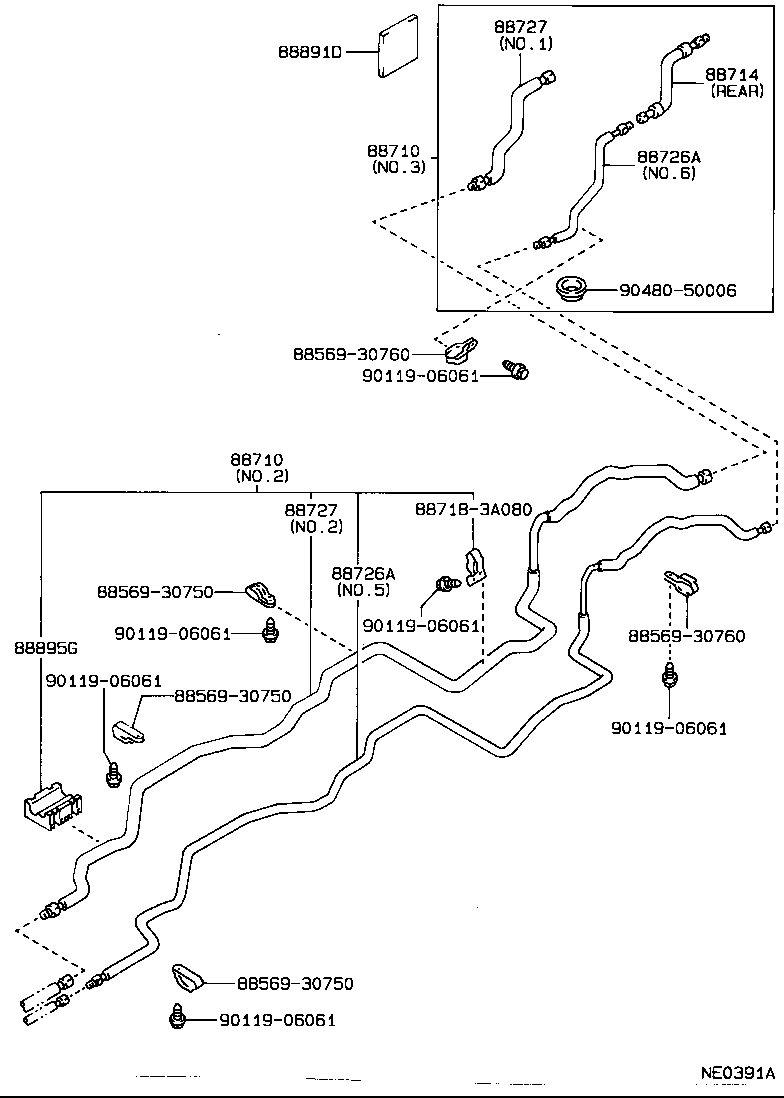

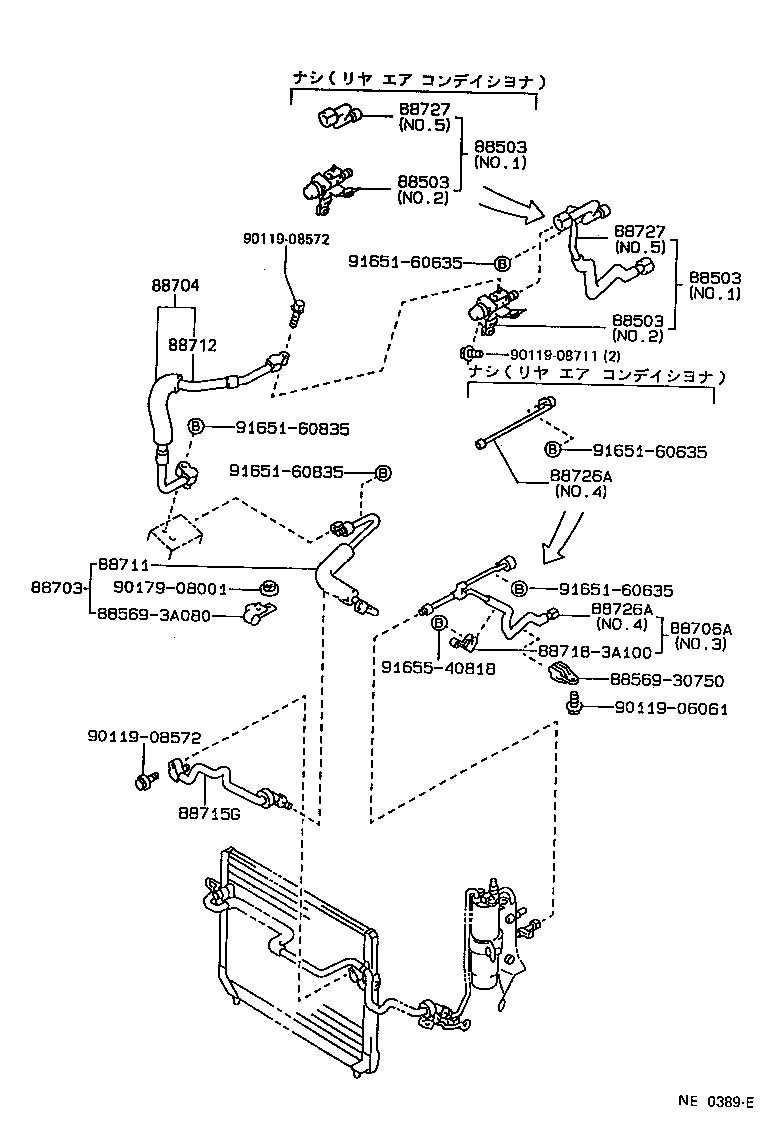

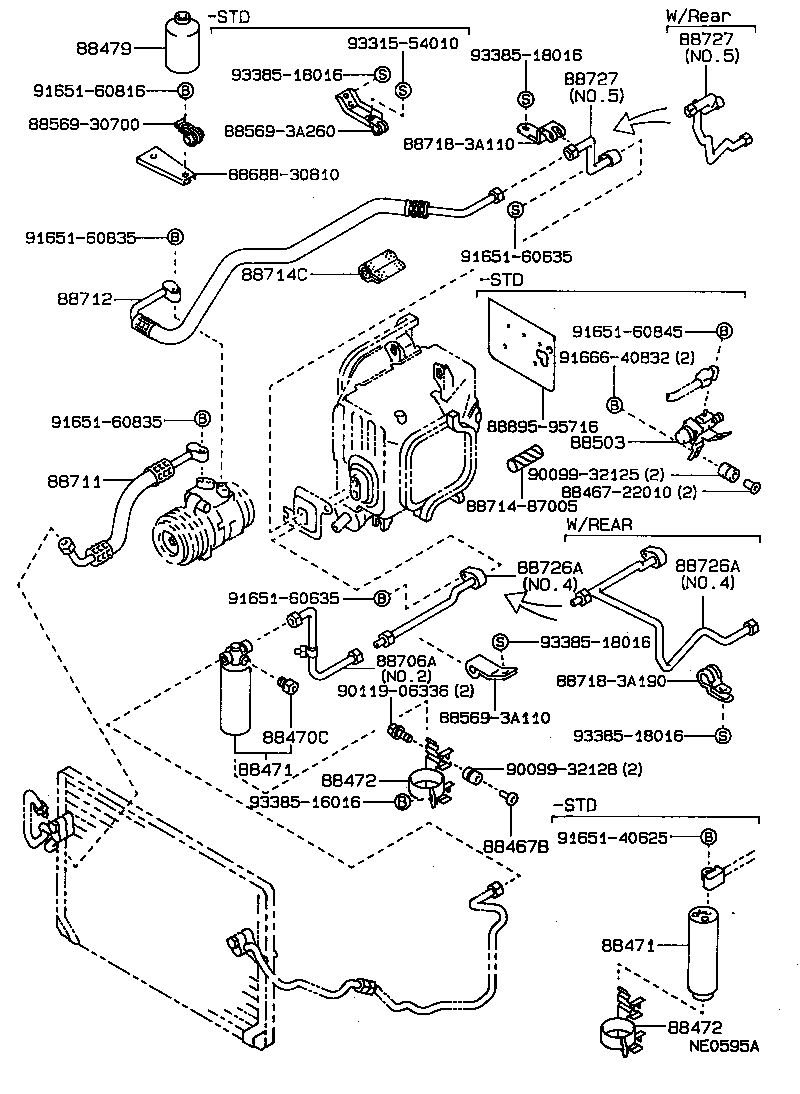

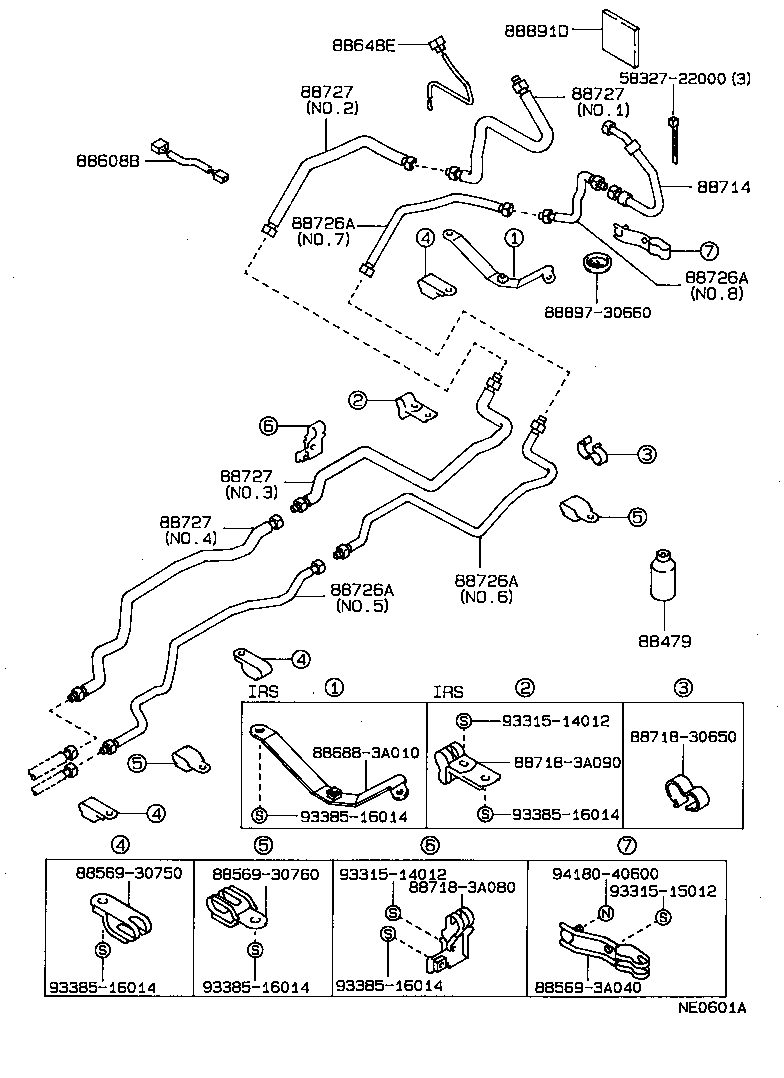

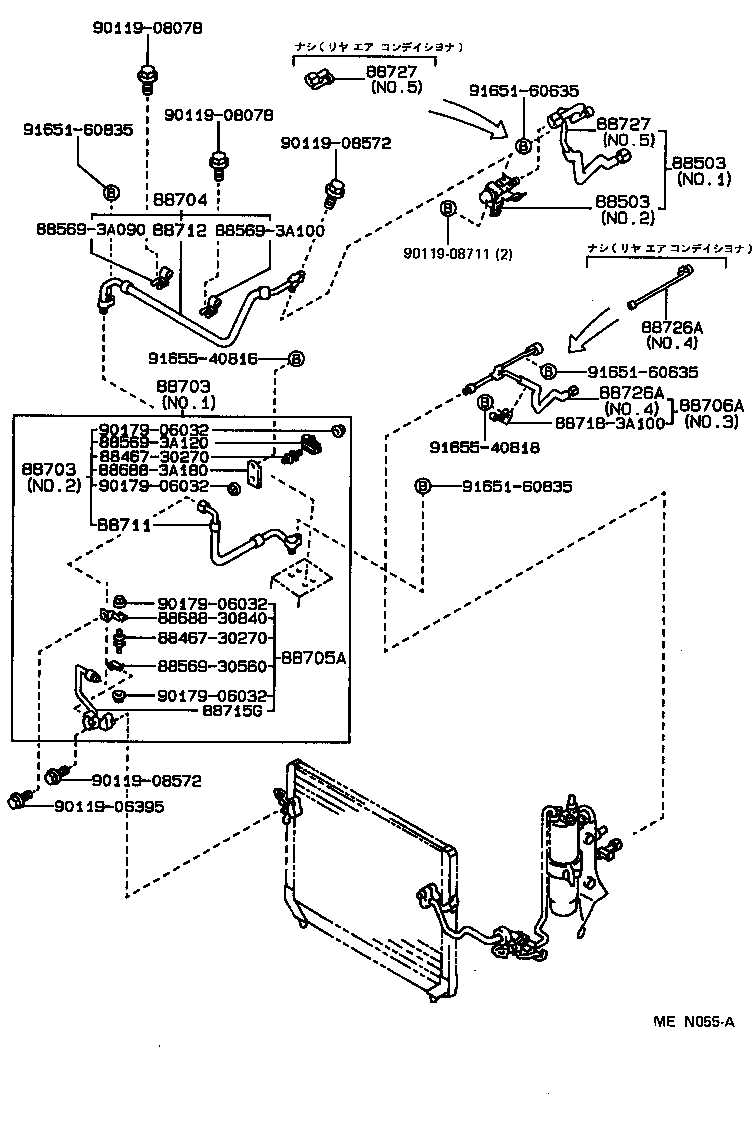

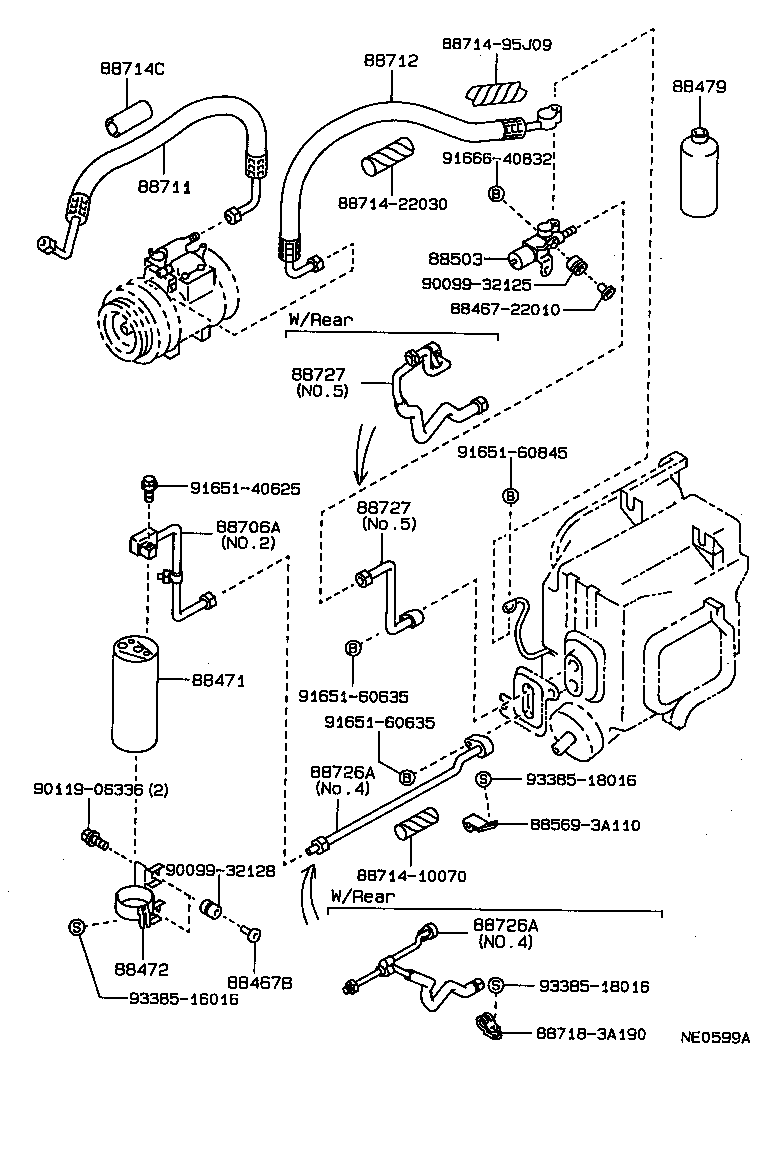

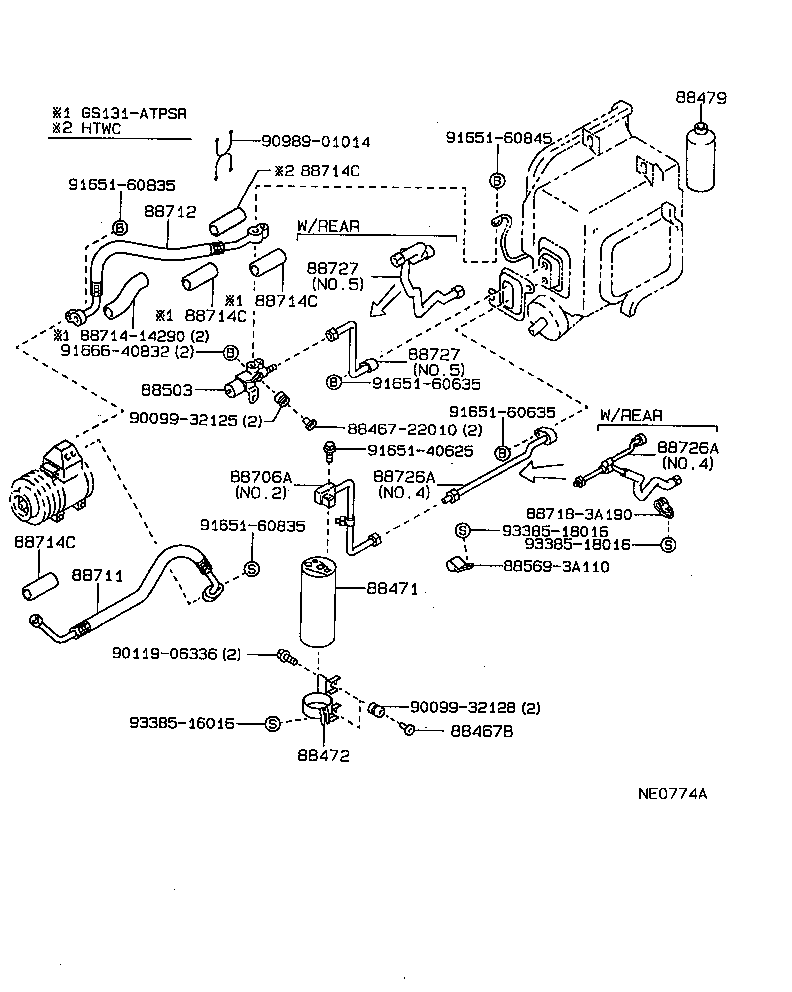

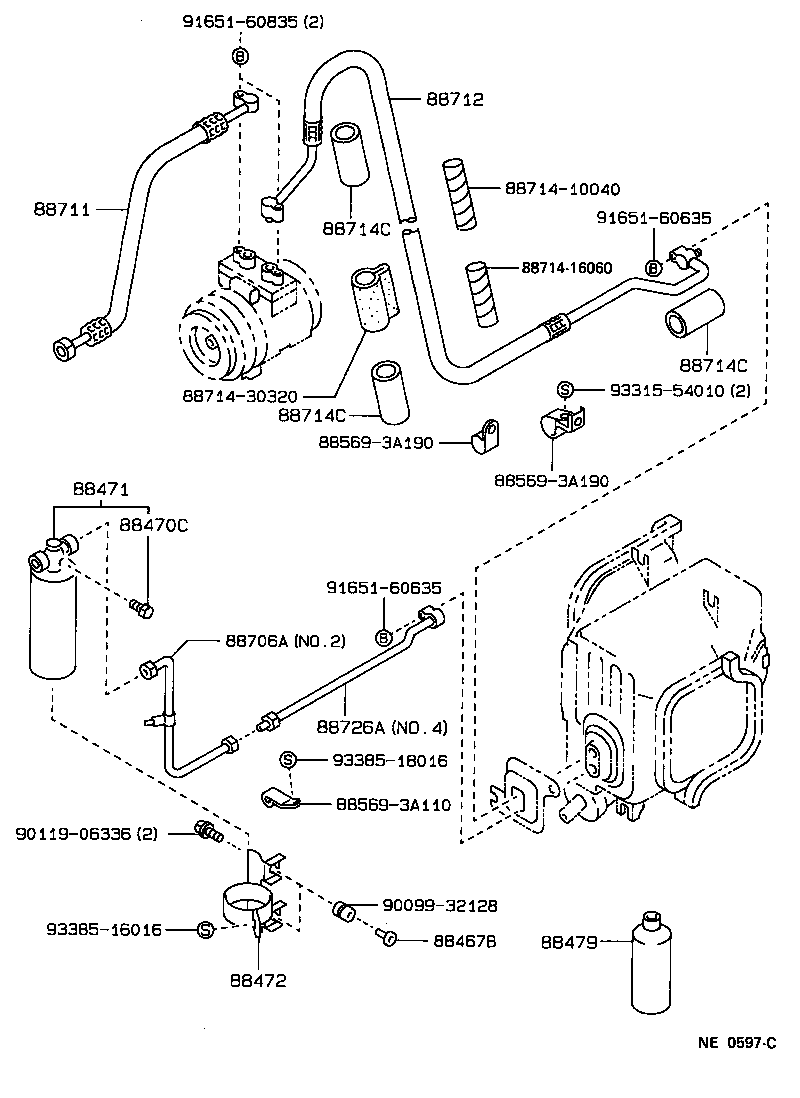

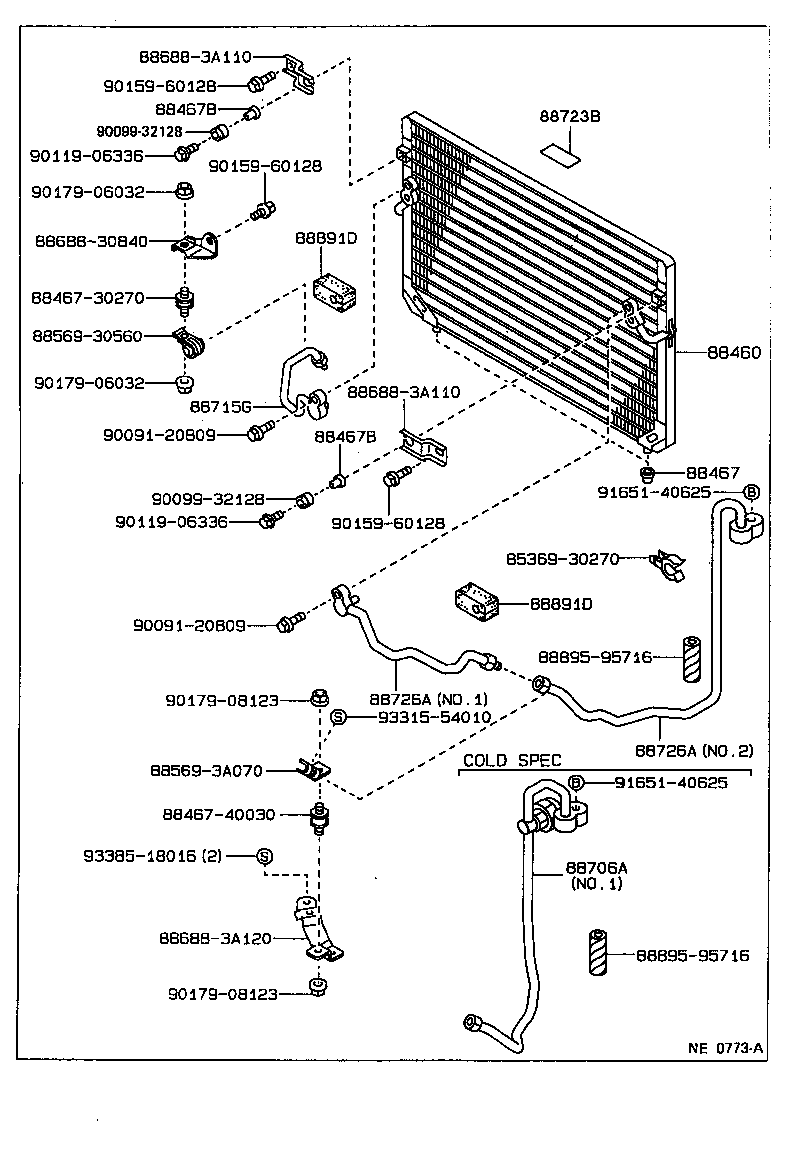

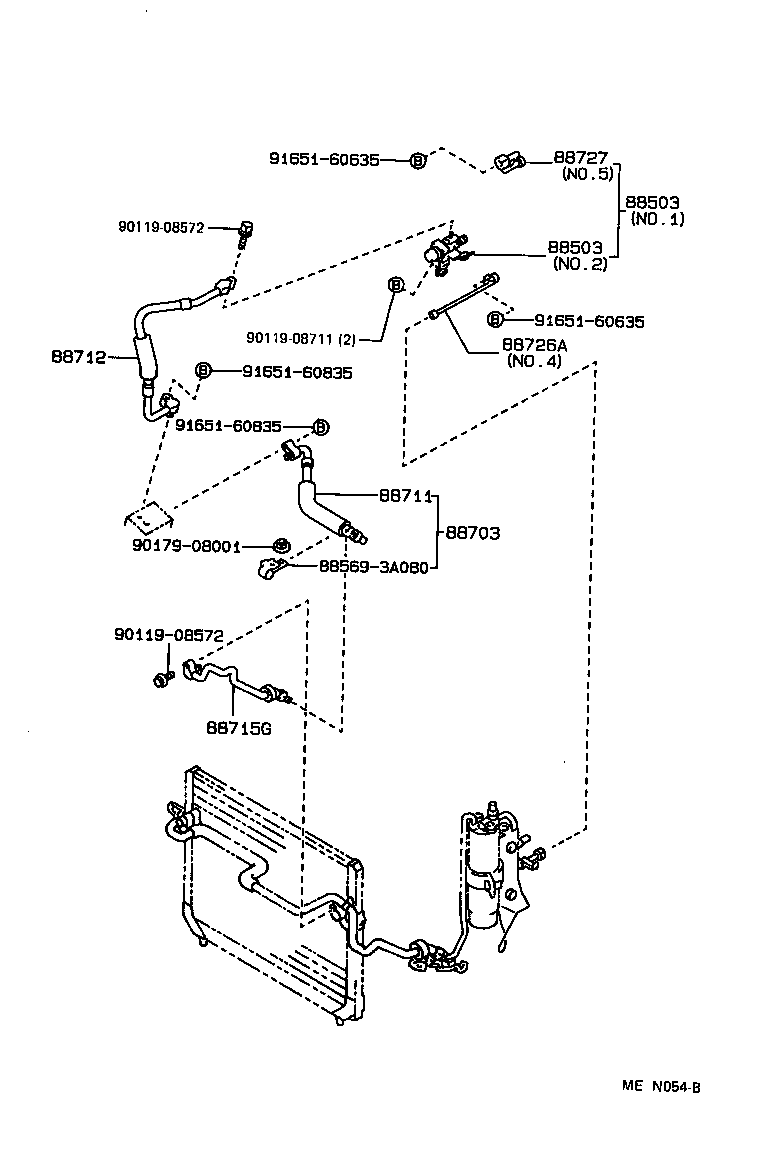

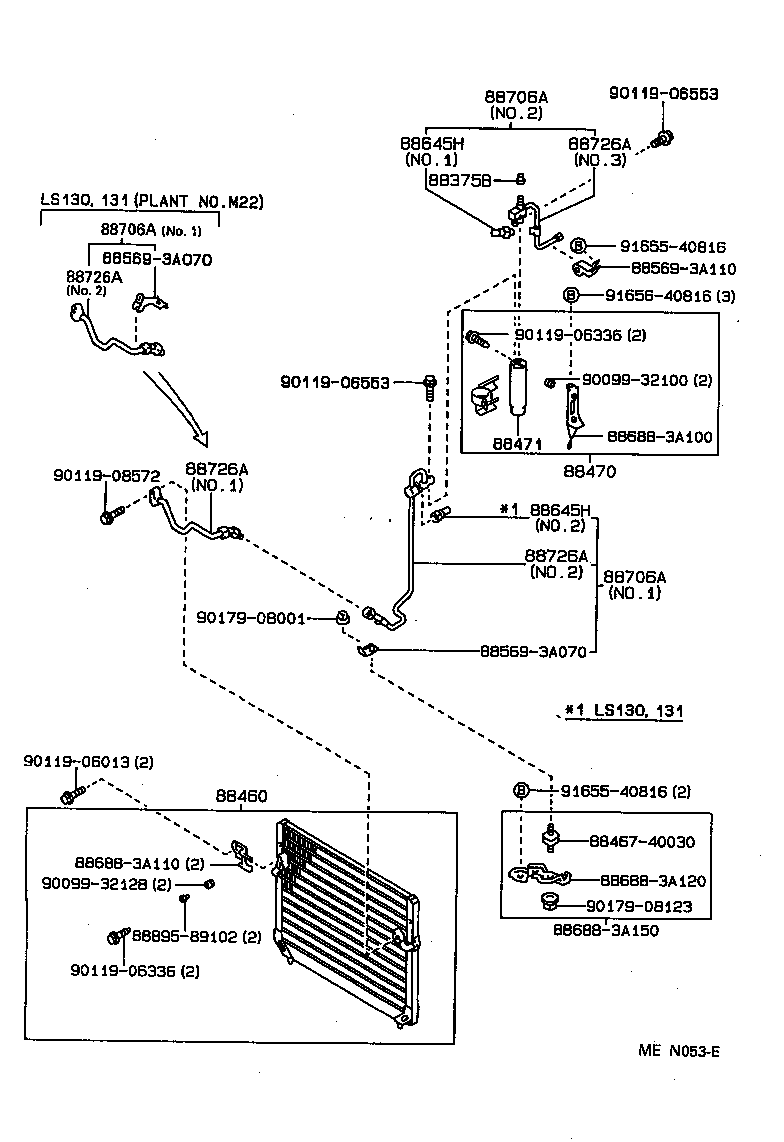

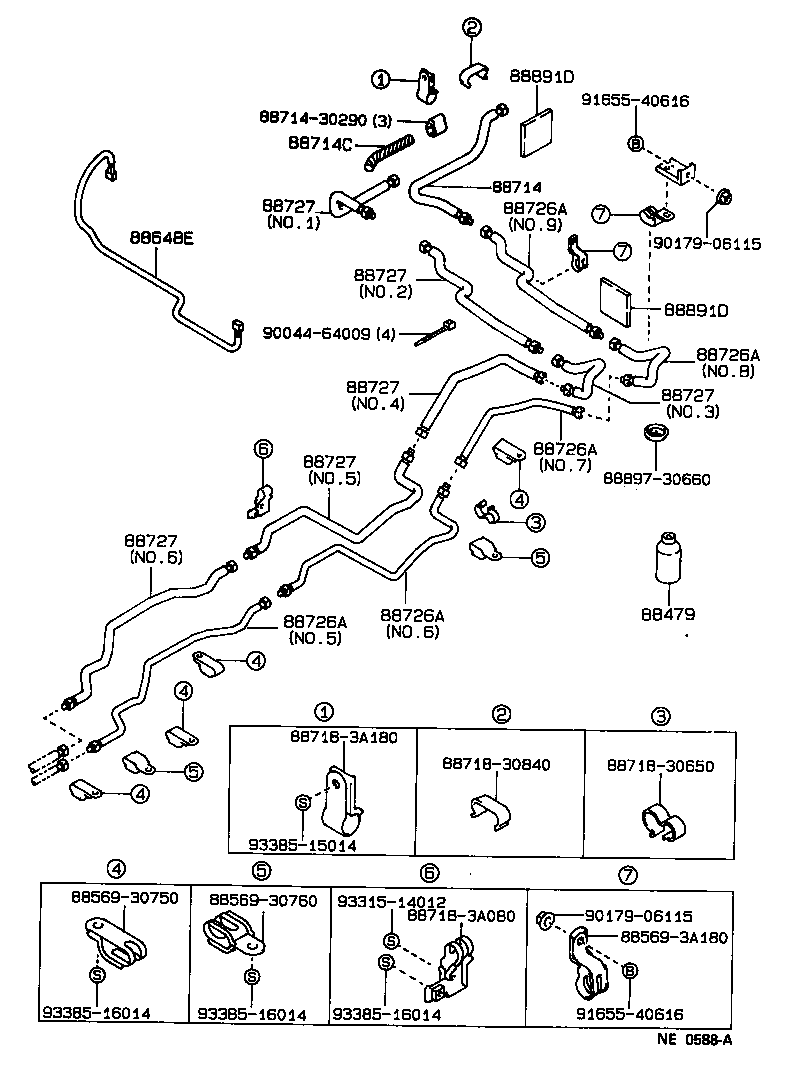

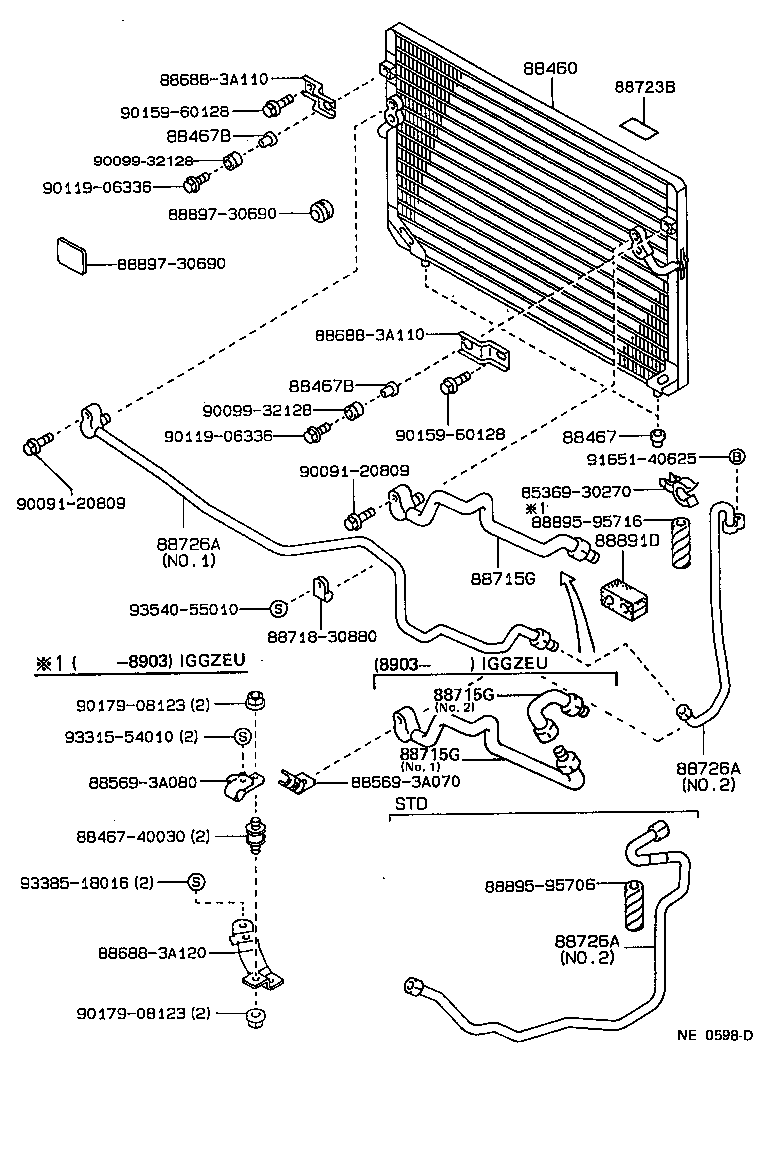

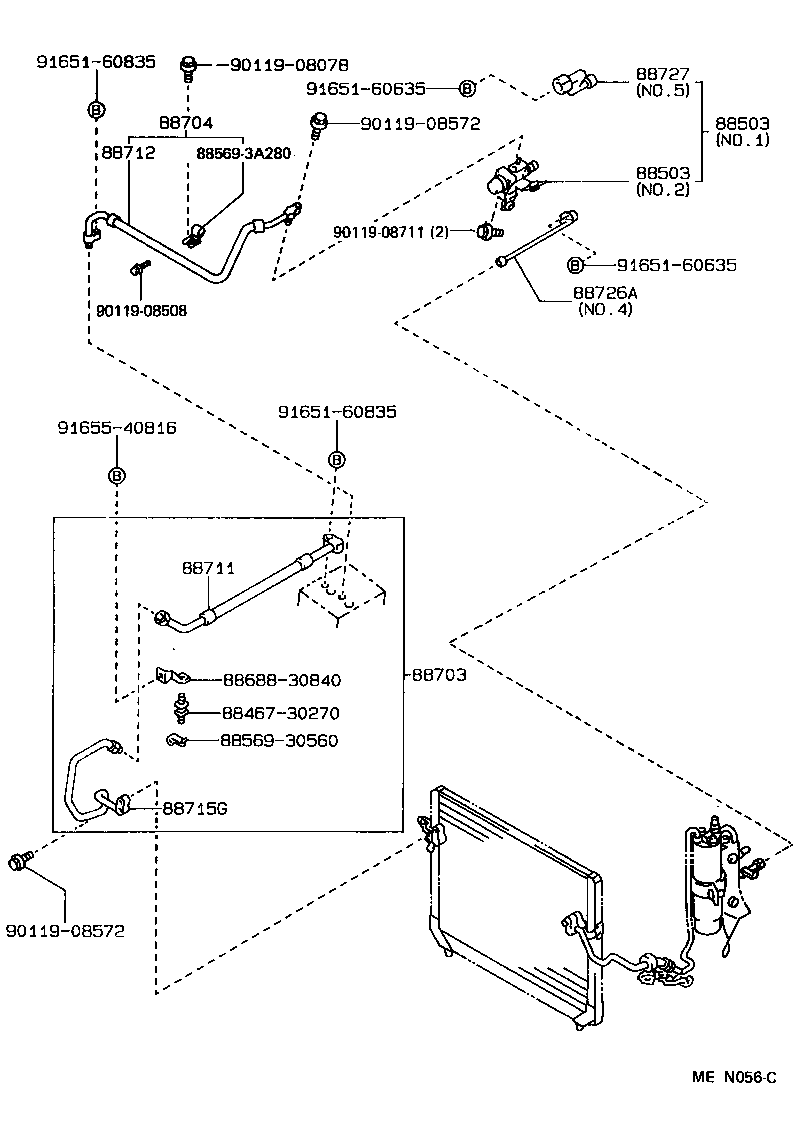

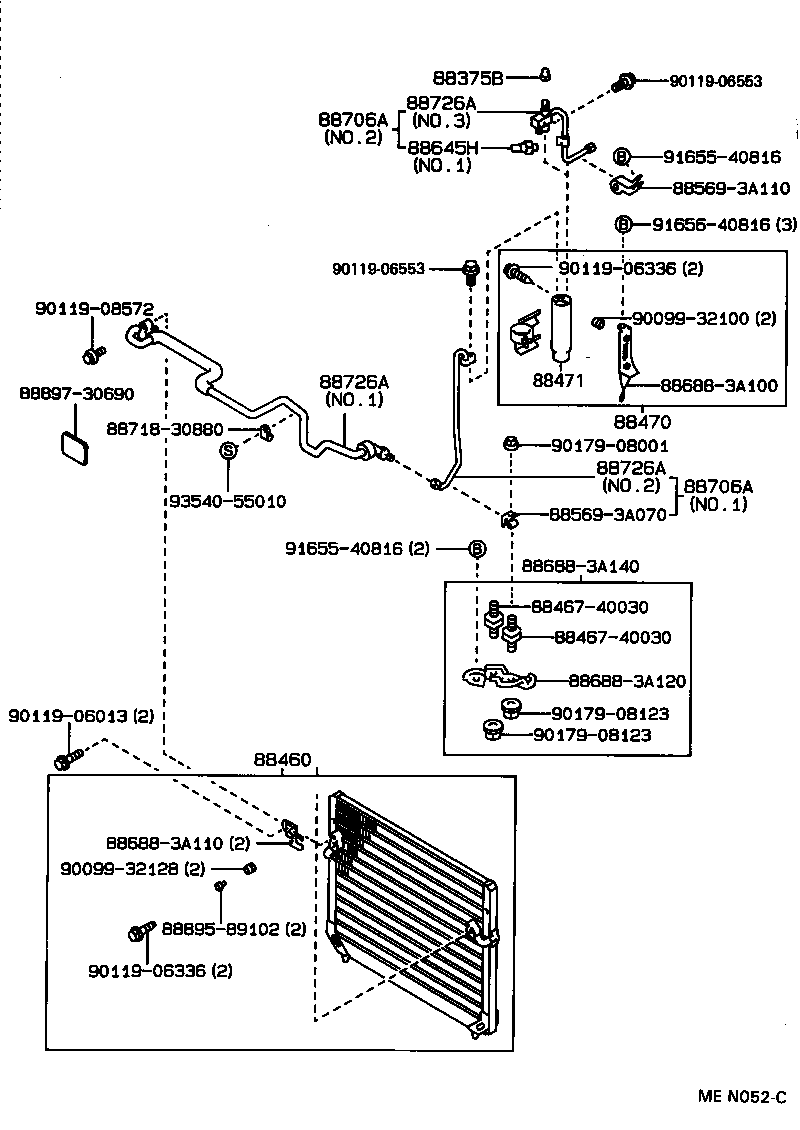

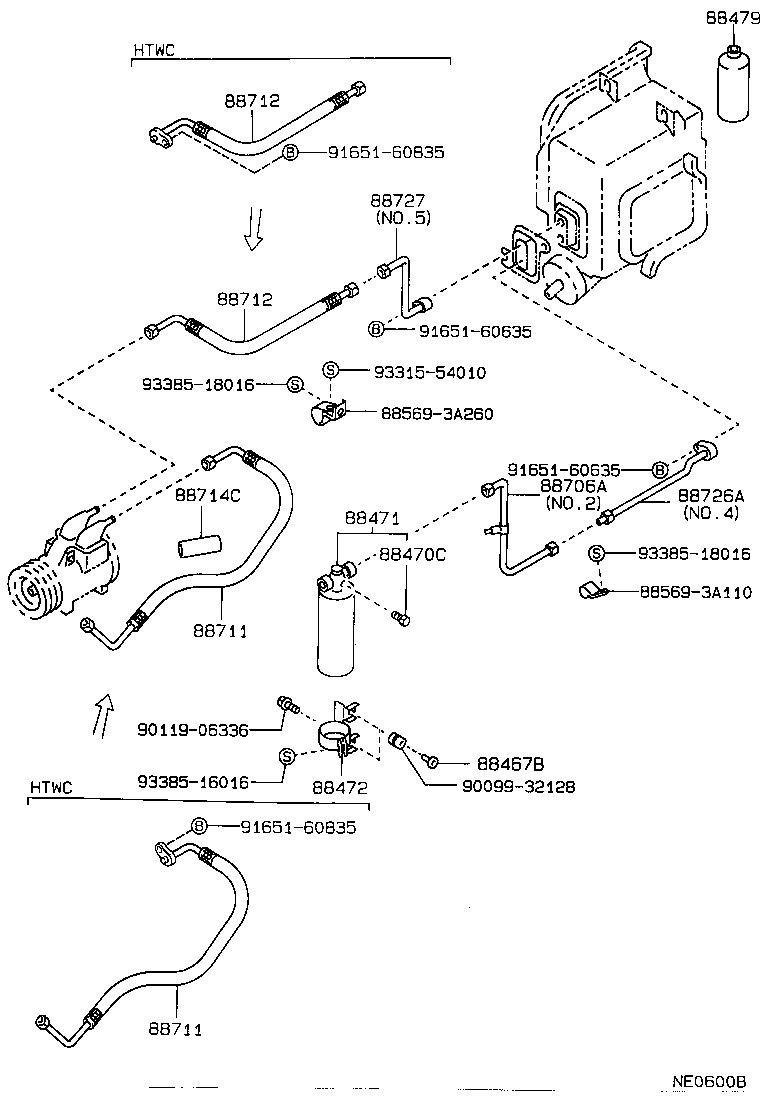

Figure NE0596C NE0596C 1987-09 → — Figure NE0773A NE0773A 1987-09 → — Figure NE0598D NE0598D 1987-09 → — Figure NE0597C NE0597C 1987-09 → — Figure NE0600B NE0600B 1987-09 → — Figure NE0774A NE0774A 1987-09 → — Figure NE0599A NE0599A 1987-09 → — Figure NE0595A NE0595A 1987-09 → — Figure MEN052C MEN052C 1987-09 → — Figure MEN053E MEN053E 1987-09 → — Figure MEN053E MEN053E 1989-08 → — Figure MEN054B MEN054B 1987-09 → — Figure MEN055A MEN055A 1987-09 → — Figure MEN056C MEN056C 1989-08 → — Figure 87G601 87G601 1987-09 → — Figure NE0389E NE0389E 1990-08 → — Figure NE0588A NE0588A 1987-09 → — Figure NE0588A NE0588A 1989-08 → — Figure NE0601A NE0601A 1987-09 → — Figure MEN058A MEN058A 1987-09 → — Figure NE0391A NE0391A 1987-09 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88503 Regulator Assy, Pressure
88608B Harness Sub-assy, Wiring Air Conditioner, NO.2
88610G Switch Assy, Control
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88706A Tube Sub-assy, Liquid, A
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715G Tube, Discharge, G
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88727 Tube, Suction, NO.2
88891D Packing D (FOR COOLER)
88895G Bush
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
