Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

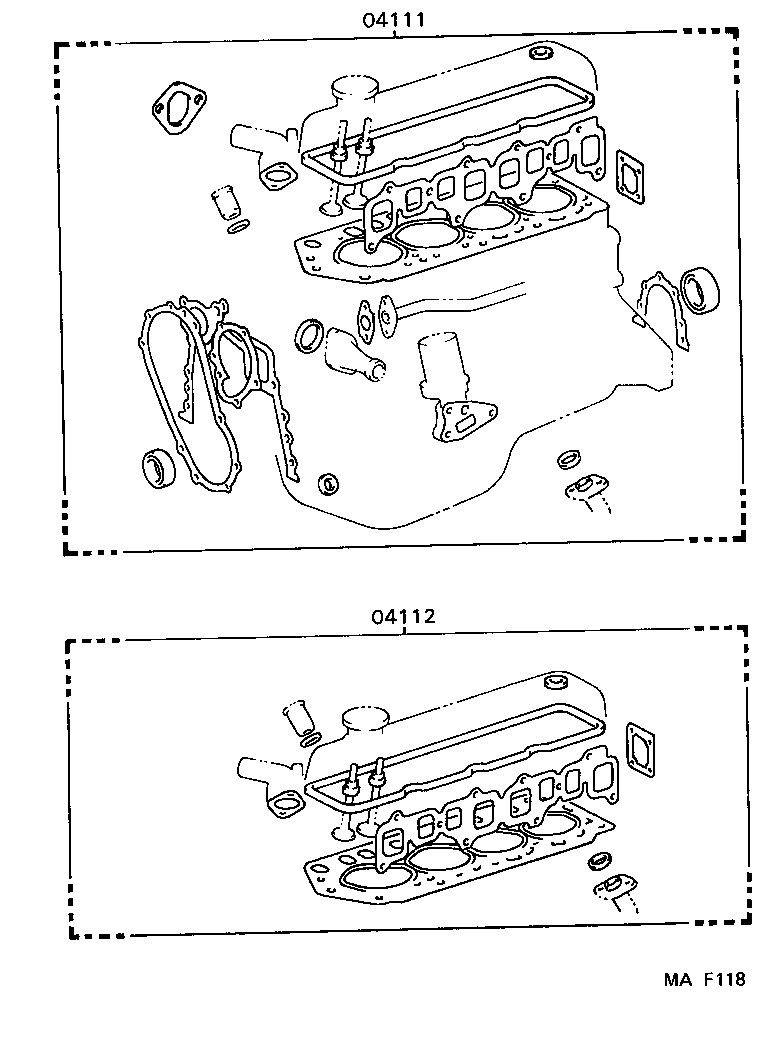

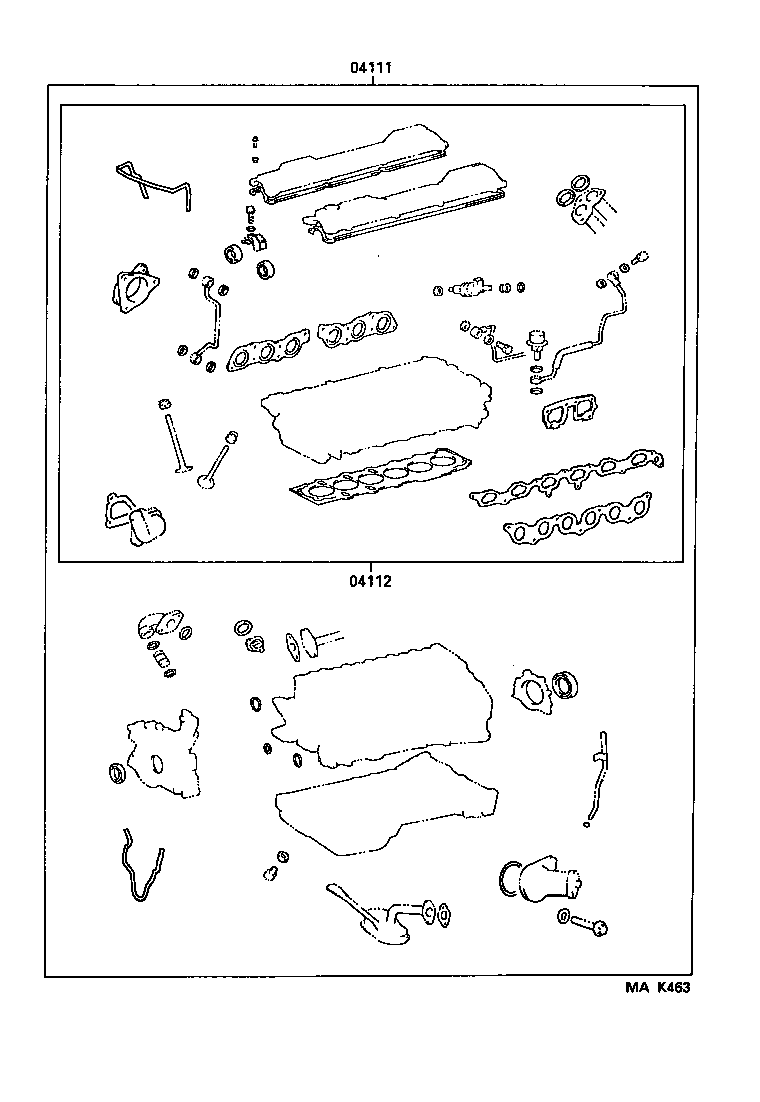

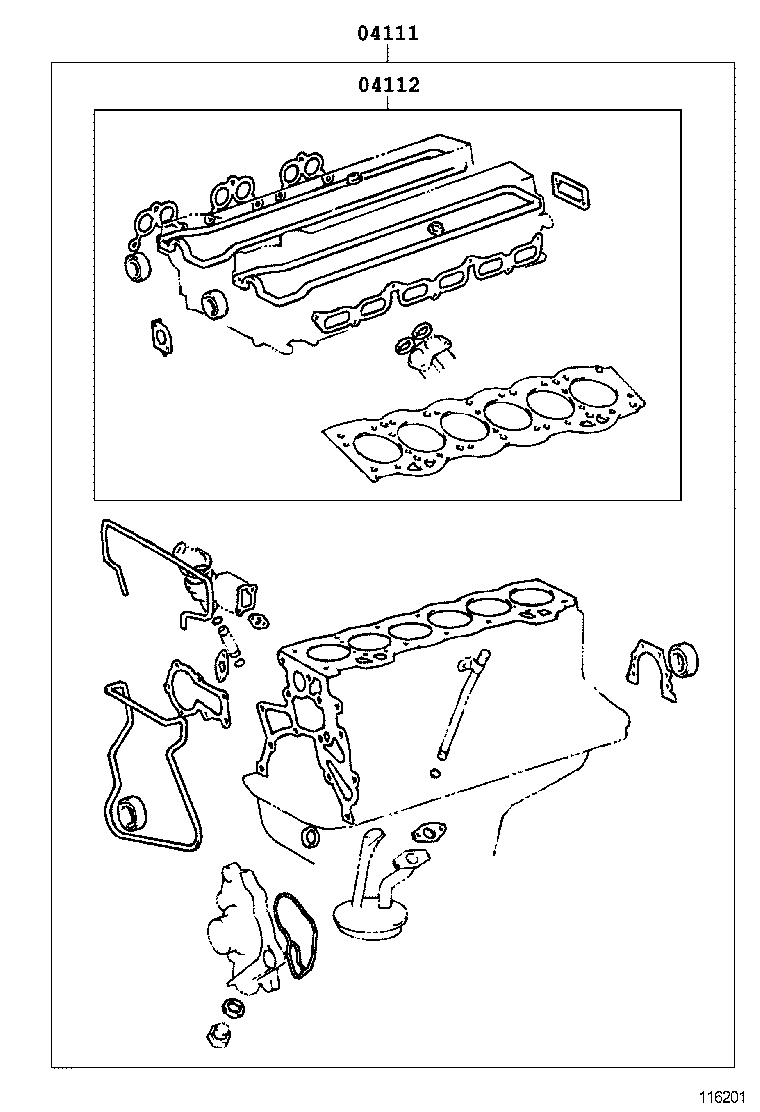

Figure NA0886 NA0886 1991-10 → — Figure 116201 116201 1991-12 → 1995-12 Figure MAE180E MAE180E 1991-10 → 1996-09 Figure MAK463 MAK463 1996-09 → — Figure MAB329B MAB329B 1991-10 → — Figure MAF118 MAF118 1991-12 → 1995-12

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
