Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

30 part groups · 13 illustrations

Illustrations

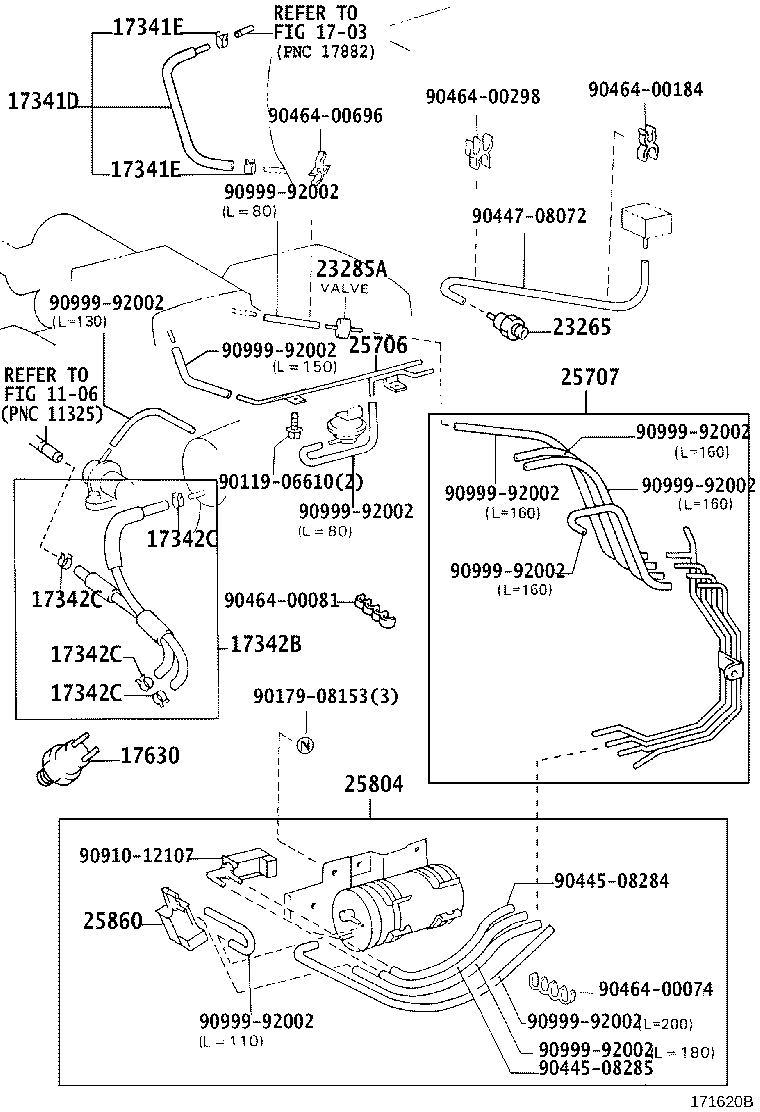

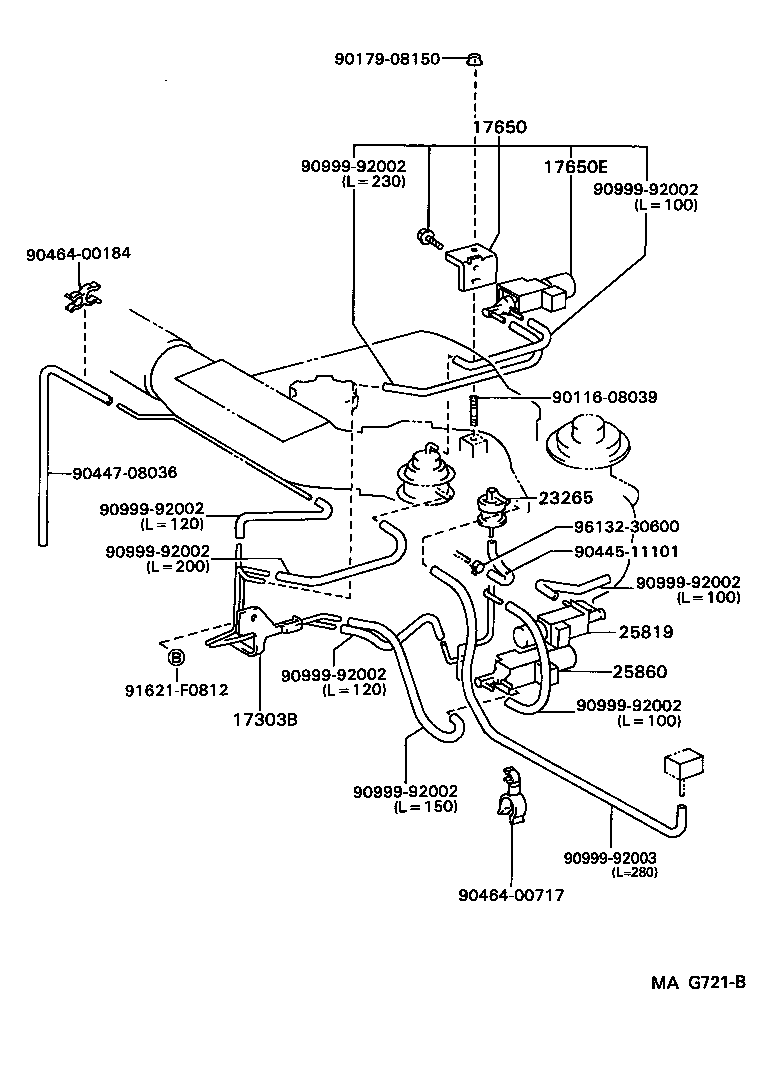

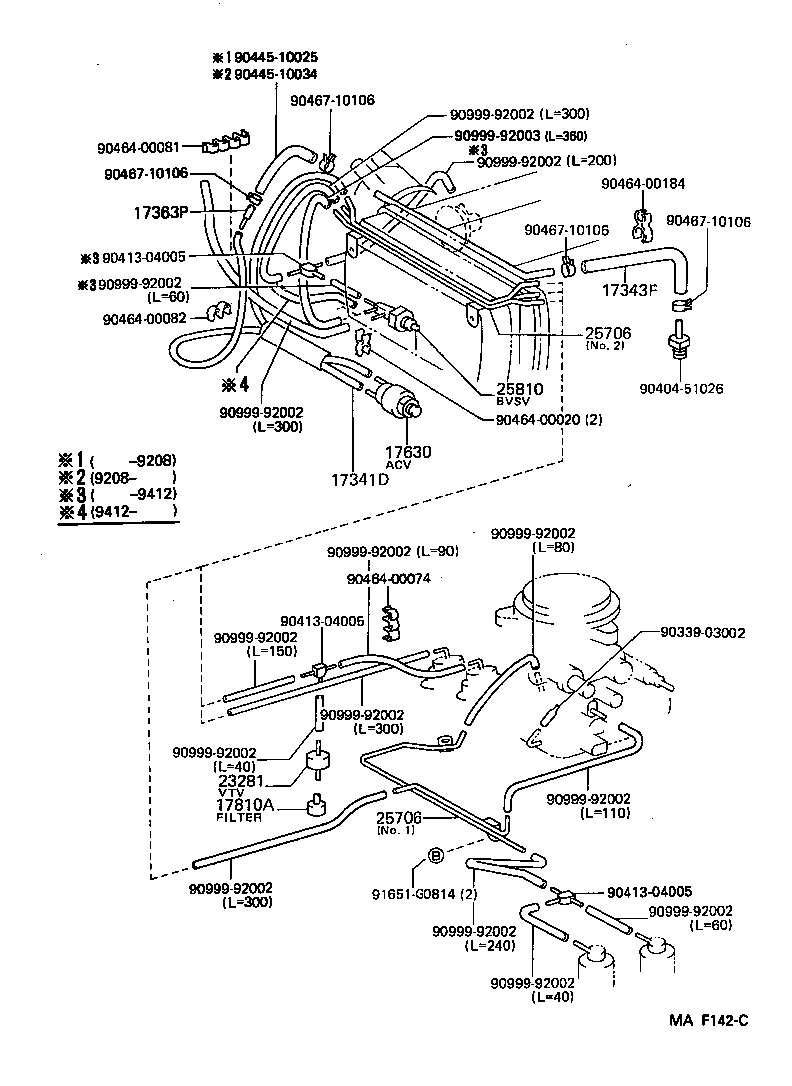

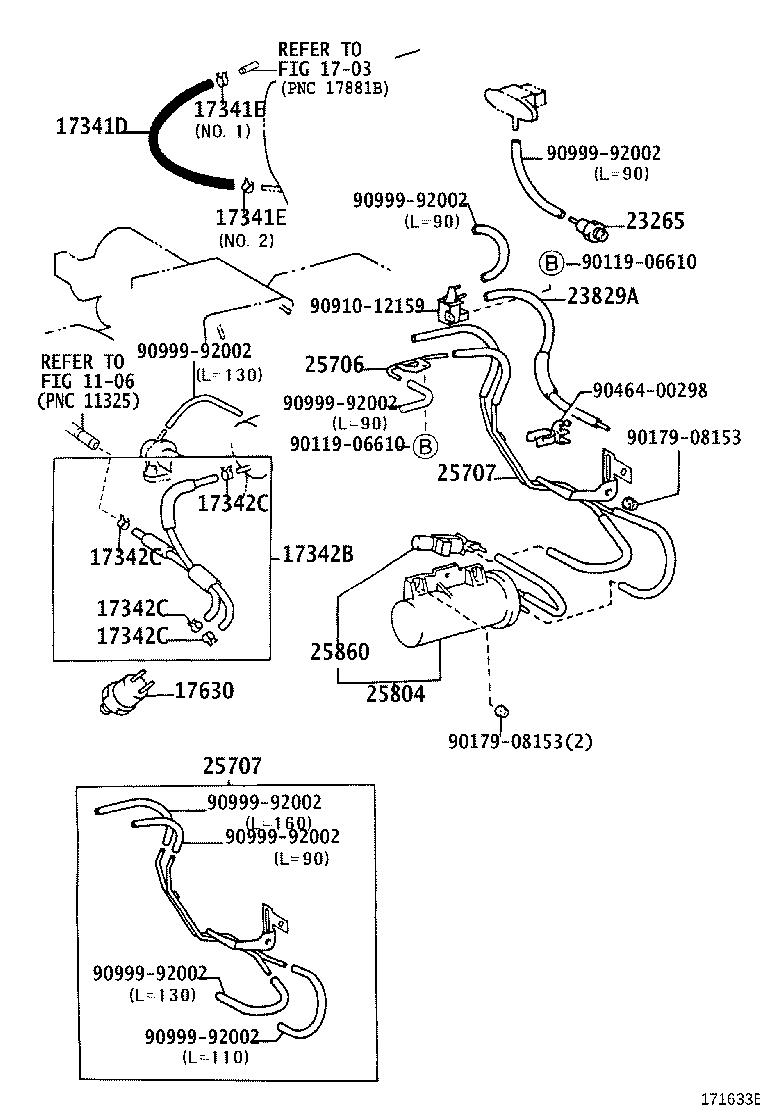

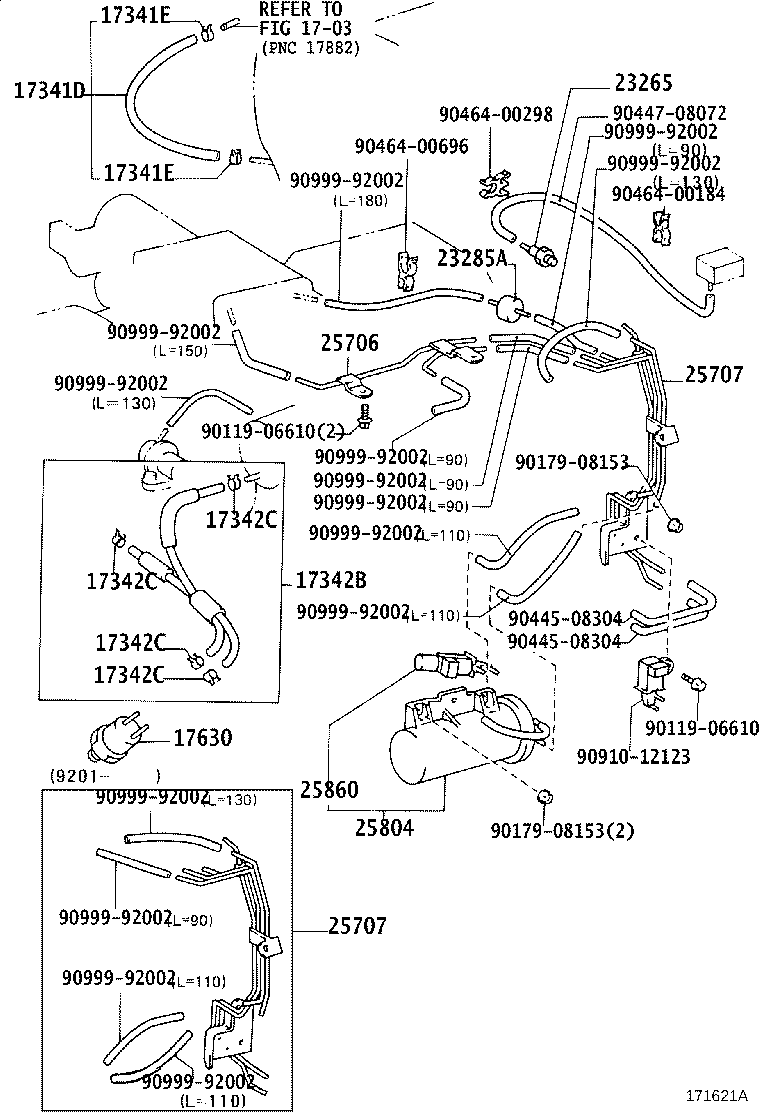

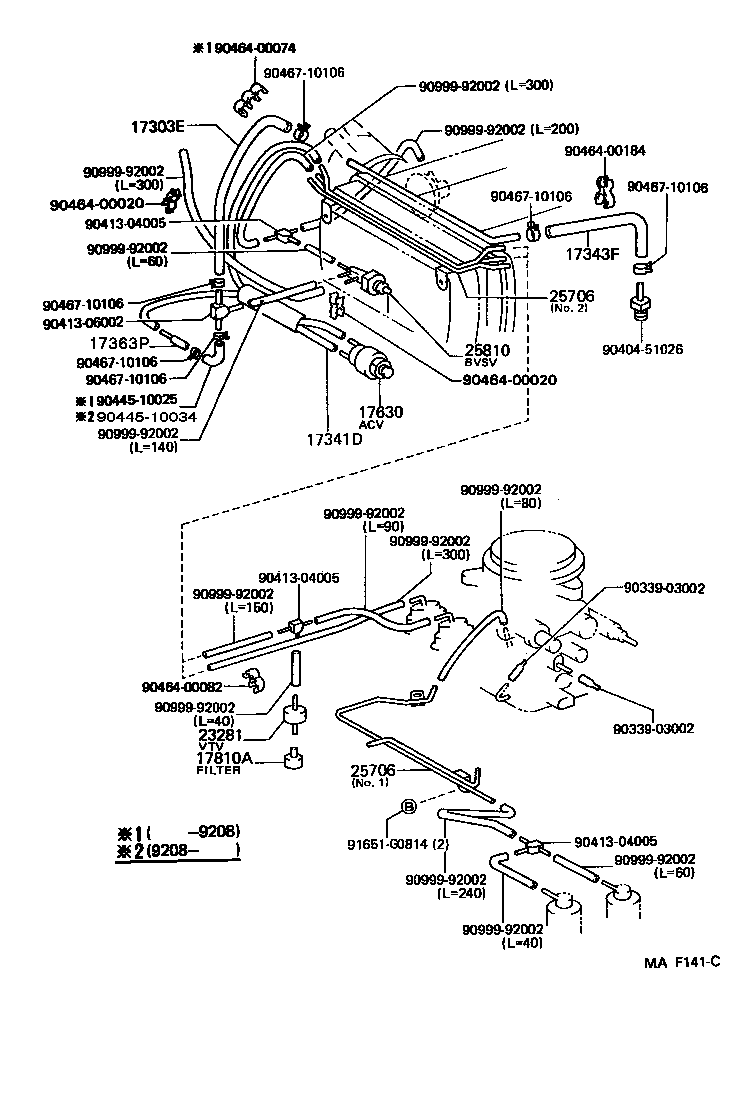

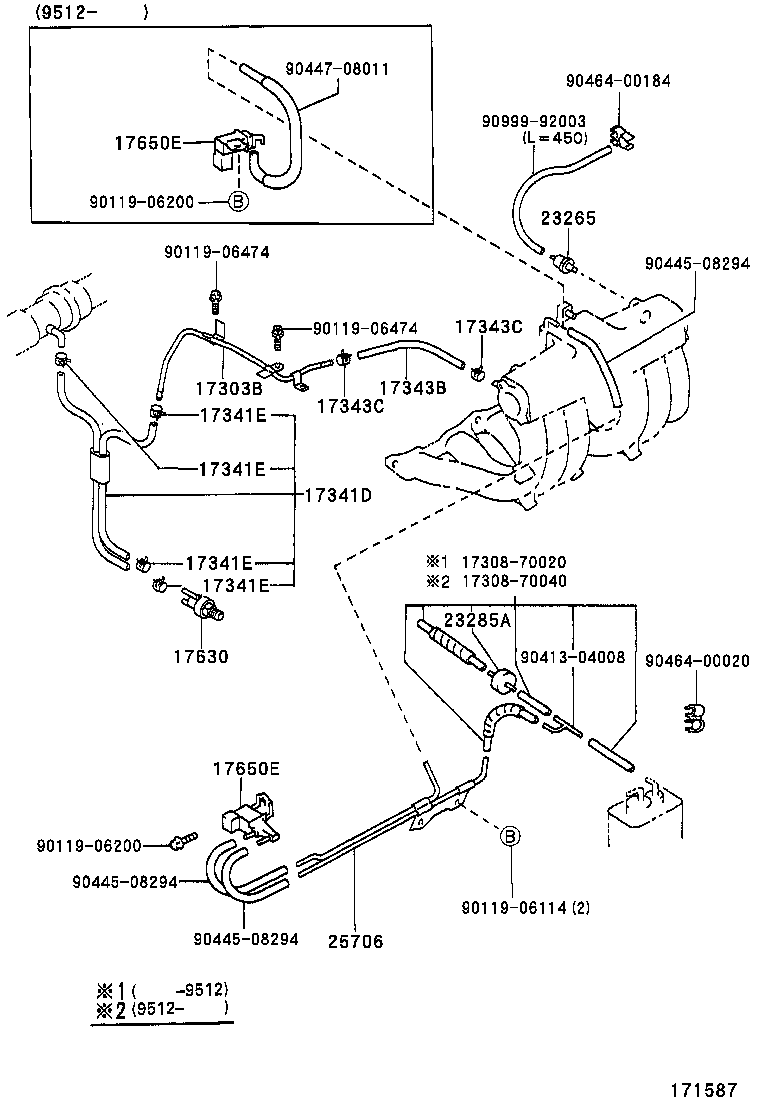

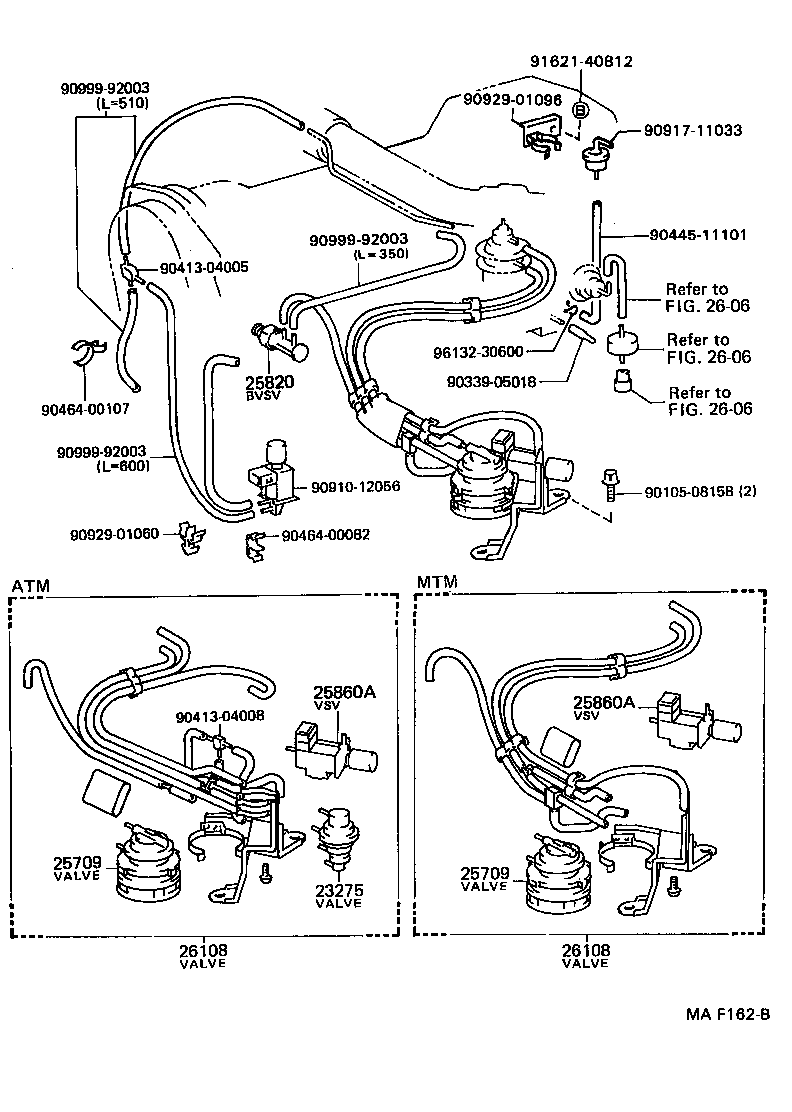

Figure 170020 170020 1991-10 → — Figure 171587 171587 1991-10 → — Figure MAF141C MAF141C 1991-12 → 1994-12 Figure MAF142C MAF142C 1991-12 → 1995-12 Figure MAF142C MAF142C 1994-12 → 1995-12 Figure 171620B 171620B 1991-10 → 1996-09 Figure 171633B 171633B 1996-09 → — Figure 171621A 171621A 1991-10 → — Figure MAF162B MAF162B 1991-10 → 1994-09 Figure MAF105A MAF105A 1991-10 → 1993-08 Figure MAG721B MAG721B 1993-08 → 1995-12 Figure 170278A 170278A 1995-12 → — Figure 171581 171581 1991-12 → 1995-12

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17303E Hose, NO.1(FOR AIR PIPE)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17343F Hose, Air, NO.3
17363P Tube, Air, NO.3
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17650E Valve, Vacuum Switching
17810A Filter Assy, Air
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23829A Hose, Fuel Vapor Feed
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25709 Valve Sub-assy, High Altitude Compensator
25751 Clamp, Vacuum Control Valve, NO.1
25804 Valve Set, Vacuum Control
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
25820 Valve Assy, Bimetal, NO.2
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
26108 Valve Set, Intake Air Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
