Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

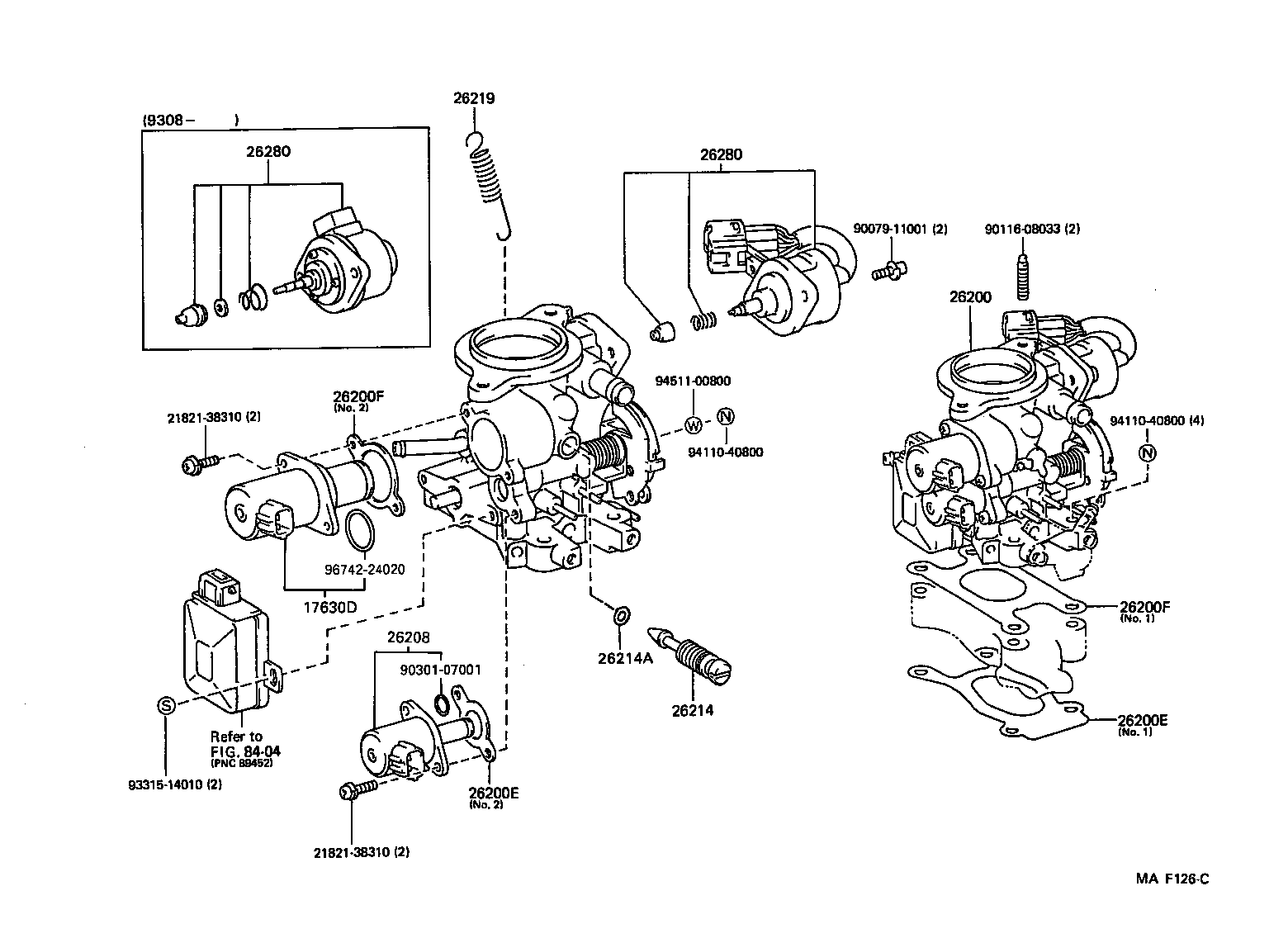

Lpg Carburetor
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 17630D | Valve Assy, Air Control |
| 21548A | Coller, Throttle Lever |
| 21908D | Actuator Sub-assy, Idle-up |
| 26200 | Carburetor Assy, Lpg |
| 26200E | Gasket, Carburetor, NO.1 |
| 26200F | Gasket, Carburetor, NO.2 |
| 26204B | Gasket, Solenoid Valve(FOR LPG) |
| 26206S | Spring, Idle Adjust Screw(FOR LPG) |
| 26208 | Valve Sub-assy, Solenoid |
| 26209 | Diaphragm Sub-assy(FOR LPG) |
| 26214 | Screw, Power Adjust |
| 26214A | Ring, O(FOR POWER ADJUST) |
| 26215 | Nut, Power Adjust |
| 26216 | Valve, Power |
| 26218 | Boot(FOR POWER VALVE) |
| 26219 | Spring, Power Valve |
| 26223 | Screw, Set(FOR POWER VALVE CAM) |
| 26231 | Screw(FOR LPG CARBURETOR) |
| 26236 | Gasket, Air Horn |
| 26239 | Spring |
| 26244 | Collar(FOR LPG CARBURETOR) |
| 26248 | Spring(FOR POWER VALVE CAM) |
| 26249 | Union, Fuel Hose(FOR LPG) |
| 26251 | Horn, Air |
| 26253 | Valve, Change(FOR SLOW) |
| 26254 | Cap, Power Screw Limit |
| 26256 | Gasket, Change Valve |
| 26266 | Gasket, Fuel Inlet Union |
| 26280 | Motor Assy, Air Fuel Ratio Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
