Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

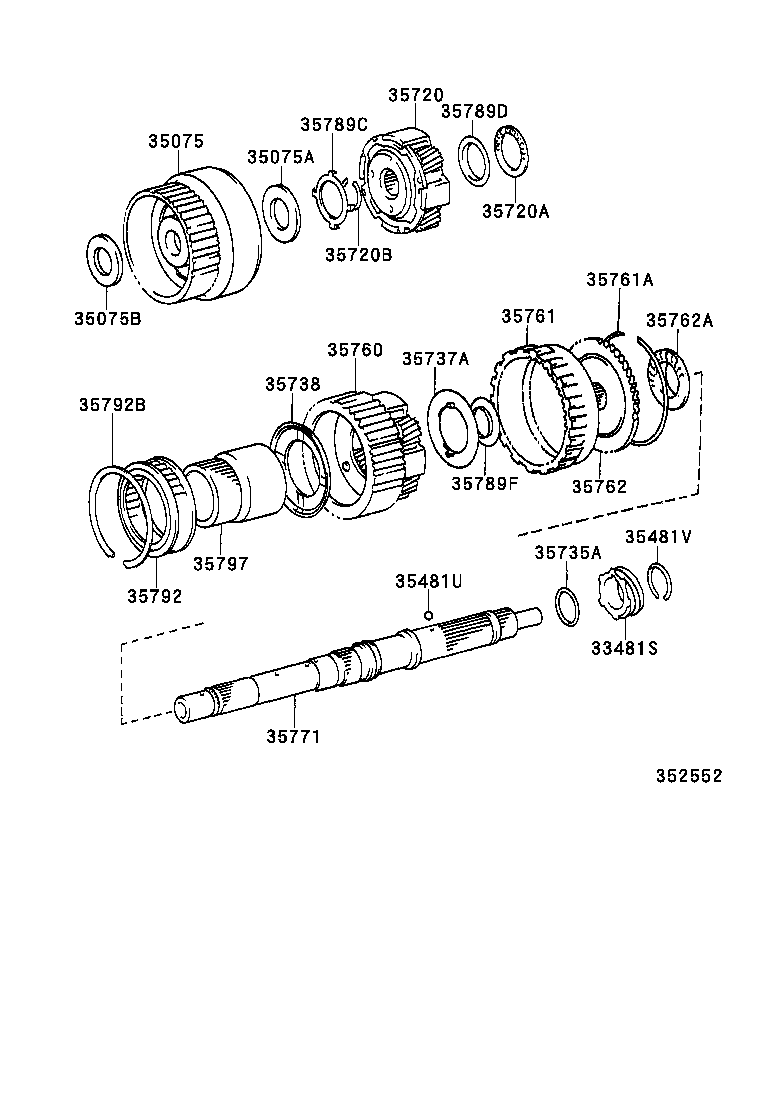

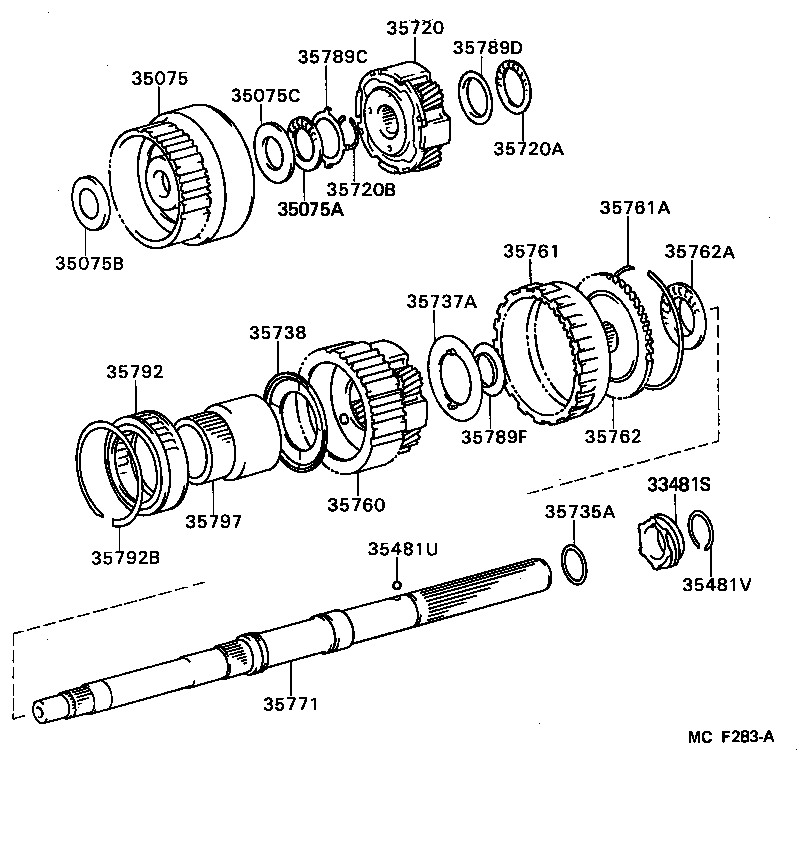

Planetary Gear, Reverse Piston & Counter Gear(ATM)
39 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33481S | Gear, Speedometer Drive (ATM) |
| 35074 | Gear Sub-assy, Rear Planetary Ring |
| 35074A | Ring, Set (FOR REAR PLANETARY RING GEAR) |
| 35074B | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR FRONT) |
| 35074C | Race, Thrust Bearing (FOR REAR PLANETARY RING GEAR REAR) |
| 35074D | Bearing, Thrust (FOR REAR PLANETARY RING GEAR REAR) |
| 35075 | Gear Sub-assy, Front Planetary Ring |
| 35075A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY RING) |
| 35075B | Race, Thrust Bearing (FOR FRONT PLANETARY RING GEAR FRONT) |
| 35075C | Race, Thrust Bearing (FOR FRONT PLANETARY RING GEAR RR) |
| 35481U | Key OR Ball, Speedmeter Drive Gear (ATM) |
| 35481V | Ring OR Spacer (FOR ATM SPEEDMETER DRIVE GEAR) |
| 35704B | Gear Sub-assy, Front Planetary |
| 35708D | Shaft Sub-assy, Intermediate |
| 35720 | Gear Assy, Front Planetary |
| 35720A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) |
| 35720B | Ring, Shaft Snap (FOR FRONT PLANETARY GEAR) |
| 35735A | Ring, Planetary Output Shaft Oil Seal |
| 35737A | Washer, Planetary Carrier Thrust, NO.1 |
| 35738 | Washer, Planetary Carrier Thrust, NO.2 |
| 35739 | Washer, Planetary Carrier Thrust, NO.3 |
| 35743 | Gear, Front Planetary Ring |
| 35743A | Ring, Shaft Snap (FOR FRONT PLANETARY RING GEAR) |
| 35748 | Ring, Intermediate Shaft Sleeve Oil Seal |
| 35760 | Gear Assy, Rear Planetary |
| 35761 | Gear, Rear Planetary Ring |
| 35761A | Ring, Hole Snap (FOR REAR PLANETARY RING GEAR) |
| 35762 | Flange, Rear Planetary Ring Gear |
| 35762A | Bearing, Thrust Needle Roller (FOR REAR PLANETARY FLANGE) |
| 35770 | Shaft Assy, Output |
| 35770A | Bearing, Thrust (FOR OUTPUT SHAFT) |
| 35770B | Race, Thrust Bearing (FOR OUTPUT SHAFT) |
| 35771 | Shaft, Output |
| 35789C | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR FRONT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789F | Race, Thrust Bearing (FOR REAR PLANETARY FLANGE) |
| 35792 | Clutch, 1 Way, NO.2 |
| 35792B | Ring, Hole Snap (FOR 1 WAY CLUTCH NO.2) |
| 35797 | Race, 1 Way Clutch Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
