Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

23 part groups · 2 illustrations

Illustrations

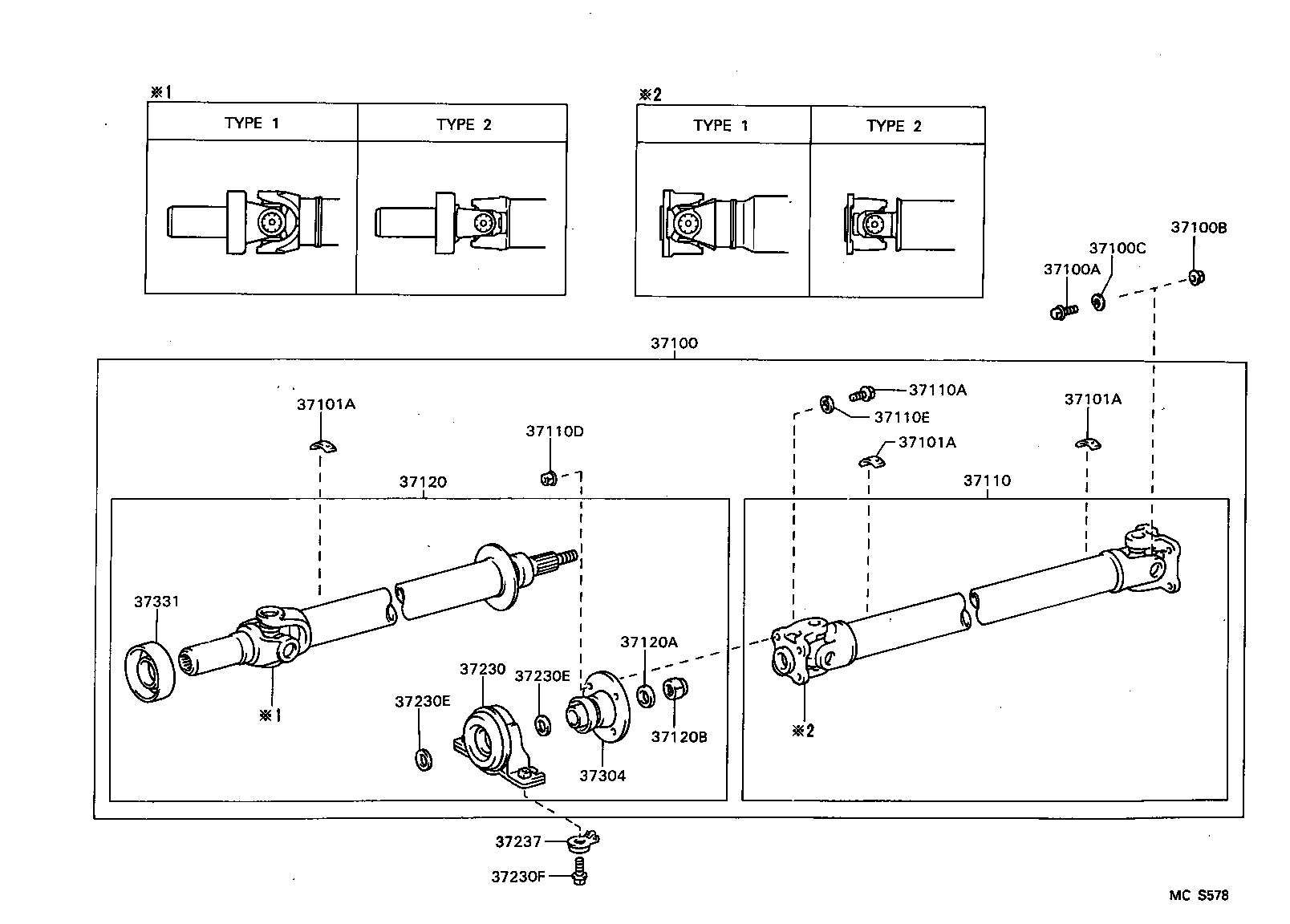

Figure MCM524B MCM524B 1991-10 → — Figure MCS578 MCS578 1991-10 → —

Part groups

PNCDescription
04371 Spider Kit, Universal Joint(FOR PROPELLER SHAFT)
37100 Shaft Assy, Propeller W/Center Bearing
37100A Bolt, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100B Nut, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37100C Washer, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230E Washer, NO.1 (FOR CENTER SUPPORT BEARING)
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37237 Plate, Center Support Bearing, NO.1
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
