Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 6 illustrations

Illustrations

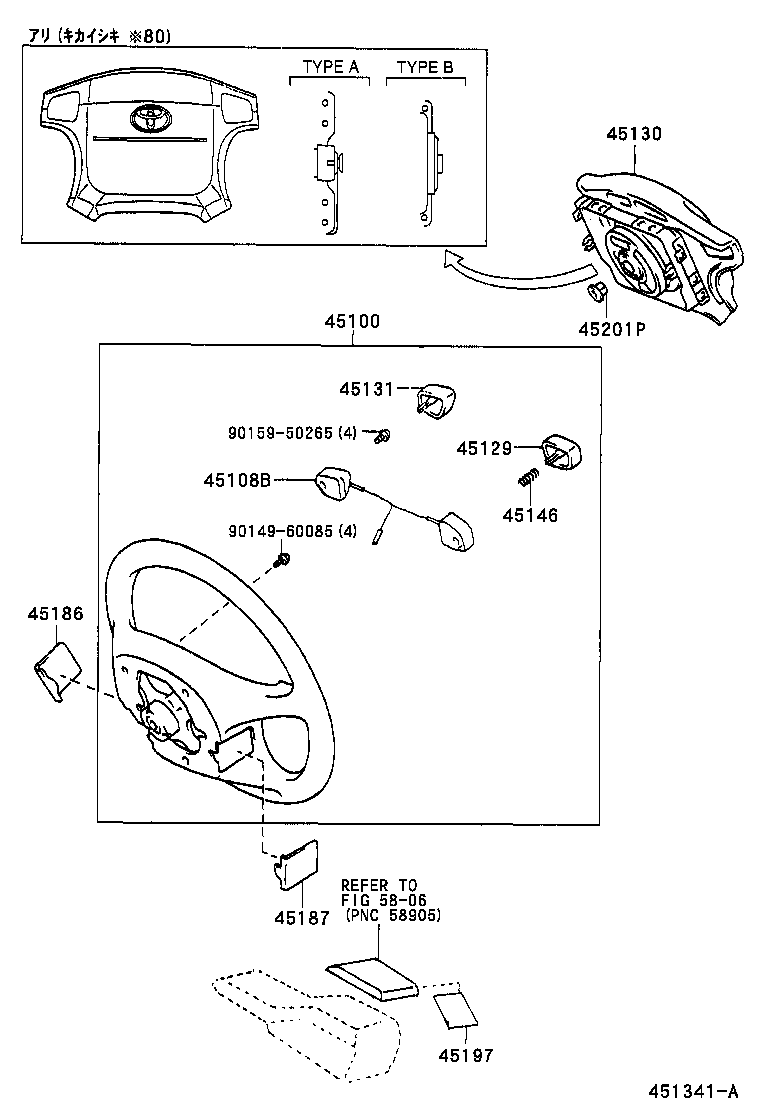

Figure MCM476A MCM476A 1991-10 → — Figure MCM481C MCM481C 1991-10 → — Figure 451341A 451341A 1991-10 → 1997-04 Figure 451342 451342 1996-09 → — Figure 451567 451567 1991-10 → — Figure MCM478F MCM478F 1991-10 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45108B Button Sub-assy, Horn(FOR STEERING WHEEL ASSY)
45112 Pad, Steering Wheel
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45136 Plate, Horn Button Contact
45146 Spring, Horn Button Contact
45180 Cover Sub-assy, Steering Wheel
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45197 Label, Airbag Caution
45201P Nut, Steering Wheel Set
45819C Retainer, Telescopic Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
