Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

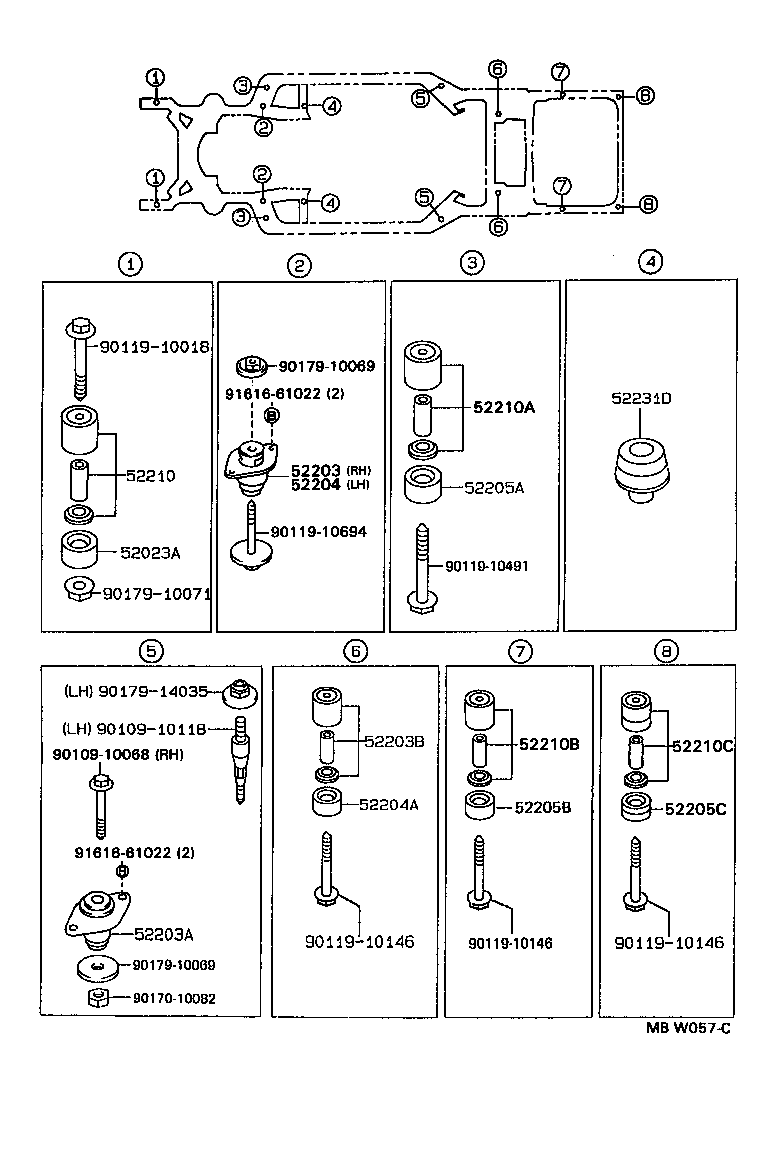

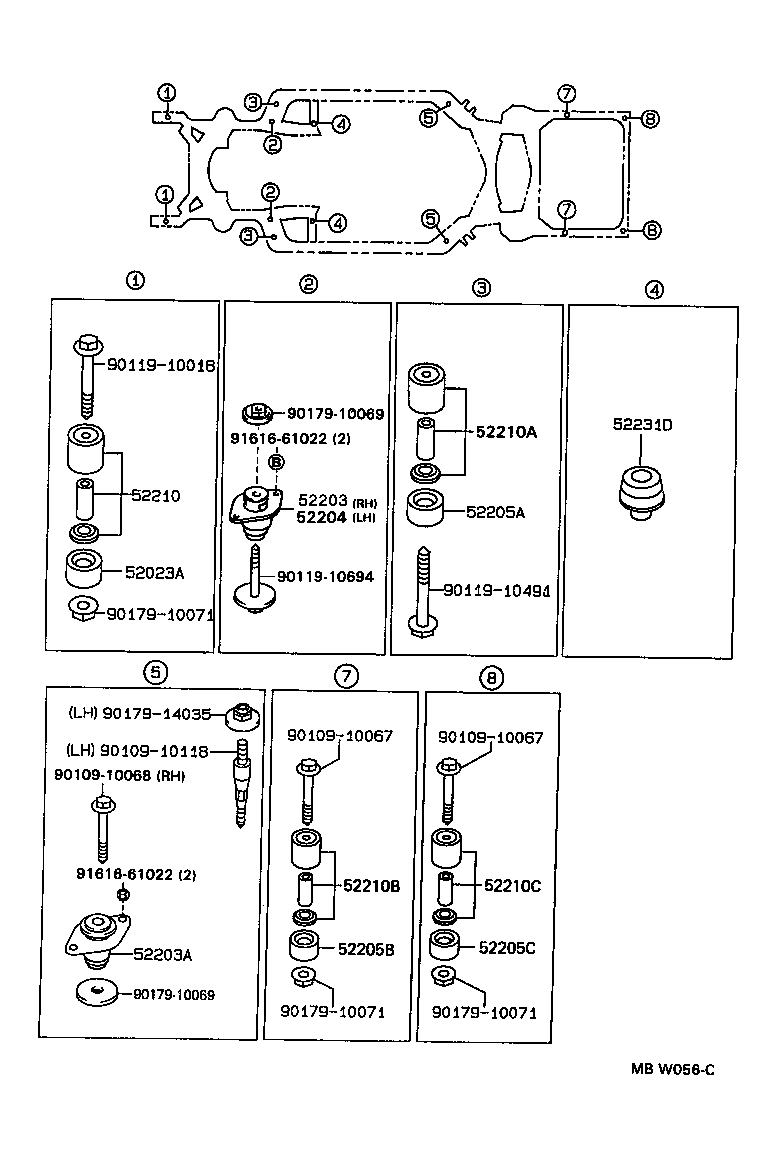

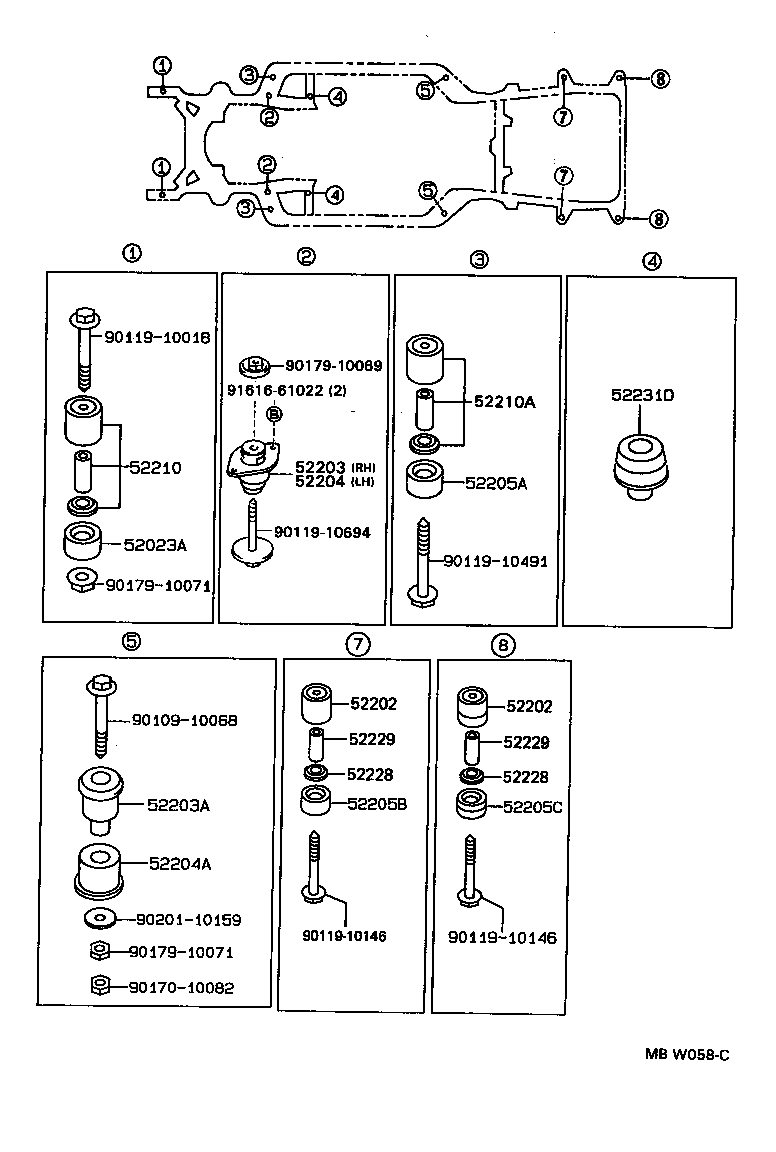

Body Mounting
17 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52023A | Cushion Sub-assy, Body Mounting, Rear Lower |
| 52202 | Cushion Sub-assy, Body Mounting, Upper |
| 52203 | Cushion Sub-assy, Rear Frame |
| 52203A | Cushion Sub-assy, Body Mounting, Rear Upper |
| 52203B | Cushion Sub-assy, Body Mounting, Rear Upper |
| 52204 | Cushion Sub-assy, Body Mounting, Lower |
| 52204A | Cushion Sub-assy, Body Mounting, Rear Lower |
| 52205A | Cushion Sub-assy, Body Mounting, Lower |
| 52205B | Cushion Sub-assy, Body Mounting, Lower |
| 52205C | Cushion Sub-assy, Body Mounting, Lower |
| 52210 | Cushion Assy, Body Mounting, Upper |
| 52210A | Cushion Assy, Body Mounting, Upper |
| 52210B | Cushion Assy, Body Mounting, Upper |
| 52210C | Cushion Assy, Body Mounting, Upper |
| 52228 | Holder, Body Mount Bolt Spacer, NO.2 |
| 52229 | Spacer, Body Mounting |
| 52231D | Cushion, Body Mounting, Rear Upper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
