Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

42 part groups · 9 illustrations

Illustrations

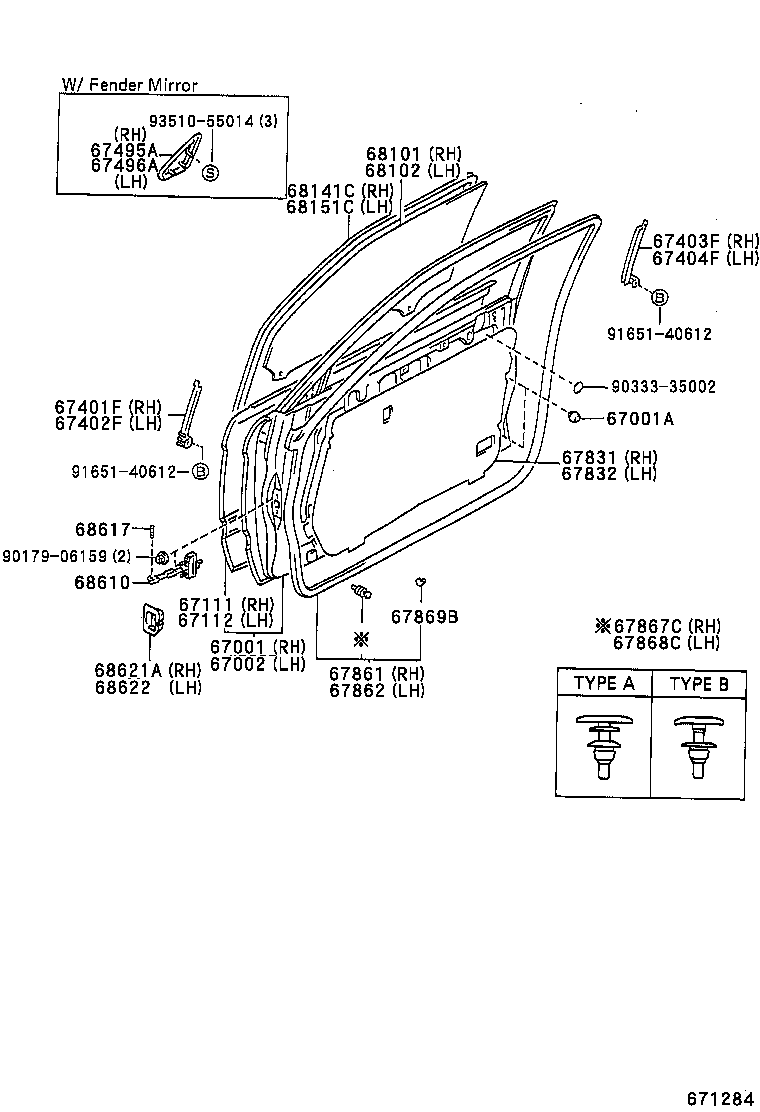

Figure 671327A 671327A 1991-10 → — Figure 671284 671284 1991-10 → — Figure 671286 671286 1991-10 → 1993-08 Figure 671287 671287 1991-10 → 1993-08 Figure 671288 671288 1991-10 → 1993-08 Figure 671289 671289 1993-08 → 1995-12 Figure 671290 671290 1993-08 → 1995-12 Figure 671291 671291 1993-08 → 1995-12 Figure 671292 671292 1995-12 → —

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67401F Frame Sub-assy, Front Door, Front Lower RH
67402F Frame Sub-assy, Front Door, Front Lower LH
67403F Frame Sub-assy, Front Door, Rear Lower RH
67404F Frame Sub-assy, Front Door, Rear Lower LH
67491B Garnish, Front Door Window Upper Bracket, RH
67492B Garnish, Front Door Window Upper Bracket, LH
67495A Cover, Front Door Front Lower Frame, Upper RH
67496A Cover, Front Door Front Lower Frame, Upper LH
67499 Retainer, Front Door Lower Frame Bracket Garnish
67601 Board Sub-assy, Front Door Trim, RH
67601E Cap(FOR FRONT DOOR TRIM BOARD)
67601H Retainer, Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67602A Retainer, Door Trim, LH
67651B Grille, Speaker Door, RH
67652B Grille, Speaker Door, LH
67777 Pocket, Front Door Trim, RH
67778 Pocket, Front Door Trim, LH
67785E Holder, Front Door Lock Control Knob, RH
67785F Holder, Front Door Lock Control Knob, LH
67831 Cover, Front Door Service Hole, RH
67832 Cover, Front Door Service Hole, LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867C Retainer, Front Door Weatherstrip, RH
67868C Retainer, Front Door Weatherstrip, LH
67869B Clip, Front Door Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141C Run, Front Door Glass, RH
68151C Run, Front Door Glass, LH
68170 Weatherstrip Assy, Front Door Glass, Inner
68220A Weatherstrip Assy, Front Door Glass, Inner LH
68610 Check Assy, Front Door
68617 Pin, Front Door Check
68621A Cover, Front Door Check, RH
68622 Cover, Front Door Check, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
