Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

19 part groups · 2 illustrations

Illustrations

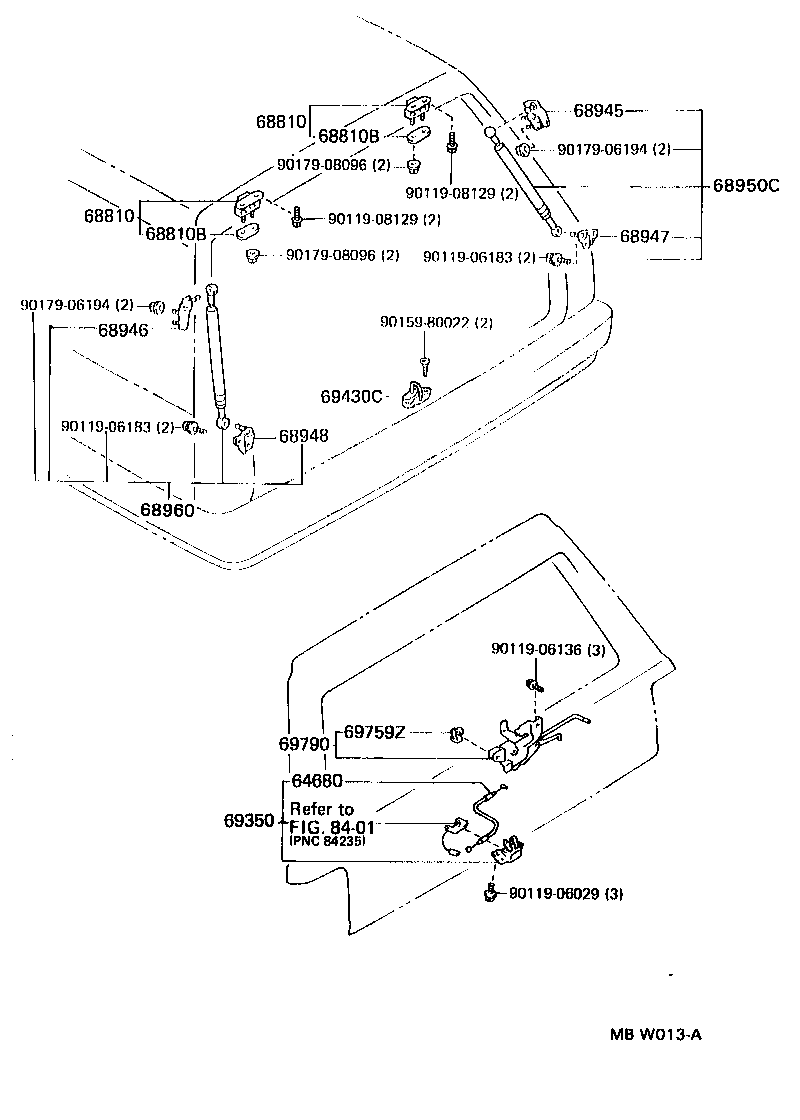

Figure MBW012A MBW012A 1991-10 → — Figure MBW013A MBW013A 1991-10 → —

Part groups

PNCDescription
64680 Cable Assy, Back Door Lock Control
68810 Hinge Assy, Back Door, Upper
68810B Pad, Back Door Hinge
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69038 Protector Sub-assy, Back Door Child
69277A Bezel, Back Door Inside Handle
69291 Handle Assy, Back Door Inside
69293C Snap, Back Door Handle
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
69741A Knob, Back Door Lock Control
69759U Snap, Back Door Lock Control Link
69759Z Snap, Door Lock Control Link
69790 Control Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
