Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

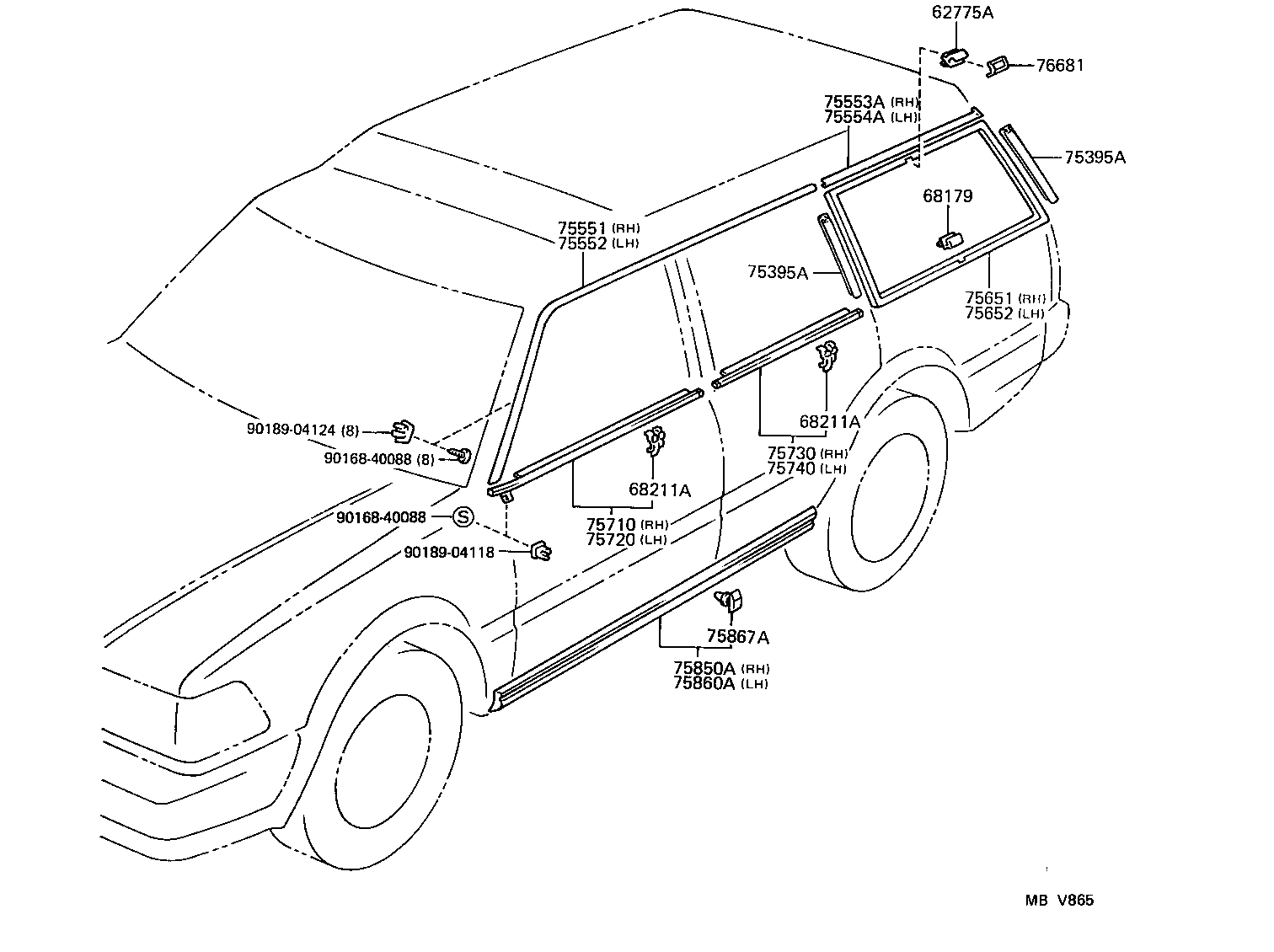

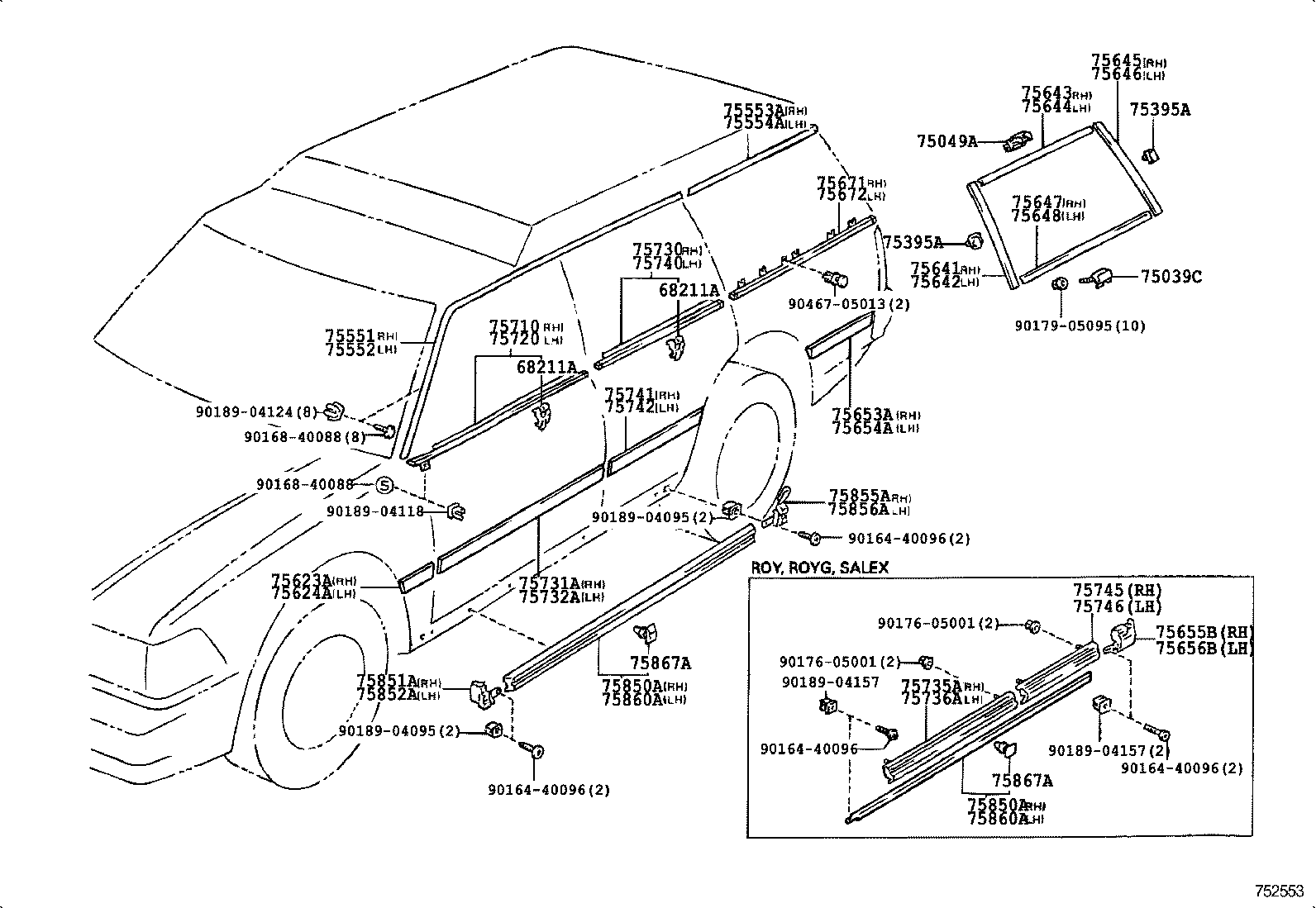

Side Moulding
52 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62775A | Clip, Quarter Window |
| 68179 | Clip, Quarter Window NO.2 Glass Moulding |
| 68211A | Clip, Door Belt Moulding |
| 75039C | Clip Sub-assy, Outside Moulding, NO.1 |
| 75049A | Clip Sub-assy, Outside Moulding, NO.2 |
| 75395A | Clip, Outside Moulding, NO.1 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75641 | Moulding, Quarter Window, Outside Front RH |
| 75642 | Moulding, Quarter Window, Outside Front LH |
| 75643 | Moulding, Quarter Window, Outside Upper RH |
| 75644 | Moulding, Quarter Window, Outside Upper LH |
| 75645 | Moulding, Quarter Window, Outside Rear RH |
| 75646 | Moulding, Quarter Window, Outside Rear LH |
| 75647 | Moulding, Quarter Window, Outside Lower RH |
| 75648 | Moulding, Quarter Window, Outside Lower LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75655B | Moulding, Quarter Panel, Lower Front RH |
| 75656B | Moulding, Quarter Panel, Lower Front LH |
| 75671 | Moulding, Quarter Belt, RH |
| 75672 | Moulding, Quarter Belt, LH |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75735A | Moulding, Front Door Outside, Lower RH |
| 75736A | Moulding, Front Door Outside, Lower LH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75745 | Moulding, Rear Door Outside, Lower RH |
| 75746 | Moulding, Rear Door Outside, Lower LH |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851A | Moulding, Rocker Panel, Front RH |
| 75852A | Moulding, Rocker Panel, Front LH |
| 75855A | Moulding, Rocker Panel, Rear RH |
| 75856A | Moulding, Rocker Panel, Rear LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |

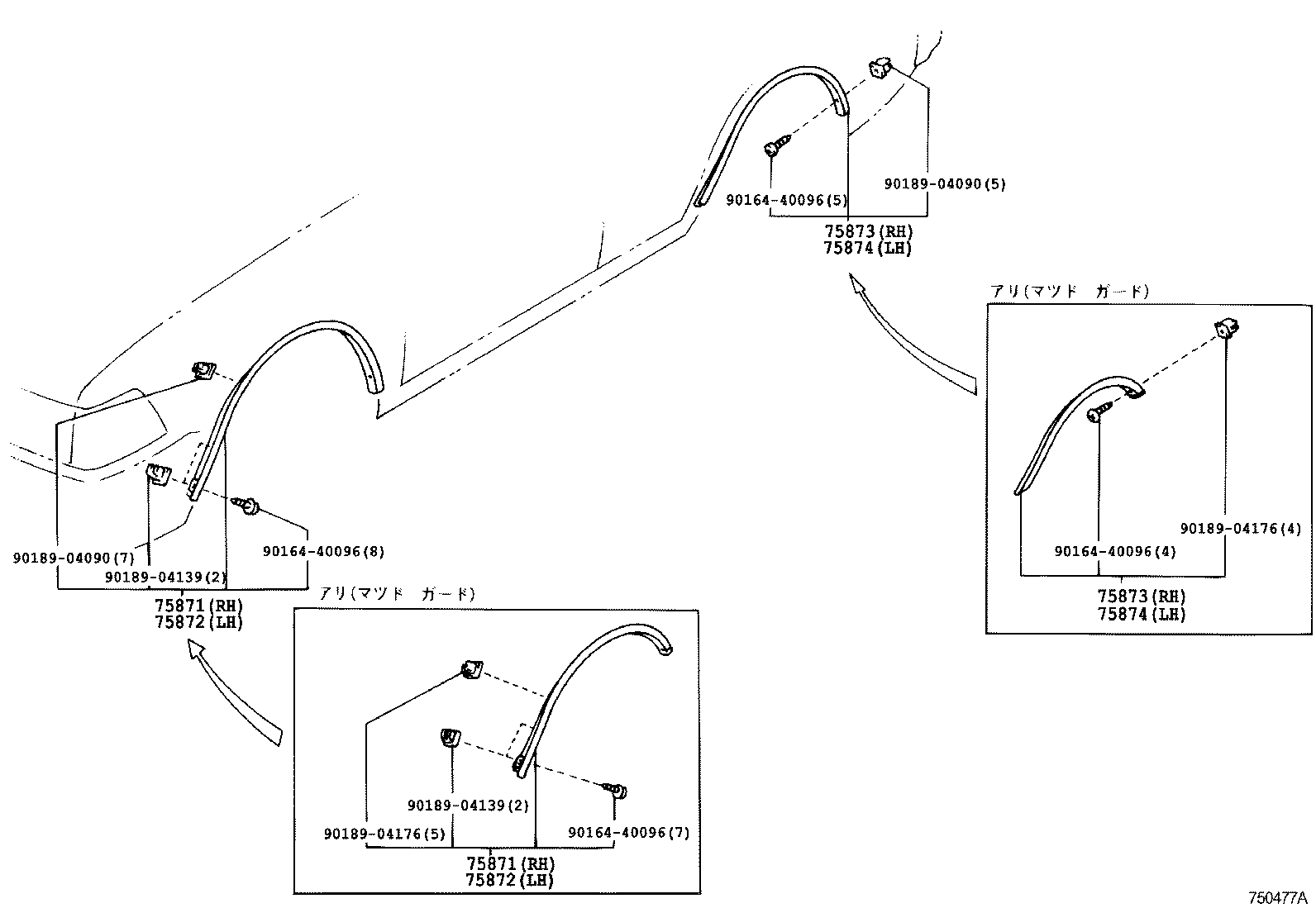

| 75871 | Moulding, Front Fender Wheel Opening, RH |
| 75872 | Moulding, Front Fender Wheel Opening, LH |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 76681 | Cover, Outside Moulding End, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
