Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

16 part groups · 2 illustrations

Illustrations

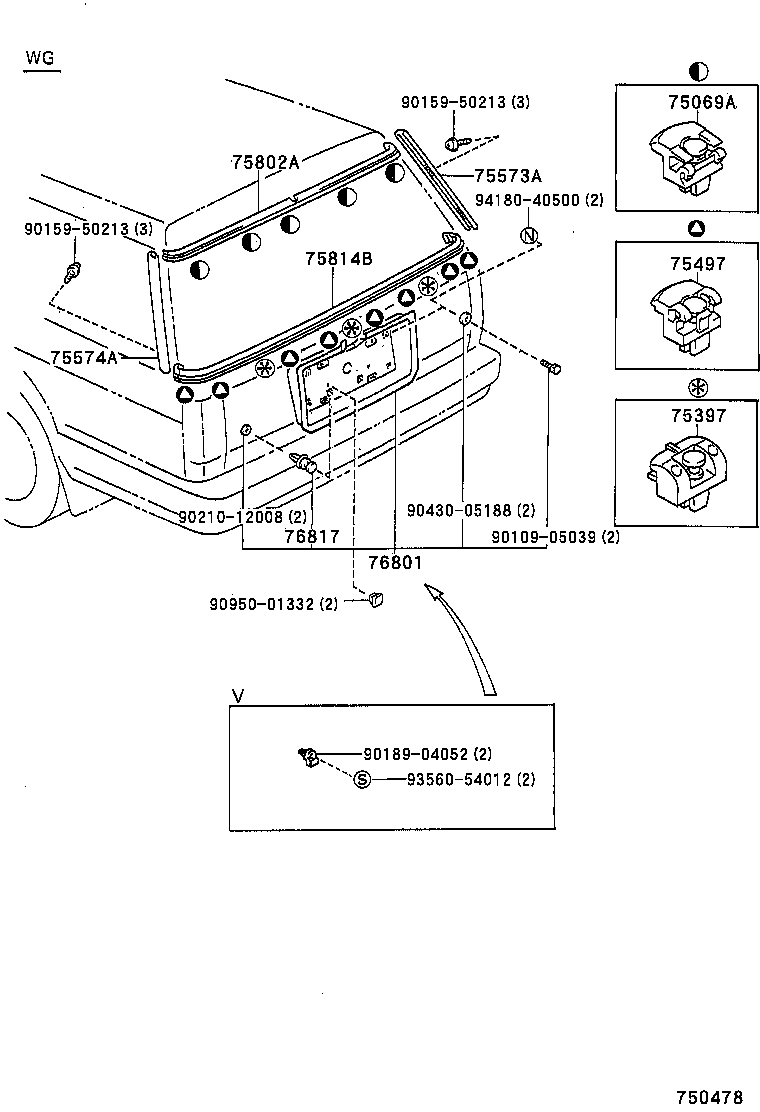

Figure MBV866 MBV866 1991-10 → — Figure 750478 750478 1991-10 → —

Part groups

PNCDescription
62955E Retainer, Lower Back Finish Panel
75069A Clip Sub-assy, Outside Moulding, NO.4
75082 Panel Sub-assy, Lower Back Finish, Center
75397 Clip, Back Door Moulding, NO.3
75494A Clip, Outside Moulding, NO.3
75496 Clip, Back Window Outside Moulding, NO.1
75497 Clip, Back Window Outside Moulding, NO.2
75548B Fastener, Back Window Outside Moulding
75571 Moulding, Back Window, Outside Upper
75573A Moulding, Back Window, Outside RH
75574A Moulding, Back Window, Outside LH
75575A Moulding, Back Window, Outside Lower
75802A Moulding Sub-assy, Back Door, Outside Upper
75814B Moulding, Back Door, Outside Lower
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
