Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

6 part groups · 2 illustrations

Illustrations

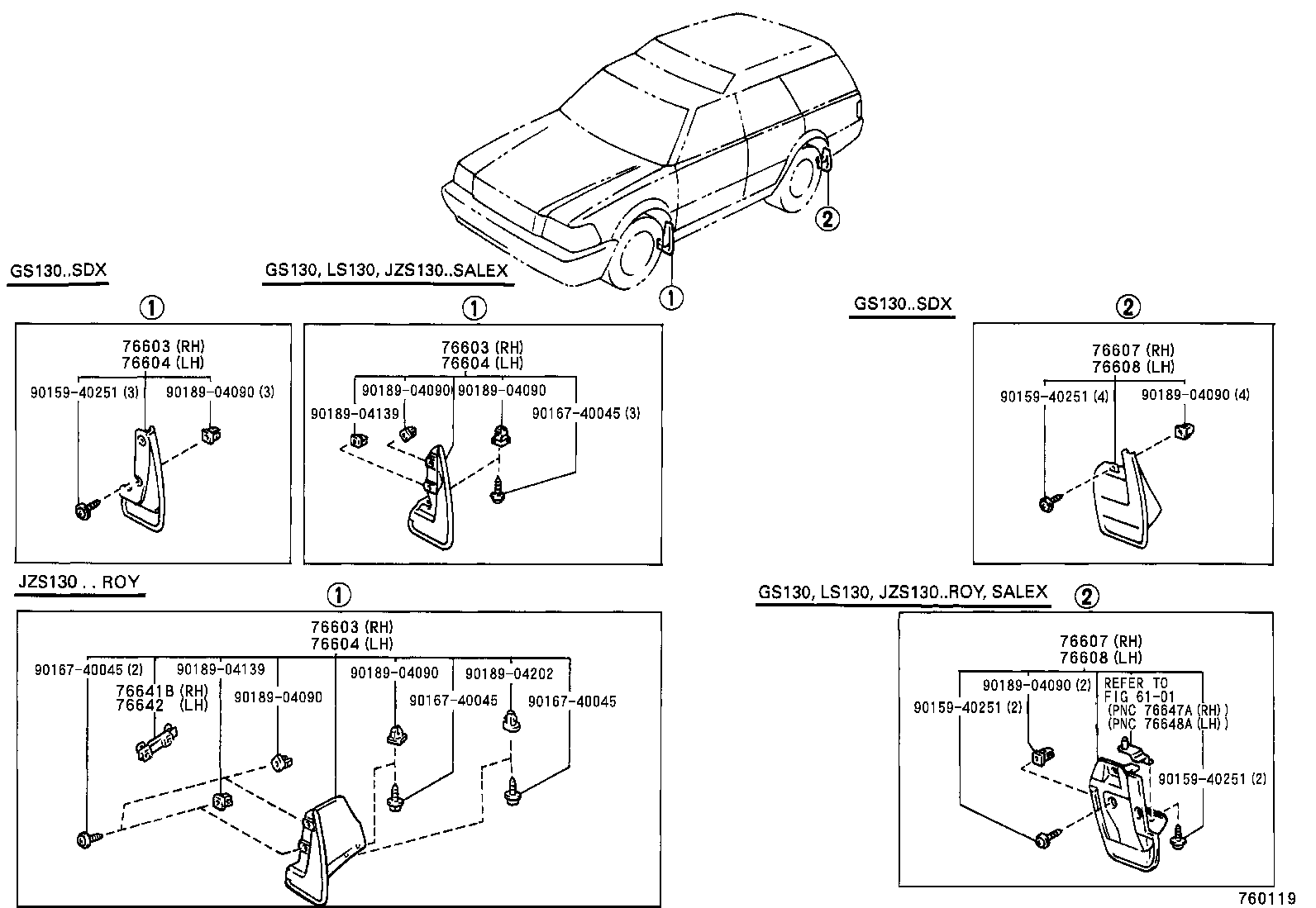

Figure 760118 760118 1991-10 → — Figure 760119 760119 1991-10 → —

Part groups

PNCDescription
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76641B Bracket, Front Fender Panel Mudguard, RH
76642 Bracket, Front Fender Panel Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
