Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

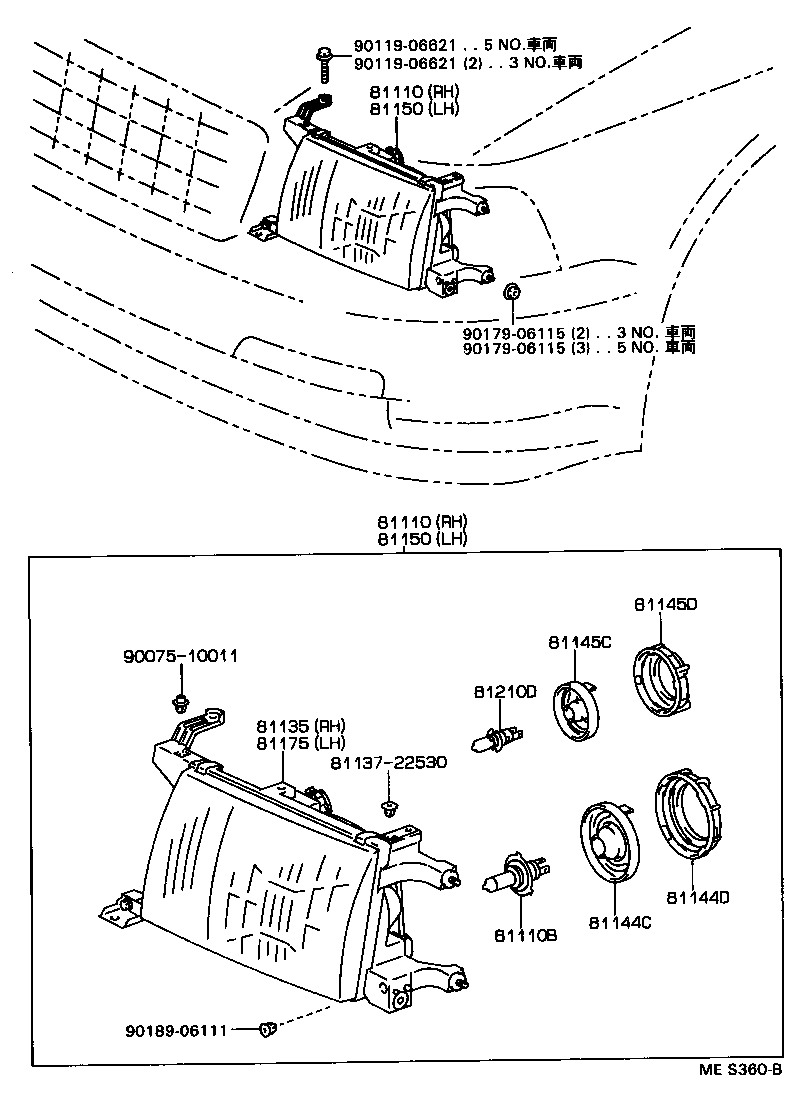

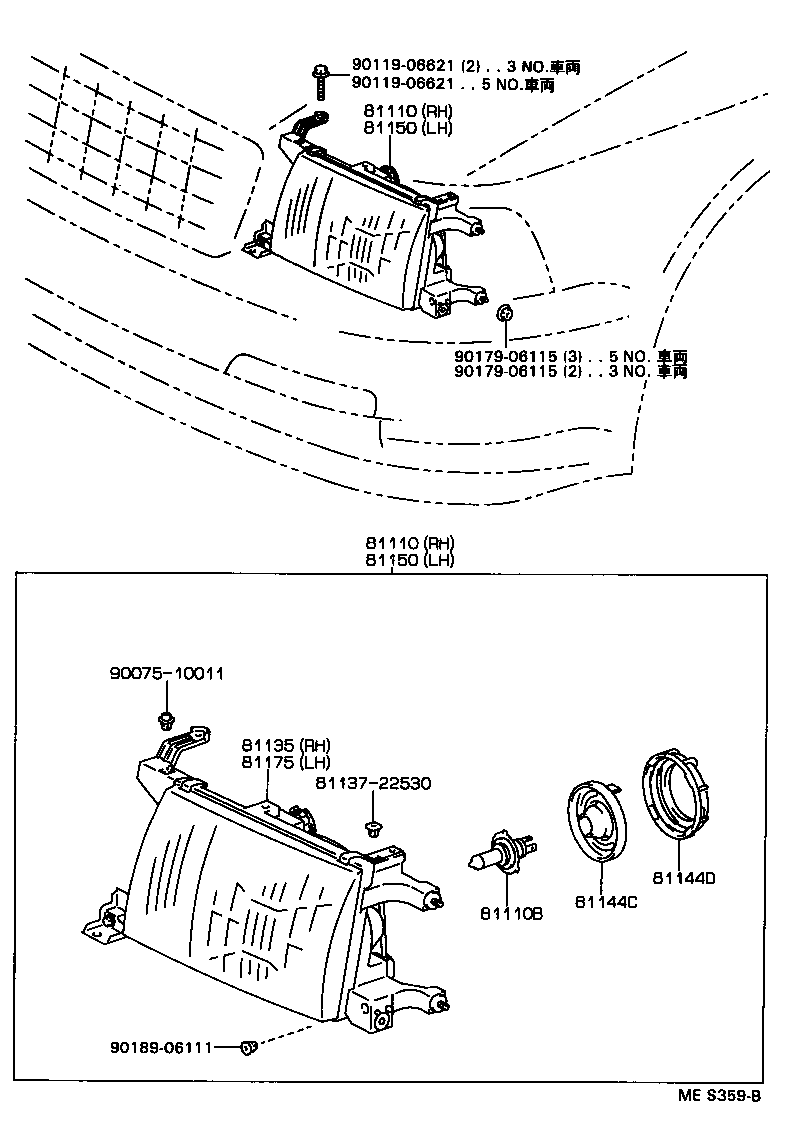

Headlamp
21 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 81105 | Housing Sub-assy, Headlamp, RH |
| 81106 | Housing Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110S | Sealed Beam Unit, NO.1 |
| 81110T | Sealed Beam Unit, NO.2 |
| 81111 | Ring, Sealed Beam Retaining |
| 81113 | Ring, Sealed Beam Mounting, NO.1 RH |
| 81114 | Ring, Sealed Beam Mounting, NO.2 RH |
| 81121 | Spring, Headlamp Tension |
| 81131 | Screw, Headlamp Adjusting |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81144D | Cap, Headlamp Locking |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81145D | Cap, Headlamp Locking NO.2 |
| 81150 | Headlamp Assy, LH |
| 81153 | Ring, Sealed Beam Mounting, NO.1 LH |
| 81154 | Ring, Sealed Beam Mounting, NO.2 LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81210D | Bulb, Fog Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
