Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

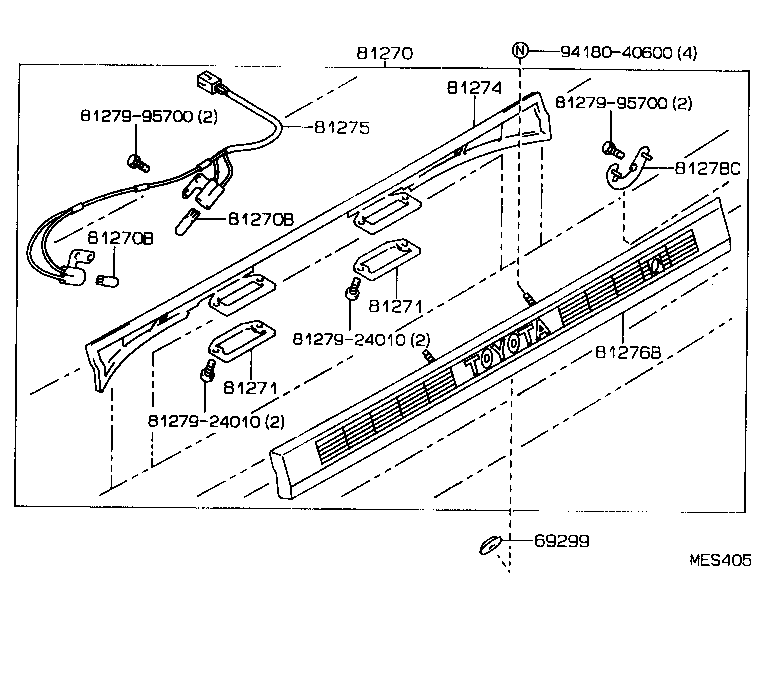

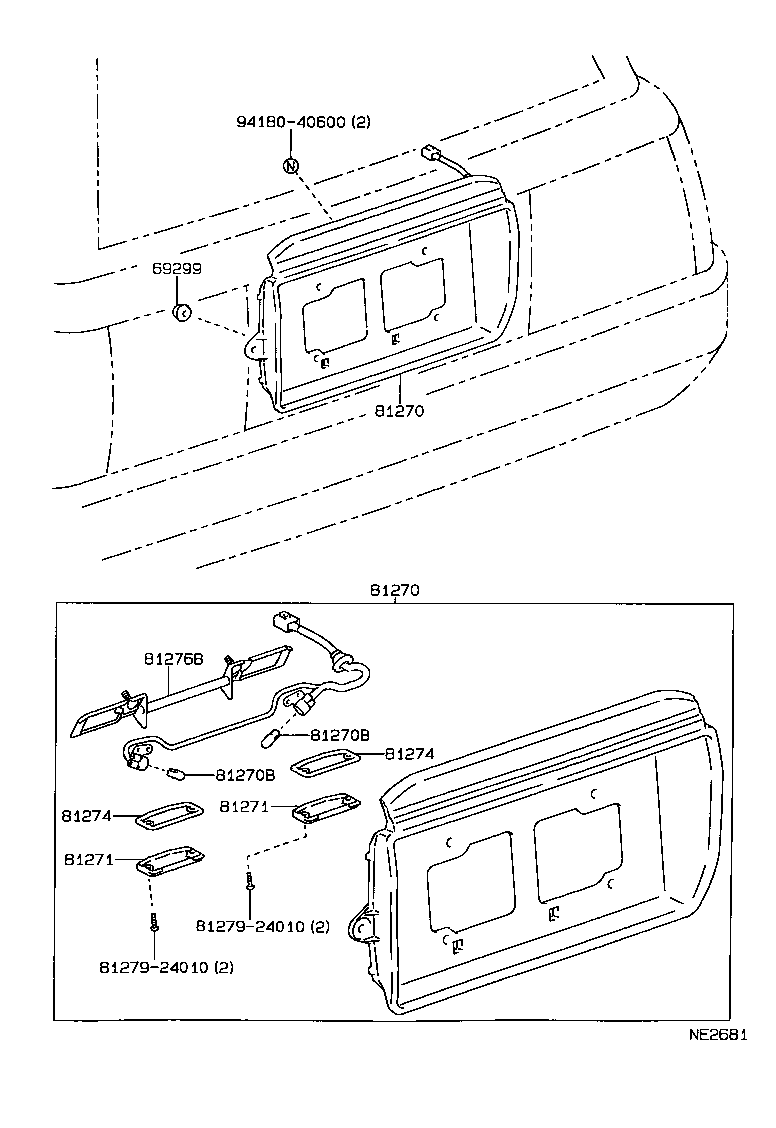

Rear License Plate Lamp
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 69299 | Grommet, Back Door Handle |
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81274 | Gasket, License Plate Lamp Body |
| 81275 | Socket And Wire, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
| 81278C | Bracket, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
