Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

49 part groups · 16 illustrations

Illustrations

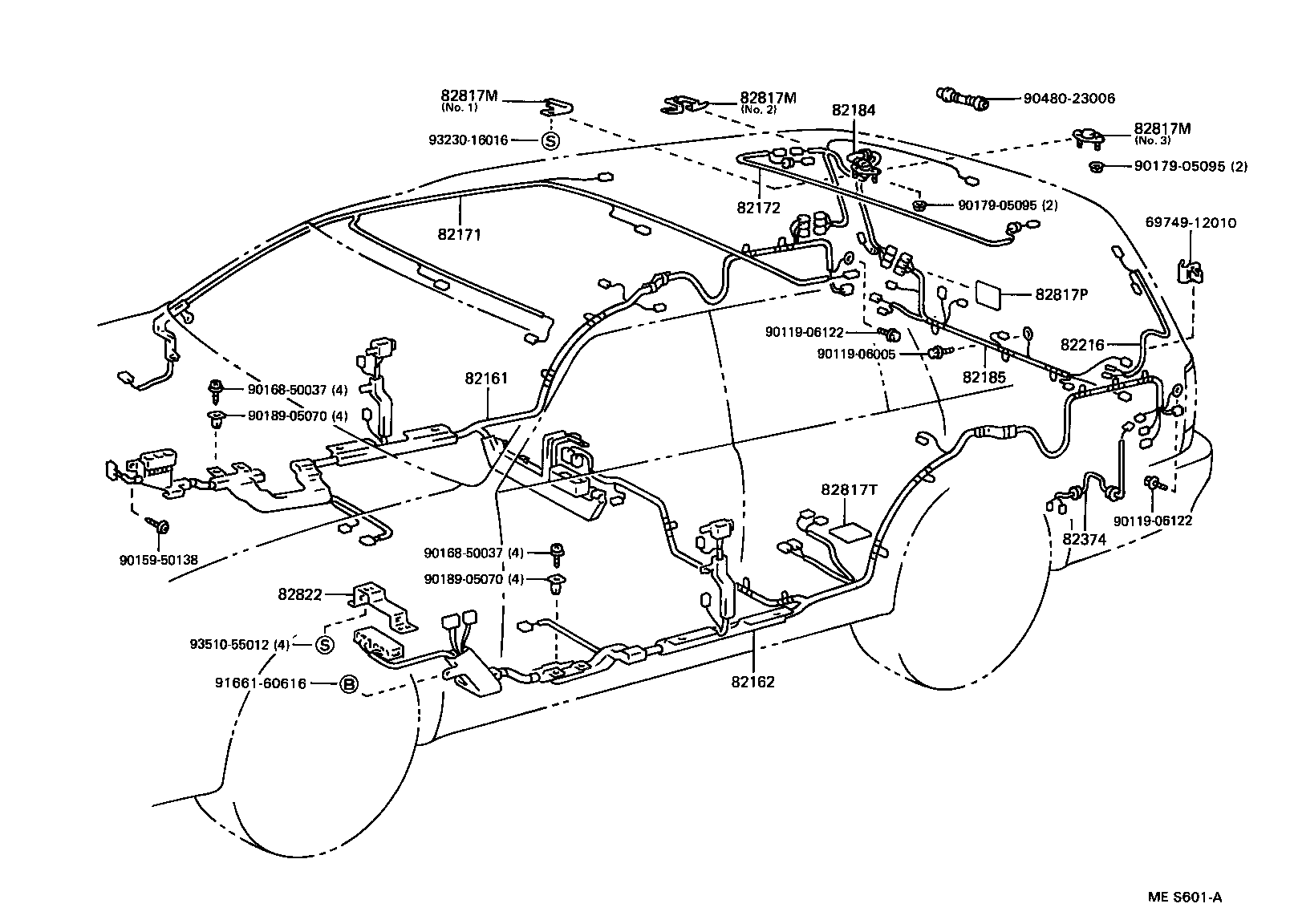

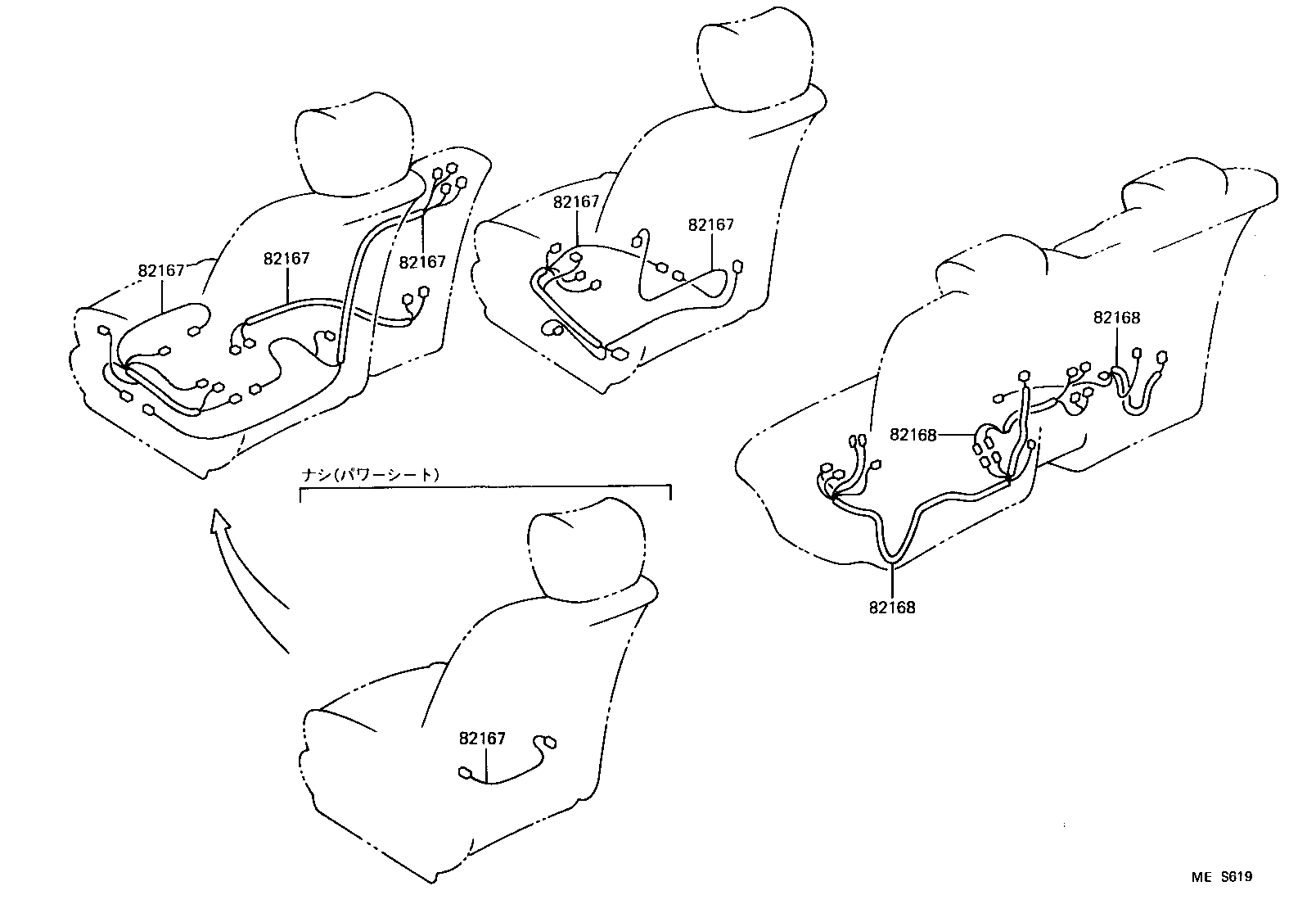

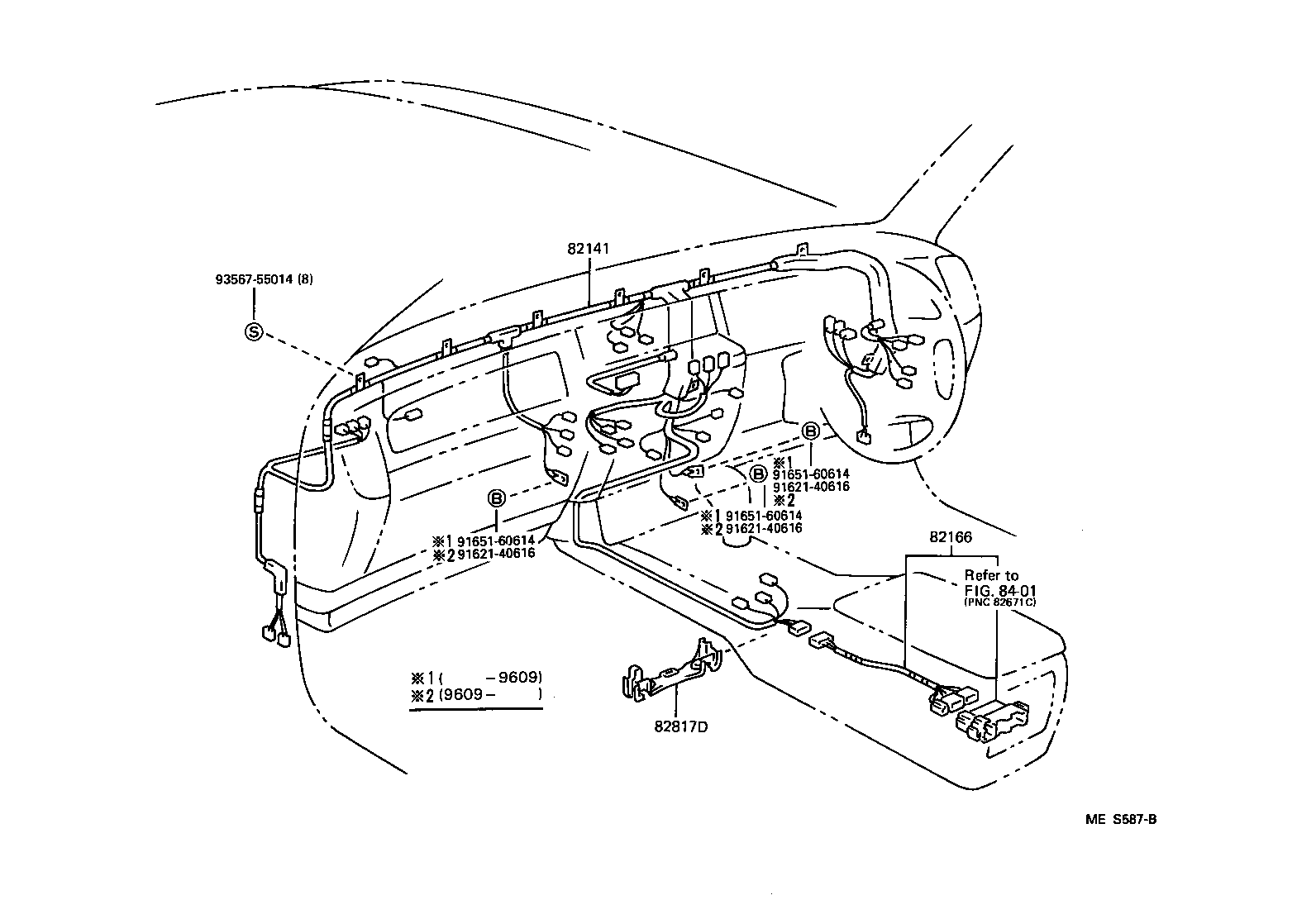

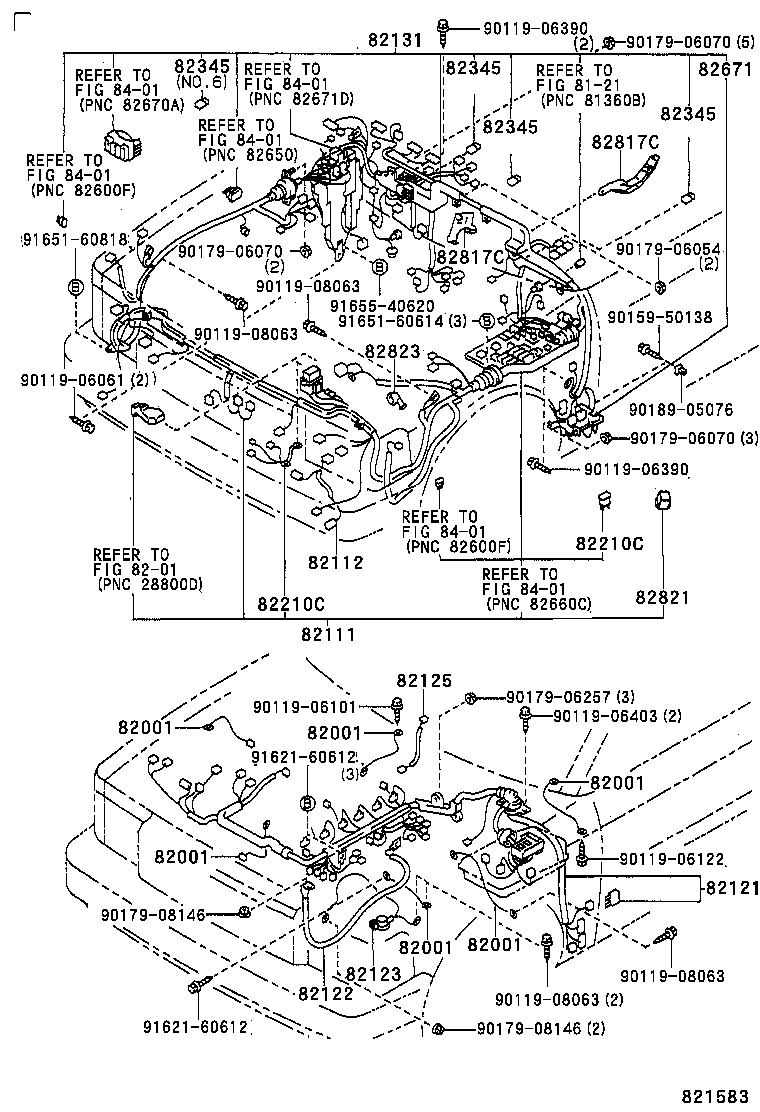

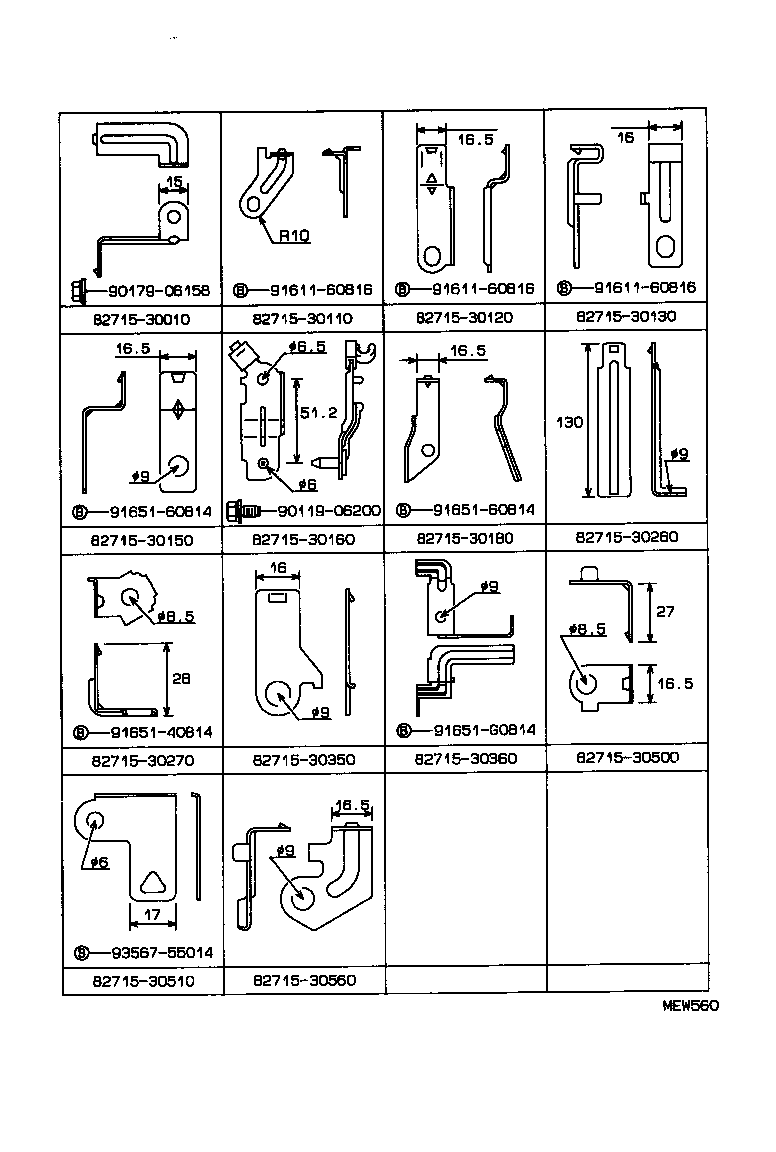

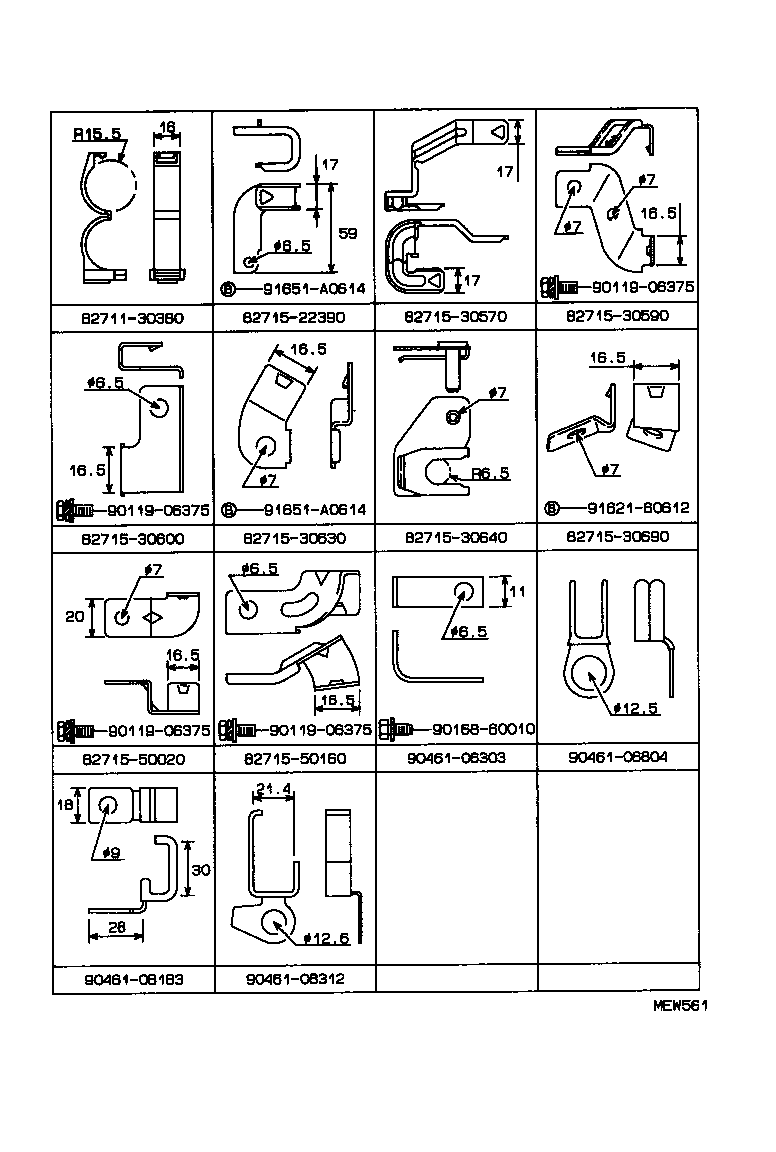

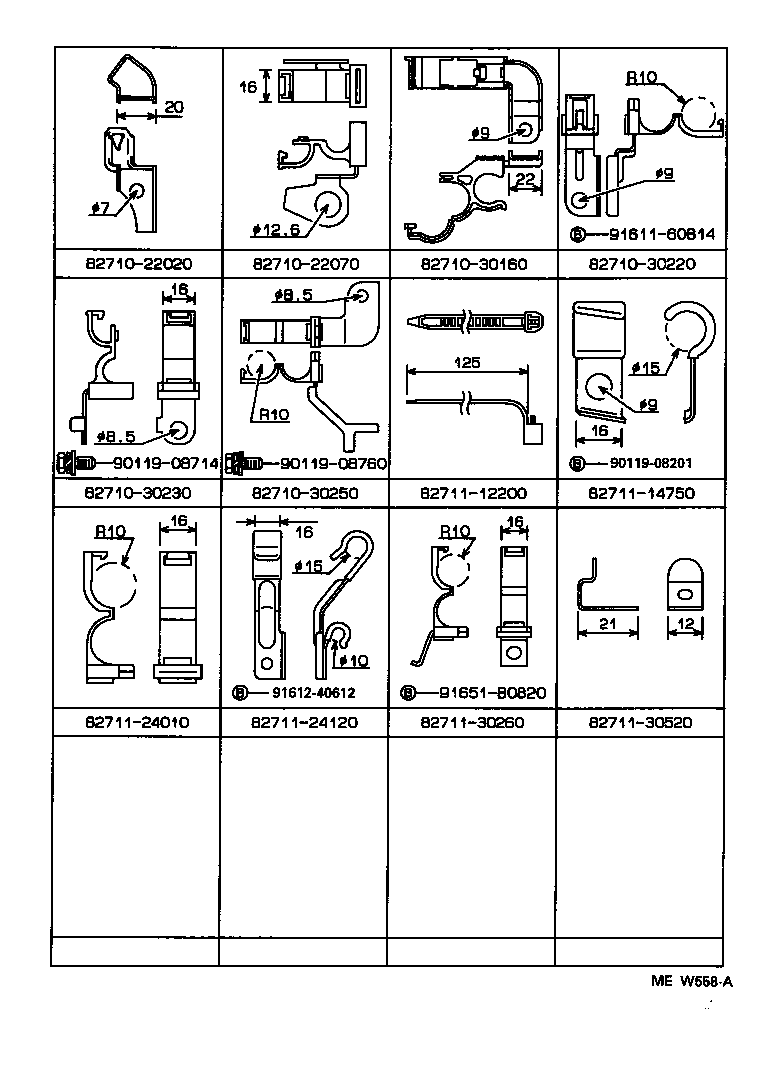

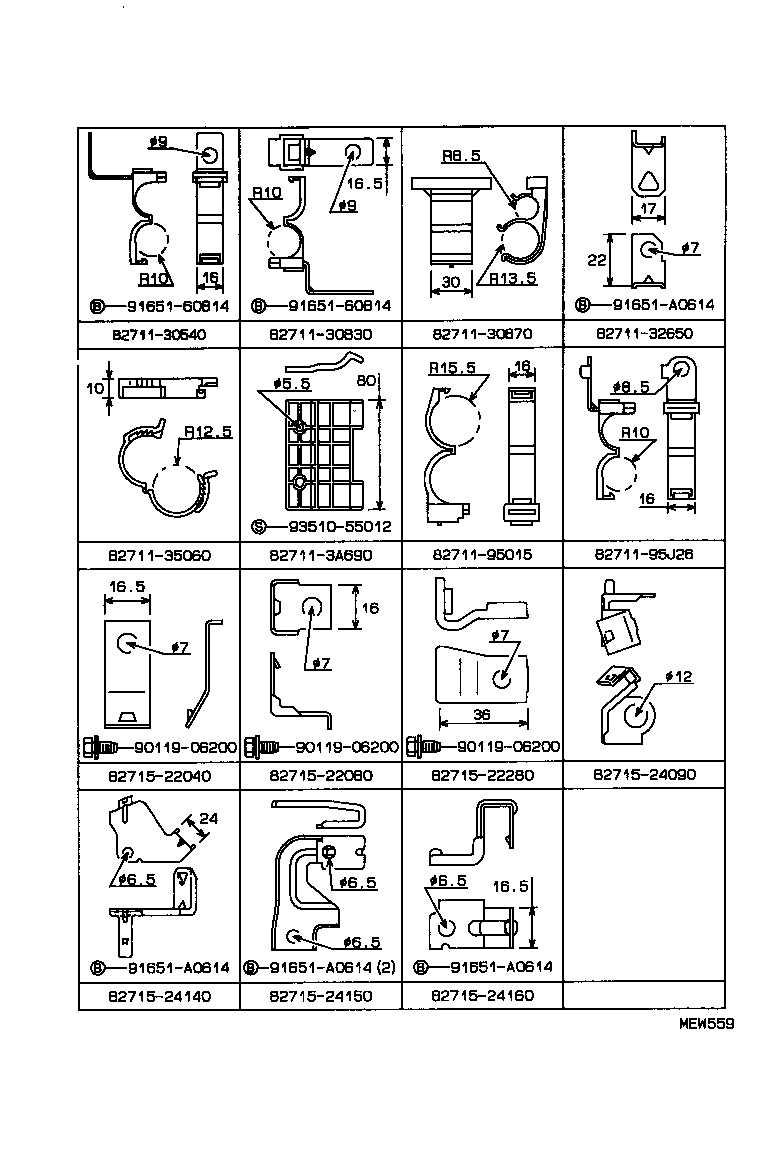

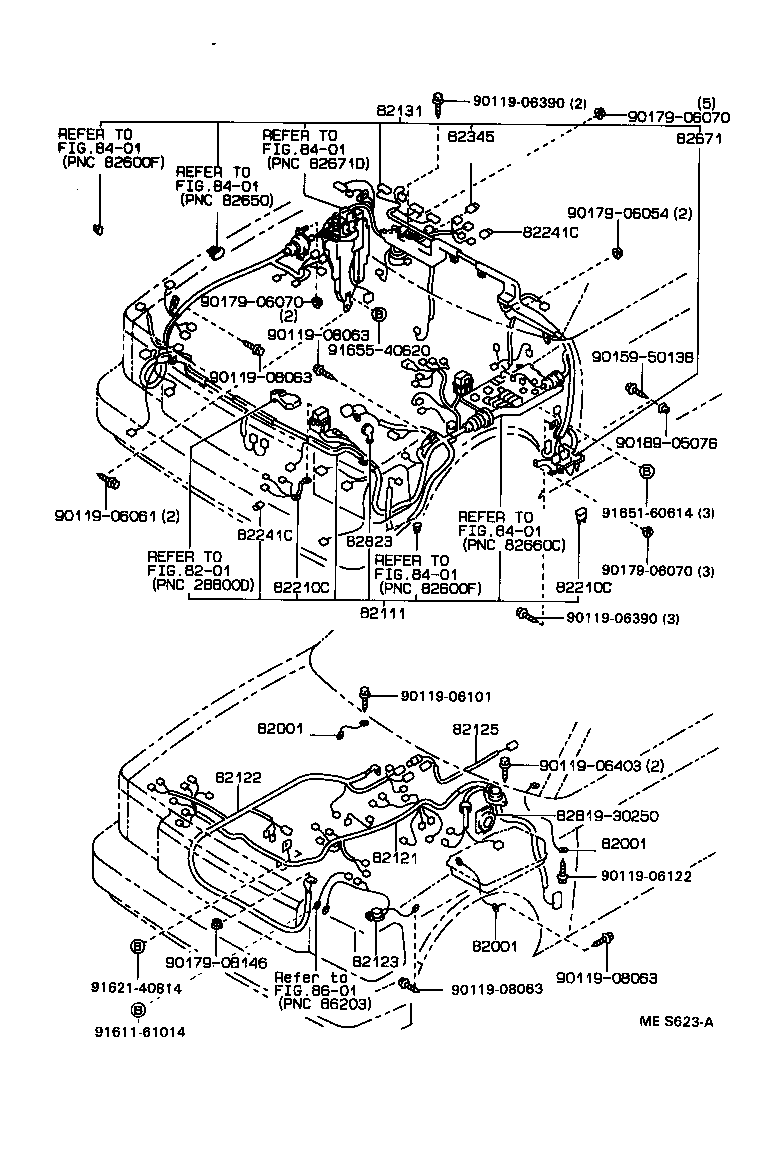

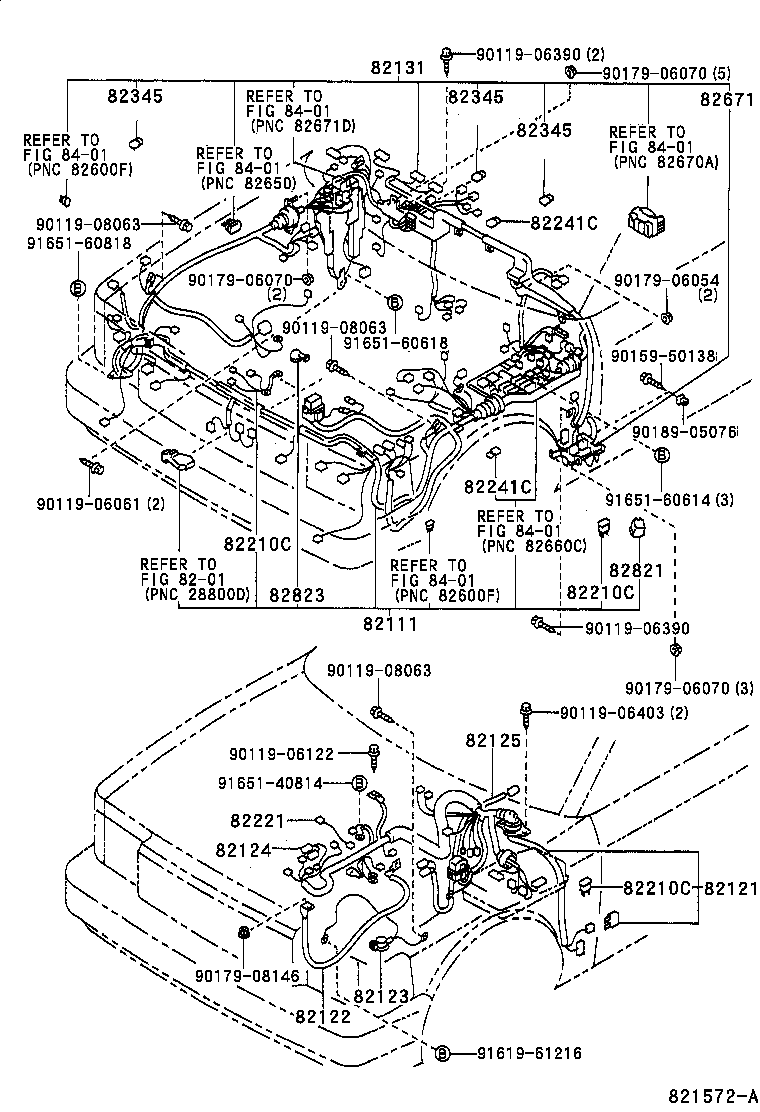

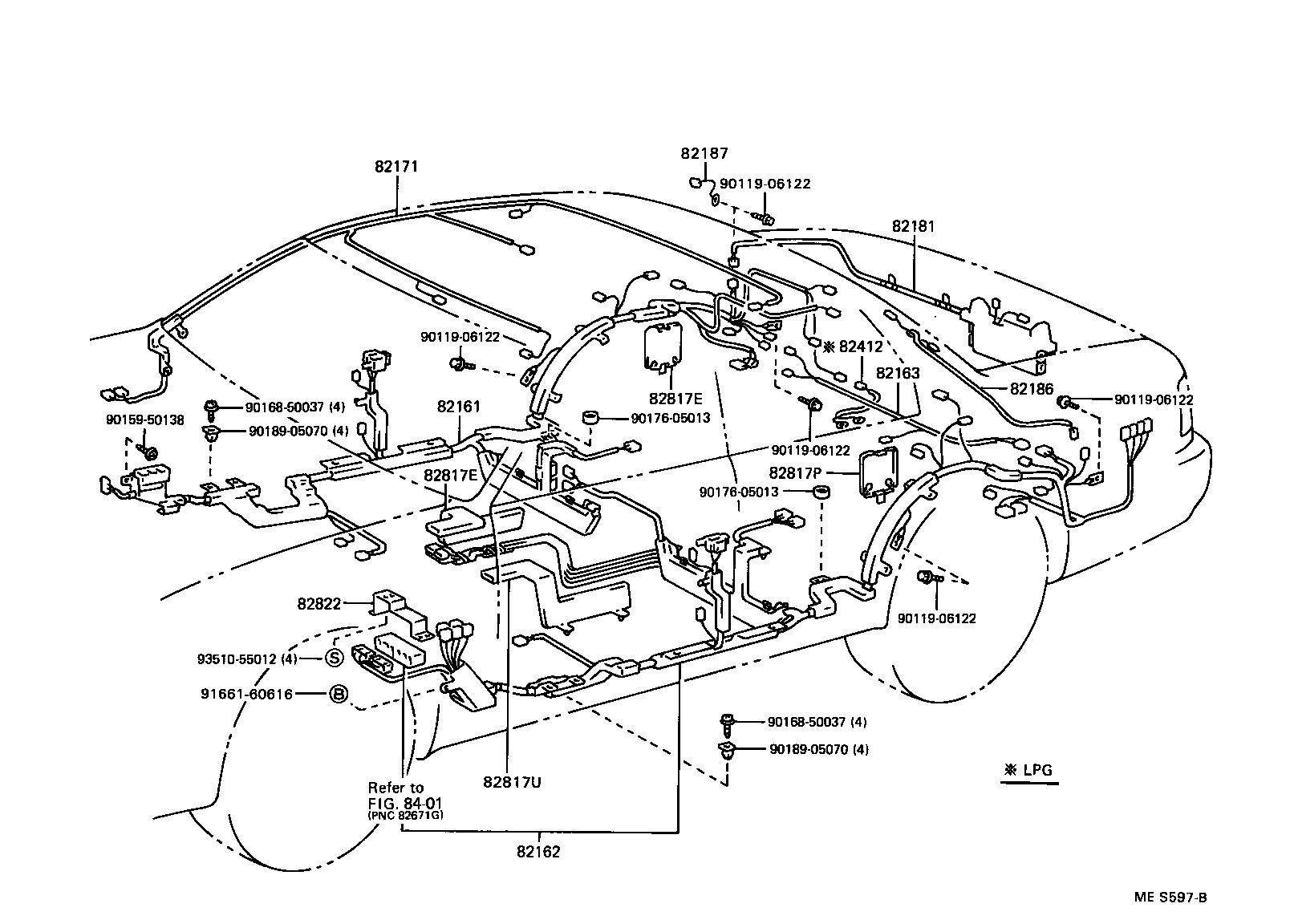

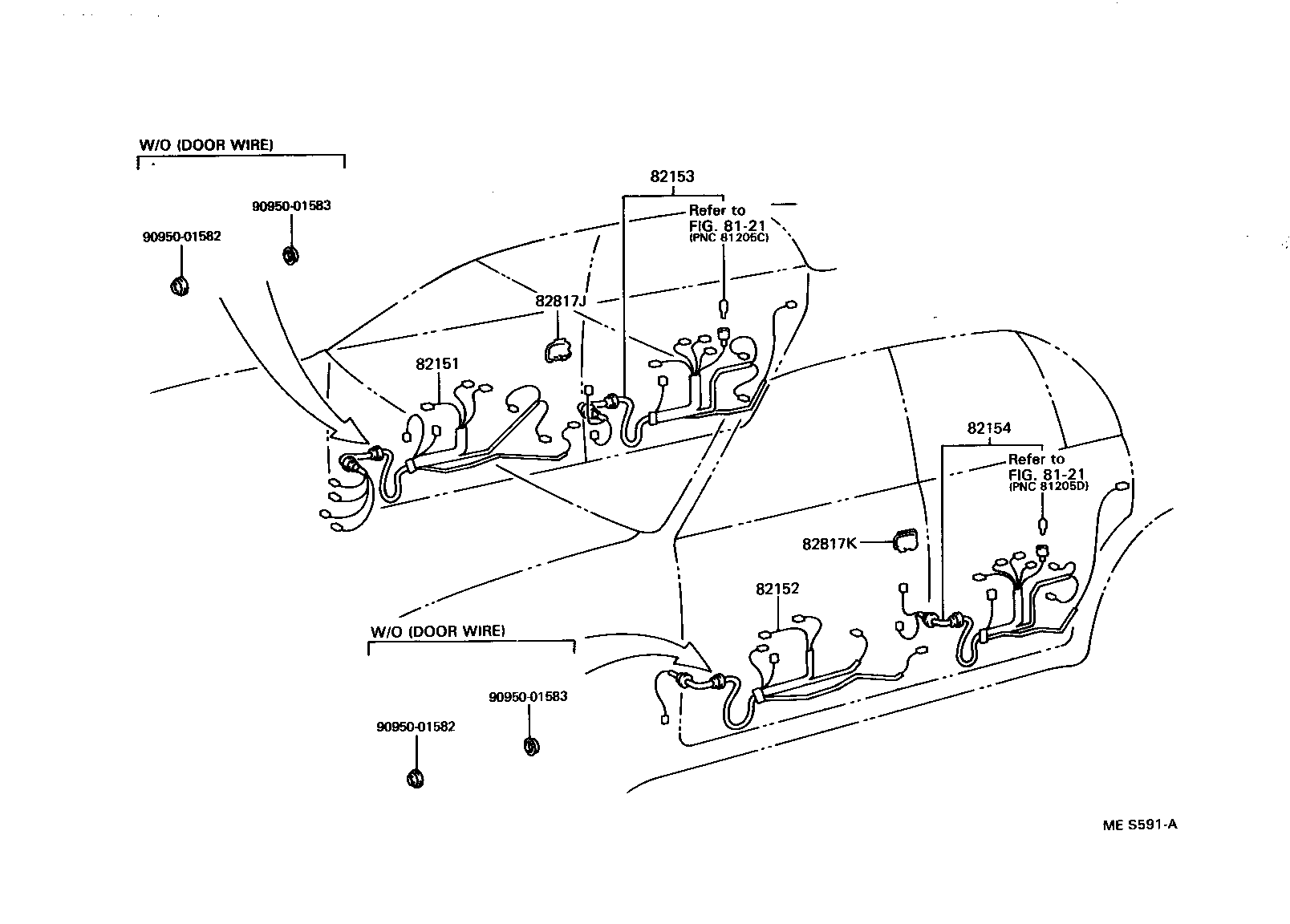

Figure 821582A 821582A 1991-10 → — Figure 821572A 821572A 1991-10 → — Figure 821583 821583 1991-10 → — Figure MES623A MES623A 1991-12 → 1995-12 Figure MES587B MES587B 1991-10 → — Figure MES591A MES591A 1991-10 → — Figure MES597B MES597B 1991-10 → 1995-12 Figure MES601A MES601A 1991-10 → — Figure MES619 MES619 1991-10 → — Figure MEW558A MEW558A 1991-10 → — Figure MEW559 MEW559 1991-10 → — Figure MEW560 MEW560 1991-10 → — Figure MEW561 MEW561 1991-10 → — Figure MEW562 MEW562 1991-10 → — Figure MES628 MES628 1991-10 → — Figure MES629A MES629A 1991-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210C Fusible Link
82216 Wire, Rear Window Defogger
82221 Wire, Oil Pressure Switch
82241C Wire, Relay
82345 Diode
82374 Wire, Washer
82412 Wire, Fuel Gage
82671 Block, Junction
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817M Protector, Wiring Harness, NO.12
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82821 Retainer, Headlamp Harness
82822 Bracket,Connector Block
82823 Cap, Terminal, NO.1
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
