Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09
Meter
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

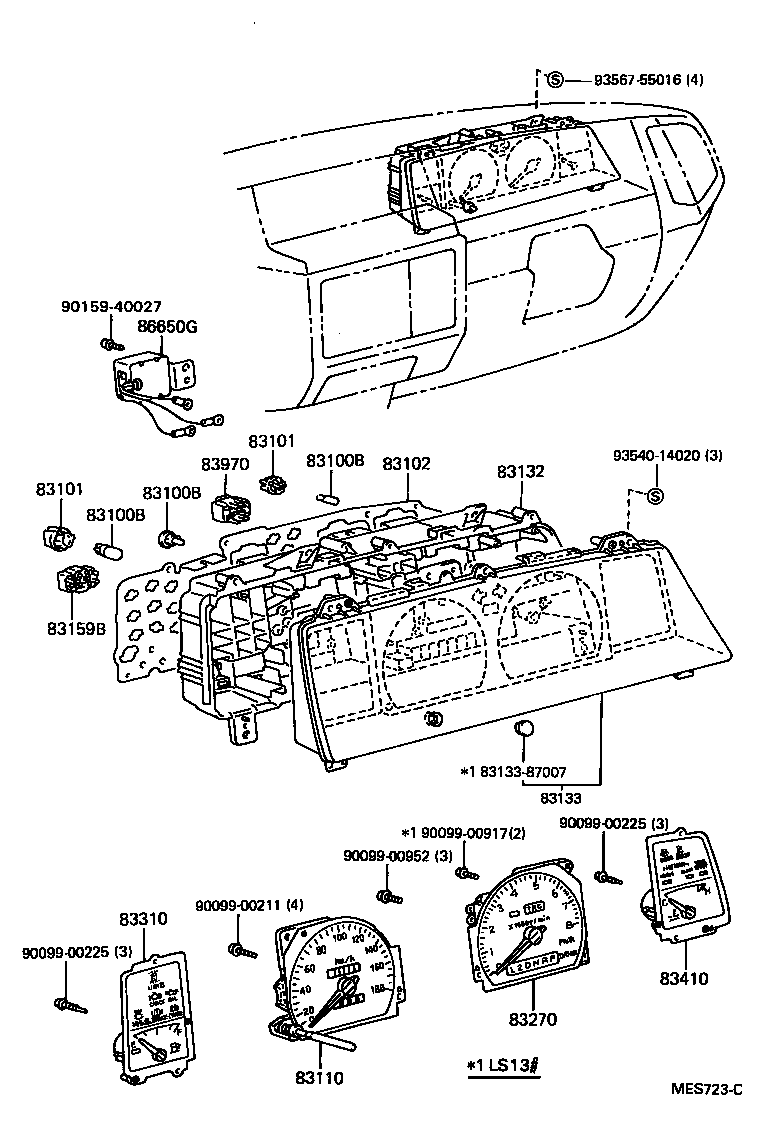

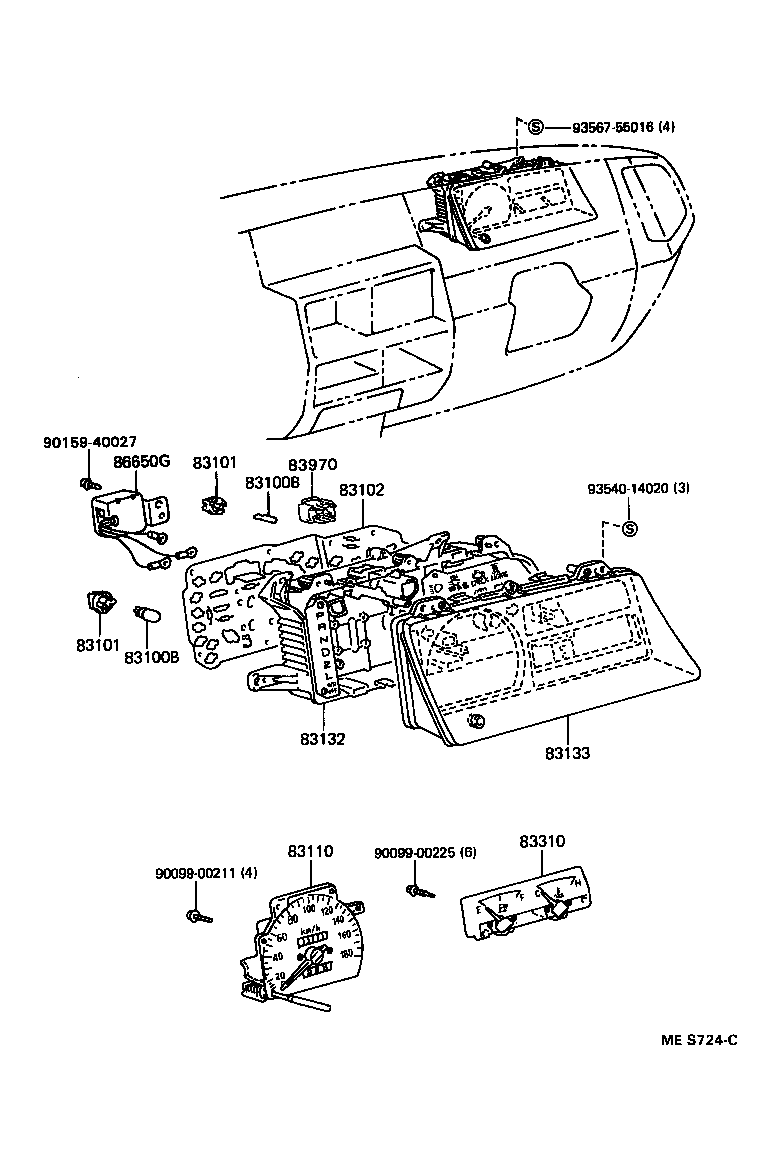

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83159B | Relay Assy, Meter |

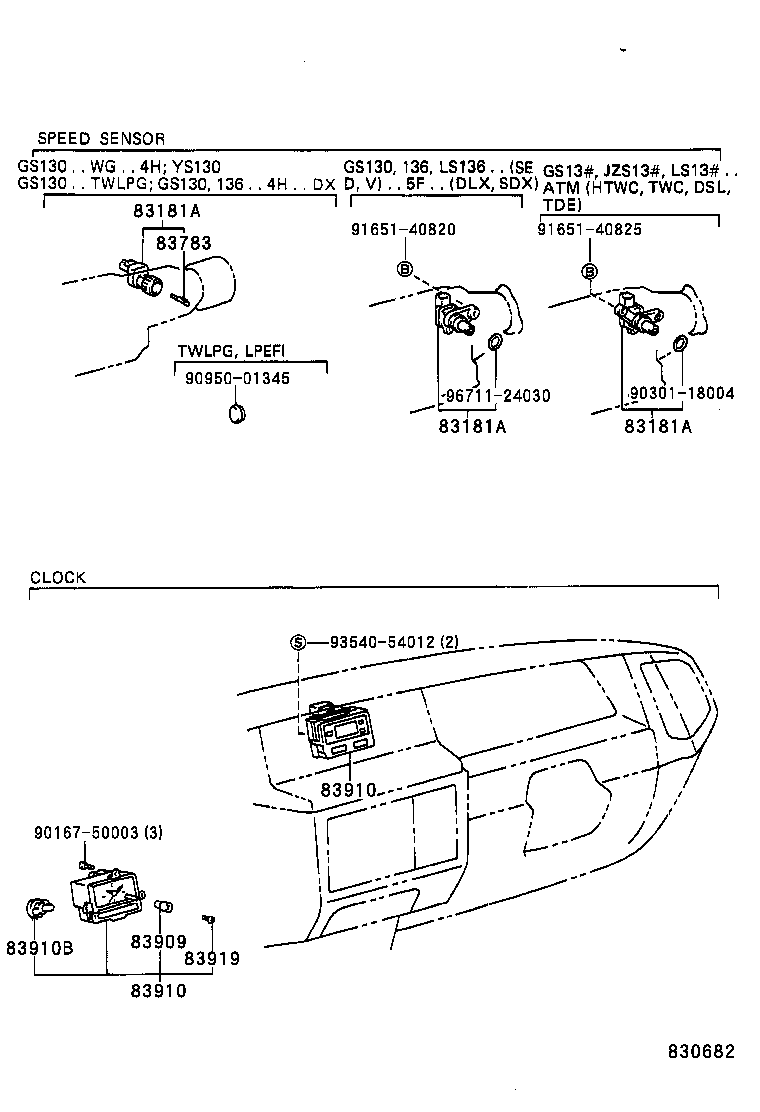

| 83181A | Sensor, Speedometer |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83783 | Key, Speedmeter Sensor |
| 83909 | Knob, Clock |
| 83910 | Clock Assy |
| 83910B | Bulb, Clock Indicator |
| 83919 | Screw, Clock |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
