Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

14 part groups · 4 illustrations

Illustrations

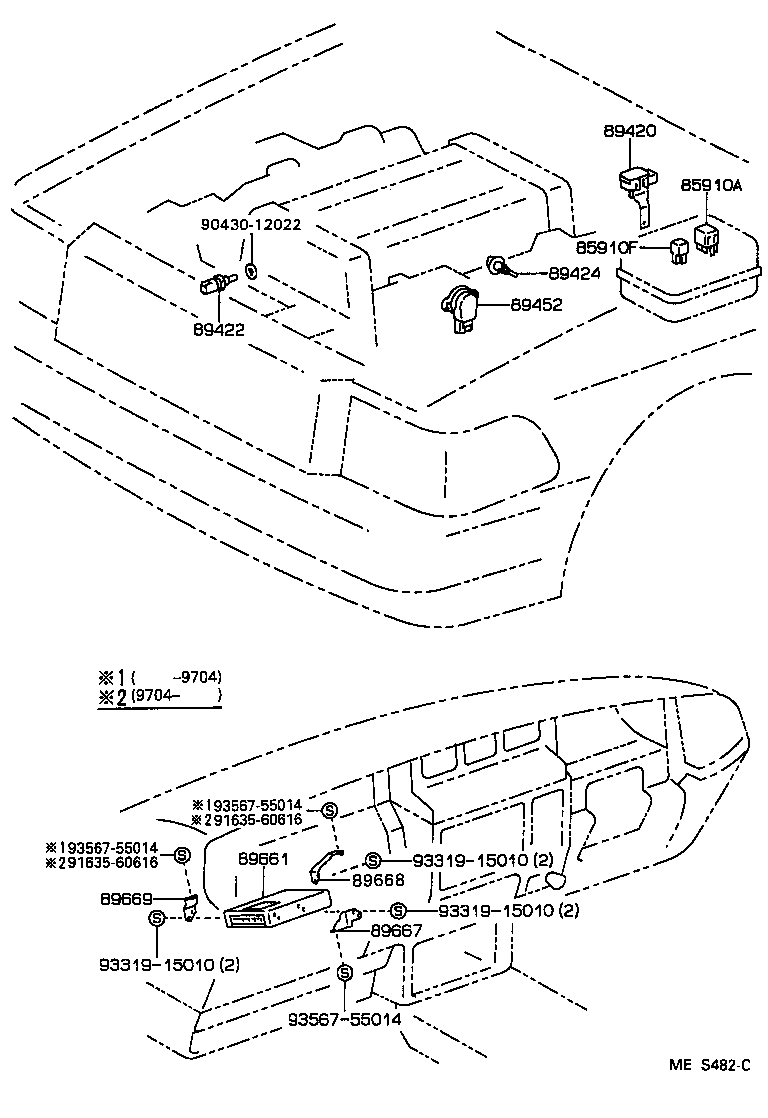

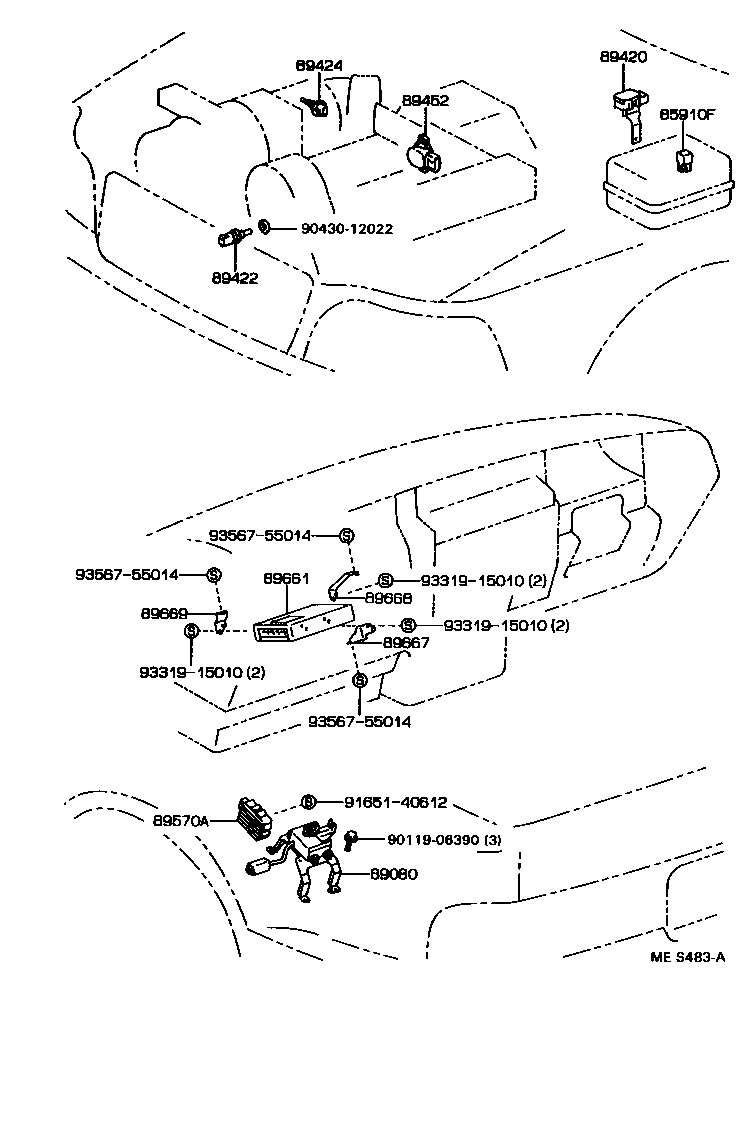

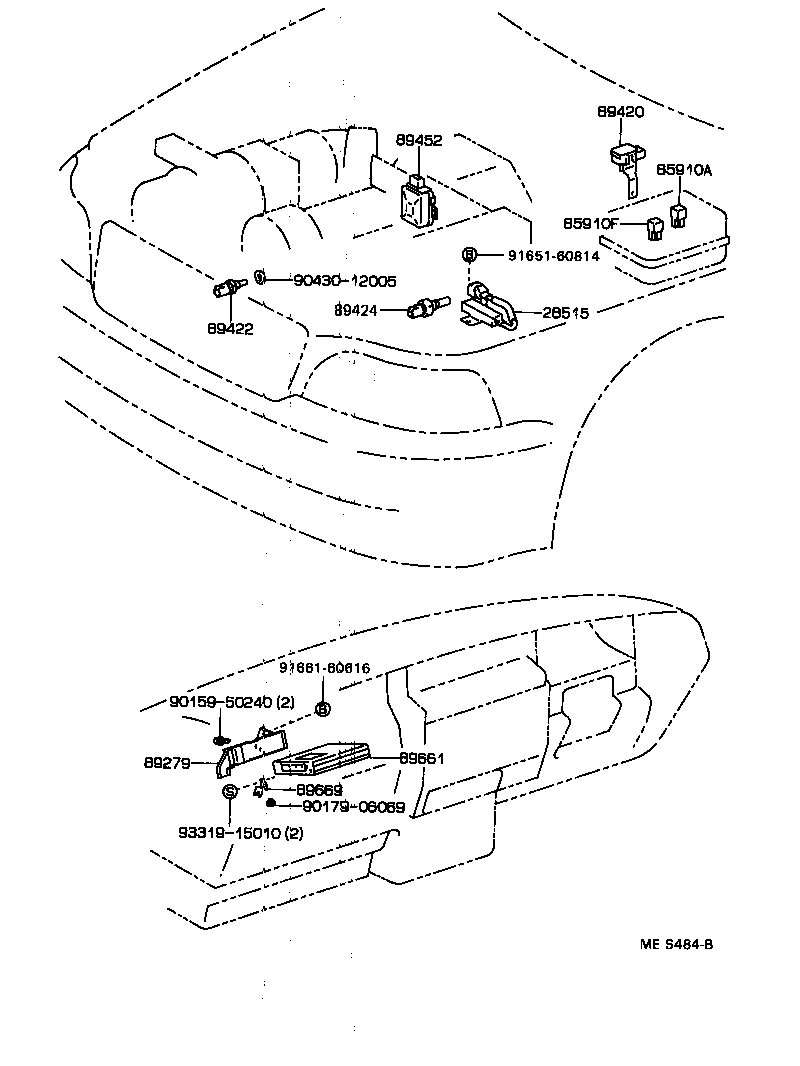

Figure MES481C MES481C 1991-10 → — Figure MES482C MES482C 1991-10 → — Figure MES483A MES483A 1991-10 → 1995-12 Figure MES484B MES484B 1991-12 → 1995-12

Part groups

PNCDescription
28515 Resistor, Solenoid
85910A Relay Assy, Circuit Opening (FOR EFI)
85910F Relay, Computer (FOR EFI)
89080 Motor Assy, Exhaust Valve Control
89279 Cover, Engine Control Computer
89420 Sensor Assy, Vacuum
89422 Sensor, Water Temperature (FOR E.F.I.)
89424 Sensor, Inlet Air Temperature (FOR E.F.I.)
89452 Sensor, Throttle Position (FOR E.F.I.)
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667 Bracket, Engine Control Computer
89668 Bracket, Engine Control Computer, NO.2
89669 Bracket, Engine Control Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
