Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cruise Control (AUTO DRIVE)

8 part groups · 2 illustrations

Illustrations

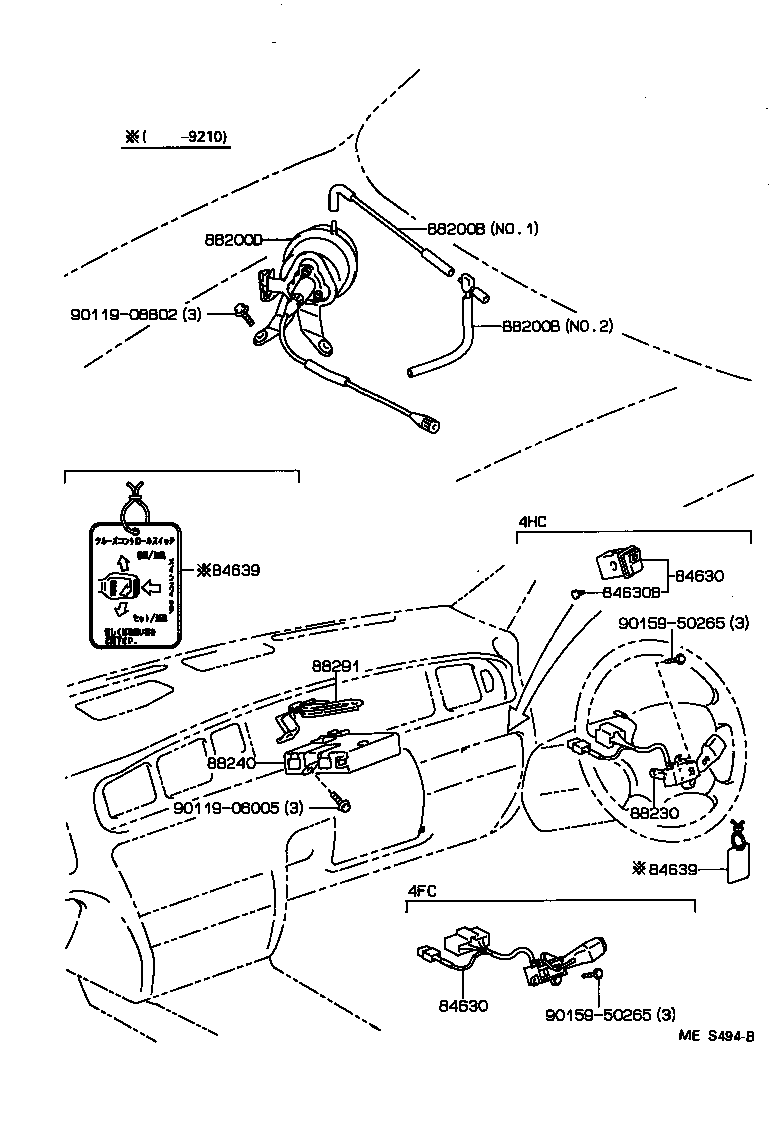

Figure MES493C MES493C 1991-10 → — Figure MES494B MES494B 1991-10 → —

Part groups

PNCDescription
84630 Switch Assy, Cruise Control Main
84630B Bulb(FOR CRUISE CONTROL SWITCH)
84639 Label, Cruise Control Switch Infomation
88200B Hose, Cruise Control Vacuum
88200D Actuator Assy, Cruise Control
88230 Switch Assy, Cruise Control(AUTO DRIVE) Control
88240 Computer Assy, Cruise Control
88291 Bracket, Cruise Control(AUTO DRIVE), NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
