Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09
Overdrive & Electronic Controlled Transmission

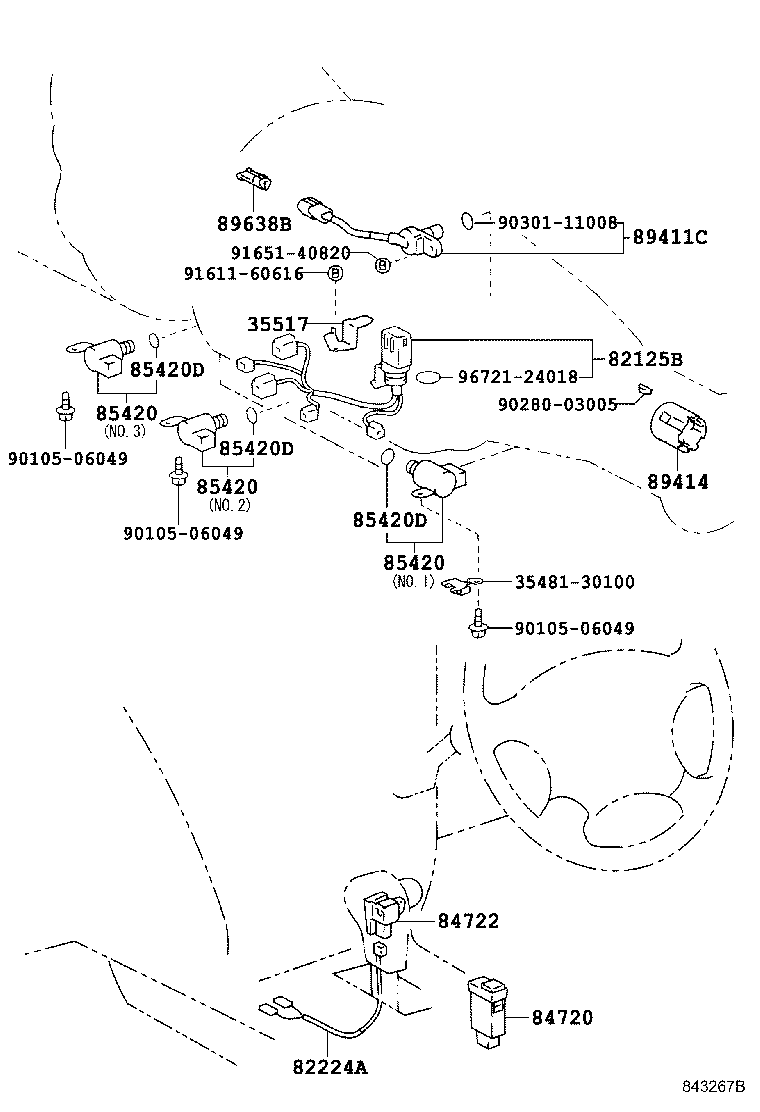

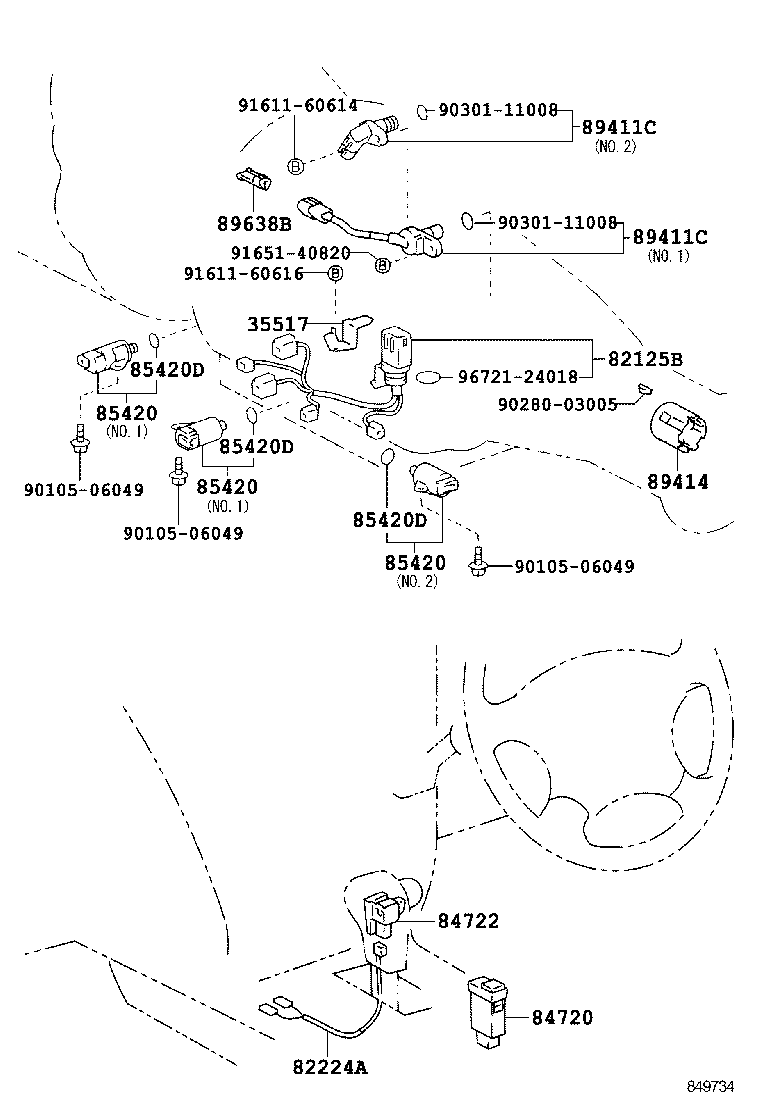

11 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 35517 | Plate, Transmission Wire Lock |
| 82125B | Wire, Transmission |
| 82224A | Wire, Overdrive |
| 84220A | Switch Assy, Transmission Position Indicator |
| 84720 | Switch Assy, Pattern Select |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89411C | Sensor, Speed |
| 89414 | Rotor, Sensor |
| 89638B | Cap, Brake Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
