Toyota Crown
1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan
Discontinued model
Data version 1999-09

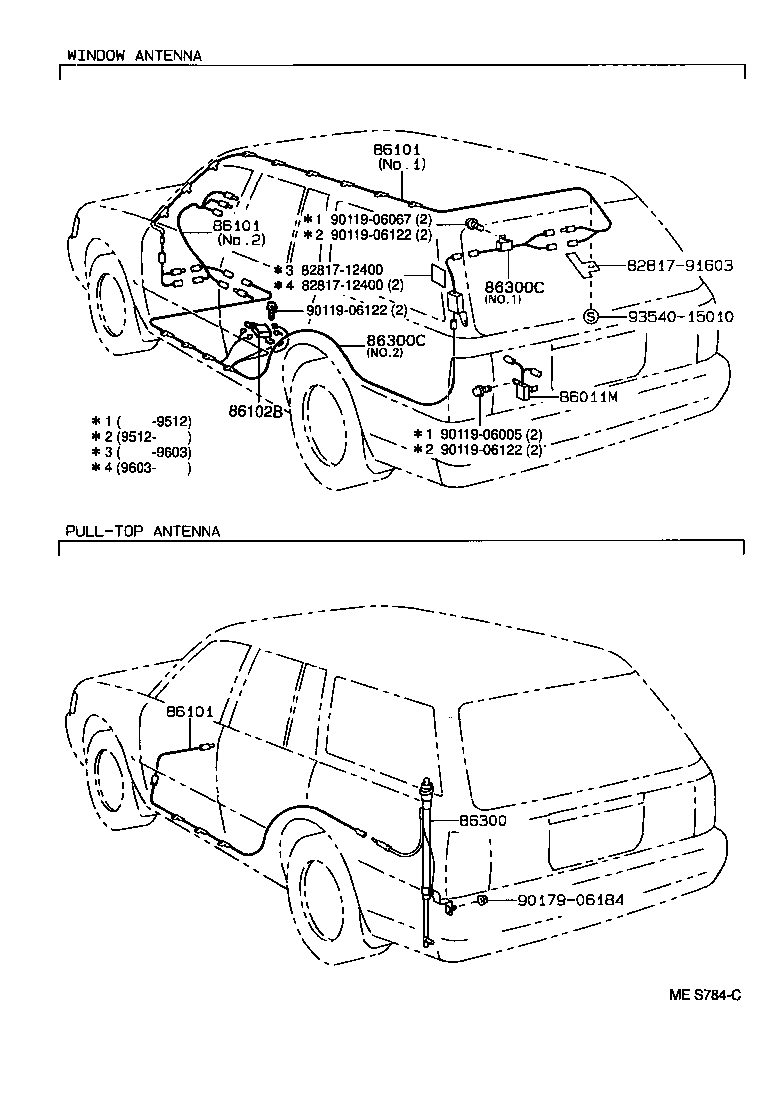

Antenna
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 85914 | Relay, Motor Antenna Control |
| 86011M | Filter, Noise |
| 86101 | Cord Sub-assy, Antenna |
| 86102B | Selector Sub-assy, Antenna |
| 86300 | Antenna Assy, W/Holder |
| 86300C | Antenna Assy, Amplifier, NO.2 |
| 86337 | Rod & Pipe, Sealed W/Cable |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
