Toyota Crown

1991-10 → 1999-04 · chassis GS13#,JZS13#,LS13#,YS130 · catalogue 331170 · Japan

Discontinued model Data version 1999-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

45 part groups · 11 illustrations

Illustrations

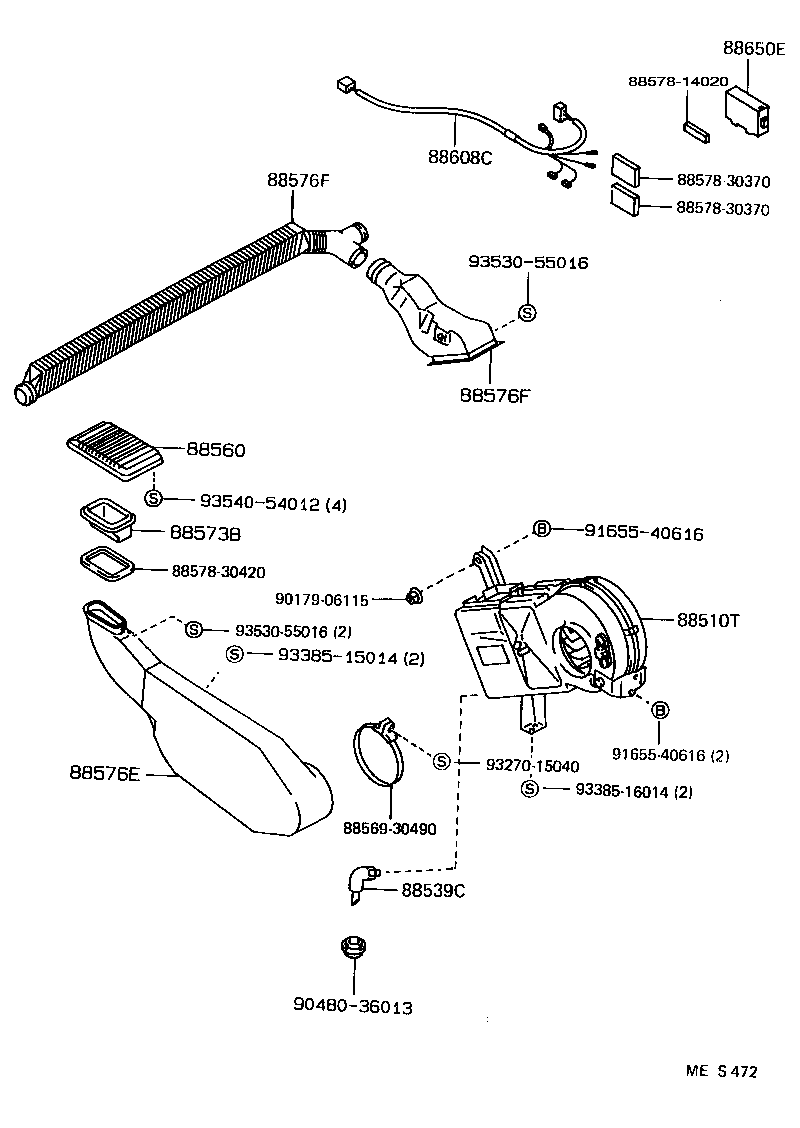

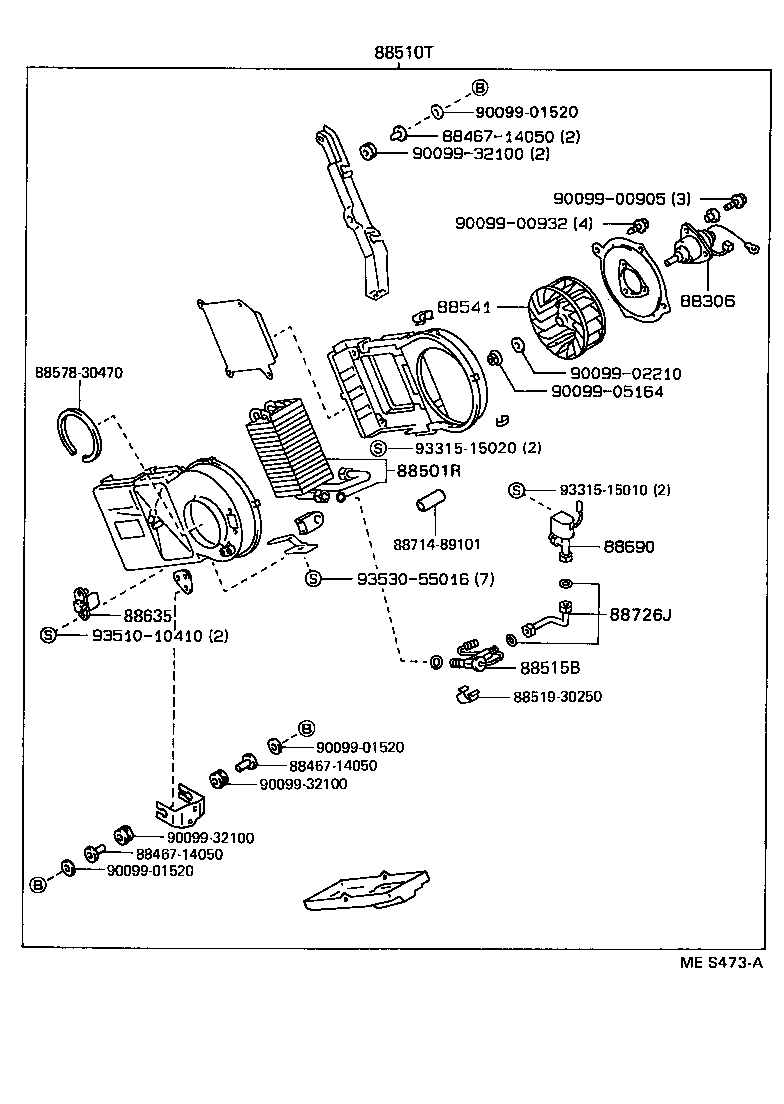

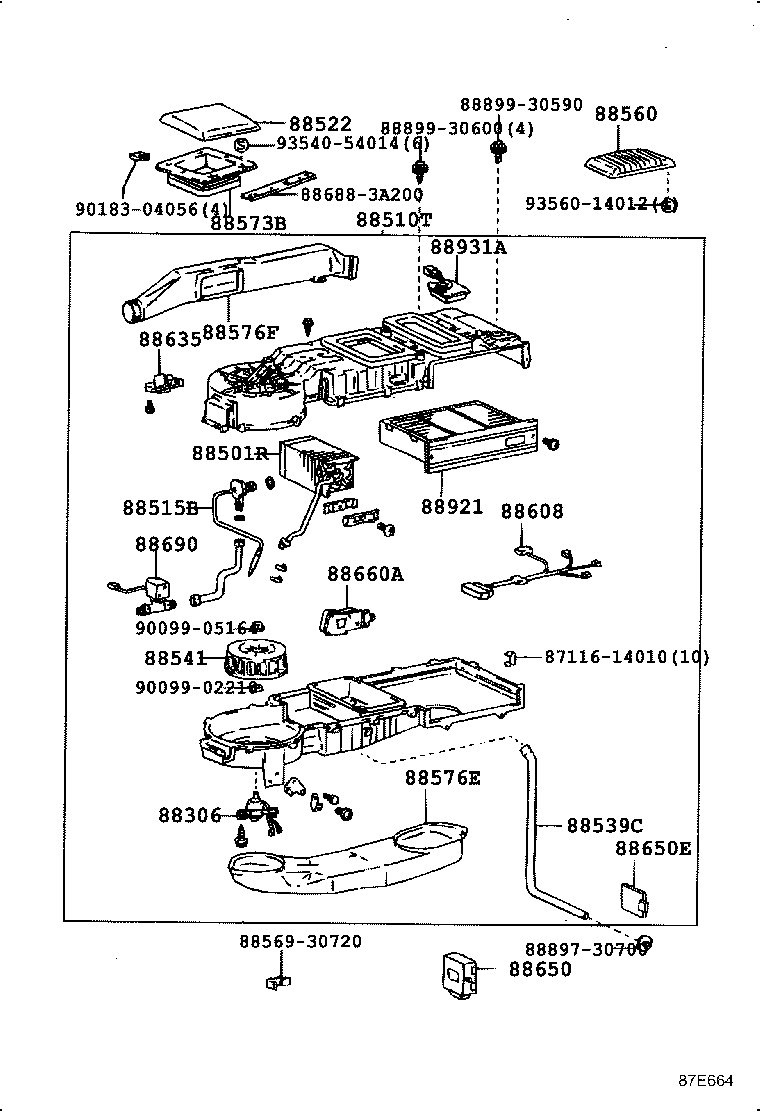

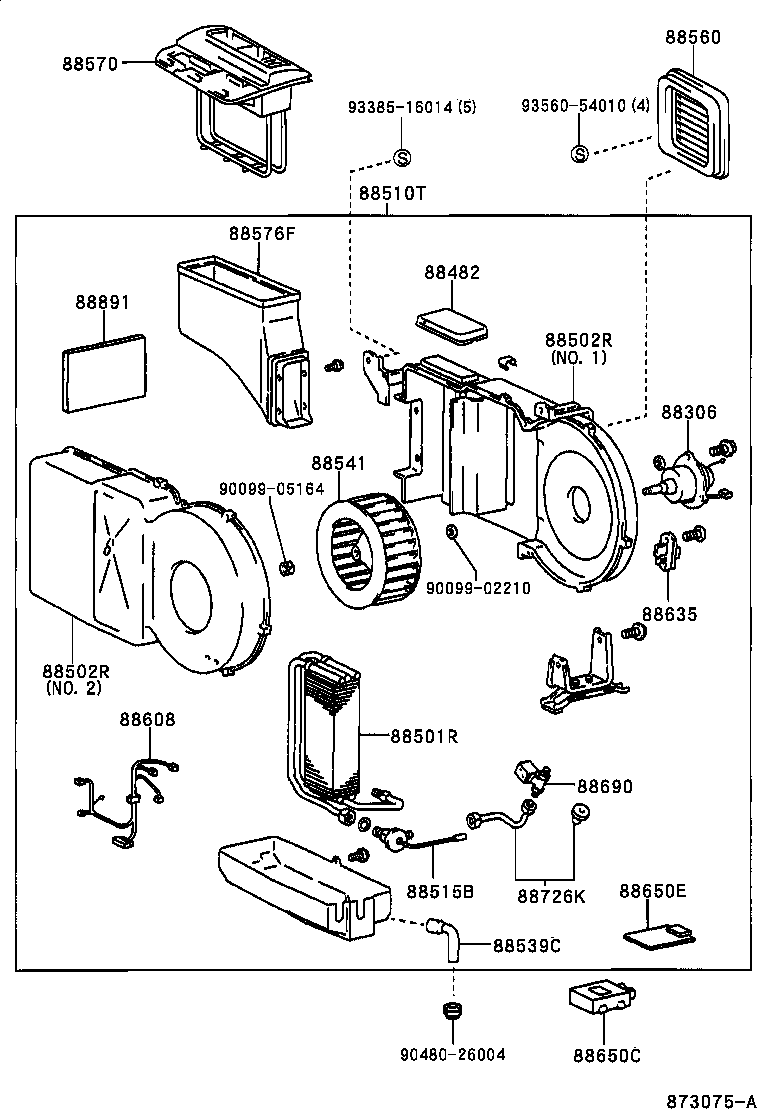

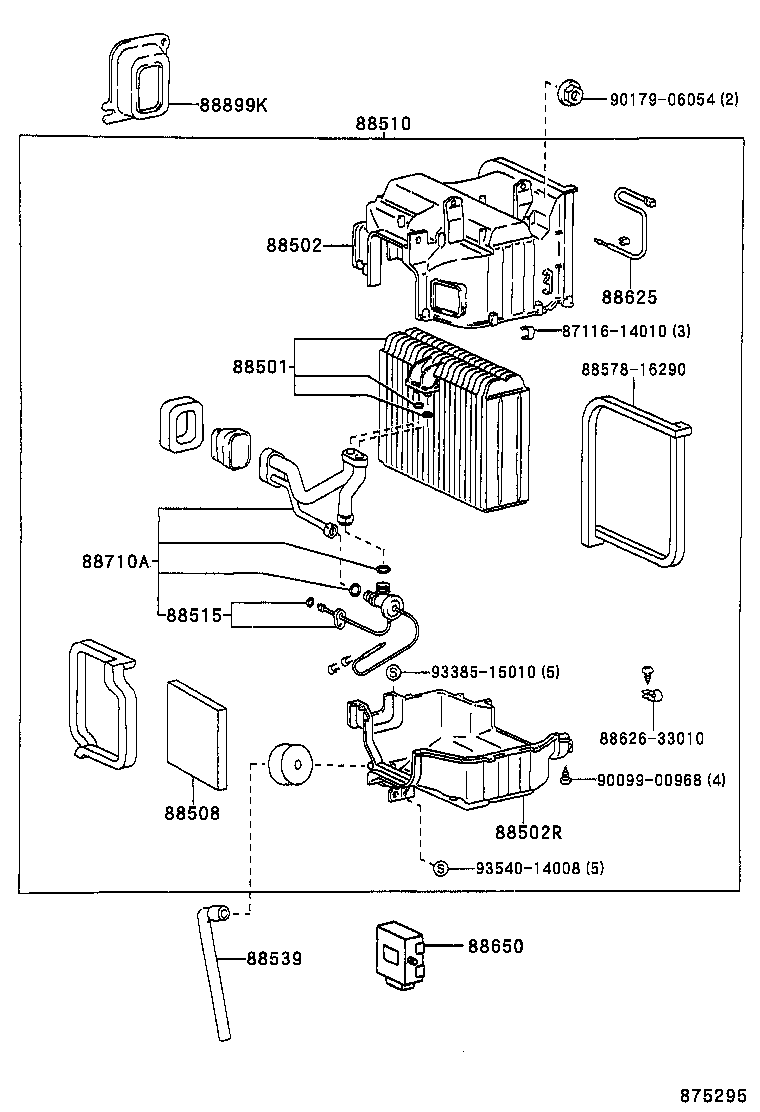

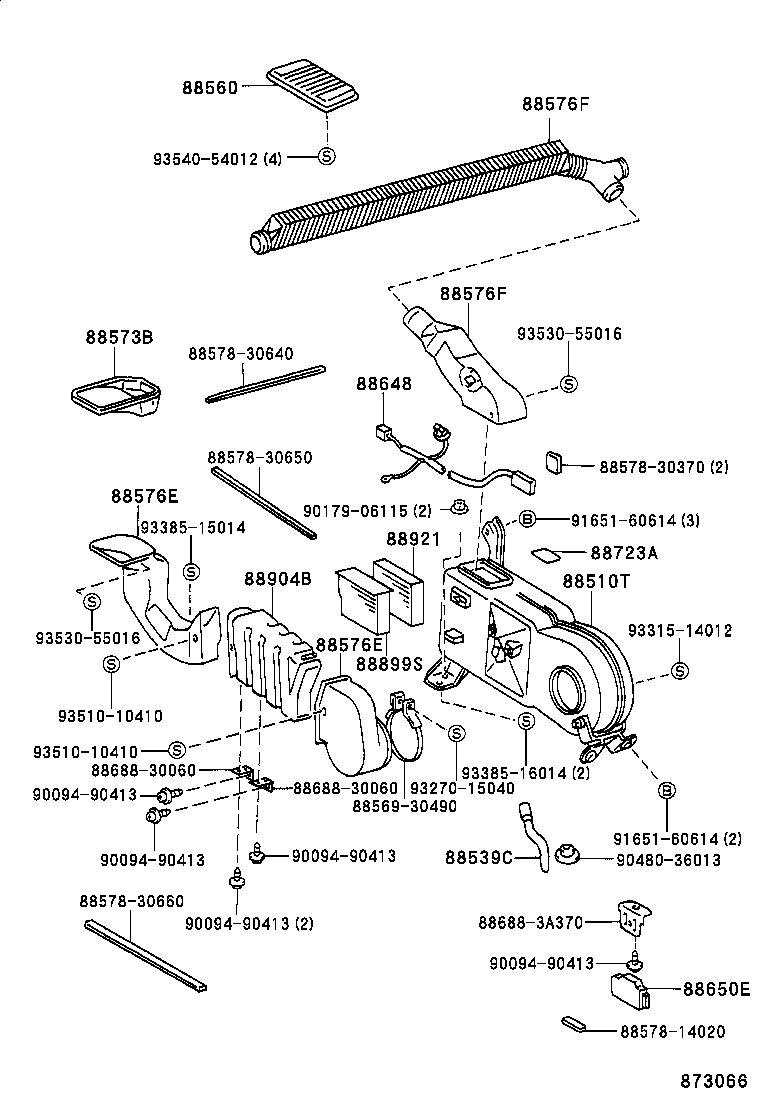

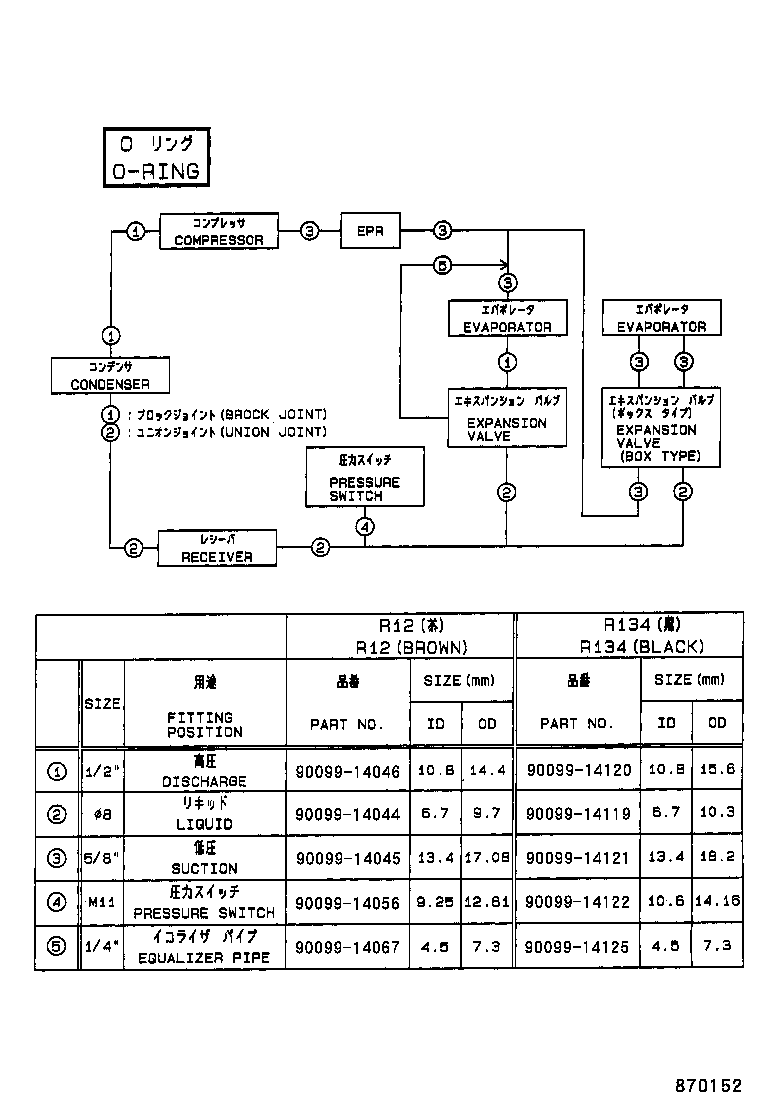

Figure 873065A 873065A 1991-10 → 1993-08 Figure 873065A 873065A 1993-08 → — Figure 875295 875295 1991-10 → — Figure 875295 875295 1991-12 → 1995-12 Figure 873066 873066 1991-12 → 1995-12 Figure MES472 MES472 1991-12 → 1995-12 Figure 87E664 87E664 1991-10 → 1995-12 Figure 87E664 87E664 1991-10 → — Figure 873075A 873075A 1991-10 → — Figure MES473A MES473A 1991-12 → 1995-12 Figure 870152 870152 1991-10 → —

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88502 Case Sub-assy, Cooling Unit
88502R Case Sub-assy, Cooling Unit
88508 Filter Sub-assy, Clean Air
88510 Unit Assy, Cooler
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88522 Door, Cooling Unit
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88541 Fan, Blower
88549B Plate, Caution
88560 Grille Assy, Cooler Air Inlet
88570 Grille Sub-assy, Cooler Air Outlet
88573B Base, Grille
88576E Duct, Cooler Air, NO.1
88576F Duct, Cooler Air, NO.2
88608 Harness Sub-assy, Wiring Air Conditioner
88608C Harness Sub-assy, Wiring Air Indicator, NO.2
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88635 Resistor, Cooler Unit Blower
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88660A Servo Assy, Air Conditioner, NO.1
88690 Valve Assy, Cooler Magnet
88710A Tube Assy, Air Conditioner
88723A Label, Cooler Service Caution
88726J Pipe, Cooler Refrigerant Liquid, J
88726K Pipe, Cooler Refrigerant Liquid, K
88880B Filter Assy, Clean Air
88891 Packing (FOR COOLER)
88899K Plate, Cover
88899S Frame, Front Cooler
88904B Case Sub-assy, Air Purifier
88921 Filter, Air Purifier, NO.1
88931A Sensor, Smoke
