Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

39 part groups · 8 illustrations

Illustrations

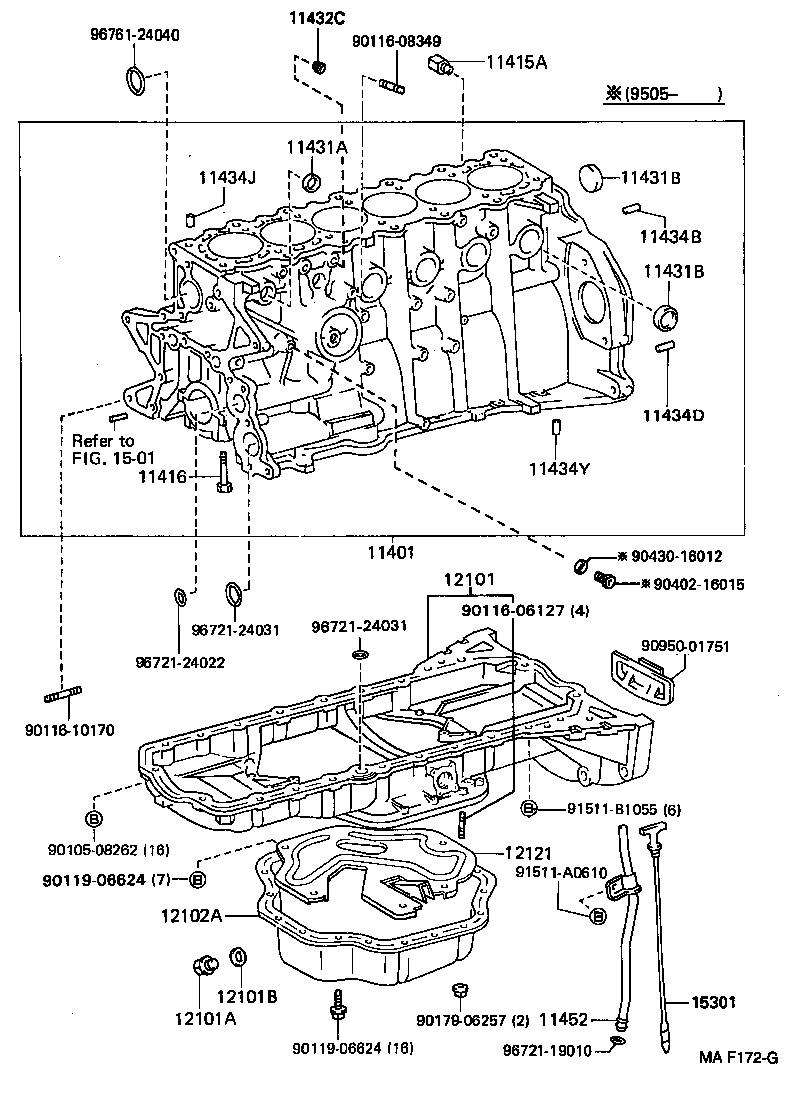

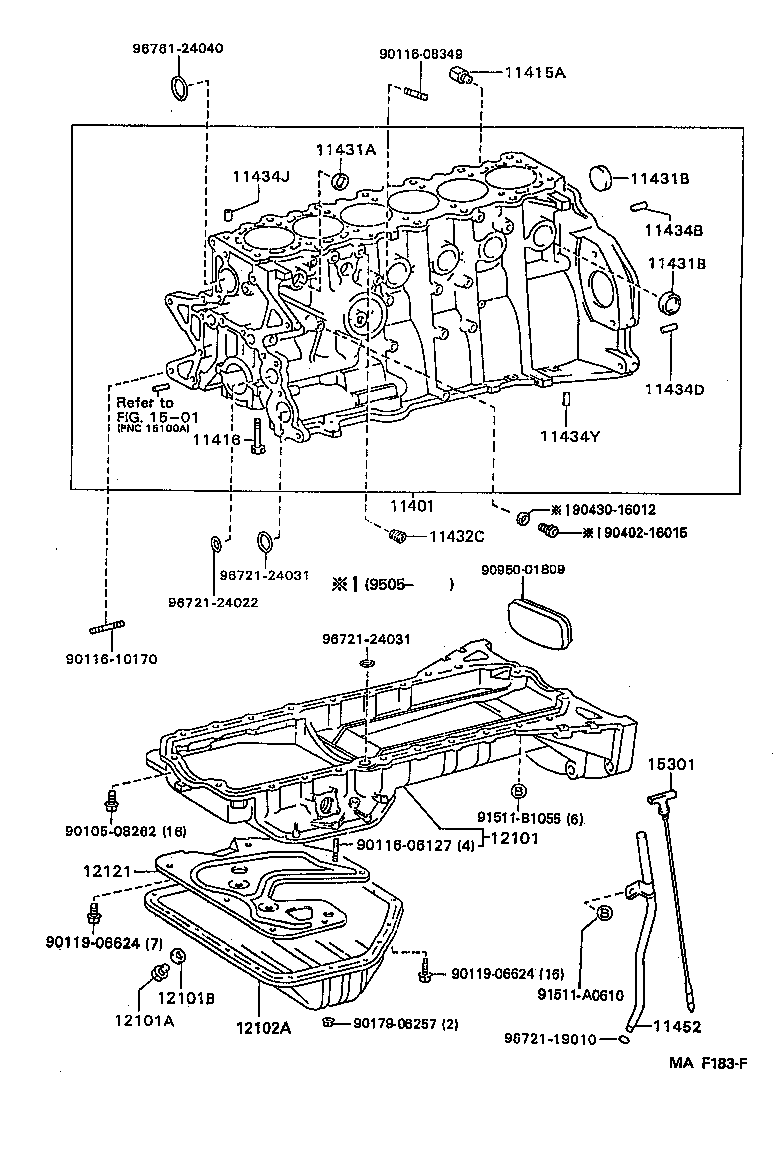

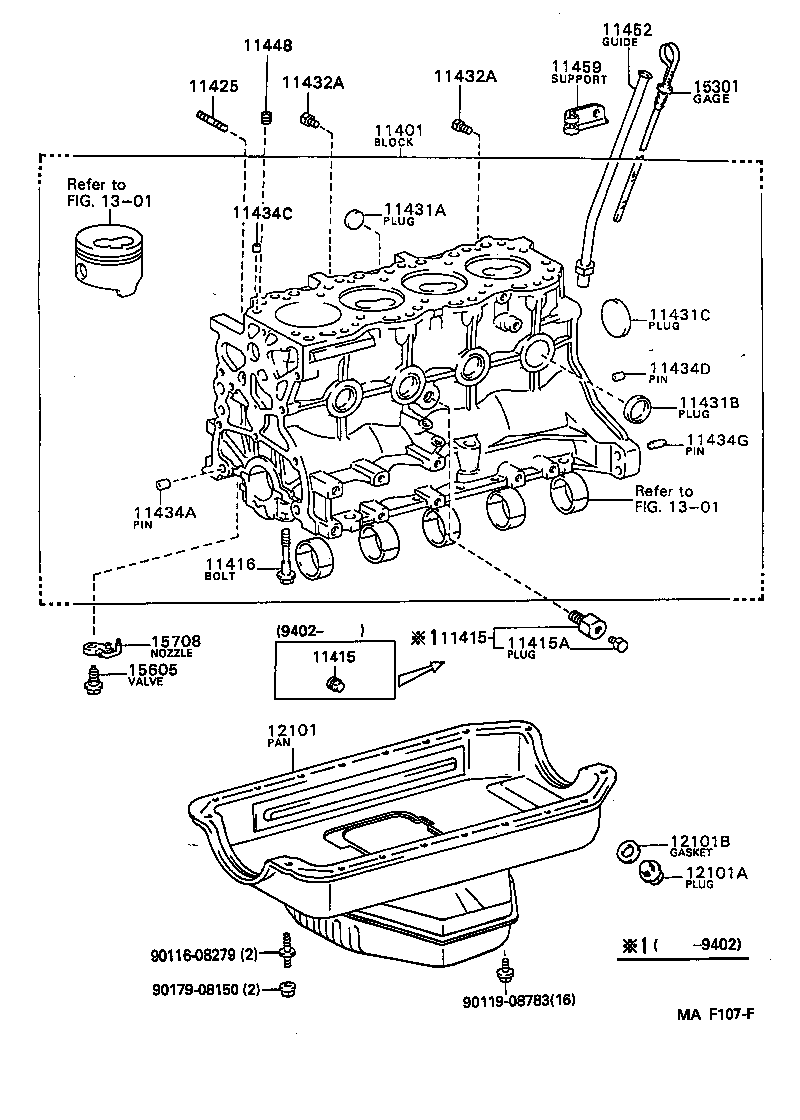

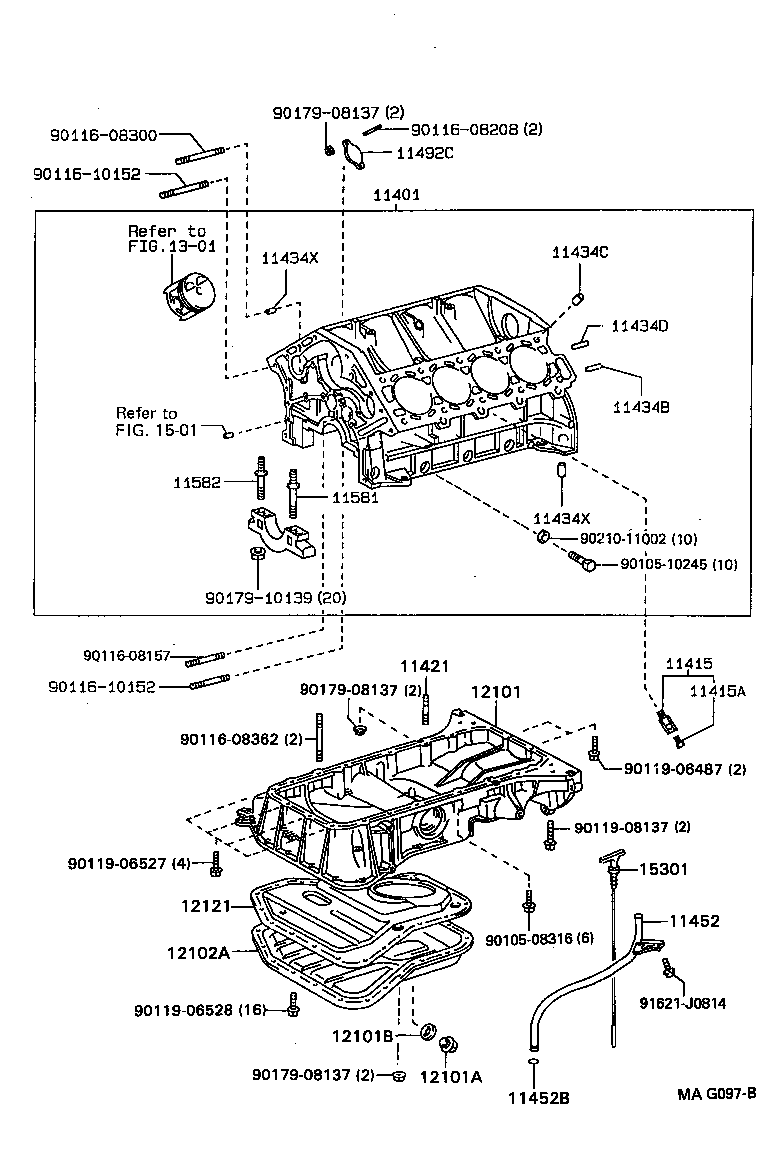

Figure MAK222 MAK222 1993-08 → — Figure MAF172G MAF172G 1991-10 → — Figure MAF183F MAF183F 1991-10 → — Figure MAF107F MAF107F 1991-10 → 1993-08 Figure MAF107F MAF107F 1993-08 → — Figure MAC105D MAC105D 1991-10 → — Figure MAC105D MAC105D 1993-08 → — Figure MAG097B MAG097B 1992-10 → —

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11421 Bolt, Stud(FOR OIL PAN)
11425 Bolt, Stud(FOR OIL FILTER)
11429 Bolt, Stud(FOR ALTERNATOR BRACKET)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11432C Plug, W/Head Taper Screw, NO.3
11432H Plug, W/Head Taper Screw, NO.5
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11434D Pin, Straight(FOR ENGINE REAR OIL SEAL)
11434G Pin, Straight(FOR END PLATE)
11434H Pin, Ring (FOR TIMING BELT COVER SET)
11434J Pin, Ring (FOR CYLINDER HEAD SET)
11434X Pin, Ring(FOR CHAIN CACE)
11434Y Pin, Straight(FOR OIL PAN)
11448 Orifice, Cylinder Block Oil
11452 Guide, Oil Level Gage
11452B Ring, O(FOR OIL LEVEL GAGE GUIDE)
11452C Union(FOR OIL LEVEL GAGE GUIDE)
11459 Support, Oil Level Gage Guide
11492C Plate, Water Seal
11581 Bolt, Crankshaft Bearing Cap, NO.1
11582 Bolt, Crankshaft Bearing Cap, NO.2
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12102A Pan Sub-assy, Oil, NO.2
12121 Plate, Oil Pan Baffle, NO.1
12271 Screen, Oil Separator
15301 Gage Sub-assy, Oil Level
15605 Valve Sub-assy, Oil Check
15708 Nozzle Sub-assy, Oil, NO.1
