Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

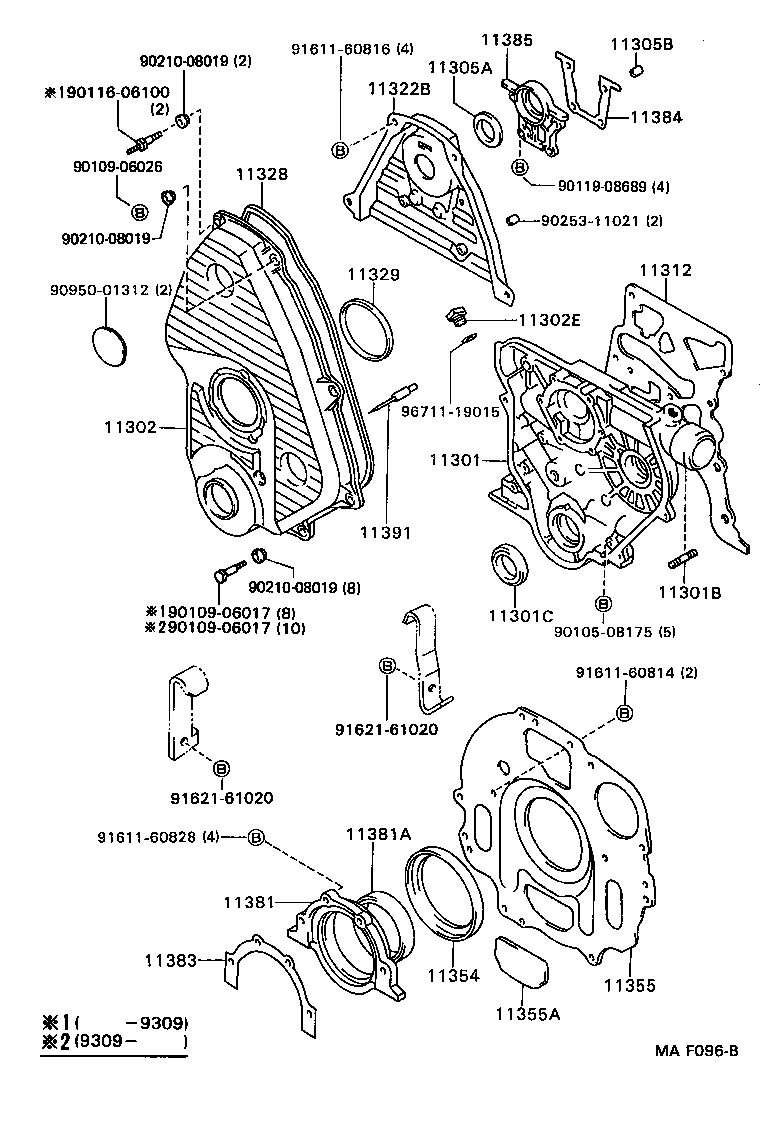

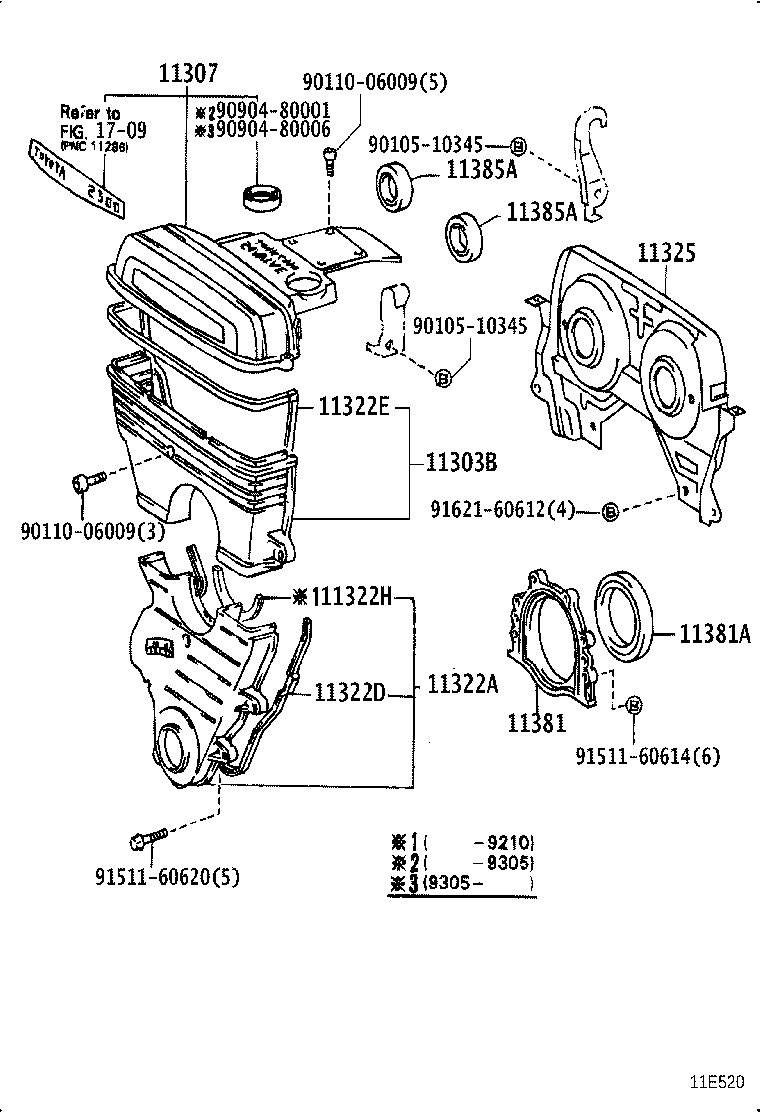

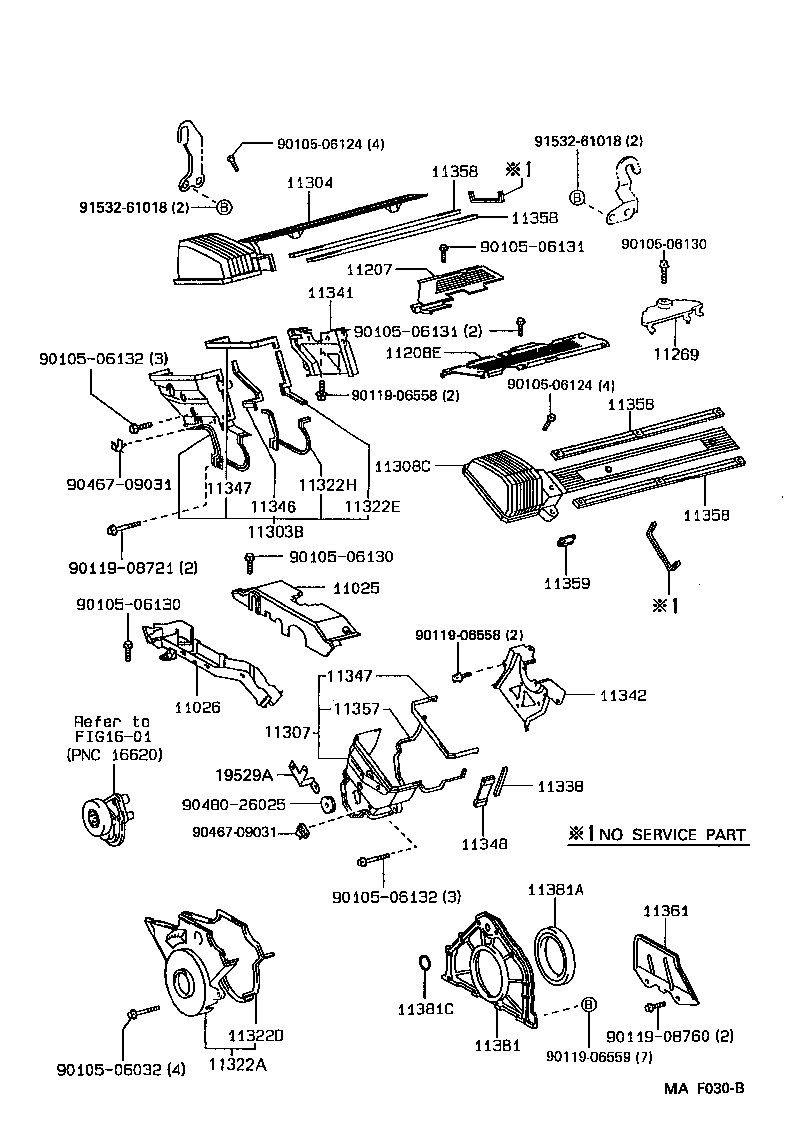

Timing Gear Cover & Rear End Plate
49 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11025 | Cover Sub-assy, Coil & Resistive Cord, Upper |
| 11026 | Cover Sub-assy, Coil & Resistive Cord, Lower |
| 11207 | Cover Sub-assy, Engine Wire, RH |
| 11208E | Cover Sub-assy, Engine Wire, LH |
| 11269 | Cover, Engine Wire, LH NO.2 |
| 11301 | Case Sub-assy, Timing Gear |
| 11301B | Bolt,Stud(FOR TIMING GEAR CASE) |
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 11302E | Plug, Straight(FOR TIMING GEAR COVER) |
| 11303 | Cover Sub-assy, Crankshaft Gear OR Pulley |
| 11303B | Cover Sub-assy, Timing Belt, NO.2 |
| 11304 | Cover, Timing Chain OR Belt, NO.2 |
| 11305A | Seal, Oil(FOR OIL SEAL RETAINER, NO.2) |
| 11305B | Pin, Ring(FOR OIL SEAL RETAINER, NO.2) |
| 11307 | Cover, Sub-assy, Timing Belt, NO.3 |
| 11308C | Cover Sub-assy, Timing Belt, NO.3 LH |
| 11309 | Cover Sub-assy, Timing Belt, NO.4 |
| 11312 | Gasket, Front End Plate |
| 11322A | Cover, Timing Belt, NO.1 |
| 11322B | Cover, Timing Belt, NO.2 |
| 11322D | Gasket, Timing Belt Cover, NO.1 |
| 11322E | Gasket, Timing Belt Cover, NO.2 |
| 11322H | Gasket, Timing Belt Cover, NO.3 |
| 11325 | Cover, Timing Belt, NO.4 |
| 11328 | Gasket, Timing Gear OR Chain Cover |
| 11329 | Gasket, Timing Gear Rear Cover |
| 11338 | Gasket, Timing Chain Cover, NO.2 |
| 11341 | Plate, Timing Belt, Rear RH |
| 11342 | Plate, Timing Belt, Rear LH |
| 11346 | Gasket, Timing Belt Cover, NO.4 |
| 11347 | Gasket, Timing Belt Cover, NO.5 |
| 11348 | Spacer, Timing Gear Cover |
| 11354 | Seal, Flywheel Housing Dust |
| 11355 | Plate, Rear End |
| 11355A | Plug, Hole(FOR REAR END PLATE) |
| 11357 | Gasket, Timing Belt Cover, NO.6 |
| 11358 | Gasket,Timing Belt Cover, NO.7 |
| 11359 | Gasket, Timing Belt Cover, NO.8 |
| 11361 | Cover, Flywheel Housing Under |
| 11381 | Retainer, Engine Rear Oil Seal |
| 11381A | Seal, Engine Rear Oil |
| 11381C | Ring, O(FOR OIL SEAL RETAINER) |
| 11383 | Gasket, Engine Rear Oil Seal Retainer |
| 11384 | Gasket, Oil Seal Retainer, NO.2 |
| 11385 | Retainer, Camshaft Oil Seal |
| 11385A | Seal, Oil(FOR CAMSHAFT) |
| 11391 | Pointer, Timing |
| 19529A | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
