Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 8 illustrations

Illustrations

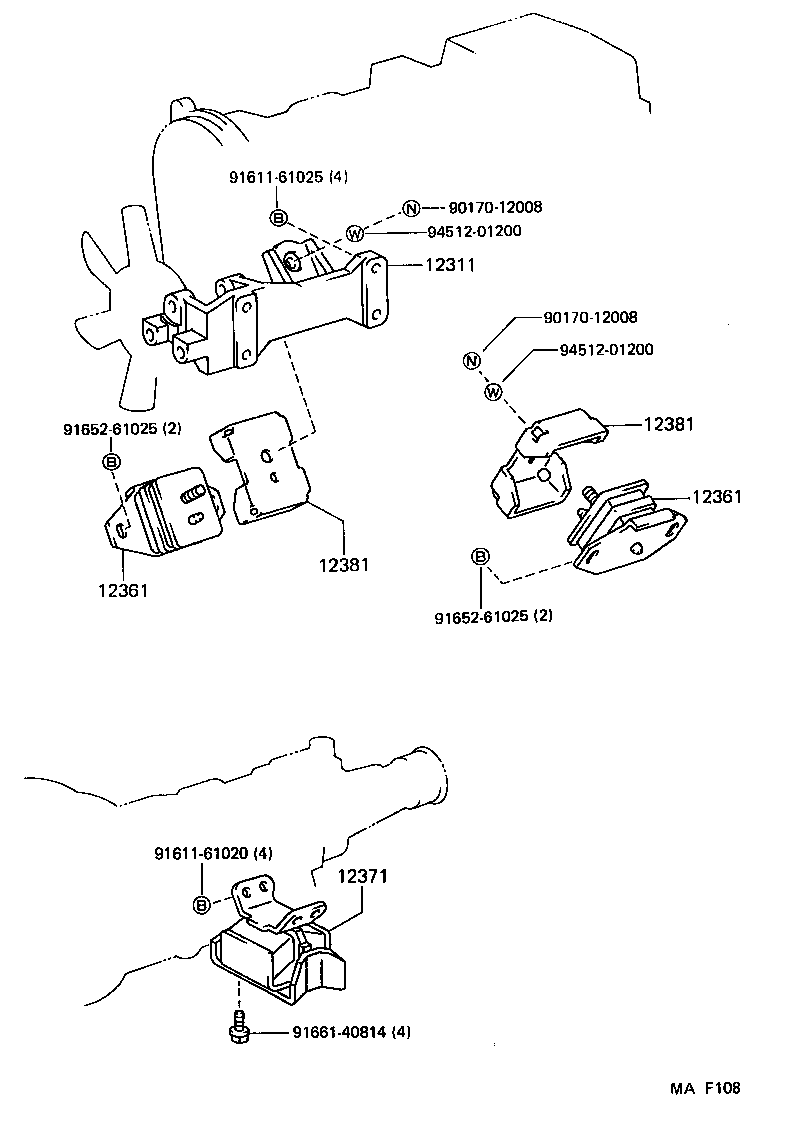

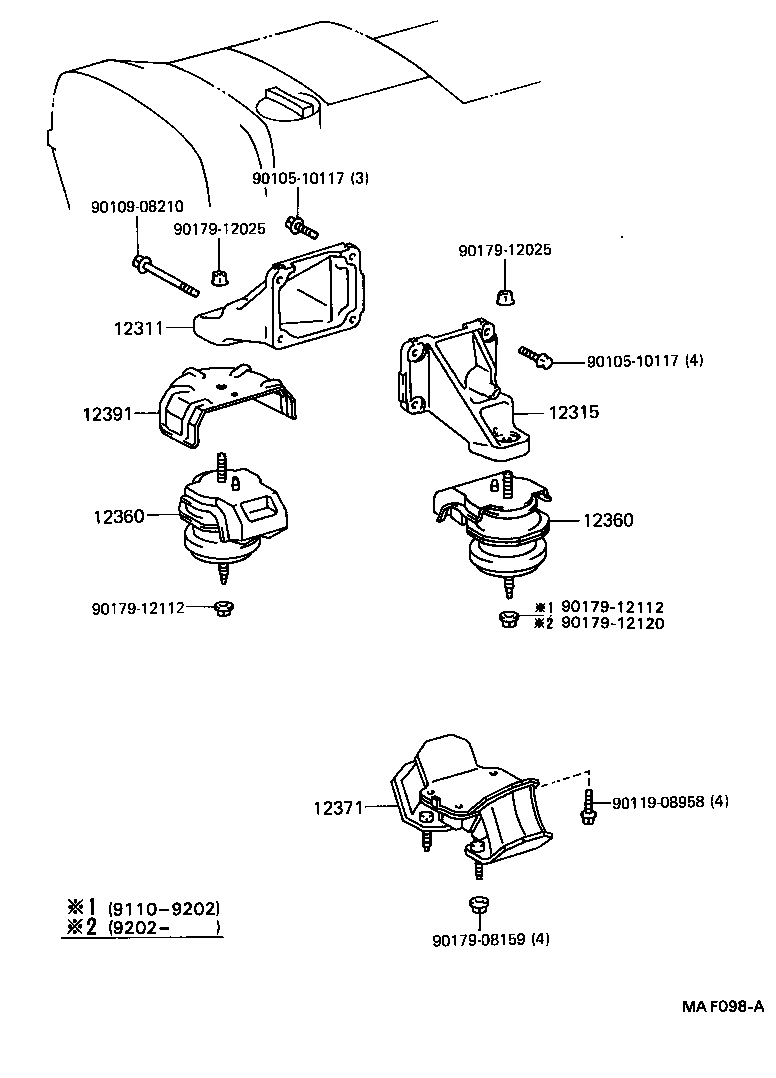

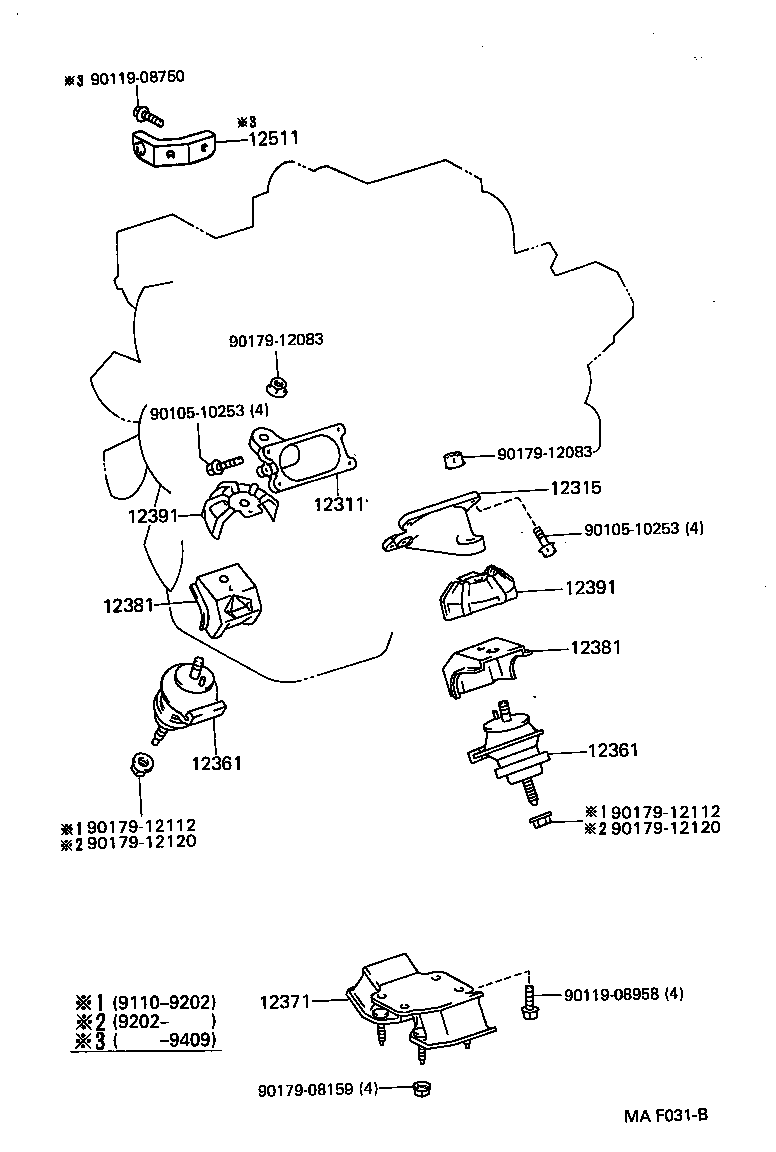

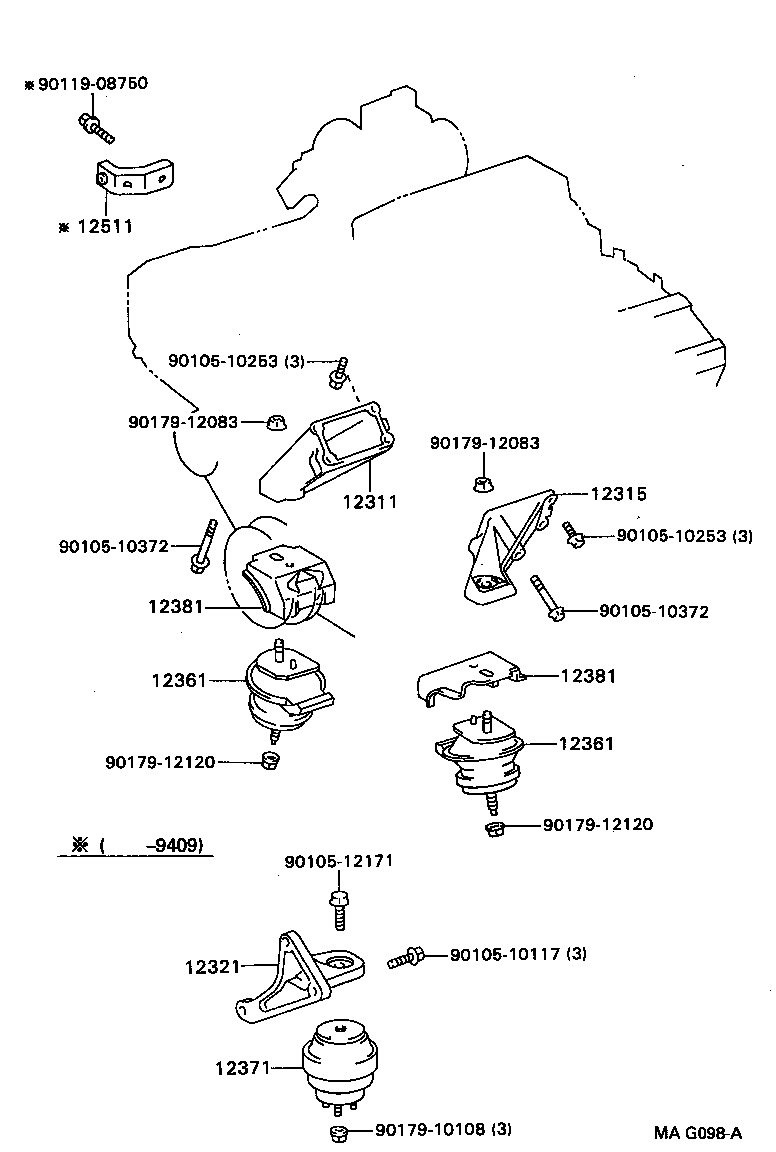

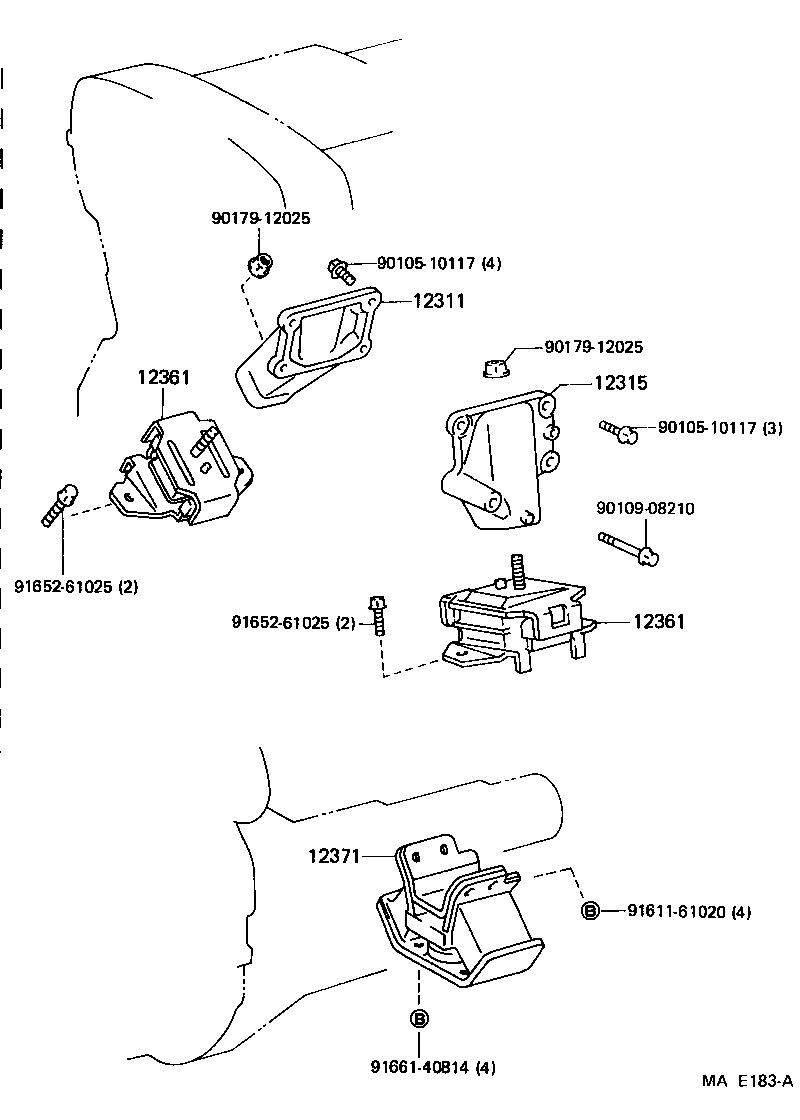

Figure MAB649D MAB649D 1993-08 → — Figure MAE183A MAE183A 1991-10 → — Figure MAF098A MAF098A 1991-10 → — Figure MAF108 MAF108 1991-10 → 1993-08 Figure MAF108 MAF108 1993-08 → — Figure MAF031B MAF031B 1991-10 → — Figure MAF031B MAF031B 1993-08 → — Figure MAG098A MAG098A 1992-10 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
