Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

38 part groups · 5 illustrations

Illustrations

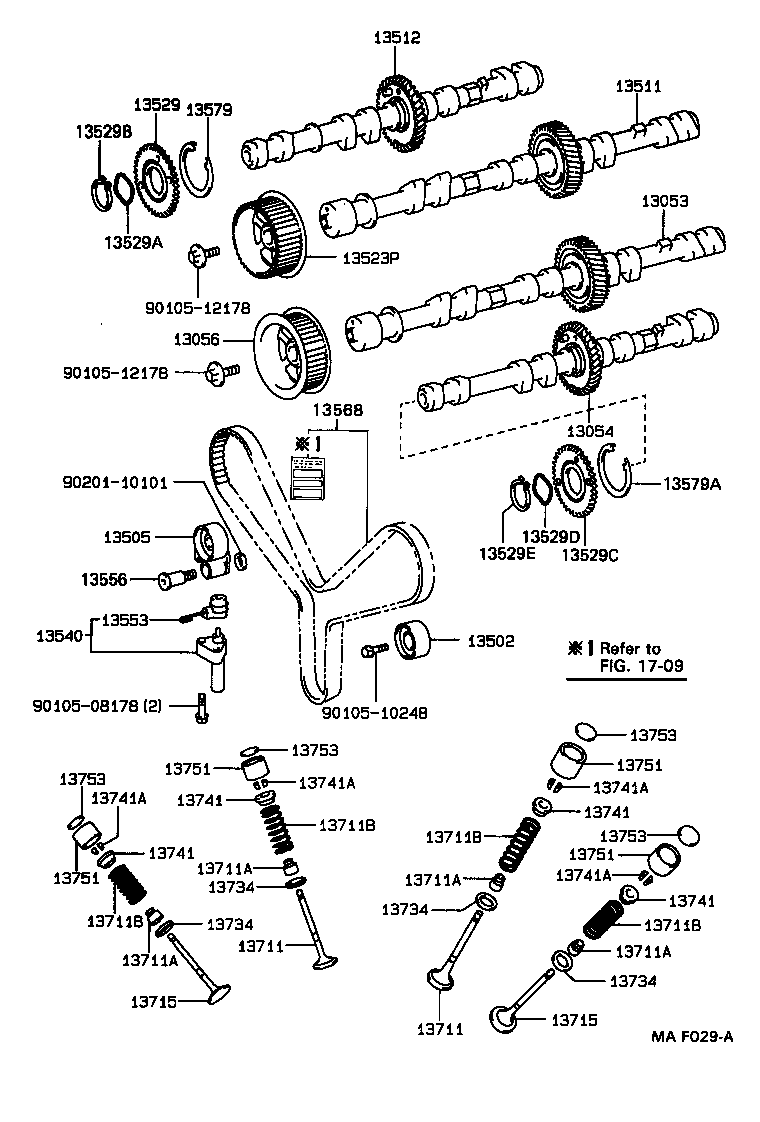

Figure NA0947F NA0947F 1993-08 → — Figure MAF173A MAF173A 1991-10 → — Figure MAB227F MAB227F 1991-10 → 1993-08 Figure MAB227F MAB227F 1993-08 → — Figure MAF029A MAF029A 1991-10 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13053 Camshaft Sub-assy, NO.3
13054 Camshaft Sub-assy, NO.4
13056 Pulley Sub-assy, Camshaft Timing, LH
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13505A Spring, Tension(FOR IDLER)
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13512 Camshaft, NO.2
13522P Pulley, Pump Drive Shaft
13523A Key, Woodruff(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13529 Gear, Camshaft Sub
13529A Washer, Wave(FOR CAMSHAFT SUB GEAR)
13529B Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR)
13529C Gear, Camshaft Sub, NO.3
13529D Washer, Wave(FOR CAMSHAFT SUB GEAR, NO.3)
13529E Ring, Shaft Snap(FOR CAMSHAFT SUB GEAR, NO.3)
13540 Tensioner Assy, Chain, NO.1
13553 Cover, Chain Tensioner Dust
13556 Shaft, Timing Belt Idler
13558 Bracket, Spring(FOR IDLER)
13568 Belt, Timing
13579 Washer, Camshaft Timing Gear Bolt
13579A Washer, Camshaft Timing Gear Bolt, NO.3
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13751 Lifter, Valve
13751D Pad, Valve Adjusting
13753 Shim, Valve Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
