Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

10 part groups · 7 illustrations

Illustrations

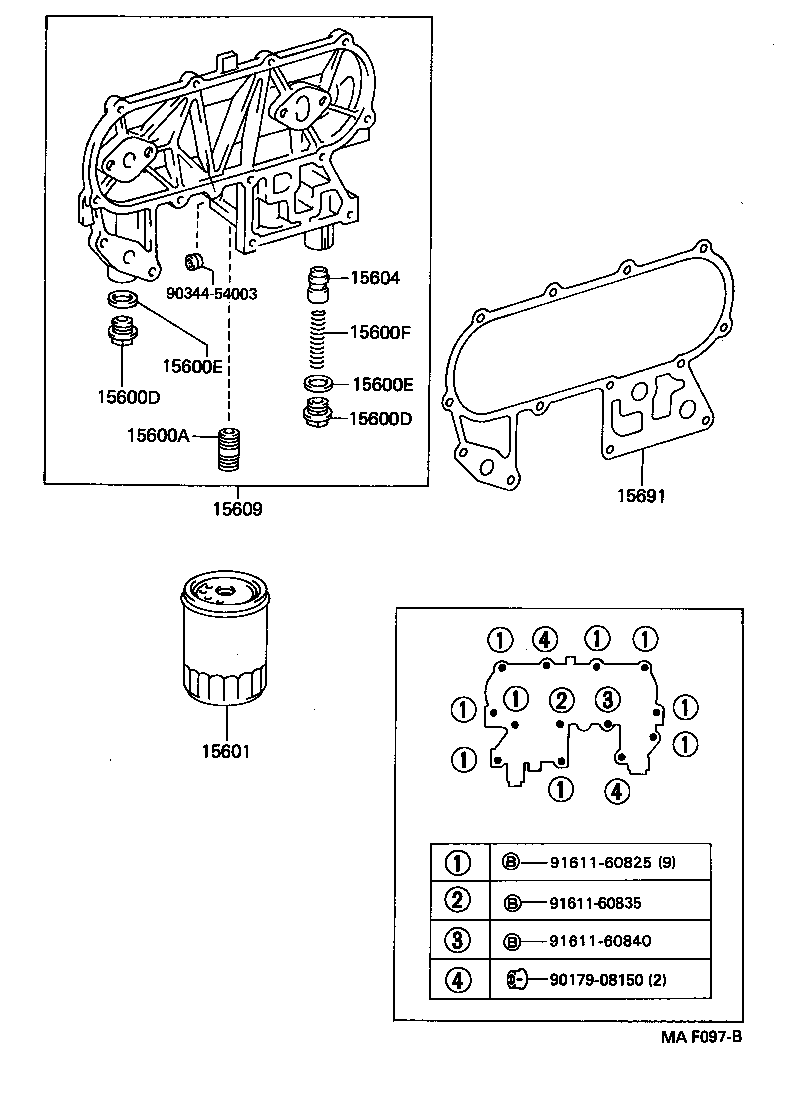

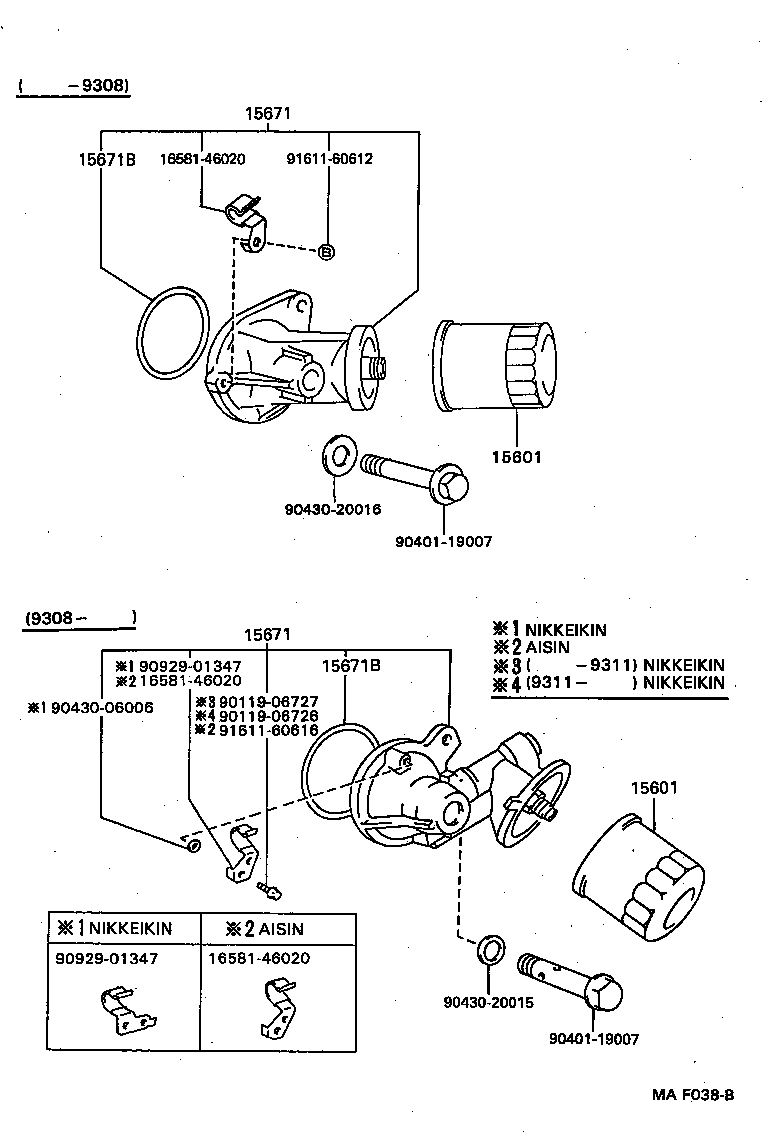

Figure MA6093A MA6093A 1993-08 → — Figure MAF038B MAF038B 1991-10 → — Figure MAF097B MAF097B 1991-10 → 1993-08 Figure MAF097B MAF097B 1993-08 → — Figure MAC099C MAC099C 1991-10 → — Figure MAC099C MAC099C 1993-08 → — Figure MAE488 MAE488 1992-10 → —

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15600D Plug(FOR OIL FILTER)
15600E Washer(FOR OIL FILTER)
15600F Spring, Compression(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15604 Valve Sub-assy, Oil Safety
15609 Bracket Sub-assy, Oil Filter
15671 Bracket, Oil Filter
15671B Gasket, Oil Filter Bracket
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
