Toyota Crown/Crown Majesta
1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan
Discontinued model
Data version 1996-03

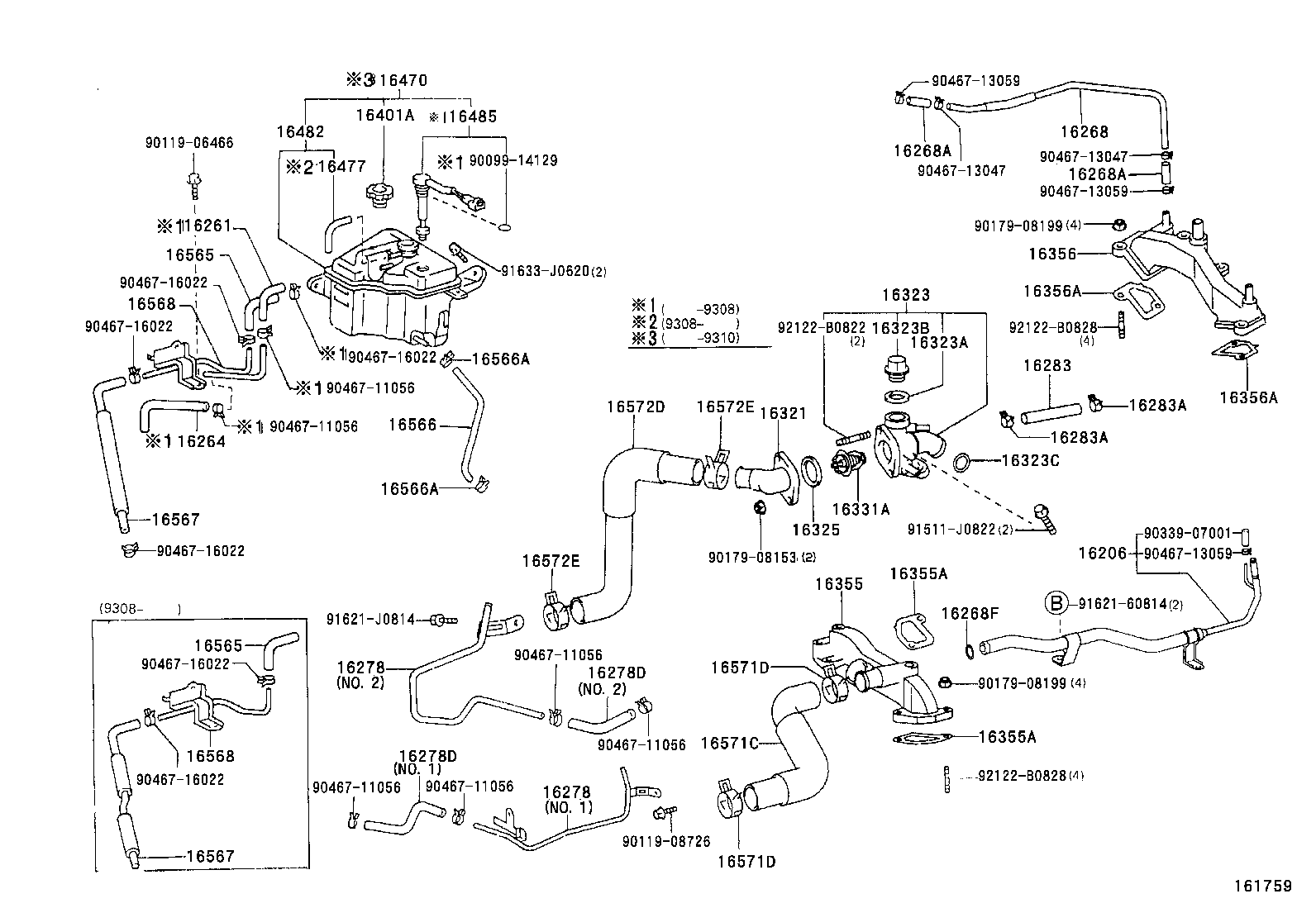

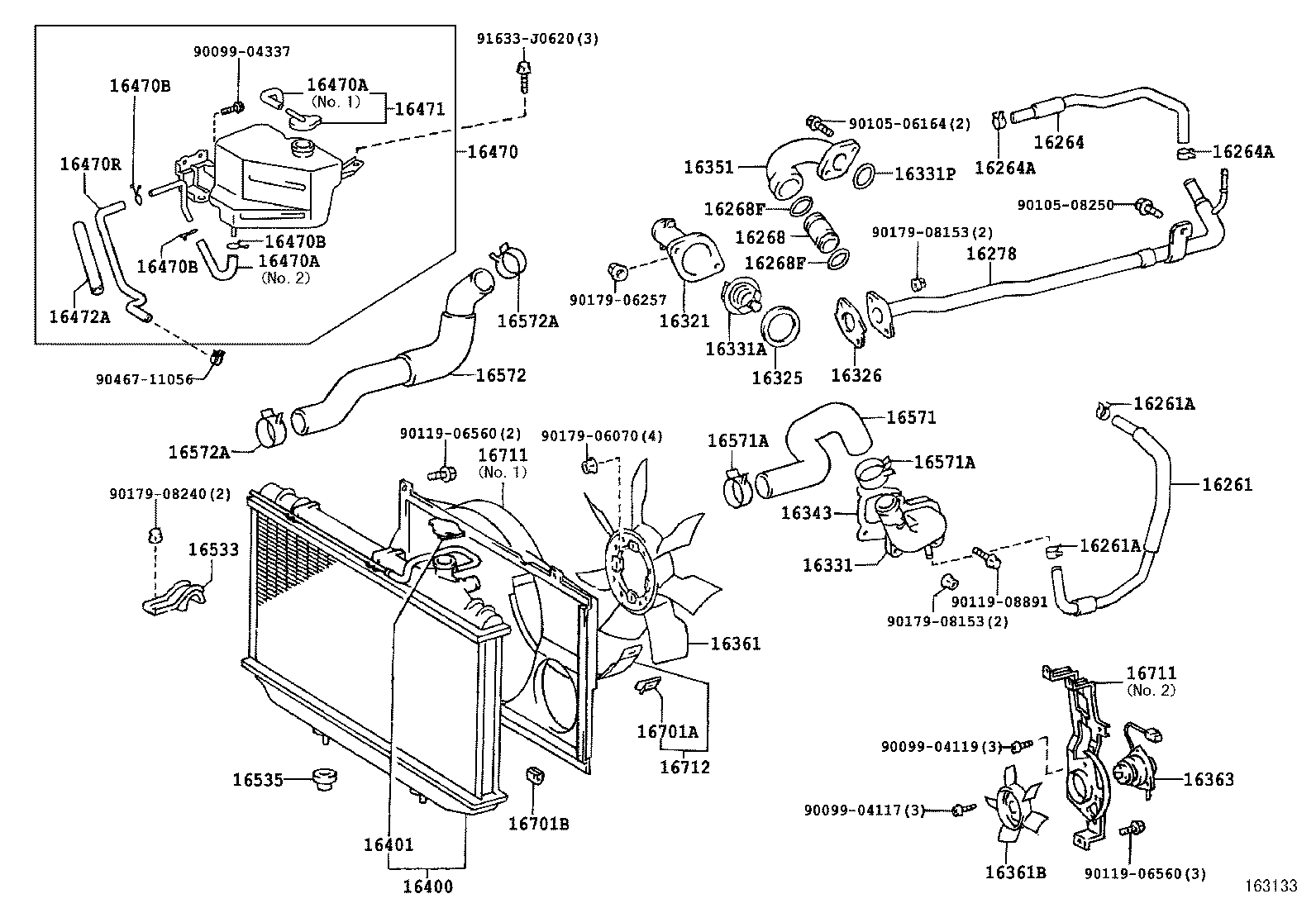

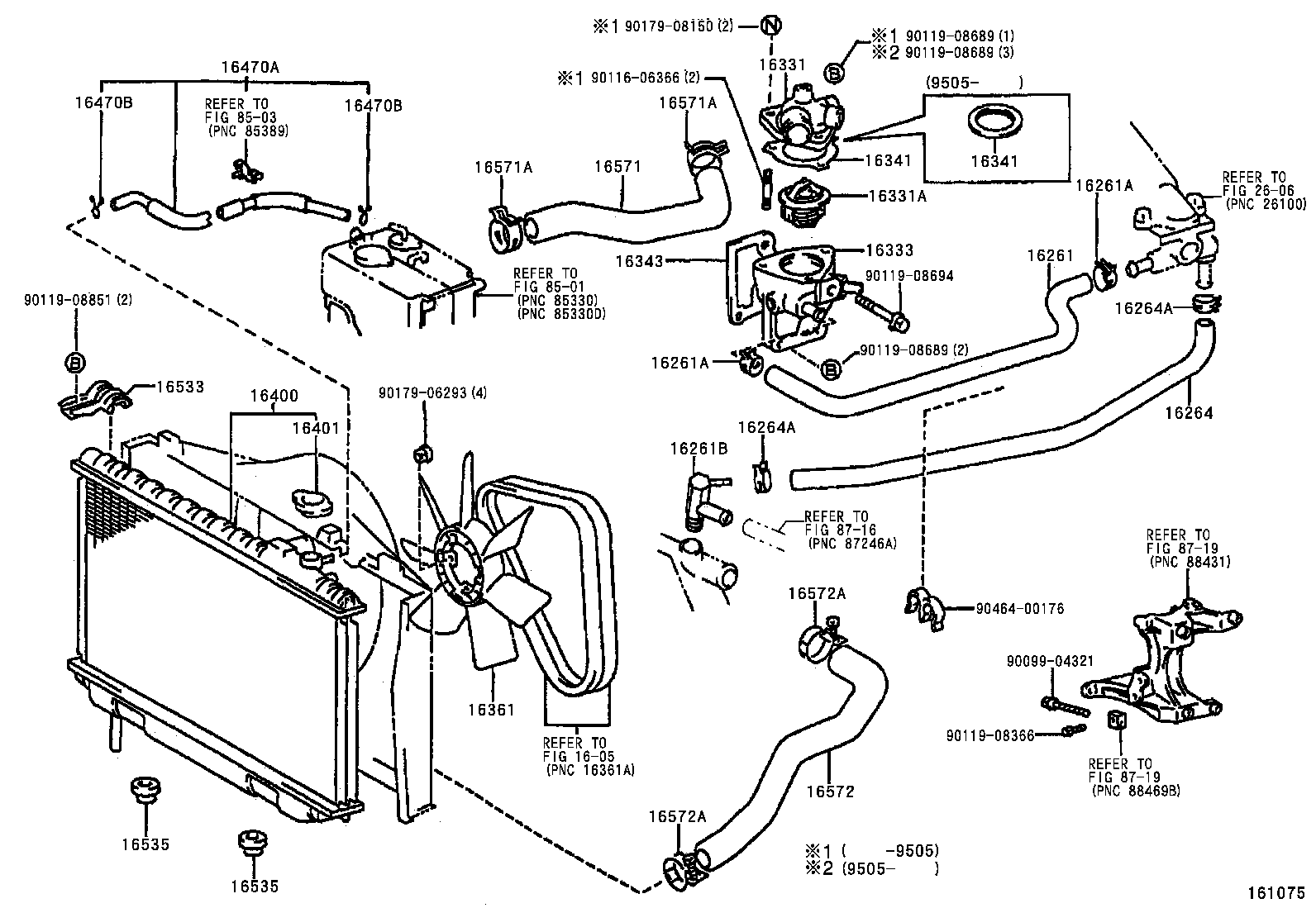

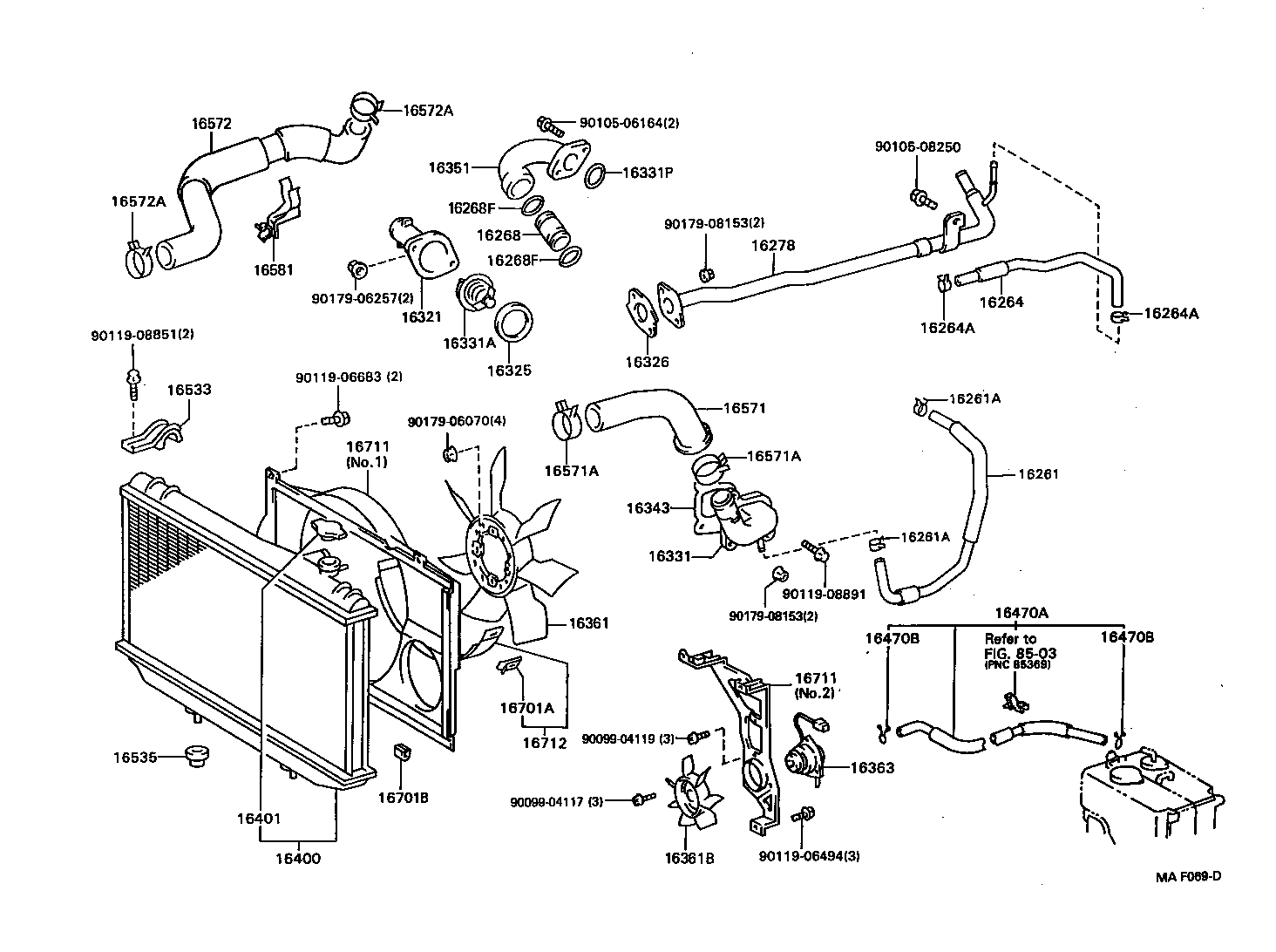

Radiator & Water Outlet
115 part groups · 17 illustrations
Illustrations
Part groups

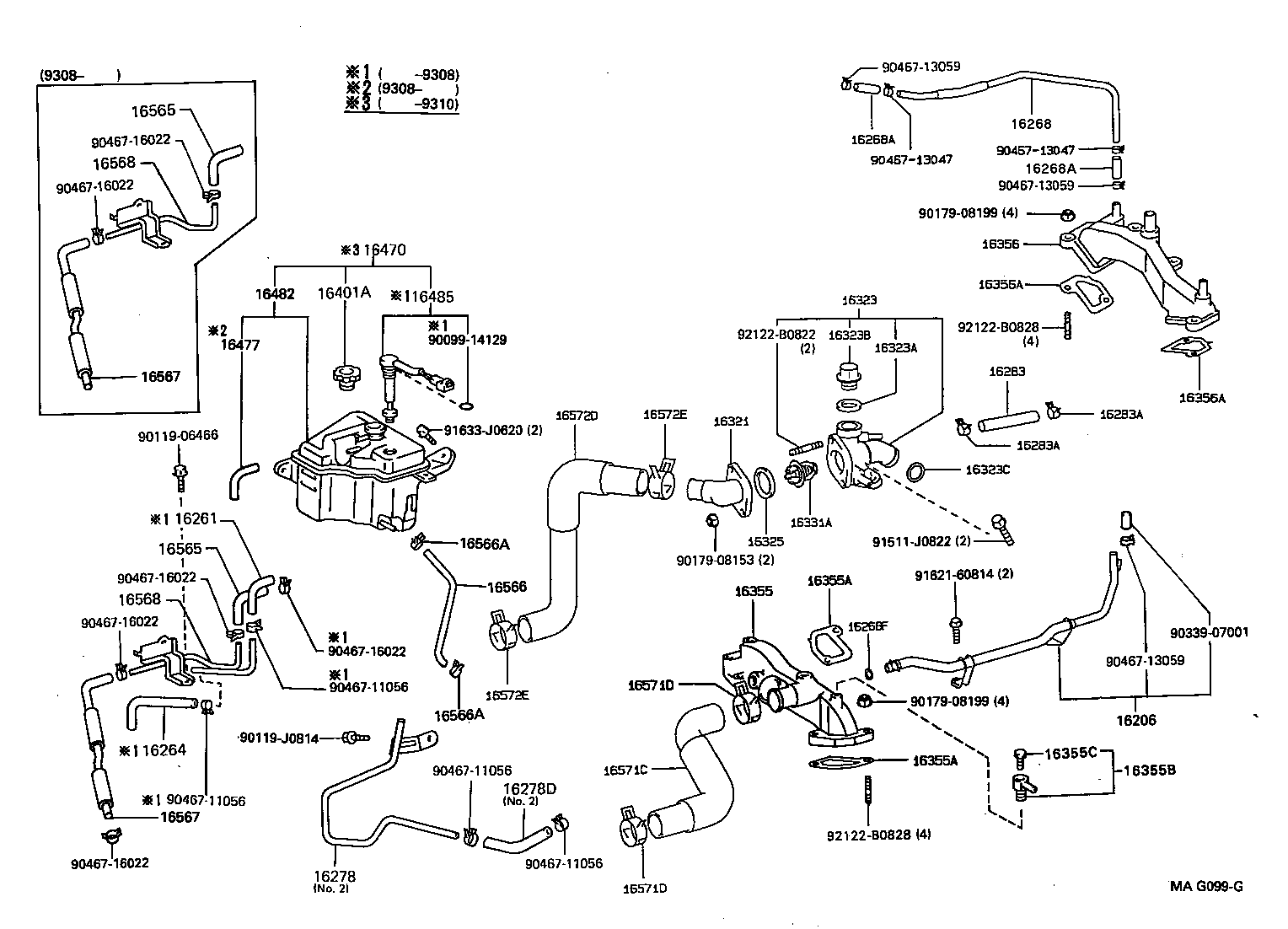

| PNC | Description |
|---|---|
| 16206 | Pipe Sub-assy, Water By-pass |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261B | Union(FOR WATER BY-PASS HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16268A | Hose(FOR WATER BY-PASS PIPE) |
| 16268F | Ring, O(FOR WATER BY-PASS PIPE) |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16278D | Hose, Water By-pass |
| 16283 | Hose, Water By-pass, NO.6 |
| 16283A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) |
| 16321 | Inlet, Water |
| 16321D | Bolt, Stud(FOR WATER INLET) |
| 16323 | Housing, Water Inlet |
| 16323A | Gasket(FOR WATER INLET HOUSING) |
| 16323B | Plug(FOR WATER INLET HOUSING) |
| 16323C | Ring, O(FOR WATER INLET HOUSING) |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331 | Outlet, Water |
| 16331A | Thermostat |
| 16331P | Ring,O(FOR WATER OUTLET) |
| 16333 | Housing, Water Outlet |
| 16341 | Gasket, Water Outlet |
| 16343 | Gasket, Water Outlet Housing |
| 16347D | Gasket, Water By-pass |
| 16351 | Outlet, Water By-pass |
| 16355 | Joint, Water By-pass, Front |
| 16355A | Gasket(FOR WATER BY-PASS JOINT FRONT) |
| 16355B | Cock Sub-assy, Water Drain(FOR WATER BY-PASS JOINT) |
| 16355C | Plug, Water Drain Cock(FOR WATER BY-PASS JOINT) |
| 16356 | Joint, Water By-pass, Rear |
| 16356A | Gasket(WATER BY-PASS JOINT, REAR) |
| 16361 | Fan |
| 16361B | Fan, NO.2 |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |

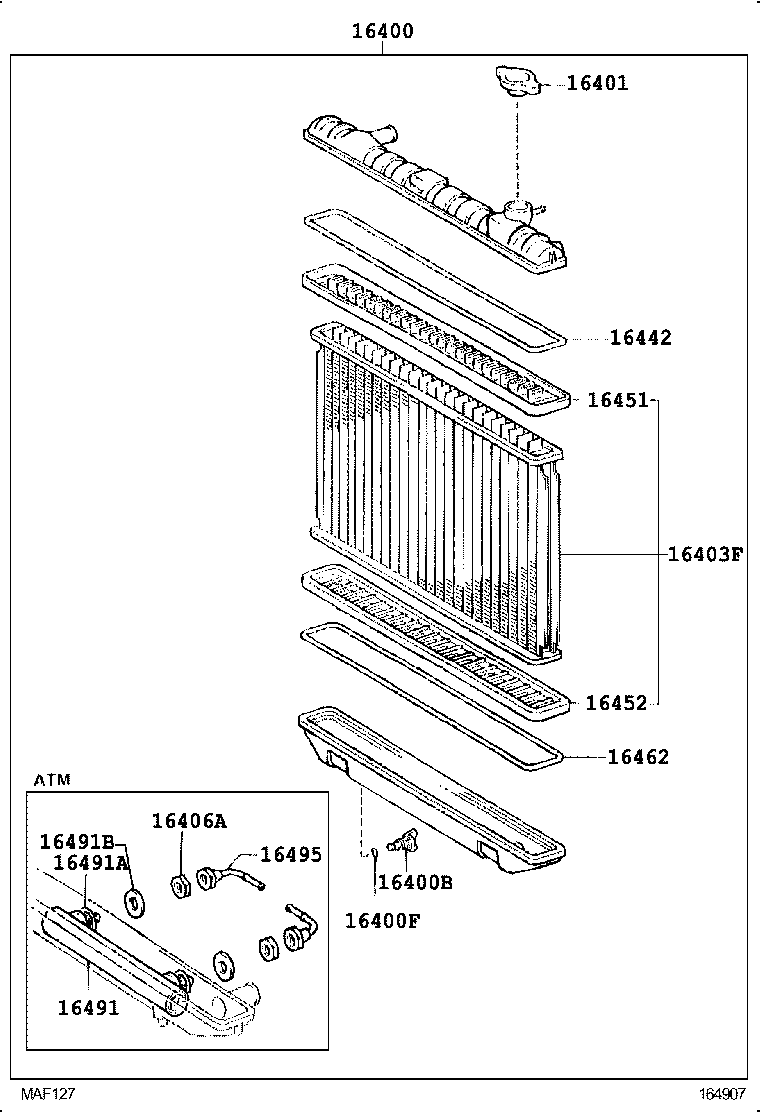

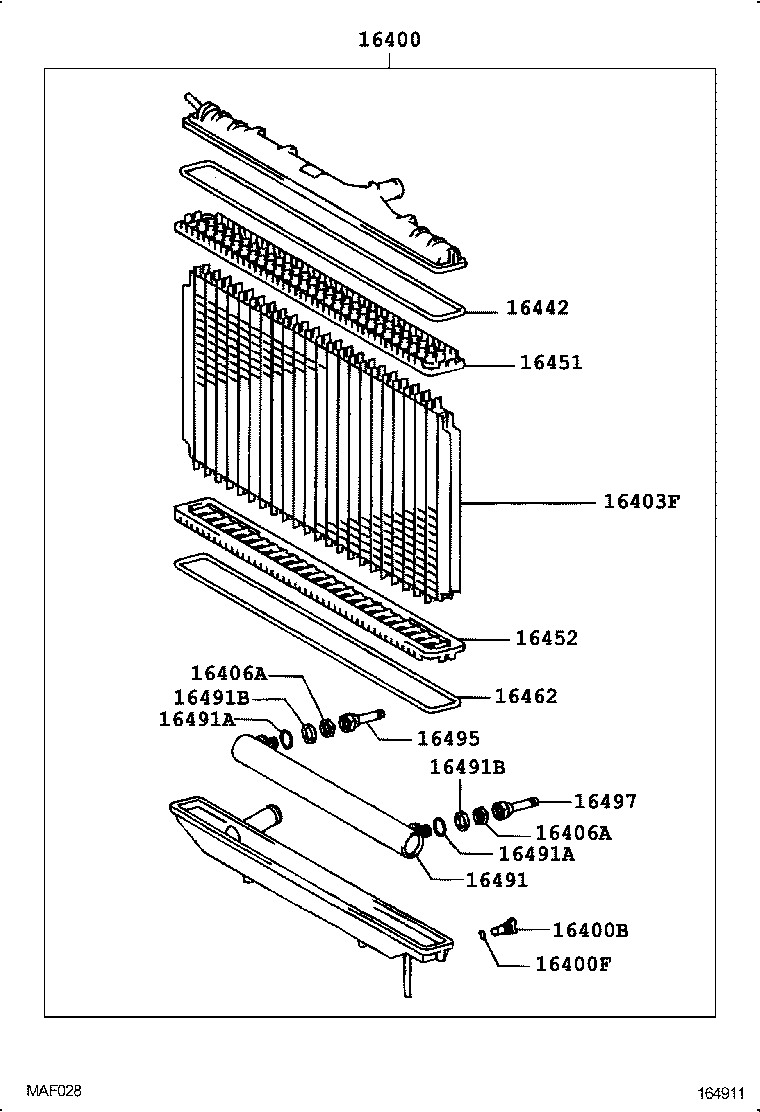

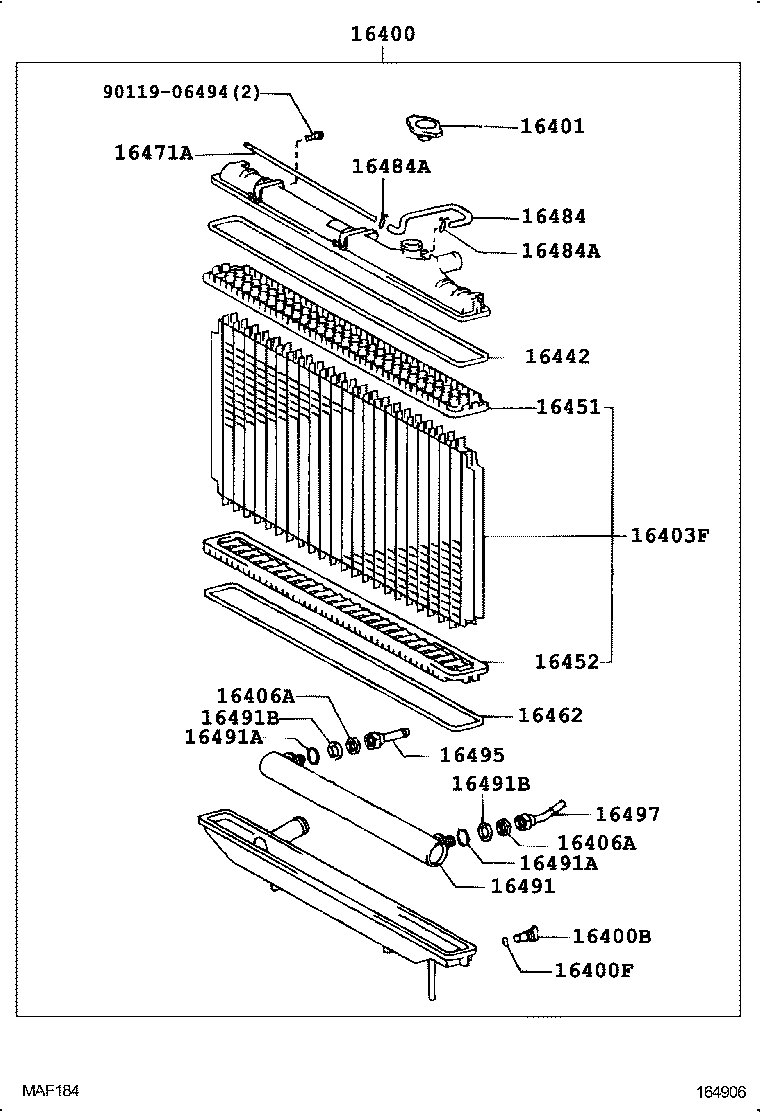

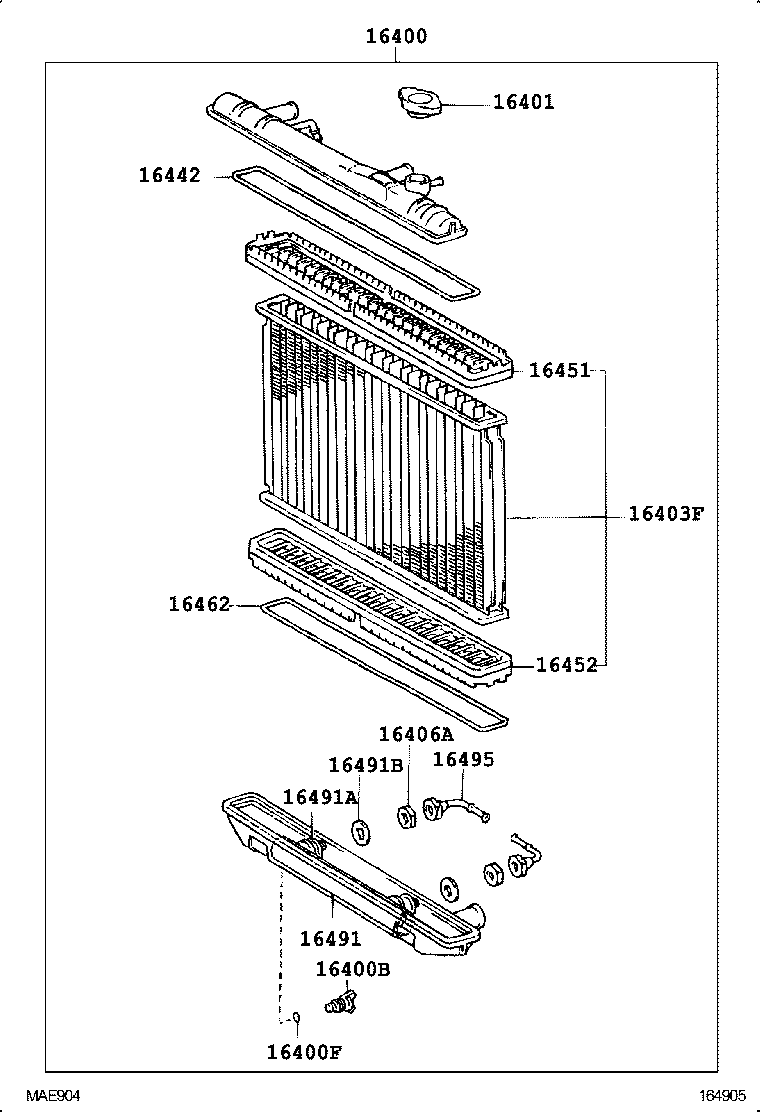

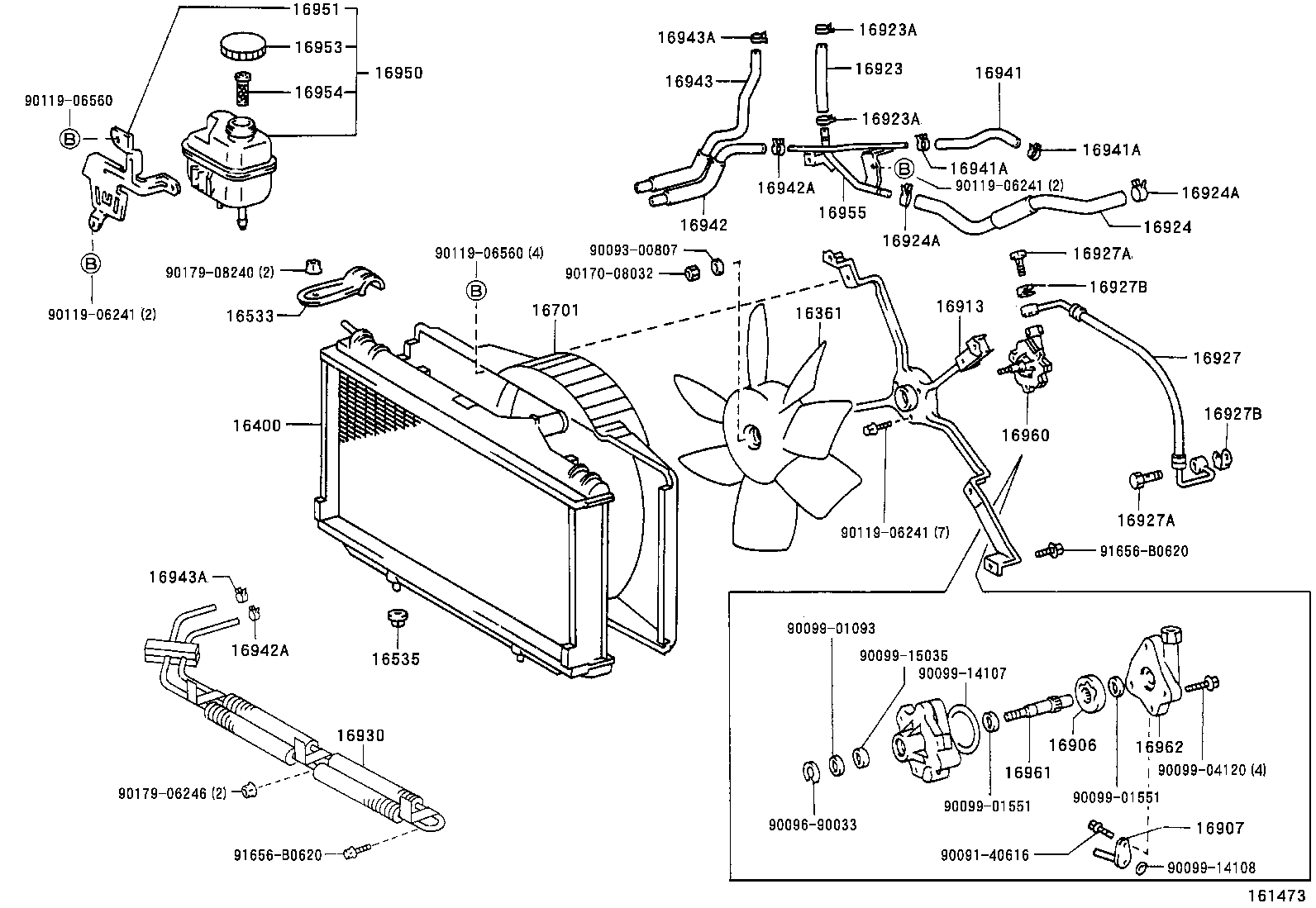

| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16400T | Shutter Assy, Radiator |
| 16401 | Cap Sub-assy, Radiator |
| 16401A | Cap Sub-assy, Radiator Reserve Tank |
| 16403F | Core Sub-assy, Radiator |
| 16406A | Support(FOR OIL COOLER) |
| 16442 | Ring, O(FOR RADIATOR UPPER TANK) |
| 16451 | Plate, Radiator Core, Upper |
| 16452 | Plate, Radiator Core, Lower |
| 16462 | Ring, O(FOR RADIATOR LOWER TANK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16470A | Hose OR Pipe(FOR RADIATOR RESERVE TANK) |
| 16470B | Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) |
| 16470R | Hose, NO.2(FOR RADIATOR RESERVE TANK) |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16471A | Support Sub-assy |
| 16472A | Protector, Hose |
| 16477 | Pipe(FOR RADIATOR RESERVE TANK) |
| 16482 | Tank Sub-assy, Radiator Reserve |
| 16484 | Pipe(FOR RADIATOR SUPPORT) |
| 16484A | Clip(FOR RADIATOR SUPPORT) |
| 16485 | Switch Assy, Level Warning |
| 16491 | Cooler, Oil(FOR ATM) |
| 16491A | Ring, O(FOR ATM OIL COOLER) |
| 16491B | Washer, Plate(FOR ATM OIL COOLER) |
| 16495 | Nut, Flare(FOR ATM OIL COOLER) |
| 16497 | Inlet Sub-assy |
| 16533 | Support, Radiator, Upper |
| 16535 | Support, Radiator, Lower |
| 16565 | Hose, Reserve Tank Inlet |
| 16566 | Hose, Reserve Tank Outlet |
| 16566A | Clip(FOR RESERVE TANK OUTLET) |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16568 | Pipe, Radiator TO Reserve Tank |
| 16571 | Hose, Radiator, Inlet |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572 | Hose, Radiator, Outlet |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16581 | Clamp, Hose(FOR WATER HOSE) |
| 16701 | Shroud Sub-assy, Fan |
| 16701A | Clip(FOR FAN SHROUD) |
| 16701B | Cushion, Fan Shroud |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
| 16906 | Gear Set, Hydraulic |
| 16907 | Pipe Sub-assy, Hydraulic Gear Motor |
| 16913 | Stay, Hydraulic Motor Fan Shroud |
| 16923 | Hose, Hydraulic Motor Suction, NO.1 |
| 16923A | Clip(FOR SUCTION HOSE NO.1) |
| 16924 | Hose, Hydraulic Motor Suction, NO.2 |
| 16924A | Clip(FOR SUCTION HOSE NO.2) |
| 16927 | Hose, Hydraulic Motor Pressure |
| 16927A | Bolt, Union(FOR PRESSURE HOSE) |
| 16927B | Gasket(FOR PRESSURE HOSE) |
| 16930 | Cooler Assy, Hydraulic Motor Oil |
| 16941 | Hose, Hydraulic Motor Return, NO.1 |
| 16941A | Clip(FOR RETURN NO.1) |
| 16942 | Hose, Hydraulic Motor Return, NO.2 |
| 16942A | Clip(FOR RETURN HOSE NO.2) |
| 16943 | Hose, Hydraulic Motor Return, NO.3 |
| 16943A | Clip(FOR RETURN HOSE NO.3) |
| 16950 | Tank Assy, Hydraulic Motor Reserve |
| 16951 | Bracket, Hydralic Motor Reserve Tank |
| 16953 | Cap, Hydraulic Motor Reserve Tank |
| 16954 | Strainer, Hydraulic Motor Reserve Tank |
| 16955 | Pipe, Hydraulic Motor Return |
| 16960 | Motor Assy, Hydraulic Gear |
| 16961 | Shaft, Hydraulic Gear Motor |
| 16962 | Cover, Hydraulic Gear Motor |
