Toyota Crown/Crown Majesta

1991-10 → 1995-08 · chassis JZS14#,LS141,UZS14#,GS141 · catalogue 331180 · Japan

Discontinued model Data version 1996-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

29 part groups · 6 illustrations

Illustrations

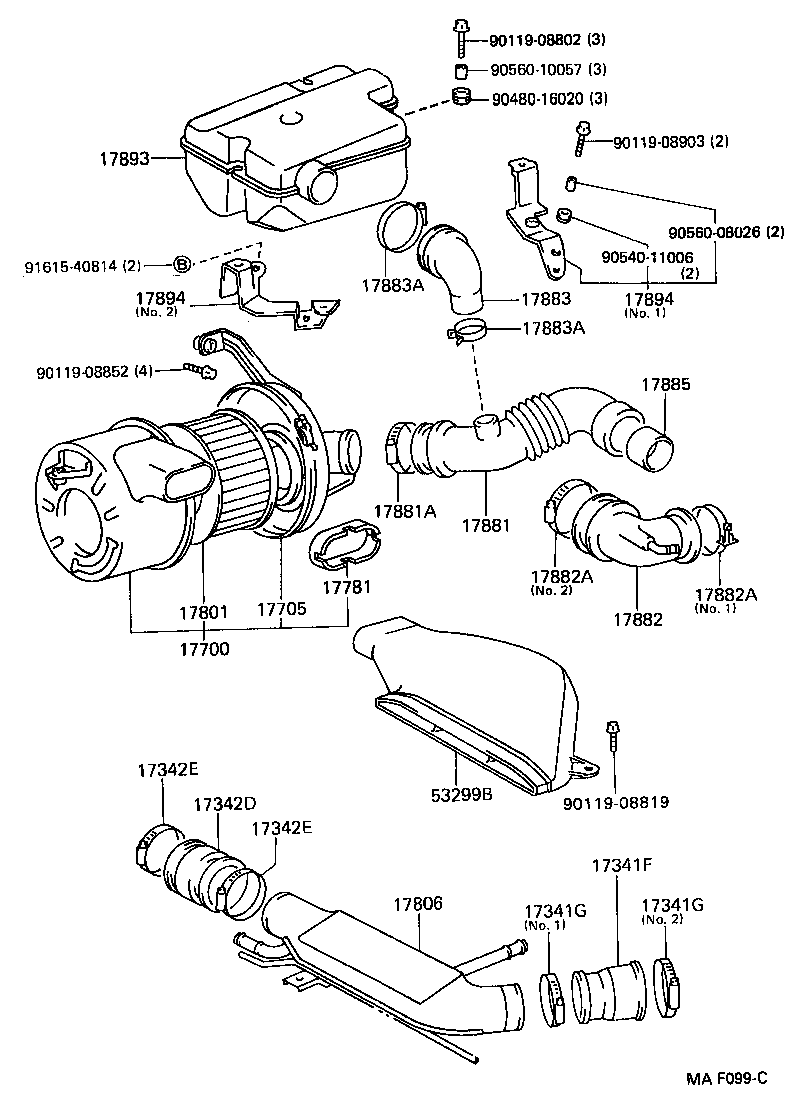

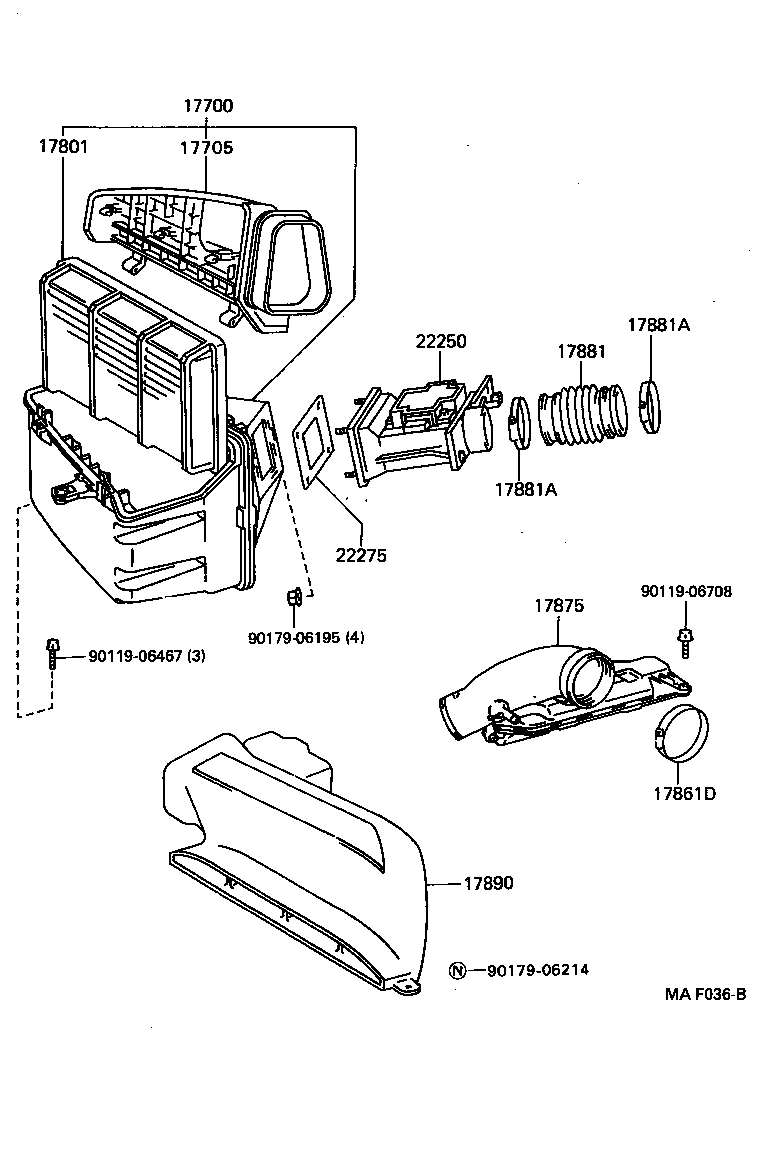

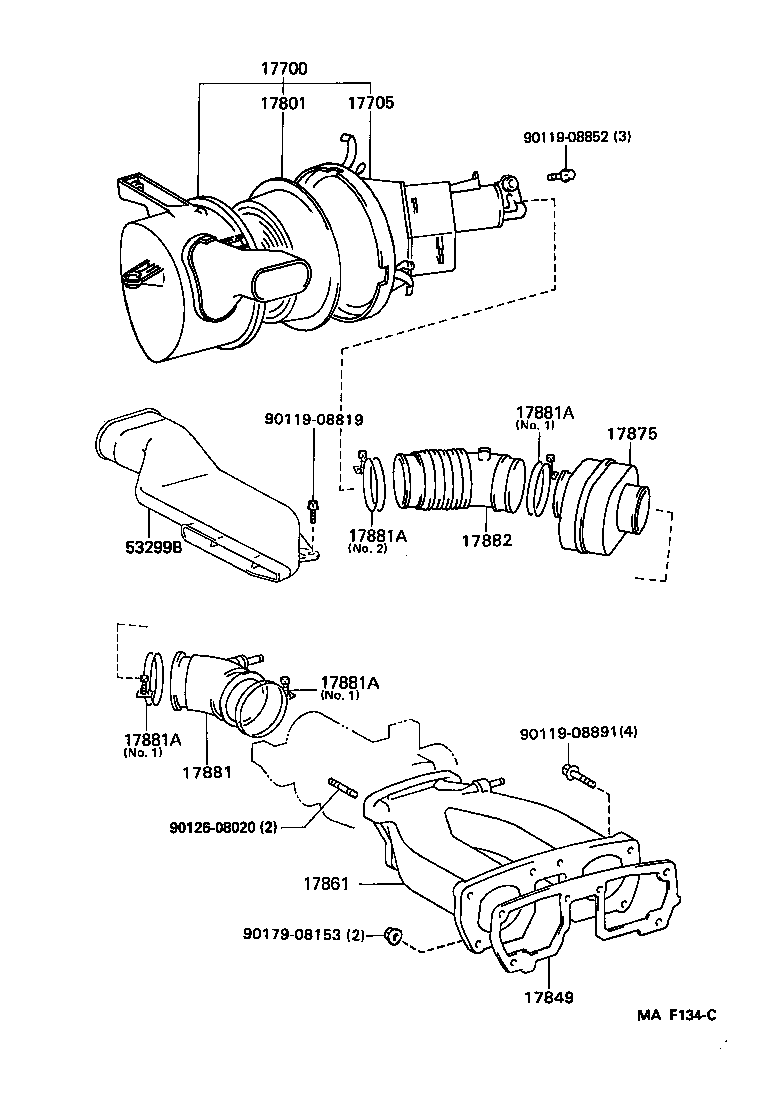

Figure 171905 171905 1993-08 → — Figure MAF134C MAF134C 1991-10 → — Figure MAF136D MAF136D 1991-10 → — Figure MAF099C MAF099C 1991-10 → 1993-08 Figure MAF099C MAF099C 1993-08 → — Figure MAF036B MAF036B 1991-10 → —

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17478A Plate, Lock
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17781 Seal, Air Cleaner Inlet
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17806 Pipe Sub-assy, Air Cleaner, NO.2
17849 Gasket, Intake Air Connector
17856 Gasket, Air Intake Flange
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17875 Pipe, Intake Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
17890 Hose Assy, Air Cleaner, NO.2
17893 Resonator, Intake Air
17894 Bracket, Resonator
22250 Meter Assy, Intake Air Flow
22275 Gasket, Air Flow Meter
53299B Duct, Cool Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
